Introduction to plasma cutting machine
The gantry plasma cutting machine uses the plasma arc as the cutting heat source, and the workpiece is partially melted and blown away by the plasma gas sprayed at high speed, so as to achieve the purpose of cutting. Plasma cutting machine is mainly composed of cutting power supply, control system, cutting gun, gas system, water cooling system and so on. Among them, the cutting power supply provides stable high voltage and high current, the control system is responsible for accurately controlling the cutting trajectory and speed, and the cutting gun is the key component that guides the plasma gas to the cutting position.
The advantage of our machine
High efficiency cutting
The plasma cutting speed is fast and the heat affected zone is small, which can greatly improve the production efficiency.
High accuracy
Through precise control system and cutting trajectory planning, high precision cutting can be achieved.
Wide range of applicable materials
Gantry plasma cutting machine is suitable for cutting various metal materials, including stainless steel, aluminum, copper, etc.
Good cutting surface quality
Smooth cutting surface, no secondary processing, saving time and cost.
Easy to operate
The equipment adopts humanized operation interface, easy to learn and master.
Low maintenance cost
The equipment has stable structure, high durability and low maintenance cost.
Application of gantry plasma cutting machine
Metalworking industry
Used for cutting all kinds of metal sheets, pipes, etc., widely used in machinery manufacturing, shipbuilding, bridge construction and other fields.
automobile manufacture industry
It is used for cutting and processing of automobile body, chassis and other parts to improve production efficiency and product quality.
energy industry
In oil, natural gas, nuclear power and other fields, for cutting metal pipes, storage tanks and other equipment.
building trades
It is used for cutting and processing of building steel structure, curtain wall and other components to improve building quality and aesthetics.
Detailed Photos
Shanhai SJTU -CNC control system F 2300B
All Chinese/foreign languages (English, Japanese, Russian, French, other customized languages) operation menu, switch between Chinese and Foreign languages with one key
China best brand HYD THC adjust controller
Machine mechanics design,Invited the famous university physics professor of the design of the machine,
The middle of each beam has a column, strengthen the support of the bed effect.
For the magnification, thick, heavy metal plate,Can effectively prevent the middle of the machine due to lack of bearing capacity caused by the deformation of the machine.

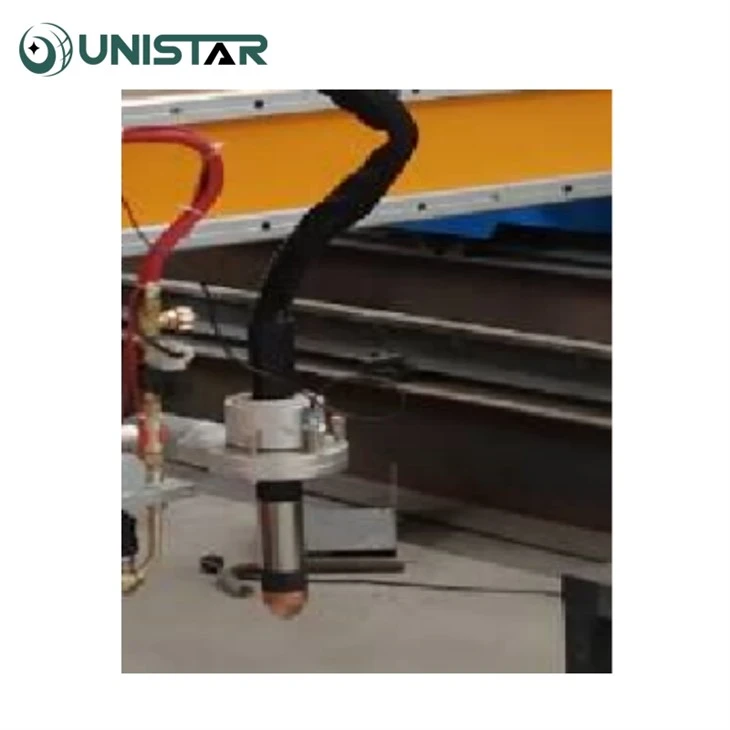

Plasma cutting head
Plasma cutting torch with height control system , can automatical adjust cutting height when metal plate is not same level
Flame cutting head
Flame cutting head can cut max 200mm Metal ,Automatically ignition system Use it more easy
Gantry
Have been professional anti-rust treatment,Are sprayed 2 times anti-rust paint to ensure that all parts of the machine in a fully protected state,And then spray the color
Leadshine stepper drivers M860
The subdivided driving technology of stepping motor is improved greatly step torque resolution, reduce the torque ripple, avoid the low frequency resonance and reduce running noise.

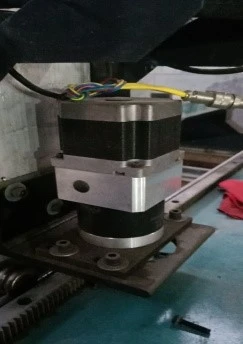

Leadshine stepper motor 450B
Won't lose step when it work,guarantee the positional accuracy of the motor.
Taiwan planetary reducer
Small volume, light weight, high bearing capacity, long service life, smooth operation, low noise, large output torque, high speed ratio, high efficiency, safe performance characteristics
Rail guide
China famous brand High quality rail guide , no rust , have smoothly high accuracy
Design software
Professional Fastcam design software
Helical rack
Helical rack and pinion , Large bearing area, reduce machine vibration, higher precision, longer service life
Screw
For making the rail guide and helical Rack install
Bolt
Use for rail guide install on the machine
collision-prevention device
When the external object touched the cutting gun , it will Automatic pop-up stop working , it have protect cutting torch function , more safe cutting
technical parameters
|
Name |
technical parameters |
|
Working area |
2.5m* 6m |
|
Supply power |
400A LGK Huayuan Plasma source |
|
Machine body |
Weld steel heavy model gantry structure |
|
Control system |
Shanghai SJTU control system with THC system |
|
THC system |
Professional torch height adjustment system |
|
Cutting Head 1 |
Flame Cutting head Gantry model cut max 200mm metal |
|
Cutting head 2 |
Plasma cutting head 400A for cutting MAX 50 mm metal |
|
Motor and driver |
Stepper motor and drivers |
|
Reducer |
Taiwan planetary gear |
|
Rail guide |
Rack and Gear transport system |
|
Software |
Professional Fastcam software |
|
Transmission |
X,Y Helical rack -pinion ,Z ball screw from Taiwan |
|
Max. cutting speed |
Thin metal speed 8m/min , thick metal plate 3m/min |
|
Maximum cutting accuracy |
0.2 mm |
|
Positioning accuracy |
+_0.02 mm |
|
Repeatability |
+_0.02mm |
|
Working voltage |
380V/50HZ/60HZ |
|
Date of delivery |
15Working Days |
Samples
Company Profile
Jinan Unistar Machinery Co., Ltd. was established in 2002, experienced 15 years of development and solid operation, the company has 20 professional research senior technical engineers in the field of laser, 100 sales team, 30 domestic and foreign after-sales service team, 150 workers, with strong new product development ability, Has developed into one of the largest and most influential enterprises in the laser industry
After-sales service
certificate

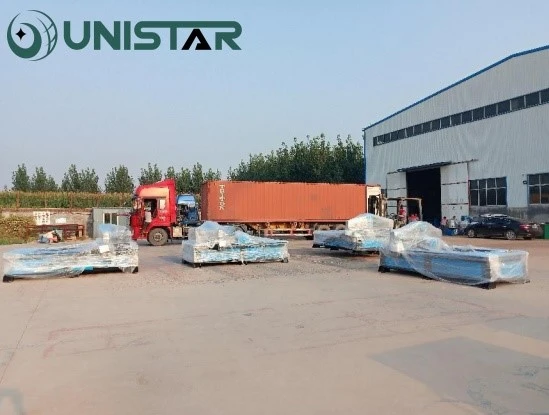

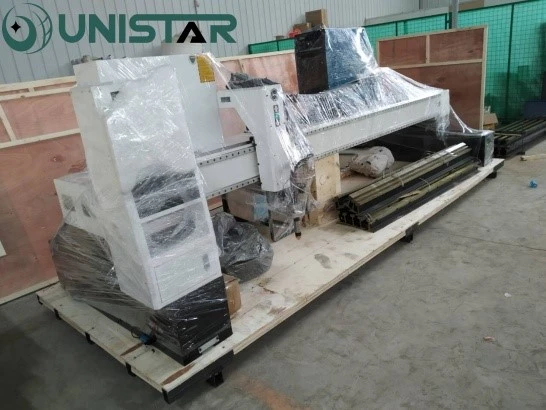

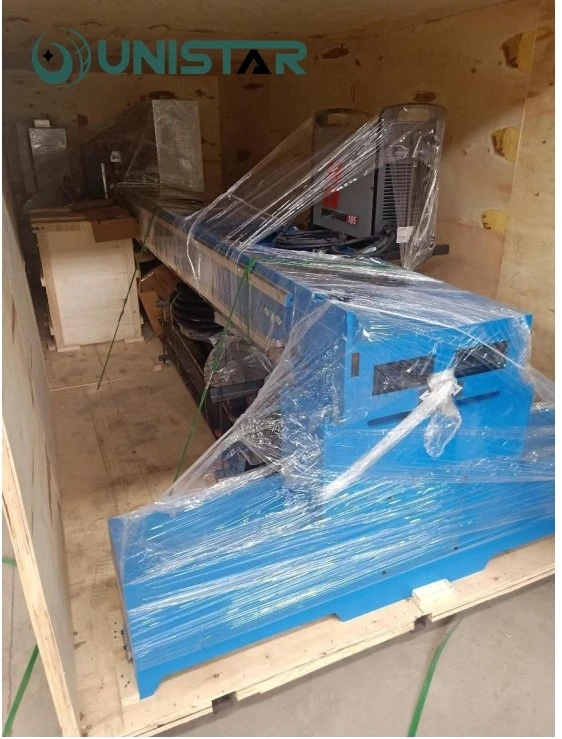

packing and shipping
