Best Selling Plasma Design Cutter
Plasma cutting machines are widely used in the metal cutting industry. UNISTARCNC is a company specializing in the production of this machine. We have many models to choose.
configuration list
Parameter | Specification |
Type | USP-1325 |
Working Area | 1300*2500mm |
Plasma Power Source | huayuan LGK 120A |
Power Cutting Ability | High-quality cutting thickness 18mm, maximum cutting thickness 25mm |
Control System | Beijing Starfire |
Motor and Drivers | Stepper motor and drivers |
Working Table | Blade table |
Transmission | X,Y Helical rack -pinion ,Z ball srew |
Rail Guide | Taiwan PMI rail guide |
Software | Fastcam software |
THC System | Torch height control system |
Cutting Speed(Max) | 15000mm/min |
Feed Rate (Max) | 8m/min |
Repeat Ability | 0.01mm |
Working Voltage | 380V/50HZ |
Packing Size | 3.0m*1.9m*1.85m |
Details of plasma cutting machine

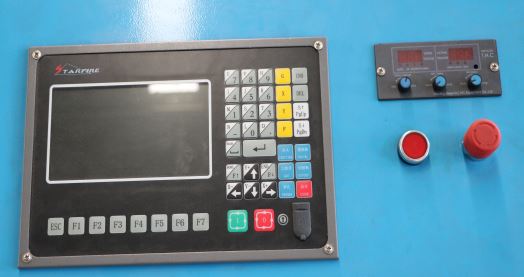

Beijing starfire control system, THC system, start button, emergency stop button are all located on the same interface, which is convenient for us to operate, and the layout is optimized according to the number of uses.

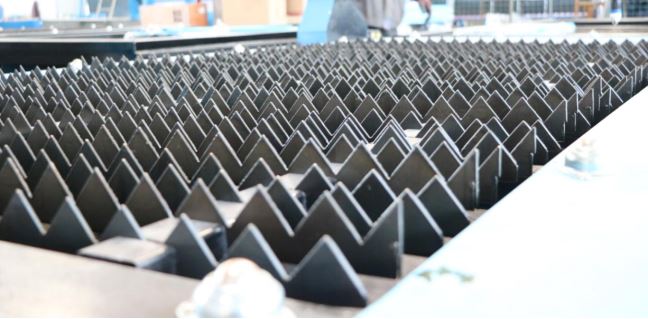

It can be seen from the picture that our blades are very dense, and each blade is also thickened, so that the cutting parts will not be deformed by the table, which is a problem ignored by many manufacturers.

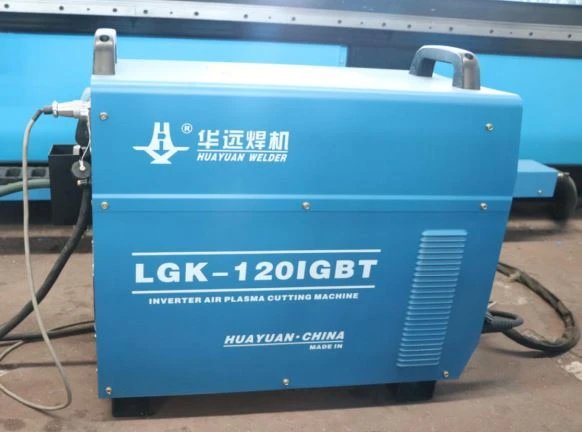

The cutting power of this machine is Huayuan 120A cutting machine. Of course, you can also choose other types of cutting power according to the thickness of the cutting plate.The common cutting power and cutting thickness are shown in the following table.
Power Source | Optimal | Max | Power Source | Optimal | Max |
China Huayuan brand | USA Hypertherm brand | ||||
63A | 8mm | 12mm | 45A | 5mm | 8mm |
100A | 18mm | 25mm | 65A | 8mm | 15mm |
120A | 18mm | 25mm | 85A | 12mm | 20mm |
160A | 25mm | 35mm | 105A | 15mm | 25mm |
200A | 35mm | 40mm | 125A | 25mm | 30mm |
200A | 30mm | 40mm | |||

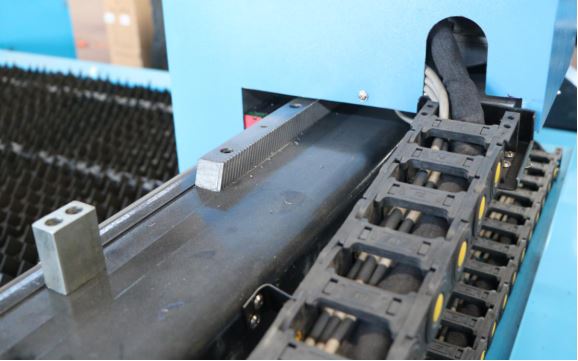

The trunking of the equipment effectively protects the power cables, signal lines, air compressors, etc., and also makes the machine more beautiful. The trunking is made of well-known domestic brands and is very durable. The drawings also show that we choose high-quality helical teeth, which provides a reliable guarantee for the accurate and stable operation of the machine.

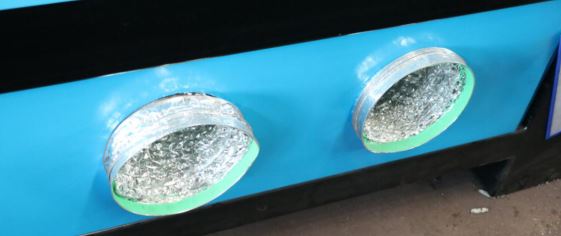

The large-diameter special exhaust pipe is very useful for the exhaust of smoke during cutting, and provides a good environment for the processing site.
Significant advantages of plasma cutting machines
Smooth movement
Excellent cutting quality
Precise control of cutting torch height
Divided work surface
Advanced industry control system
