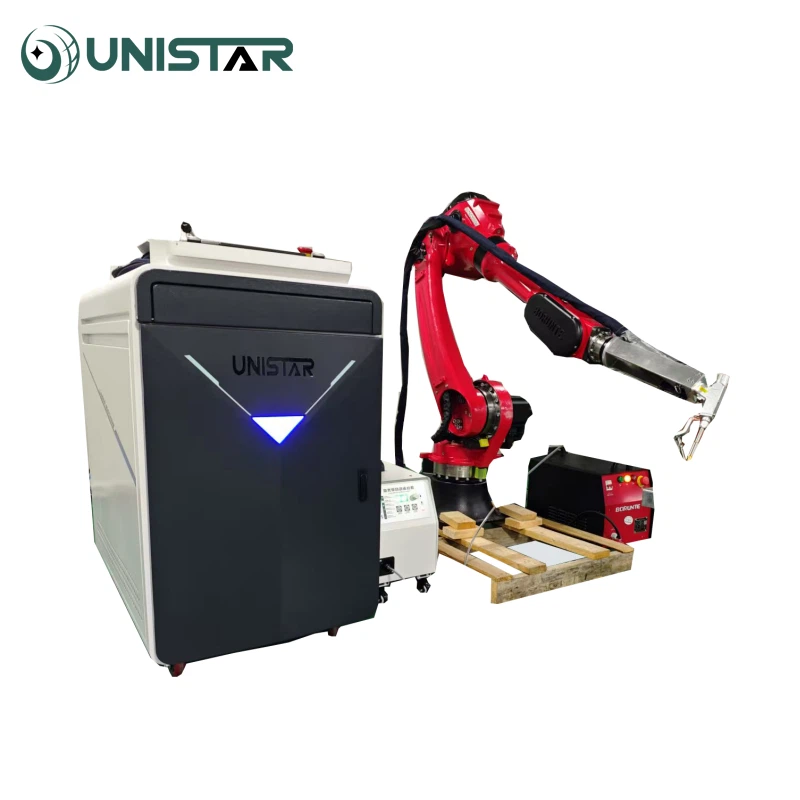

Six Axis Laser Robot Welding Machine On Hot Sale

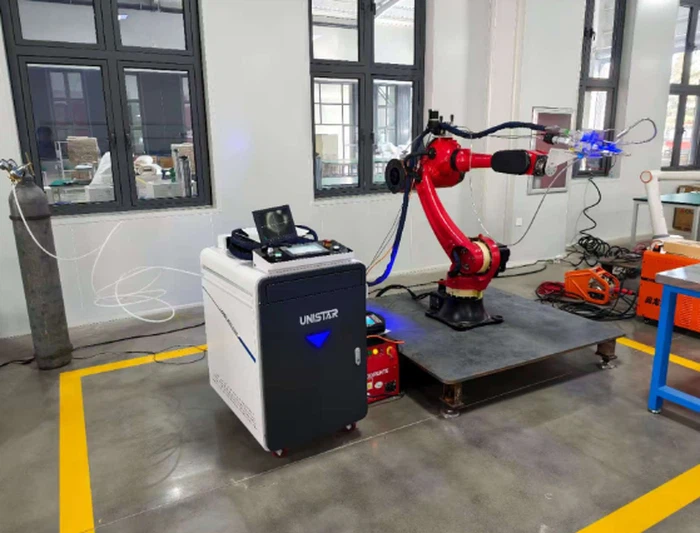

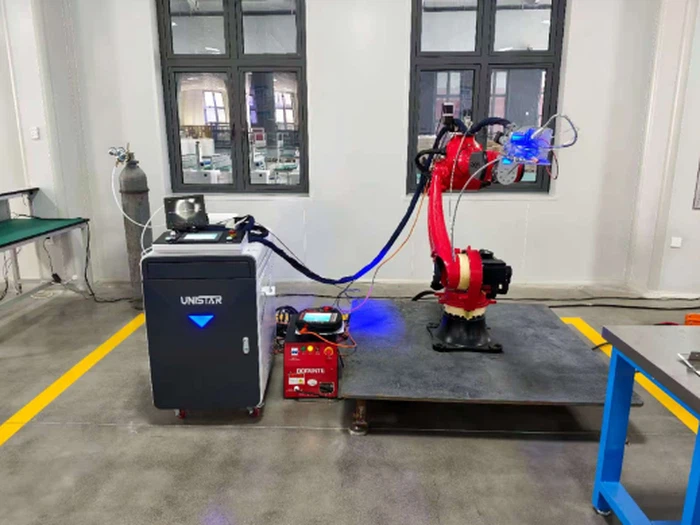

Laser welding robot is a combination of laser technology and robotics. The laser welding robot system is a 6 axis robot with high flexibility, which can complete the welding of complex workpieces, and it can adapt to the changing conditions of the workpieces. The laser system can use welding lenses, cutting lenses, scanning welding lenses and even laser cladding heads. Because of the magnetic coupling connection method, different lenses can be quickly switched to each other. Laser welding robot is also known as robotic laser welding machine, robotic laser welder, laser beam welding robot, laser beam welding is the full form of LBM, so you can also call it as LBW robot.

The welding robot is composed of three basic parts: the machine, the drive system and the control system. The machine is the base and the actuator, and some robots also have a walking mechanism. Most welding robots have 3 to 6 degrees of motion, of which the wrist usually has 1 to 3 degrees of motion. The drive system includes a power device and a transmission mechanism to make the actuator produce corresponding actions. The control system sends command signals to the drive system and actuators according to the input program, and controls them.

It has 6 degrees of freedom:

Rotation J1: ±155°
Lower arm J2: -140°/+65°
Upper arm J3: -75°|+110°
Wrist rotation J4: ±180°
Wrist swing J5: ±115°
Wrist oscillation J6: ±360°

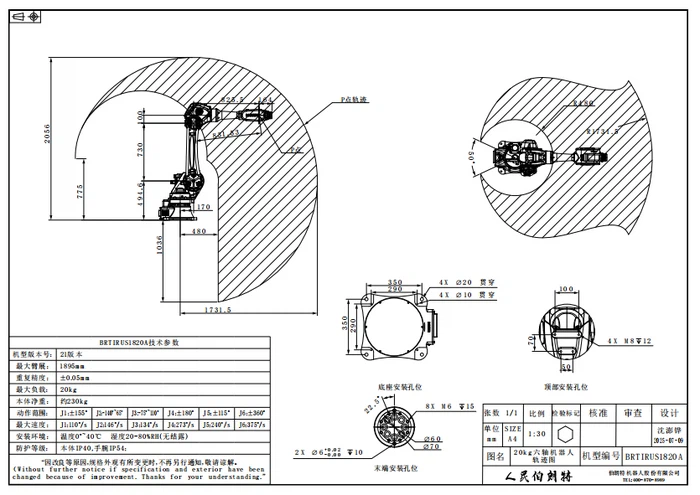

The BRTIRUS1820A is a six-axis robot developed by Berrant for complex multi-degree-of-freedom applications. It has a maximum payload of 20kg and a 1895mm arm span. Featuring a lightweight arm design and a compact, simple mechanical structure, it can operate flexibly in confined spaces during high-speed movements, meeting the needs of flexible production. With six degrees of freedom, it can handle loading and unloading, injection molding, die casting, assembly, gluing, grinding, and inspection with ease. Suitable for injection molding machines: 500T-1300T. High protection rating: wrist IP54, body IP40. High precision: repeatability ±0.05mm.

Arm span (mm): 1895

Repeatability (mm): ±0.05

Maximum load (kg): 20

Power capacity (kVA): 5.87

Weight (kg): Approx. 230

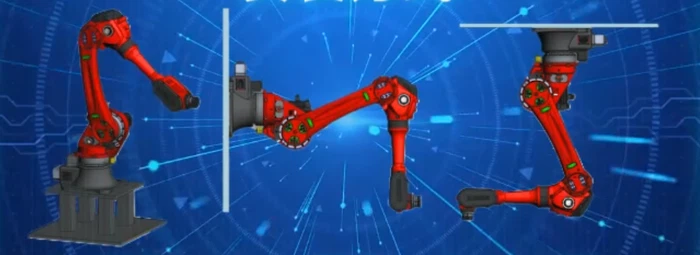

The robot can be installed in different ways, including upright, upside down, and side mounting.

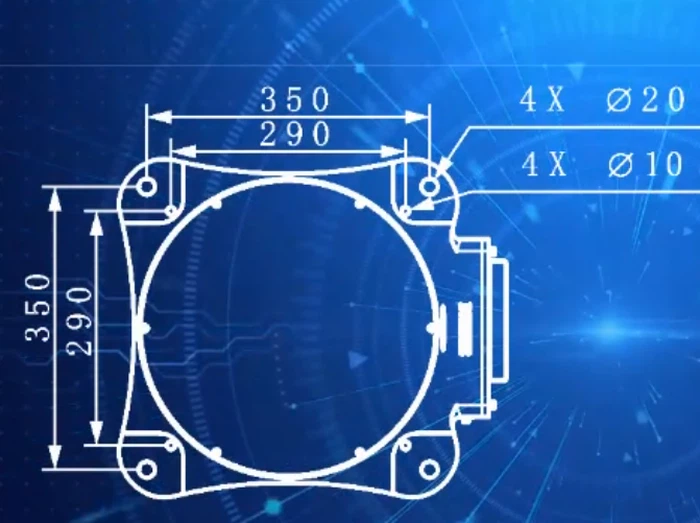

Installation dimensions: 350*350mm

Mounting holes: 4 x φ20 through holes

M18 screws can be used for fixing

4 x φ10 dowel holes are provided

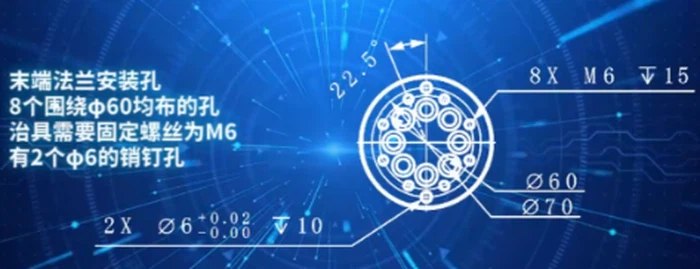

End flange mounting holes:

8 holes evenly distributed around φ60.

The fixture requires M6 fixing screws.

There are 2 φ6 pin holes.

Secondary Parameters:

Power Supply: 220V±10% 50/60Hz

Signal Points: The system comes with one I/O board, which has 32 inputs and outputs.

Extension Axes: Can be expanded with two external axes, namely J7 and J8 axes.

External Communication Methods: RS485/CAN/Ethernet

Environmental Parameters

Operating Temperature: 0℃-40℃

Optimal Ambient Temperature: 15℃-25℃

Relative Humidity: 20-80%RH (non-condensing)

Air Source Pressure: 0.5-0.7MPa

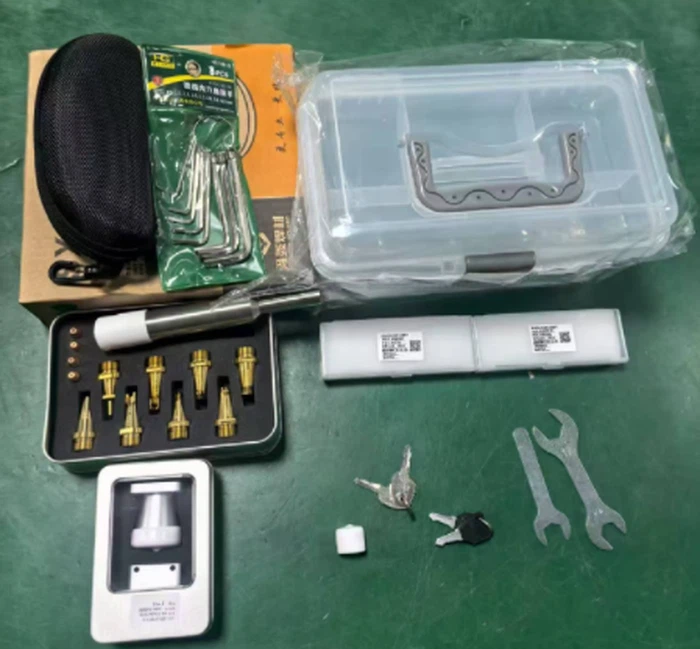

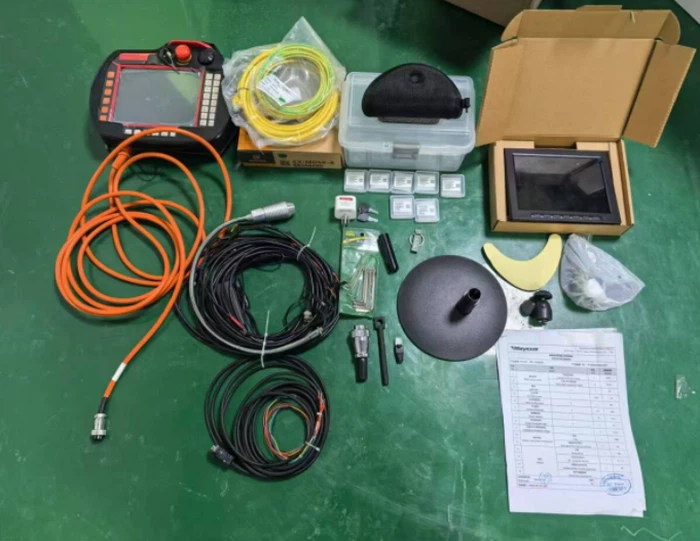

The robot can be equipped with a specialized welding system or a three-in-one system; the accessories included with different systems are different.

We guarantee the quality of the main parts within 1 Year. If the main parts go wrong without artificial factors within 1 year, we will freely provide them or maintain them for you. After 1 year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you. (except valuable parts)
