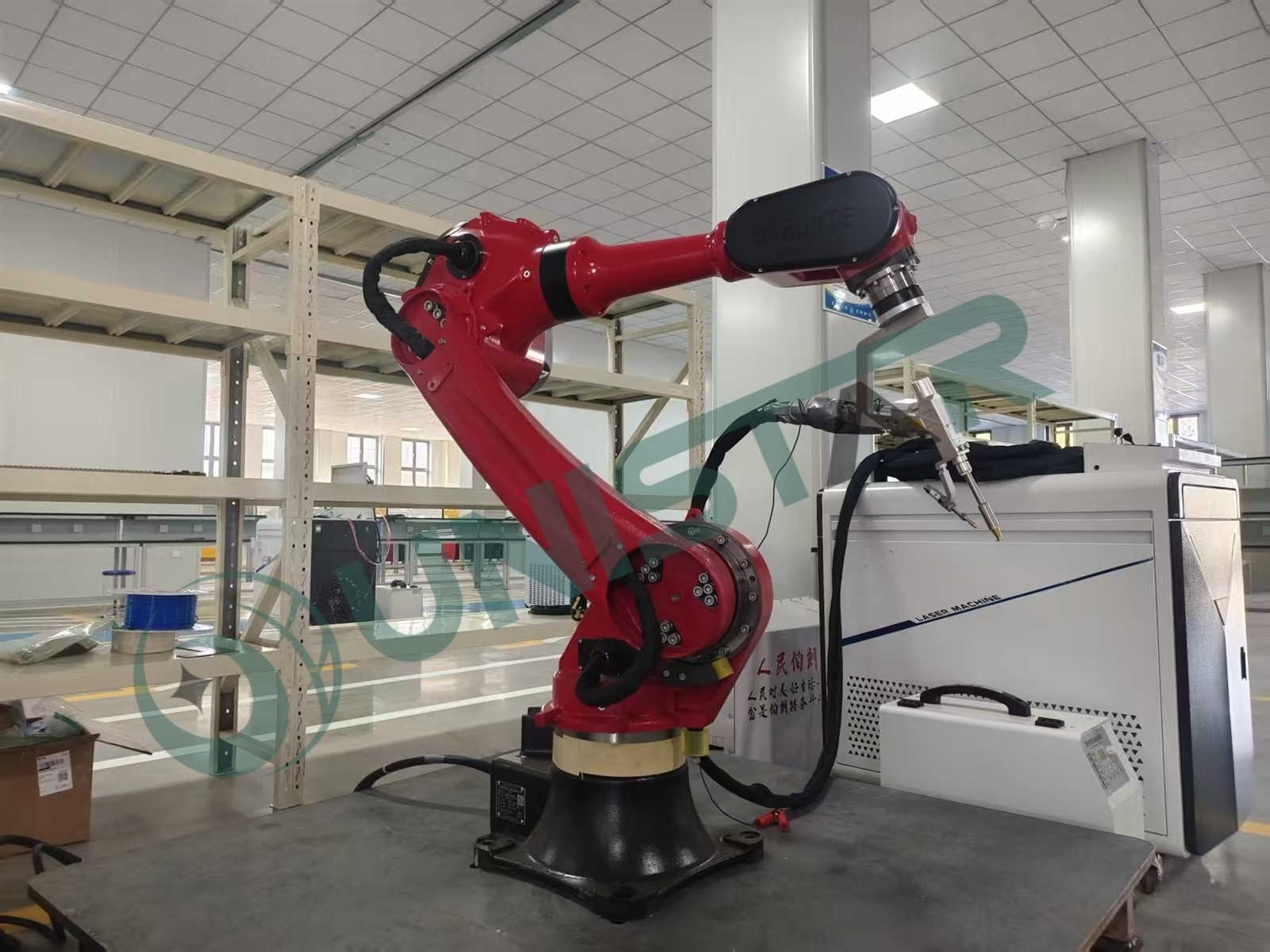

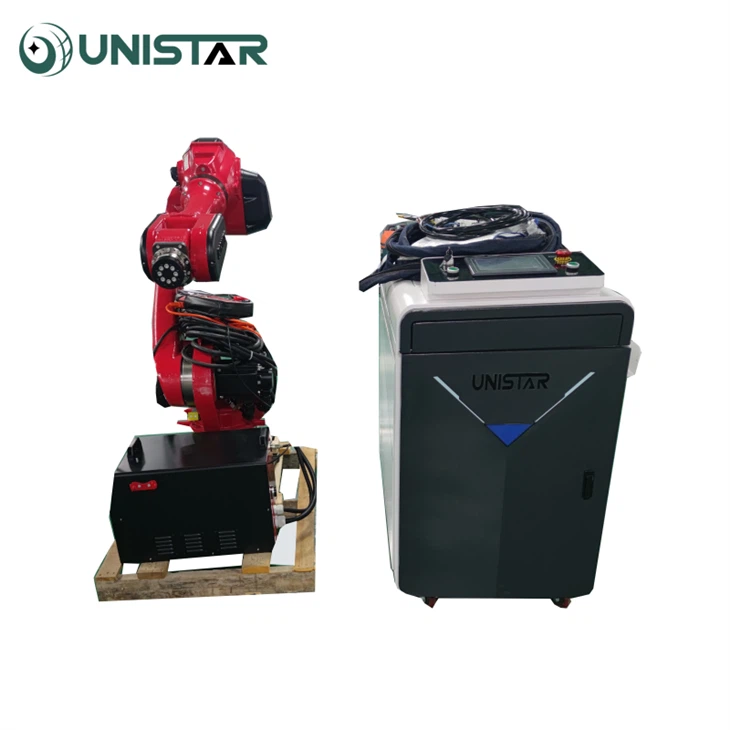

Laser Welding Robot Machine
Laser welding uses a high energy density laser beam as a heat source to locally heat the material in a small area, causing the material to melt and form a specific molten pool, thus achieving a welding effect. Laser welding is mainly used for welding thin-walled materials, precision parts and so on. It can realise spot welding, splicing welding, sealing welding, surfacing welding and so on. It has the advantages of small thermal deformation, beautiful and smooth weld seam, high welding quality, no need for secondary grinding and so on. In recent years, laser welding has been widely used in the welding of stainless steel, carbon steel, galvanised sheet, aluminium and other products.

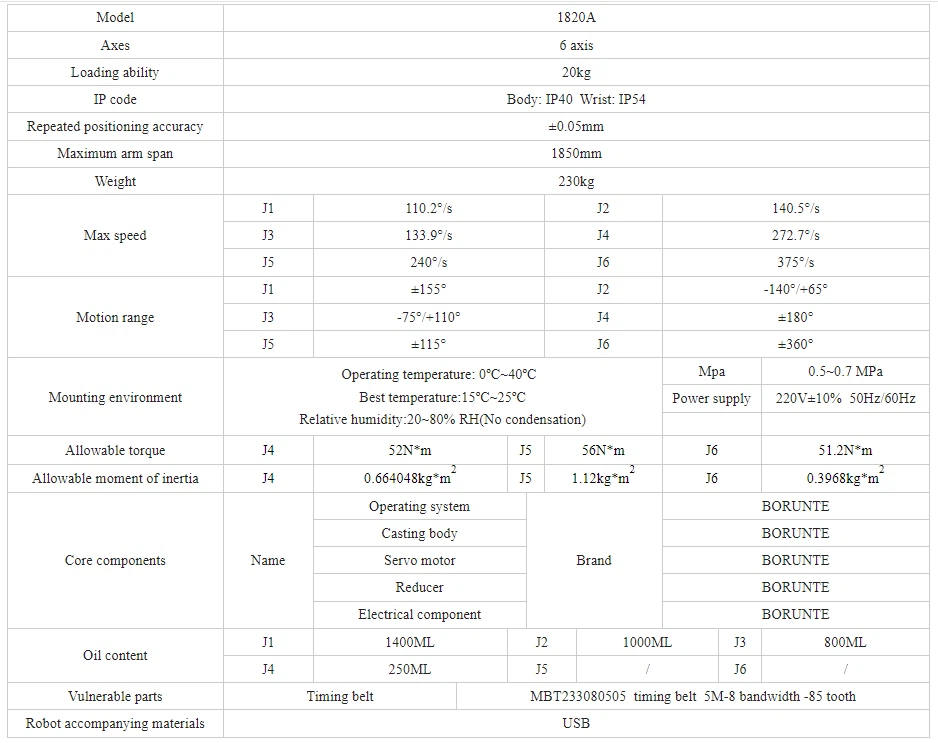

Products specification
Our Advantages
The small wrist can operate in a smaller space, and by employing high-output torque, it increases the wrist's load capacity and expands the range of shapes that can be gripped.
The use of a lightweight arm and a small, high-return motor significantly improves maximum speed and acceleration. By integrating the load weight, acceleration performance is enhanced and cycle time is shortened.
Application Industry
Biomedicine, Electronic Industry, Automotive Industry, Manufacturing Industry, Advertising Models, Stainless Steel Products

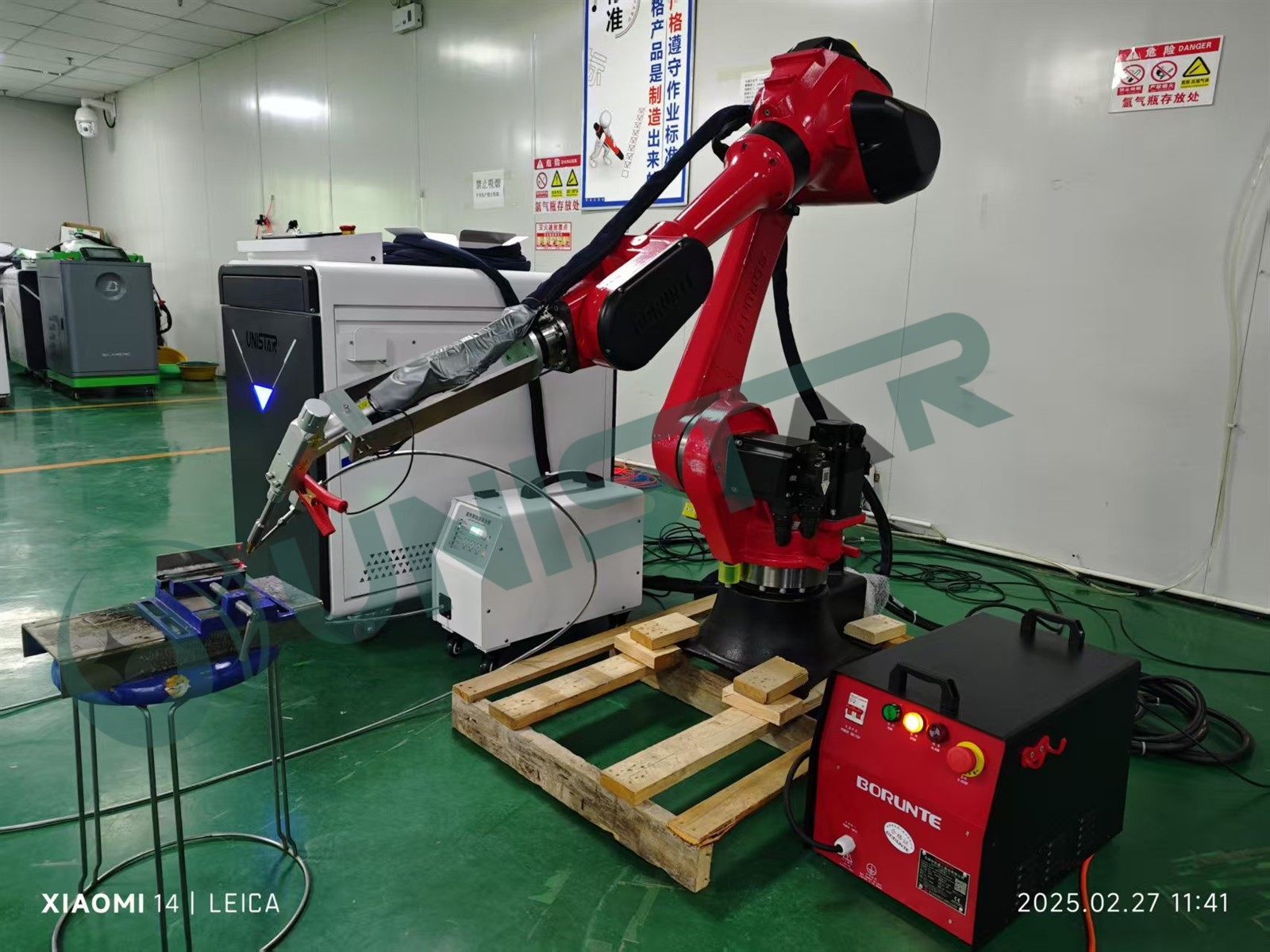

Detailed Photos
Laser welding penetration data
| Material | Protect gas | Thickness mm | 3000W |
Stainless steel |
Ar |
1.0 | √ |
| 2.0 | √ | ||
| 3.0 | √ | ||
| 4.0 | √ | ||
| 5.0 | √ | ||
| 6.0 | √ | ||
| 7.0 | √ | ||
Carbon steel |
Ar |
1.0 | √ |
| 2.0 | √ | ||
| 3.0 | √ | ||
| 4.0 | √ | ||
| 5.0 | √ | ||
| 6.0 | √ | ||
| 7.0 | √ | ||
Galvanized sheet |
Ar |
1.0 | √ |
| 2.0 | √ | ||
| 3.0 | √ | ||
| 4.0 | √ | ||
| 5.0 | √ | ||
Aluminum |
N2 |
1.0 | √ |
| 2.0 | √ | ||
| 3.0 | √ | ||
| 4.0 | √ | ||
| 5.0 | √ | ||
Packaging and shipping
Exhibition
Machine warranty
#In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# 2 Years guarantee of the whole machine.
#Main parts shall be changed free of charge if there is any problem during the warranty period.
#Machine has been adjusted before delivery.
our company
Exporting to the world
Products are exported to more than 150 countries and regions in the world, and Set up service points in more than 30 countries and regions around the world.
Professional R&D team
Has a professional independent core R & D team, and more than 10 years of laser industry senior experts, rapid response customer service team of 150 people.
Certificate of Honor
Laser equipment have passed CE/FDA/ISO9001 / SGS/BV/TUV and other international certification, has a number of invention patents and utility model patent.
Accurate testing
Each set fiber laser cutter has to be tested cutting before delivery cutting accuracy ±0.1mm, to Test verticality and dimensional error, keep high accuracy of metal laser cutting machine.
Certifications
Customers visit us
Customers reviews
Our partners
FAQ ( Fast Answer Questions )
Q1 :How many years of warranty period?
A1:The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).
Q2: Do you have CE document and other documents for customs clearance?
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
A3 :How to install and run the machine?
Q3: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine.
A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
