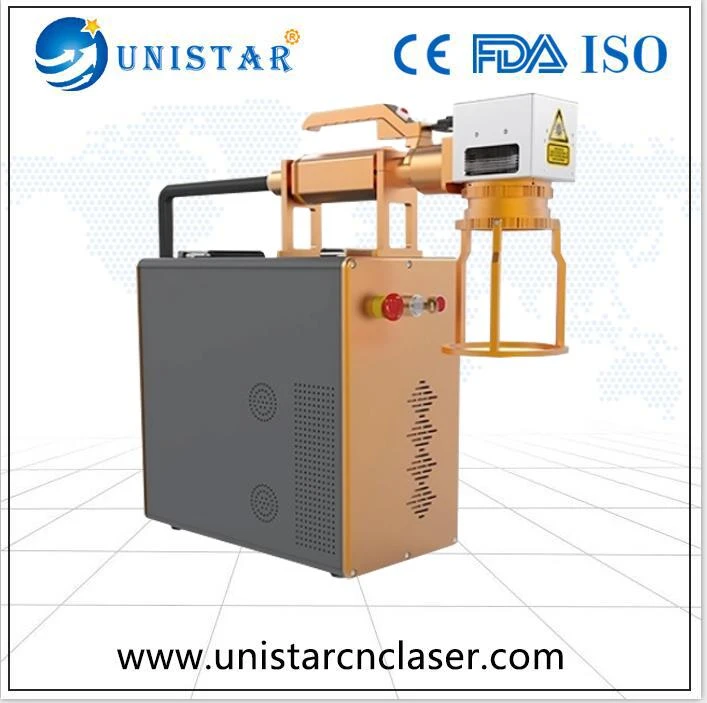

LIGHTWEIGHT MINI HANDHOLD FIBER LASER MARKING MACHINE FOR MARKING HEAVY PRODUCT
Fiber Laser Marking Machines series use laser beams to mark permanent surfaces of various substances. The effect of the marking is to reveal the deep material through the evaporation of the surface material, thus engrave the exquisite designs, trademarks and texts, it can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.
APPLICATIONS OF THE MINI LIGHTWEIGHT FIBER LASER MARKING MACHINES
1) Under operation system: windowns xp, windowns 7, windows8/10
2) Support Characters , digital, series NO, Date codes
3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix
Font,One-Dimensional bar code, Two-Dimensional bar code , and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
5) Common vector images are supported. (ai, dxf, dst, plt…)
6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is
supported.
7) Suited for fine processing on all metal and some non-metal.
APPLICATION MATERIALS OF THE SMALL MINI HANDHOLD MARKING MACHINE
stainless steel, carbon steel, iron, aluminum, abs, brass, carbon fiber, carbon nanotube, cobait chorme steel, copper, color delrin, disllyl phthalate, glass-filled PPEK, Glass filled telfon, magnesium, metal plate ceramics, molybdenum, mild steel, nylon, polybutylene terephthalate, polysulphone, pet, santoprene, Silicon Carbide, Silicon steel, Silicon wafers etc.
APPLICATION INDUSTRIES OF THE HANDHOLD MARKING MACHINE
Electrical cabinet and parts, sheet metal fabrication, light lamps, automotive parts, hardware, elevator, Aviation & Aerospace, metal crafts & decoration, advertising, kitchenware equipment, fitness equipment, furniture, medical equipment, agricultural machinery, watches and glassware etc
PARAMETERS OF MINI PORTABLE HANDHOLD MARKING MACHINE
| Model | USJ_20W | USJ_30W | USJ_50W |
| Laser power | 20W | 30W | 50W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Laser repetition frequency | ≤30KHZ | ≤30KHZ | ≤30KHZ |
| Adjustable marking area | 100*100mm /170*170mm/200*200mm | 100*100mm /170*170mm/200*200mm | 100*100mm /170*170mm/200*200mm |
| Marking depth | 0.01-0.5mm | ≥0.8mm | ≥0.8mm |
| Marking linear speed | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s |
| Min.linear width | 0.01mm | 0.01mm | 0.01mm |
| Repetition accuracy | ±0.01mm | ±0.01mm | ±0.01mm |
| Supply voltage | 220V / 50HZ | 220V / 50HZ | 220V / 50HZ |
DETAILED PHOTOS OF LIGHTWEIGHT FIBER LASER MARKING MACHINE
1: China famous brand laser source with high quality and long time, 100000hours maintenance free.
2: Focus lens, Laser focusing lens provides pricisive laser perforance
1: Shenzhen Galvotech brand ,high speed scanner head, can be up to 7000mm/s, improve high efficiency.

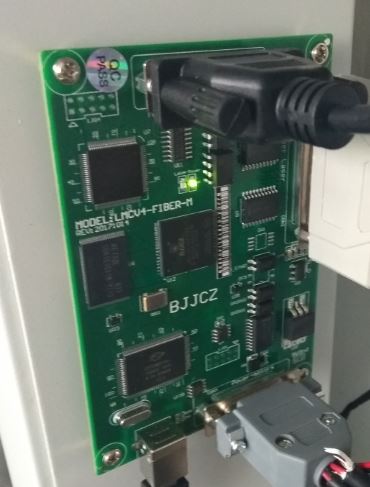

2: Beijing JCZ control card and EZCAD software. Easy to operate.
1: Two- dimensional mobile working table. It can be lifting and shifting from left to right.
Easy to adjust the laser focus distance
2: Rotary-optional, it can marking the round product.

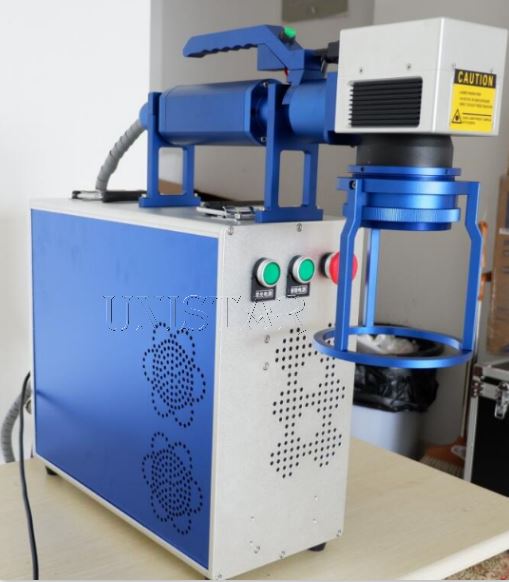

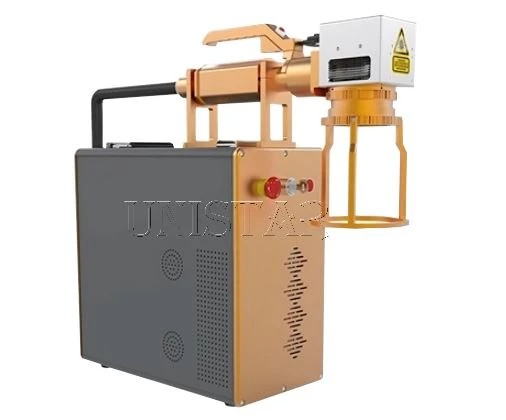

1: Portable marking head. Marking can be more fixed, small and light, long time holding work can be easily control.
2: up and down working table. it can be lifting higher for the marking materials, easy to control the distance.

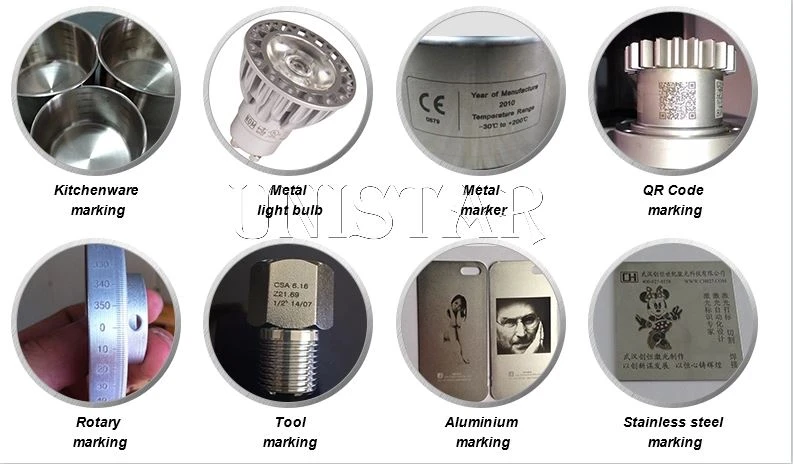

MARKING SAMPLES ON THE METALS

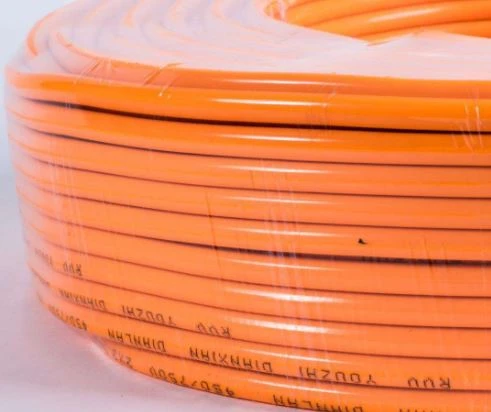

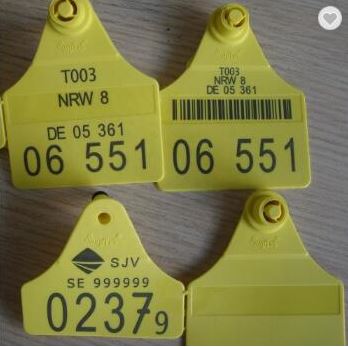

MARKING SAMPLES ON NON-METALS

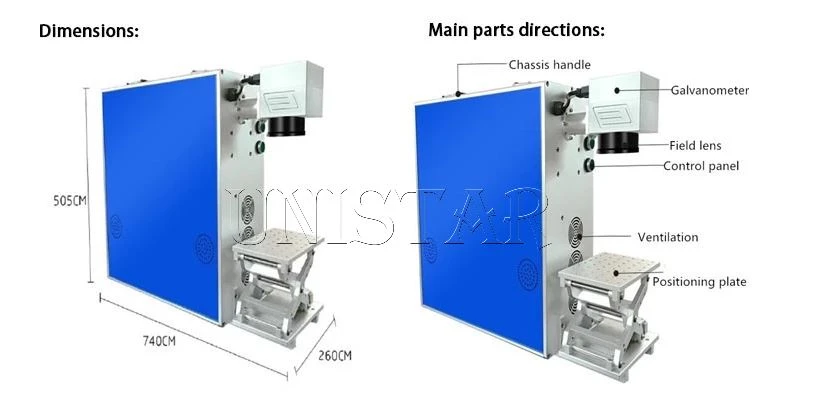

DIMENSIONS OF MINI PORTABLE LASER MARKING MACHINE
