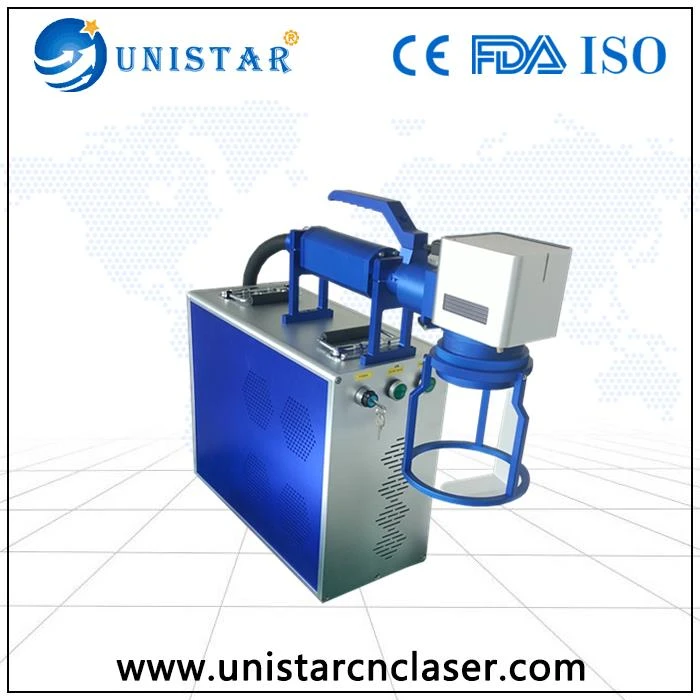

Automatic Mini Handheld Laser Marking Machine, 20w/30w/50w
Application Industry:
This mini handheld laser marking machine are professional in marking on metal materials and some non-metallic materials, electronic separation components, integration Circuits, electrical circuits, hardware, auto parts, plastic buttons, etc.
Techinical Parameter
Product name : Mini handheld laser marking machine
Optical power : 20W / 30W / 50W
Laser : Raycus Fiber Laser Generator
Deflection galvanometer : High precision two-dimensional scanning system
Light wavelength : 1064mm
Machine heavy star: 50kg
Positioning method: red light positioning
Machine material: all aluminum structure
Power demand: AC220V; 50Hz; 400W
Marking range: 110mm*110mm
Marking speed: ≤7000mmvs
Character size: 0.1mm-110mm
Number of character lines: any line within the marking range
Cooling method: air cooling

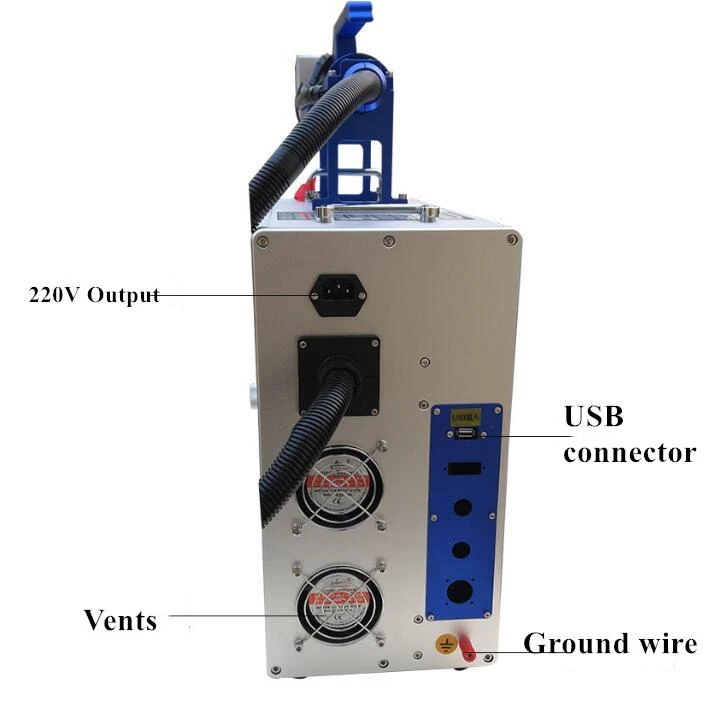

External socket: SD card interface, USB2.0 interface, communication interface
Environmental conditions: external temperature 10 ° C -40 ° C; temperature ≤ 95% non-condensing; no vibration
User interface: external operating system

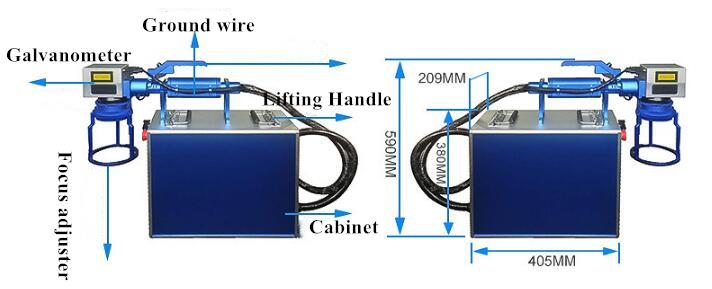

Machine size: 650mmX210mmX6oomm
Marking materials: electronic products, hardware metal, motorcycle parts, wire and pipe, box drinks, daily chemicals, metals, some non-metal, PVC, PE, PC, CPP, PA, PPO, etc.

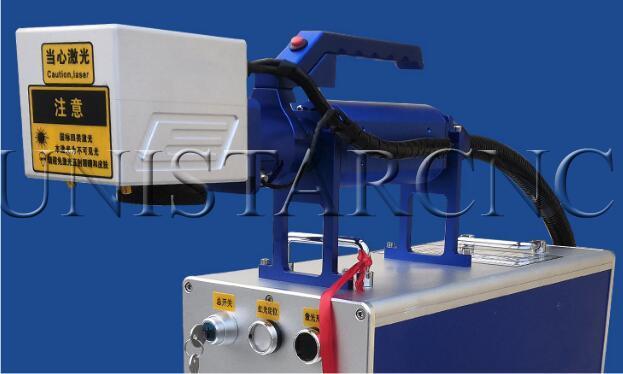

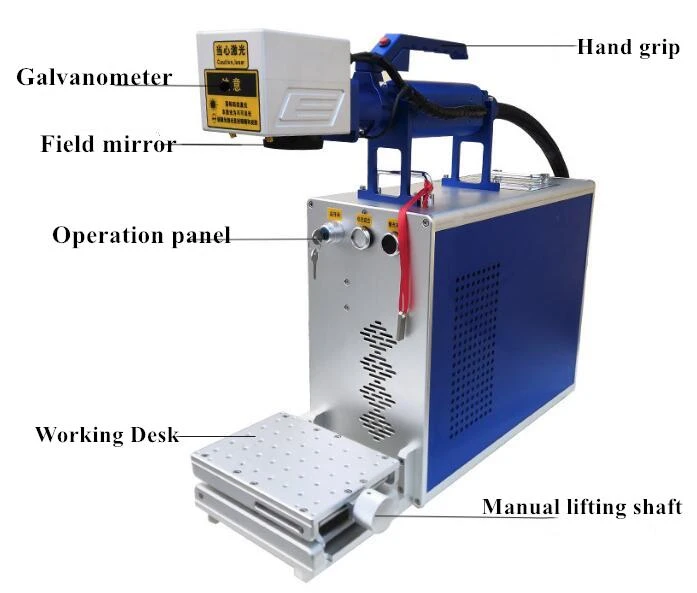

1 .The import galvanometer
This mini handheld laser marking machine using a full set of Singapore imported accessories
laser and galvanometer laser long service life.

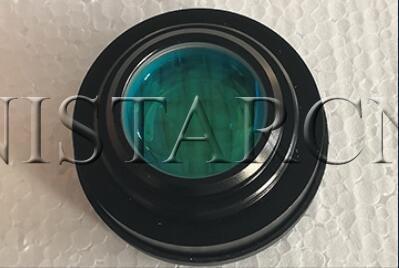

2.High quality field lens
Using the third generation of optical fiber laser technology, high-speed permanent free maintenance.

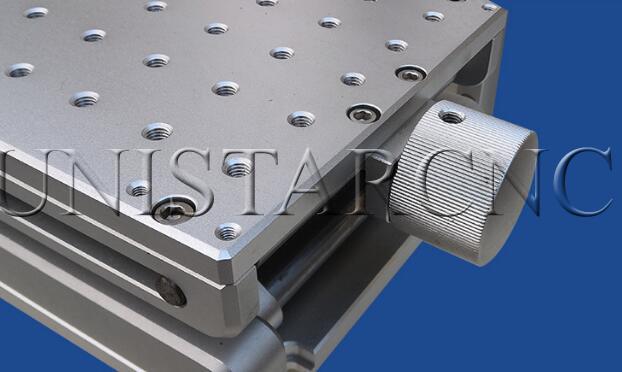

3.Positioning plate
Small size , suitable for bad environment
Laser realize laser range through fiber optic cable transmission, compact structure

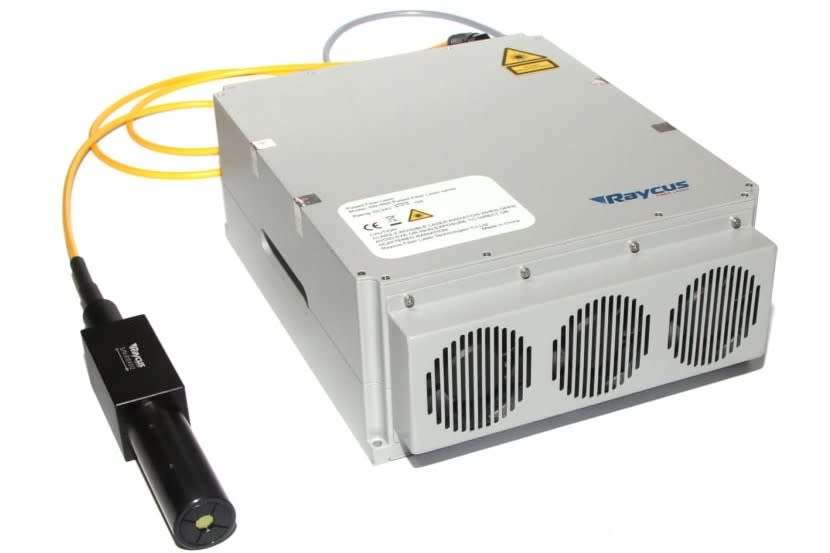

4.Fiber laser generator
For a variety of graphics, text, LOGO, barcode bitmap, ar code marking, etc
Product Description
1. Built-in air-cooled cooling method, smaller footprint, easier installation, and truly energy-saving and portable.
2. High electro-optical conversion rate, easy to use, no optical adjustment or maintenance, compact structure, High integration and low failure.
4. No maintenance required, long service life, suitable for working in harsh environments.
5. The processing speed is 2-3 times that of the traditional marking machine. The optical scanning galvanometer has high laser repetition frequency and high speed without distortion.
6. The mini handheld laser marking machines are equipped with optical isolators to effectively shield the reflected light. It can be operated on gold, silver, copper, aluminum, and other high-reflection materials with high reflective surface. It does not need to deviate from the center of the field lens, greatly expanding the application field. . And for different metals, it can be applied to a certain color by adjusting the frequency and energy.
7. Marking software is powerful, compatible with software such as Coreldraw, AUTOCAD, etc.; supports PLT, PCX, DXF, BMP, etc., can use SHX, TF font for direct shooting; support automatic encoding, print serial number, batch number, date, Bar code, QR code, automatic jump number, etc., USB interface output control.

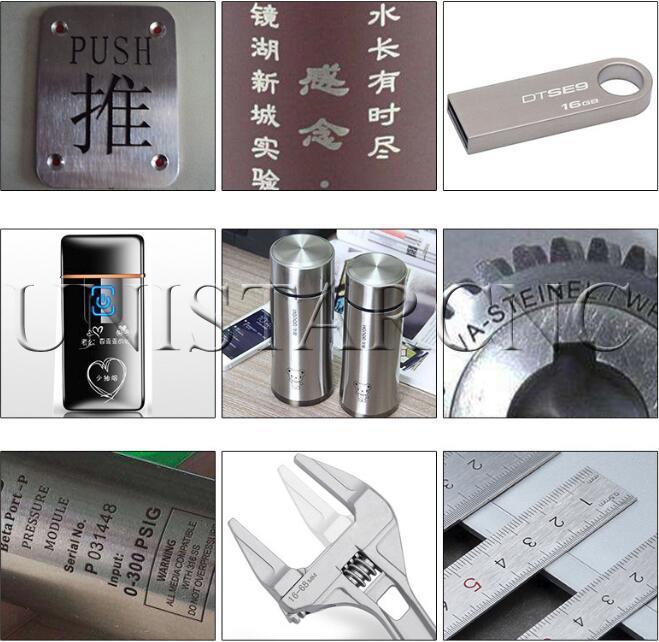

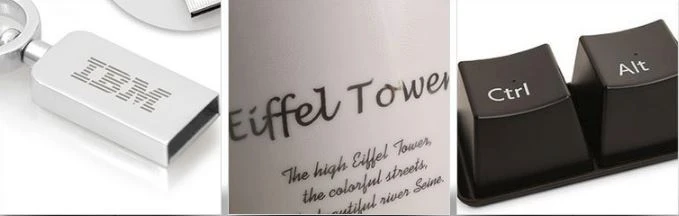

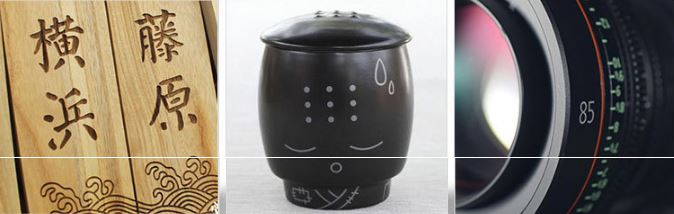

Marking Sample

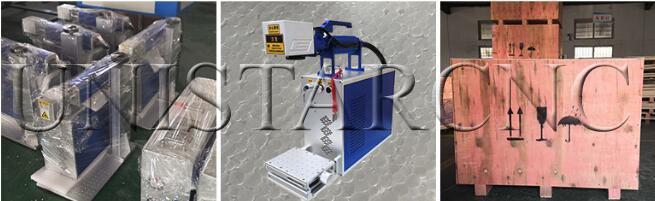

Packing Way

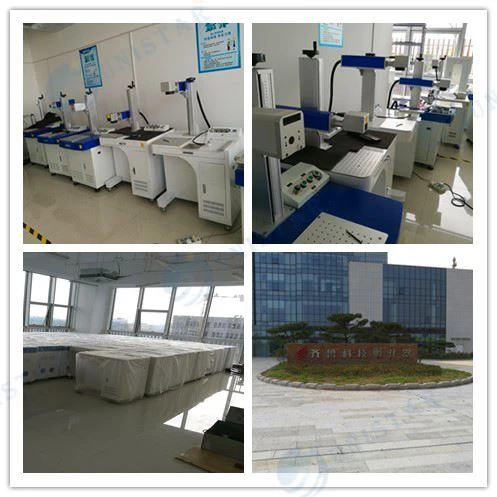

Our Factory
