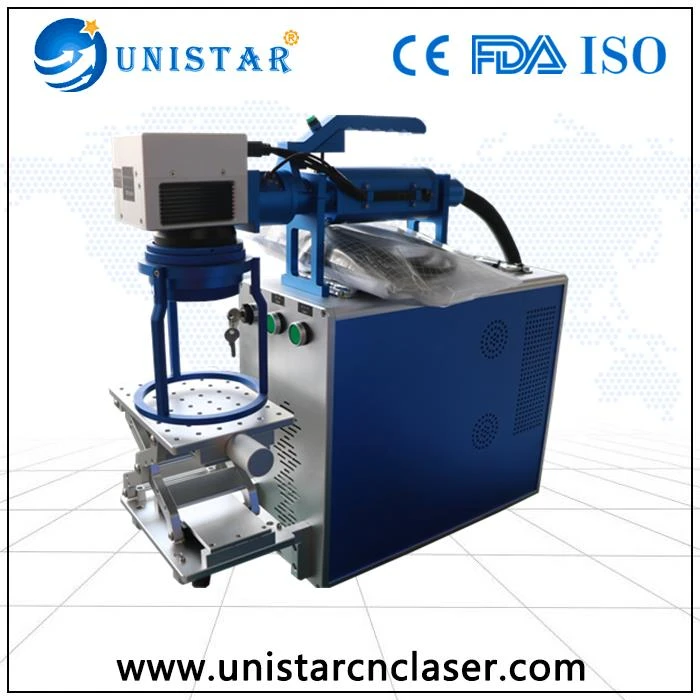

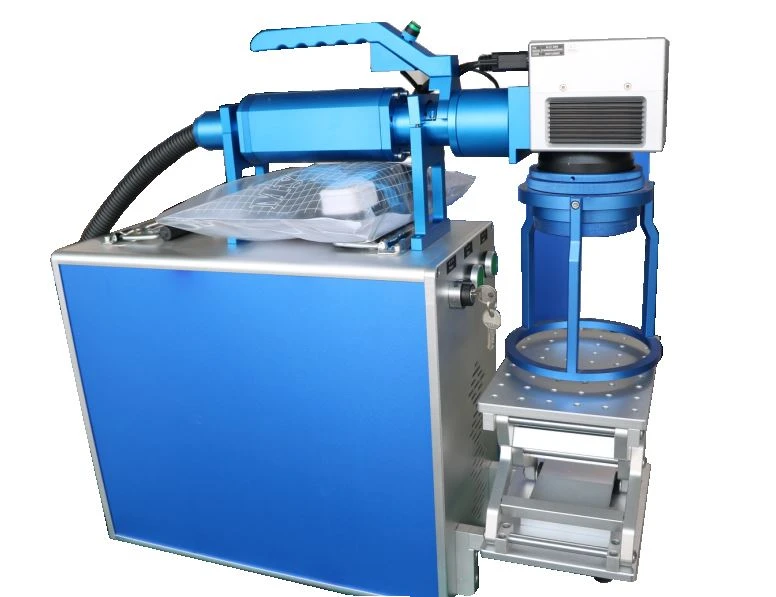

Handheld Portable Laser Marking Machine

Portable fiber laser marking machine is also known as hand-held fiber laser marking machine. Designed to solve the problem of laser marking of existing large parts. The size of the whole machine and the mainframe of the computer are small and convenient. It can be operated by hand and can laser mark large mechanical parts in any direction.

Send Inquiry

Description

Handheld Fiber Laser Marking Machine 20W / 30W / 50 W Raycus Laser Power

Technical Data Sheet

Product Information
Product name	Handheld fiber laser marking machine
Equipment model	USJ-20WB USJ-30WB USJ-50WB
Average output power	20W /30W/50W / Option
Whether with optical isolator	comes with
Engraving speed	7000mm/s
Laser wavelength	1064nm
Modulation frequency range	20KHZ-80KHZ
Marking range	F-160mm Range 110*110 (standard)
Minimum line width	0.01mm
Minimum character height	0.2mm
Marking depth	0.001-0.2mm
The best resolution	0.001mm
Repeat positioning accuracy	0.003mm
Voltage	220V±10%, 50HZ
Environmental requirements	10 ° C ~ 35 ° C humidity <90%
Cooling method	air cooling
Power consumption of the whole machine	≦500W

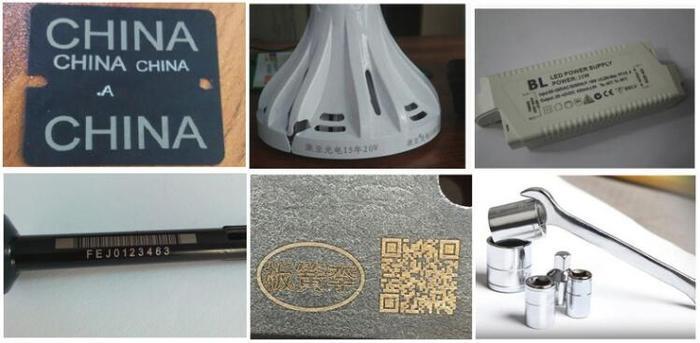

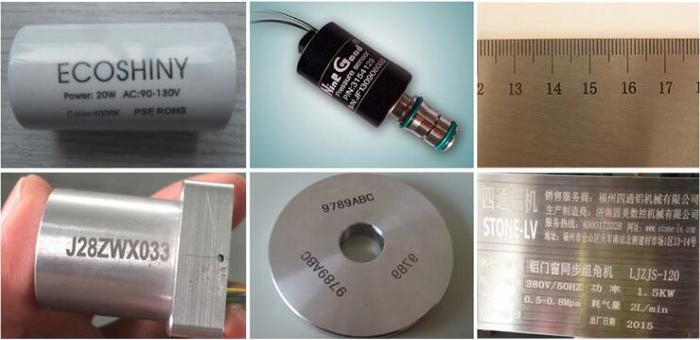

Smaple

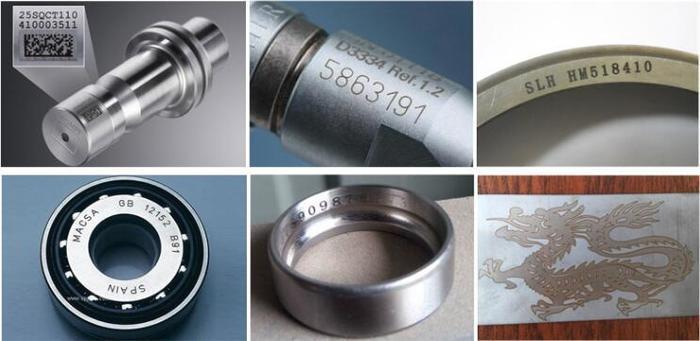

Sample -- 打标机
