Products Description

The Laser Engraving Machine For MDF is suitable for cutting non-metallic materials. It is widely used for cutting thick materials such as MDF, wood, plexiglass (acrylic), plastic and other non-metallic materials. And the laser power and engraving cutting speed can be controlled freely, and the cutting precision is high. It is the best choice for non-metallic materials laser cutting industry and laser processing center.

features

laser tube

Laser tube is a device that uses electric energy to convert gas into laser output. It has the characteristics of high efficiency, high power and high stability, and has been widely used in many fields.

transmission

The structure is simple, easy to manufacture, easy to maintain, can alleviate the vibration and impact of the transmission, smooth transmission, no noise, the tension of the belt, so that the shaft and bearing are subject to greater load.

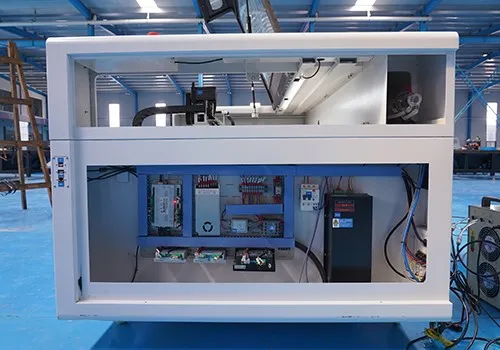

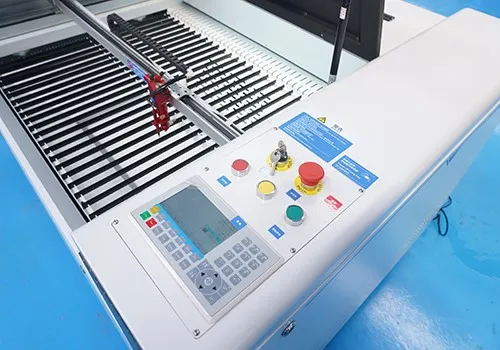

control system

RD laser motion control system, powerful anti-interference, improve the overall use of the machine, lifetime warranty, free upgrade.

motor and driver

The China manufacture motor and drive, greater intensity, faster, the curve instantaneous speed characteristics, cutting edge smooth and burr-free. In addition there are ultra-low noise, input signal TTL compatible, automatic current halved at rest, excellent trait.

laser head

The laser head can produce a high-quality laser beam, which can achieve high-precision engraving and detail engraving, and has a simple structure, so it has high reliability and stability.

others

USB interface is one of the most commonly used interface types for laser printers, and it is also one of the most convenient interface types. It has the characteristics of high-speed data transmission, stability and reliability, and is compatible with most operating systems.

detail parameter

Parameter	Specification
Machine area (X)	1600mm
Machine area (Y)	1000mm
Working area	1600*1000mm
Laser power	W8/150-180W double heads
Control system	RD (Ruida) control system
Motor and drivers	Leadshine motor and drivers (import from Taiwan,has high quality )
Working table	Blade table or Honeycome table
Rail	Taiwan HIWIN rail guide
Prevent dust system	Dust proof system
Cooling system	Water cooling system CW5200
Transmission	Shanghai Fulong Belt transmission
Feed rate (Max)	8m/min
Accuracy	0.001mm
Repeatability	0.005mm
Cutting speed	350mm/s
Control system	Coreldraw, photoshop,, Autocad, TAJIMA
Graphic format support	PLT ,DXF,BMP,JPG,AI and etc
Cutting material	Wood , MDF, acrylic , plastic , leather , cloth so on
Warranty	Warranty :2 years warranty

samples

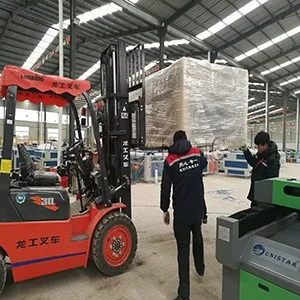

packing and shipping

faq

Q: How many years of warranty period?

A: The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).

Q: Do you have CE document and other documents for customs clearance

A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: How to install and run the machine?

A:Our technician have installed the machine before shipping. For some small parts

installation, we will send detail training video, user's manual along with the machine.

95% customers can learn by themselves.

Q: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine

A:If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .

Q: I don't know which kind of cnc router machine is suit for me

A:Just tell us your working industry?What kind of material you need to cutAnd the size of wood board , then we have professional sales to recommend you best suit wood engraving machine .

Q: If I want to see the machine condition of your factory , And It's not convenient for me to go to China , what should I do?

A: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the full covered , or we send you the sample pictures and videos you want. We support free sample service.
