Description

Products Description

Products brief introduction

The transformation and upgrading of steel structure and other application fields, the demand for medium and thick plate cutting equipment is increasing, and the market is in urgent need of fiber laser cutting machines with higher performance technology. The research shows that the penetration rate of ground rail large format laser cutting equipment in the arch structure industry has greatly exceeded that of ordinary medium and thick plate cutting equipment and is still growing gradually.

Products application

1. Sheet metal processing industry. Fiber cutting machine can simplify the processing process, reduce the product development cycle, improve work efficiency at the same time can also reduce the cost of processing costs, so as to help enterprises to create more high-quality sheet metal processing work-piece.

2. Home furnishing industry. The metal parts in the home manufacturing industry are faced with the problems of low work efficiency, large mold consumption and high use cost using traditional processing methods. The laser cutting machine has high cutting precision, greatly improves the processing efficiency, and can realize household product customization and personalized product development, solve the problem of efficient production of metal parts in household manufacturers, and has been recognized by the majority of household manufacturers.

3. The automobile manufacturing industry. There are many precision parts in cars, such as brake pads. In order to improve the safety of the car, it is necessary to ensure the cutting accuracy. Using laser cutting can be faster batch processing. This is why laser cutting machines are widely used in the automotive industry.

4. The aerospace industry. Now aviation engine design, manufacturing is very complex, which covers tens of thousands to hundreds of thousands of small parts, a large number of titanium alloy, high temperature gold, stainless steel and other materials, these materials are high hardness, easy to be brittle, the use of traditional methods are difficult to process, and fiber laser cutting machine can be a good processing of these materials

Limitations of traditional cutting

1, the traditional cutting method of water cutting, flame and plasma cutting thickness has certain limitations, cutting accuracy is not guaranteed, the effect of cutting out the thick plate is not very good, most of the need for secondary processing.
2, the traditional cutting method cutting format has a certain range, more than how much can not be operated need to be cut again, can not do the overall processing of super long and large format parts, the efficiency is not high.
3, the traditional cutting method cutting process there is no shortage of smoke, dust and other harmful gases, environmental protection this piece always fails to reach the standard range, resulting in operators have safety risks, environmental protection departments do not pass the inspection of the situation, consume more manpower and material waste

Our technological innovation

1. The ground rail type segmented bed is used to carry the separation to ensure the cutting accuracy, and the processing format of different lengths can be customized according to the needs, and the special size materials of super long and large can be cut.

2. The equipment adopts segmented air extraction and smoke exhaust device, with one tuyere per meter on each side, and accurate smoke exhaust is environmentally safe. With the movement of the beam, it is opened accordingly, and there are two air extraction interfaces at the end of the equipment, which has good air extraction effect.

3. With super-large format table, different lengths of processing format can be customized according to needs, which can cut super-long special size materials and realize the overall processing of ultra-long workpieces; Transportation and installation are less affected by space constraints.

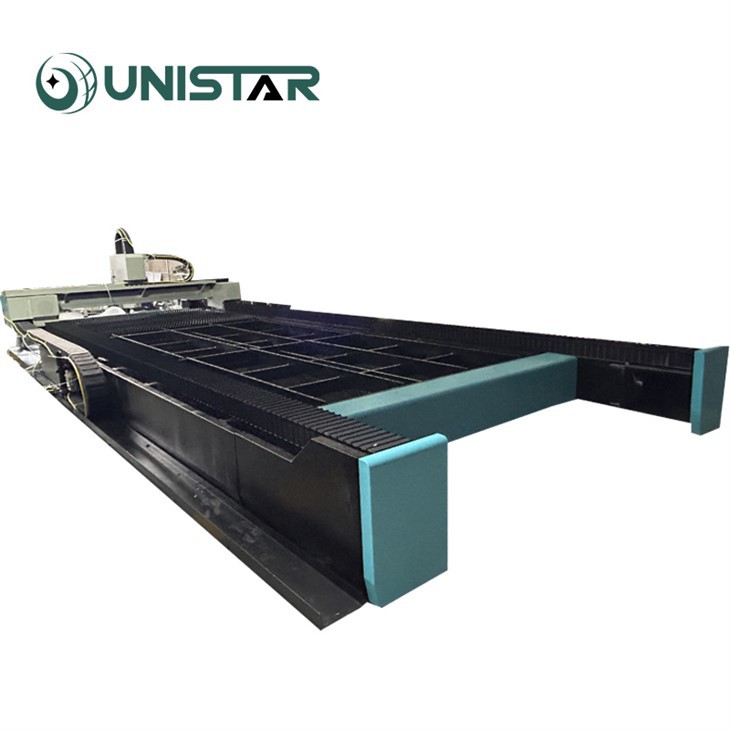

Ground rail laser cutting machine advantages

The ground rail super large format laser cutting machine has the advantages of large format workpiece overall cutting, large production capacity, short production cycle, good cutting quality, processing without deformation, not constrained by the shape, high degree of automation, clean, efficient and environmental protection of the working environment, saving time and labor and high efficiency.

detail photos of laser metal cutting machine

Main configuration

boci 441 laser cutting head

Cutting is more stable and efficient
New optical solutions

Closed loop autofocus

Supports intelligent knife retracting

Nozzle cooling and sensor water cooling functions

Make cutting more stable and efficient

MAX laser source

Stable performance, both thickness and thickness. Less electricity, more energy saving

machine body

Machine structure precision

machining welding bed ,quench

and tempering heat treatment,

To achieve high strength and

at the same time better

plasticity and toughness

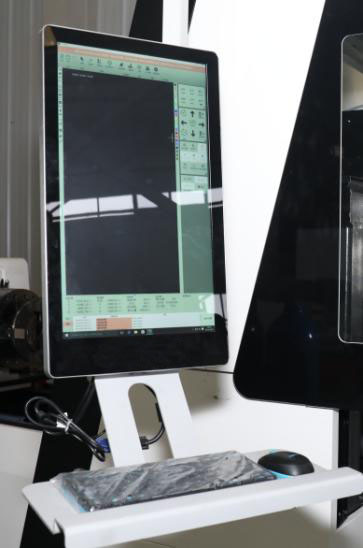

Control Screen

computer display screen.

More easy to operate machine

More Security/stability

Control system

The system operation interface

is simple and easy to master.

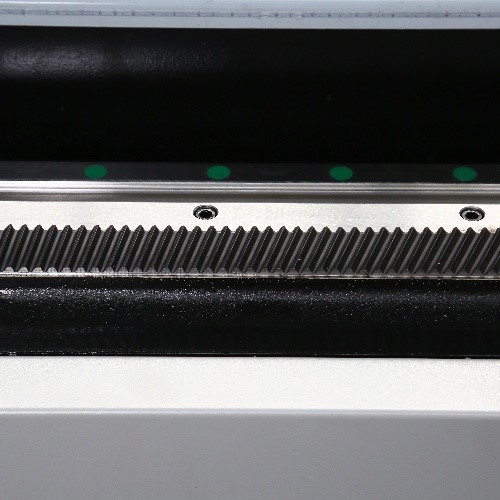

Helical rack

Taiwan YYC impot helical rack

and pinion with high accuracy

Rail guide

Taiwan HIWIN Rail Guide

Motor and driver

"Fast" response, "strong" motor, in the industry's leading level of high-speed, high-precision control

Water chiller

S&A water chiller

Has best cooling effective

Remote control

Remote control without cable

Oil injection system

Automatic oil injection

system to lubricate rail guide

and rack , keep long life time

Gantry

Third generation aviation

aluminum gantry

Good toughness, light

weight, corrosion resistance,

oxidation resistance, low

density

Electricity Parts

France Schneider electrical parts

Exhaust fan

7.5KW exhaust fan

Pneumatic element

Japan SMC pneumatic

device has simple structure,

light, easy installation and

maintenance

Pulley

Wheels is good for feeding metal

sheet

Reducer

Japan Shimpo reducer

More stable and cost-

efficient

Free maintenance

Spare quick-wear parts

Machine with 15 sets nozzle and

6 set protector lens for spare use

Future customer buy it we offer

agent price for customer

Other optional

Voltage stabilizer

The role of the regulator is to stabilize the power supply voltage that fluctuates greatly and fails to meet the requirements of electrical equipment within its set value range, so that various circuits or electrical equipment can work normally under the rated operating voltage

environment-friendly

Laser cutting equipment to use air compressor, laser cutting machine can cope with a variety of materials and complex shape cutting requirements, in addition to the need to provide high energy lasers, auxiliary gas is an indispensable substance to complete the cutting process.

cutting samples

Technical parameter

Model	UN-2060
Work Area	2000*6000 mm
Fiber Laser Source	MAX
Laser Power	12000W
Max Moving Speed	120 m/min
Max Acceleration	1.5G
Positional Accuracy	± 0.02 mm
Control System	CYPCUT
Motor and Driver	Japan FUJI servo motor and drivers
Reducer	Japan SHIMPO reducer
Transmission	Rack and pinion
Pneumatic Accessories	Japan SMC
Table	Blade table
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Work Voltage	3 phase 380V/50HZ
Warranty	2 years
Water Chiller	S&A CW12000

Cutting data reference

MFMC-12000(100μm)Cutting data
Materials	Material Thickness (mm)	Cutting gas	Cutting speed (m/min)	Cutting power (W)	Cutting frequency (Hz)	Cutting pressure (bar)	Cutting height (mm)	Cutting focus (mm)
CS (Q235B)	6	AIR	18	12000	5000	12~14	0.5	-1~-1.5
		N2	16	12000	5000	12~14	0.5	-1~-2
		O2	2.8~2.9	3000~3500	5000	0.6~0.8	0.8	7~8
	8	AIR	13	12000	5000	14~16	0.5	-2~-2.5
		N2	11	12000	5000	14~16	0.5	-2~-3
		O2	2.5~2.6	4000~4500	5000	0.6~0.8	0.8	8~9
	10	AIR	9	12000	5000	14~16	0.5	-3~-4
		N2	8	12000	5000	14~16	0.5	-3~-4
		O2	2.2~2.3	4500~5000	5000	0.6~0.8	0.8	9~10
	12	AIR	7	12000	5000	14~16	0.5	-4~-5
		N2	5.5	12000	5000	14~16	0.5	-4~-5
		O2	1.9~2	6000~7000	5000	0.6~0.8	0.8	9~10
	14	AIR	4.5	12000	5000	14~16	0.5	-6~-7
		N2	3.5	12000	5000	14~16	0.5	-6~-7
		O2	1.6	7000~8000	5000	0.6~0.8	0.8	9~10
	16	AIR	3.2	12000	5000	14~16	0.5	-8~-9
		N2	2.6	12000	5000	14~16	0.5	-8~-9
		O2	1.6	8000-9000	5000	0.6~0.8	0.8	10~11
	18	AIR	2.3	12000	5000	14~16	0.5	-10~-11
	18	O2	1.5	12000	5000	0.6~0.8	0.8	10~11
	20	AIR	1.8	12000	5000	16~18	0.5	-11~-12
	20	O2	1.5	12000	5000	0.6~0.8	0.8	11~12
	22	AIR	1.1	12000	5000	18~20	0.5	-14~-15
	22	O2	1.2	12000	5000	0.6~0.8	0.8	11~12
	25	O2	1	12000	5000	0.6~0.8	0.8	11~12
	30	O2	0.4	12000	5000	0.6~0.8	0.8	13~14
	35	O2	0.35	12000	5000	0.9~1.1	0.8	13~14
	40	O2	0.3	12000	5000	1.2~1.5	0.8	13~14
	45	O2	0.2	12000	5000	1.2~1.5	0.8	13~14
SS (SUS304)	6	AIR	17	12000	5000	12~14	0.5	-1~-2
	6	N2	16	12000	5000	12~14	0.5	-1~-2
	8	AIR	14	12000	5000	14~16	0.5	-2~-3
	8	N2	11	12000	5000	14~16	0.5	-2~-3
	10	AIR	11	12000	5000	14~16	0.5	-3~-4
	10	N2	8	12000	5000	14~16	0.5	-3~-4
	12	AIR	8	12000	5000	14~16	0.5	-4~-5
	12	N2	5.5	12000	5000	14~16	0.5	-4~-5
	14	AIR	6	12000	5000	14~16	0.5	-6~-7
	14	N2	3.5	12000	5000	14~16	0.5	-6~-7
	16	AIR	4	12000	5000	14~16	0.5	-7~-8
	16	N2	2.6	12000	5000	14~16	0.5	-7~-8
	18	AIR	3	12000	5000	14~16	0.5	-10~-11
	18	N2	2	12000	5000	14~16	0.5	-10~-11
	20	AIR	2	12000	5000	16~18	0.5	-11~-12
	20	N2	1.5	12000	5000	16~18	0.5	-11~-12
	25	AIR	1.3	12000	5000	18~20	0.5	-14~-15
	25	N2	0.8	12000	5000	18~20	0.5	-14~-15
	30	AIR	0.8	12000	5000	18~20	0.5	-17~-18
	30	N2	0.2	12000	200	18~20	0.5	6~7
	40	N2	0.15	12000	200	18~20	0.5	6~7
	50	N2	0.1	12000	200	18~20	0.5	5~6
AL (6061)	6	AIR	12	12000	5000	12~16	0.5	-2~-3
	8	AIR	8	12000	5000	16~18	0.5	-3~-4
	10	AIR	5	12000	5000	16~18	0.5	-5~-5.5
	12	AIR	3	12000	5000	16~20	0.5	-6~-6.5
	14	AIR	2.5	12000	5000	16~20	0.5	-7~-8
	16	AIR	1.8	12000	5000	16~20	0.5	-8~-9
	18	AIR	1.2	12000	5000	16~20	0.5	-9~-10
	20	AIR	0.8	12000	5000	16~20	0.5	-10~-11
	22	AIR	0.5	12000	5000	16~20	0.5	-11~-12
BRASS	6	AIR	10.5	12000	5000	12~16	0.5	-2~-3
	8	AIR	7	12000	5000	16~18	0.5	-3~-4
	10	AIR	4	12000	5000	16~18	0.5	-5~-5.5
	12	AIR	2.2	12000	5000	16~20	0.5	-6~-6.5
	14	AIR	2	12000	5000	16~20	0.5	-7~-8
	16	AIR	1.5	12000	5000	16~20	0.5	-8~-9
	18	AIR	0.9	12000	5000	16~20	0.5	-9~-10
	20	AIR	0.7	12000	5000	16~20	0.5	-10~-11
	22	AIR	0.4	12000	5000	16~20	0.5	-11~-12

why choose us?

Company profile

Jinan Unistar Machinery Co., Ltd. was established in 2002, experienced 15 years of development and solid operation, the company has 20 professional research senior technical engineers in the field of laser, 100 sales team, 30 domestic and foreign after-sales service team, 150 workers, with strong new product development ability, Has developed into one of the largest and most influential enterprises in the laser industry

UNISTAR Laser intelligent equipment are mainly include sheet metal fiber laser cutting machine ,Tube metal cutting machine , Sheet metal and tube fiber laser cutting machine ,small Fiber laser cutter, high power cnc fiber laser cutter , laser cutting fiber , handheld fiber laser welding machine , Laser cleaning machine , 3 in1 fiber laser machine . cnc bending machine so on . Our equipment have been sold to Saudi Arabia, Bangladesh, Bulgaria, Serbia, Spain, UK, Poland , Hungary, Italy, South Korea, Ethiopia, Lebanon, Jordan, Egypt, Syria, Yemen, Russia, Australia, Canada etc more than 120 countries and regions , Which are highly recognized and appreciated by customers. Excellent quality, reliable price, perfect service is the value and mission of Unistar Company.

High Quality

Advanced Equipment

Professional Team

Custom Service

After Sales Service and Warranty

1> The machine warranty 2 years

2> 15 sets consumable parts Nozzle free ,6 sets protect lens free

3> a> During the warranty period, in case of failure or part damage (except human factors and force majeure factors), the seller shall be responsible for free repair. The parts need to be replaced will be provide from the seller for free (except the wear-quick part)

b> After the warranty period expired, the buyer only need to pay the actual maintenance cost

c> UNISTAR laser will make return visit of customers at regular time one year

4> We can offer engineers go abroad installation and training , 150USD/One day. Customer offer engineer come and back tickets fees living and eating. Usually it takes 7 days finished training.

DJI0718

DJI0714

204A0549 1

certificate

product-1-1

customer visiting

Our high quality products attract many foreign customers to visit our factory. We also extend a warm welcome to them. When the customer visited the factory, in order to give the customer a more comprehensive understanding of our company, our manager introduced our company's corporate culture, development history, product advantages and so on. After field investigation, many customers have established long-term friendly cooperative relations with us. We welcome every friend to come.

M5KZ2HTZ2PXZTETENS

customer feedback

20240827154216

Packing and shipping

FAQ

Q: How do I install and run the machine?

A: Our technicians have installed the machine before delivery. For the installation of other configurations, we send detailed training videos and user manuals with the machine.
95% of customers can teach themselves.

Q: Do you have CE certificate?

A: Yes, we do.

Q: What should I do if I want to see the condition of the machines in your factory and it is not convenient to go to China?

A: We support production visualization services. The sales department that responds to your inquiry in the first place will be responsible for your follow-up work. You can contact him/her to go to the factory to check the production progress of the machine, or we can send you the sample pictures and videos you need.

Q: What's your delivery date?

A: About 20 working days.

Q: What should I pay attention to when cutting ?

A: Before starting the machining process, it is important to verify that the selection procedure is correct, that the process parameters are correctly named, that external auxiliary gases are available, and that the sheet position is accurate. In order to prevent the deformation of the plate during processing, resulting in collision, the machine should not be disturbed during the working process. When the machine is running, the operator should always pay attention and should not leave the machine to ensure the correct operation of the machine.
