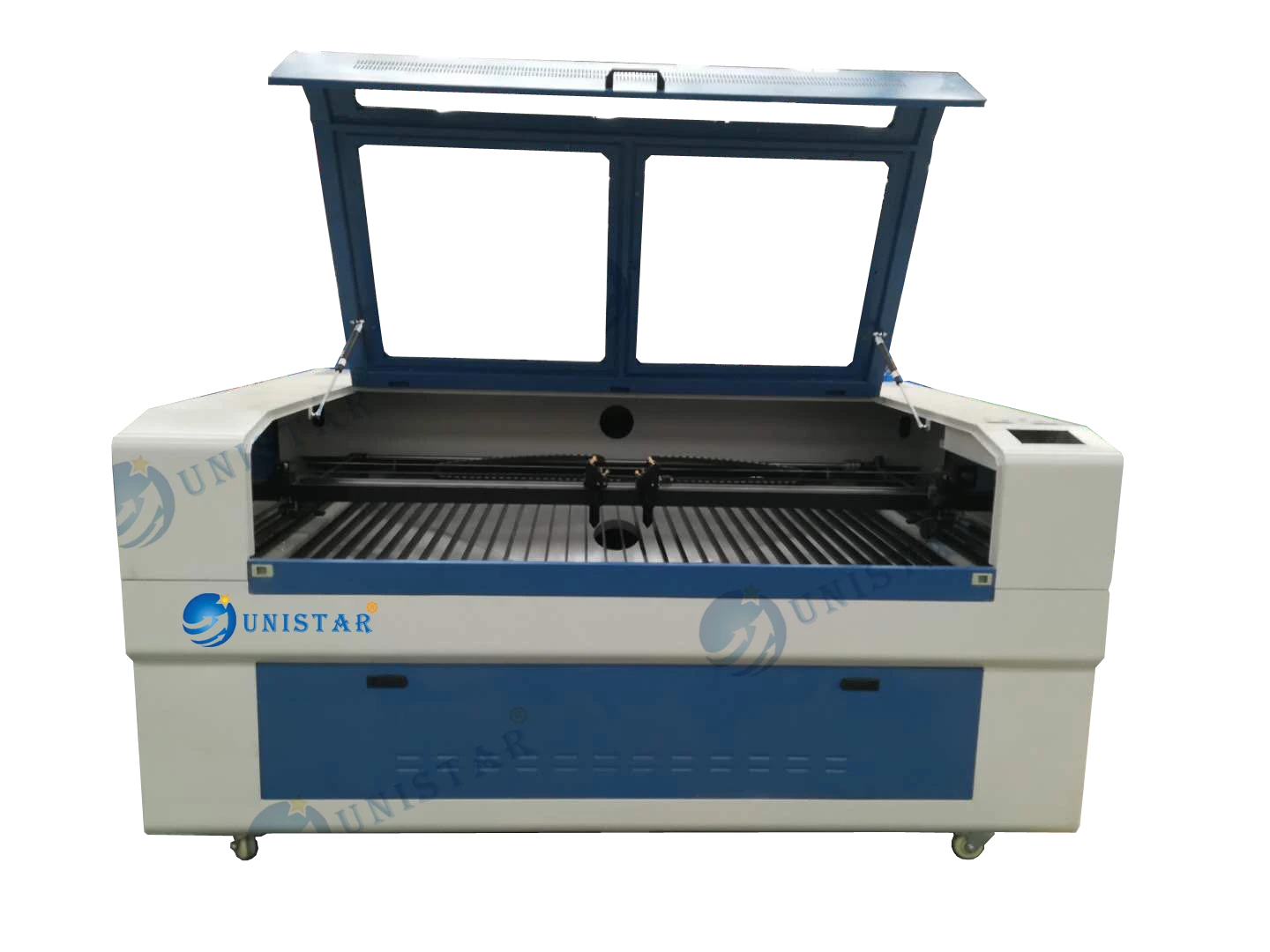

Double Cutting Head Desktop Laser Engraving Machine More Efficient
The Desktop Laser Engraving Machine provided by Unistar is a two-headed laser machine. Compared with ordinary single-head laser machines, the efficiency of laser engraving or cutting is doubled. This model is particularly suitable for single-cutting products with small size and large volume. Industry; The double-head laser machine, One is equivalent to two，is economical and practical, and is an ideal choice.
Applicable materials are the same as ordinary single-head cutting machines; they are very wide; such as ordinary fabrics, leather, acrylic, wood, felt, fiber cloth, Oxford cloth and other non-metallic materials, materials for the engraving industry such as plexiglass, crystal, Jade, marble, wood, cylindrical bamboo, cylindrical bottles and other materials can be efficiently carved.
Application Area
Widely used in woodworking ,advertising industry ,furniture industry ,handicraft industry and so on to cut the material of engraving acrylic, wood products, paper,leather,glass ,MDF.
Laser Engraving Machine Techinical Parameter
NO. | Model | Laser Cutter Engraver |

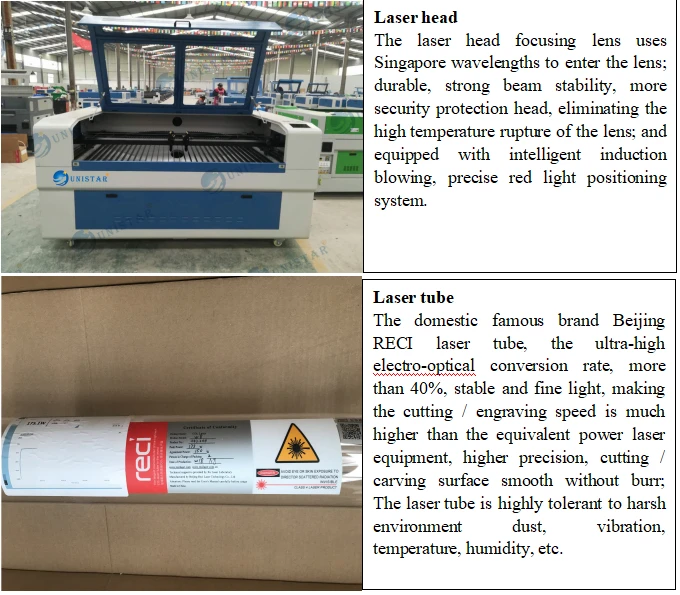

1 | Laser medium | Beijing RECI CO2 Laser Tube |
2 | Working area | 1300*900mm |
3 | Working table | Blade Table (Option: honeycomb table, could add Motorized up-down working table) |
4 | Laser power | 80 W(100W,130W,150W) |

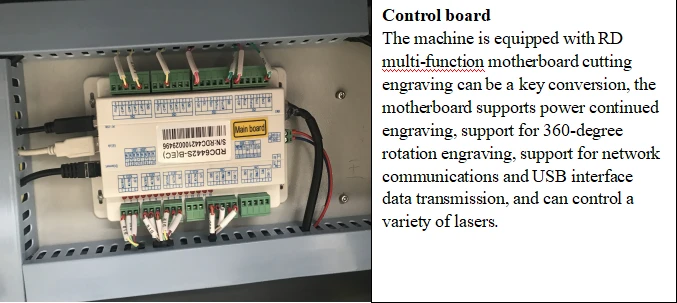

5 | Control system | RD Control System |

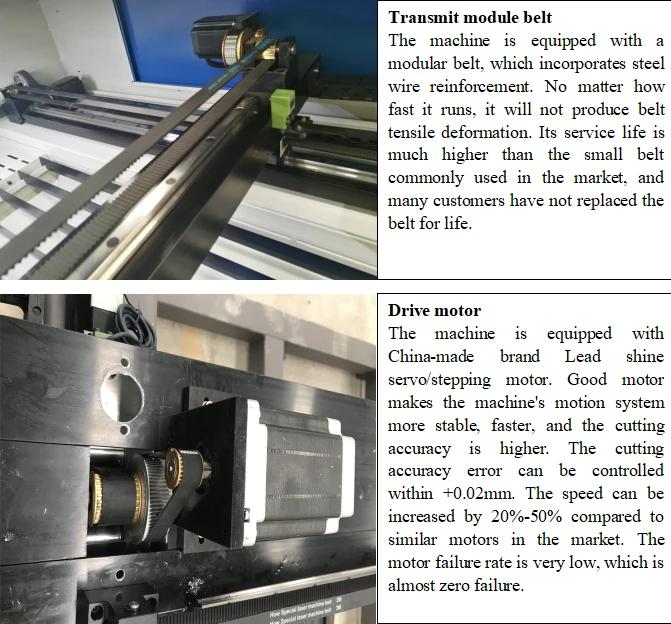

6 | Transmission method | Shanghai Fulong Belt |
7 | Drive system | Leadshine Driving System and Stepper Motor |

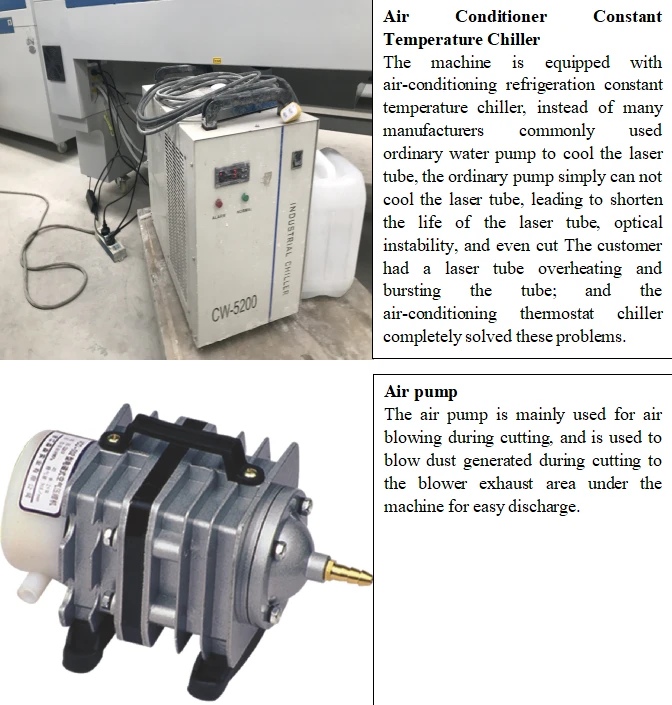

8 | Cooling system | Water-cooling System |
10 | Guide rail | Linear Square Guide Rail From Taiwan |
11 | Recommended Spare Parts | Laser Tube and Lens (Suggest additional sets) |
12 | Positon accuracy | 0.01mm |
13 | Repetition accuracy | 0.02mm |
14 | Power Supply | 220V/50Hz, 380V/60Hz |
15 | Min line width | ≤0.15mm |
16 | Graphic format support | PLT, DXF, BMP, JPG ,AI and ect |
17 | Software supported | Coreldraw, Photoshop, AutoCAD, Tajima |
18 | Optional Parts | USB Feature, Up-down work table, Red Light Pointer, Rotary System |
19 | Working environment | 0-45°C |
20 | Operating Humidity | 5-95% |

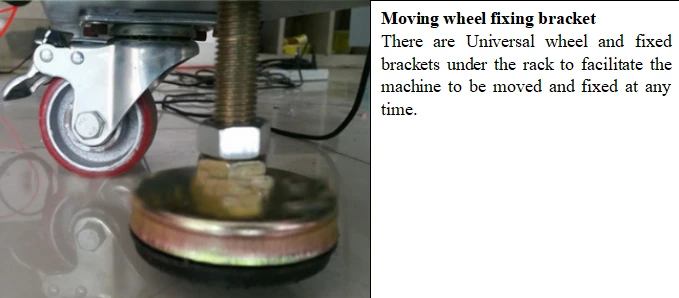

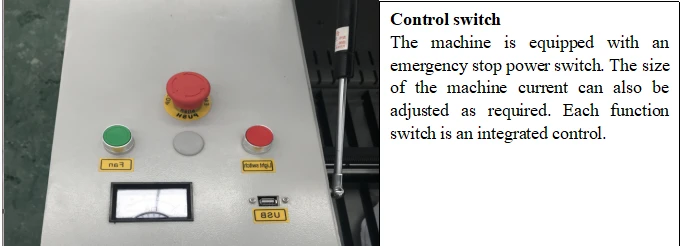

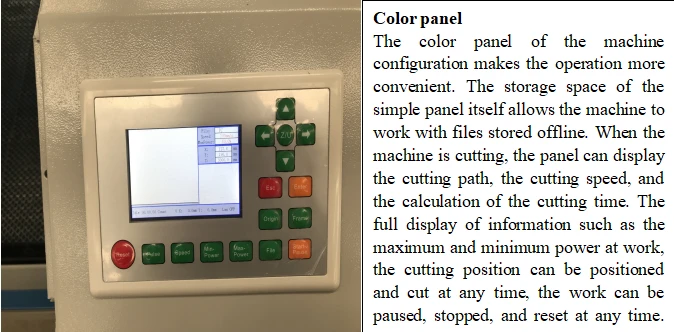

Desktop Laser Engraving Machine advantages with pictures
Sample Show
