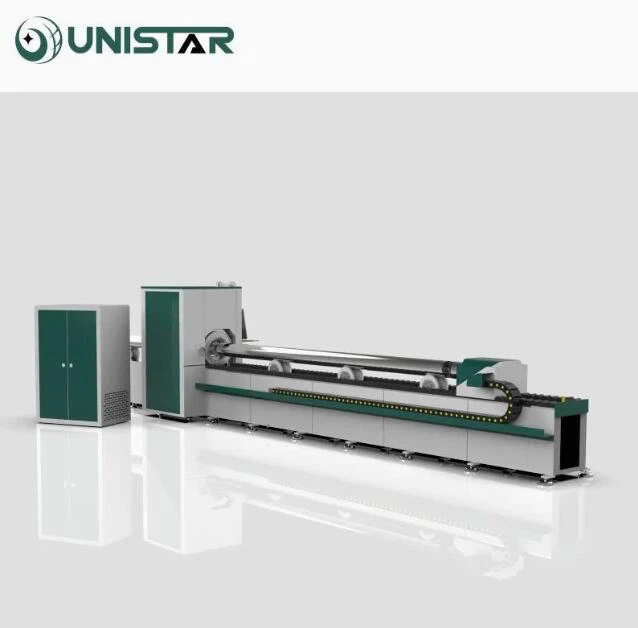

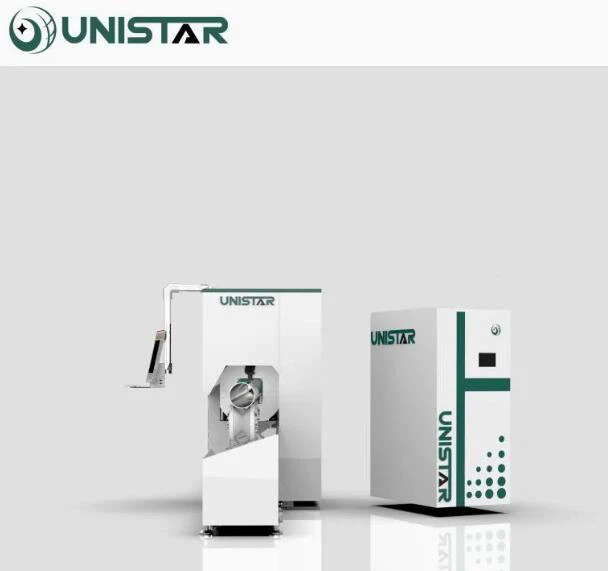

Fiber Laser Cutting Tube Machine

The working principle of the laser pipe cutting machine is similar to that of the laser plate cutting machine, which uses a high-density beam for local thermal processing of the material to achieve the purpose of cutting and punching. A professional laser tube cutting machine, can replace mechanical drilling, milling, sawing, stamping or cleaning wool mouth and other processing processes, a equipment can complete metal pipe blanking, punching, miter cutting and other processes, is widely used in sheet metal processing, kitchen utensils, lamps, automobiles, hardware, fitness equipment and other industries

Products Details





01.

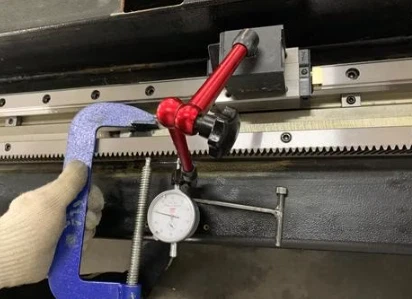

Rail Guide accuracy measurement
Use high-precision measuring instrument for data detection and analysis, detect the straightness and flatness of guide rail, and ensure the installation accuracy

02.

Machine Bed:

The integral pipe welding structure is verified by finite element analysis. Annealing to eliminate internal stress after finishing, better solve the stress caused by welding and processing, thereby improving the rigidity and stability of the equipment, longer service life





03.



Motor and Drivers

Japan Yaskwa servo motor and drivers

Closed-loop control of position, speed and torque is realized

High speed performance is good, the general rated speed can reach 2000 ~ 3000 RPM

Strong anti-overload ability, can withstand three times the rated torque load.

The dynamic time of the motor acceleration and deceleration is short, generally within tens of milliseconds



04.

Rail Guide and Rack

Taiwan HIWIN rail guide, has high precision, no deformation after long-term use,

and long life.

Taiwan YYC Helical rack and pinion Hardness up to 60-65 degrees, after laser quenching, will not damage the related factors of the rack, even in high strength, high load under high-speed continuous work, there will be no quality problems





05.

The laser head uses a high-precision mirror, which can focus and cut quickly and accurately, making the cutting speed and effect very good.

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency;

Quick and simple replacement of protective lenses;

06.



Fully Automatic Pneumatic Chuck

Automatic double pneumatic chuck, stable and efficient. One key open clip, automatic centering, speed is 3 times that of electric chuck

Both the front and rear chucks are geared, and the output torque of 2M straight gear transmission has a small fluctuation range and high precision.

The gripper of the front pneumatic chuck is designed with square holes, which greatly improves the gripper specifications of the square pipe and has a wider application range.





Products Feature

1. The chuck has a self-adjusting center function for rapid centering and clamping.
With automatic centering function.

2. With two pneumatic chucks Font and back, one electric chucks in the middle, three chucks can be
clamped and cut at the same time, cutting accuracy is high.

3. Able to achieve zero tail cutting and improve material utilization rate.

4. Three-chuck pipe cutting machine can also be equipped with automatic loading and unloading functions
to improve cutting efficiency and save time.





MACHINE WARRANTY

#In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# 2 Years guarantee of the whole machine.
#Main parts shall be changed free of charge if there is any problem during the warranty period.
#Machine has been adjusted before delivery.

We have passed the international certifications such as CE certification, ISO9001 quality management system certification ,Patent certificate , Saber Certificate ,FDA for tube fiber laser cutting machine, Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing,packaging and shipping to ensure the performance and quality of laser products.

CUSTOMER REVIEWS

OUR PARTNERS

Jinan Unistar Machinery Co., Ltd. was established in 2002, experienced 15 years of development and solid operation, the company has 20 professional research senior technical engineers in the field of laser, 100 sales team, 30 domestic and foreign after-sales service team, 150 workers, with strong new product development ability.

FAQ ( Fast Answer Questions )

Q1 :How many years of warranty period?
A1:The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).


Q2: Do you have CE document and other documents for customs clearance?

A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.


A3 :How to install and run the machine?

Q3: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.


Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine.

A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
