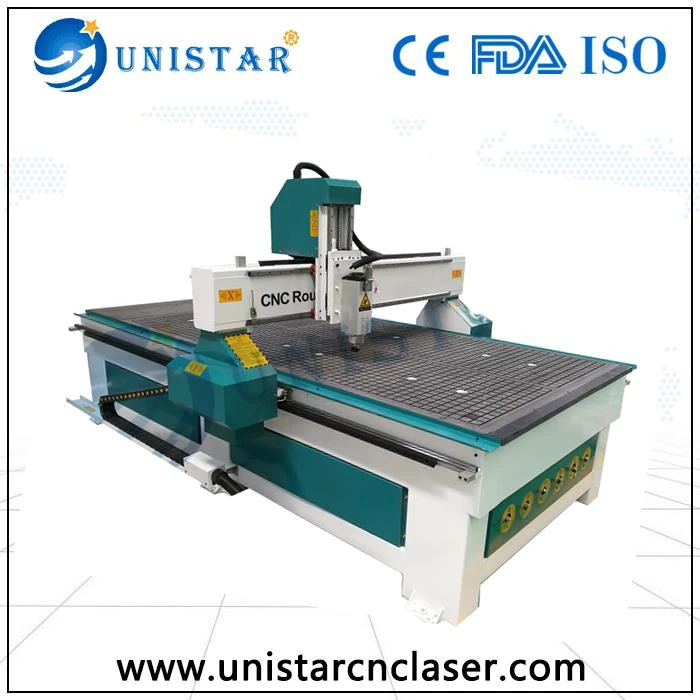

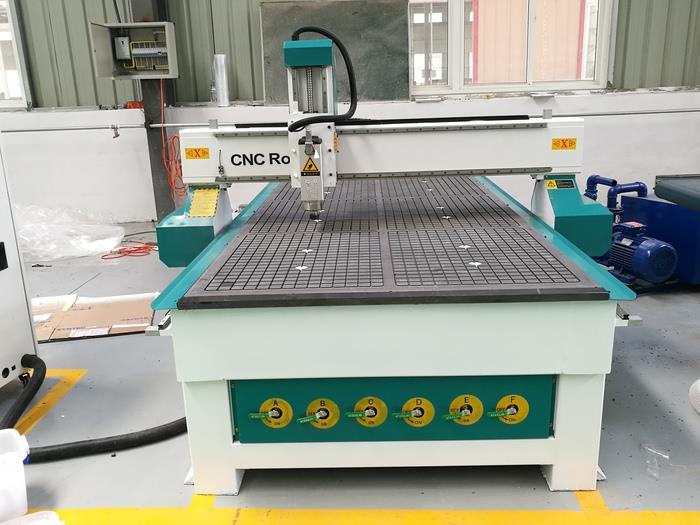

UNISTAR 1325 MDF Engraving Machine with high speed and great price ratio/ 1325 cnc wood carving machine
Applicable area
Furniture: Idealy suitable for processing cabinet door, woodern dorr, solide wood furniture ,panel furniture, windows, tabls and chairs, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy restin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals.
Configuration and Parameter
Model | USJ-1325 MDF Engraving Machine |
Working size | 1300mm*2500mm*200mm |
Spindle | 3 KW air cooling spindle |
Table type | Vacuum table with vacuum pump |
Controlllor | NC-studio control system |
Transmission | X,Y Rack and pinion, Z Ball Screws |
Rail Guide | Taiwan Import Linear Square Rail Guide |
Motor and driver | High Accuracy Leadshine stepper motor and driver |
Inverter | Shanghai Fuling Inverter |
Dust collect | Auto dust collect system with two bags |
Oil injection | Manual oil injection |
Max. Spindle speed | 24000r/min |
Max. traveling speed | 25m/s |
Max. working Speed | 18m/s |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Command language | HPGL, G code |
Working voltage | AC380V /50HZ |
Interface | USB |
Command | G code*.u00*.mmg*plt |
Detail

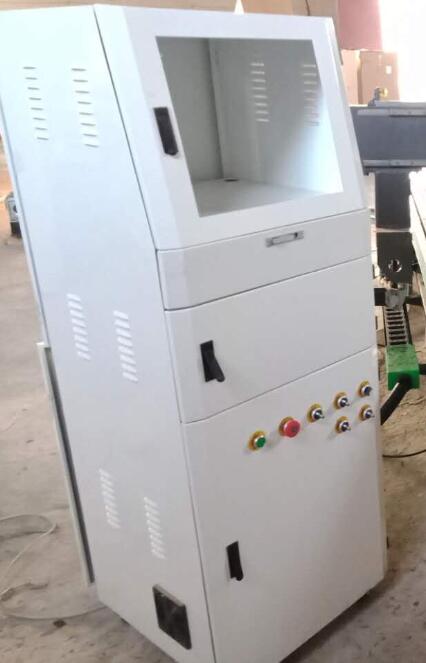

NC-studio Control System with big iron cabinet PC control, user-friendly design, can run offline, completely out of the computer during the engraving work. It can show the working stroke on the pc screen , more intuitive |  |

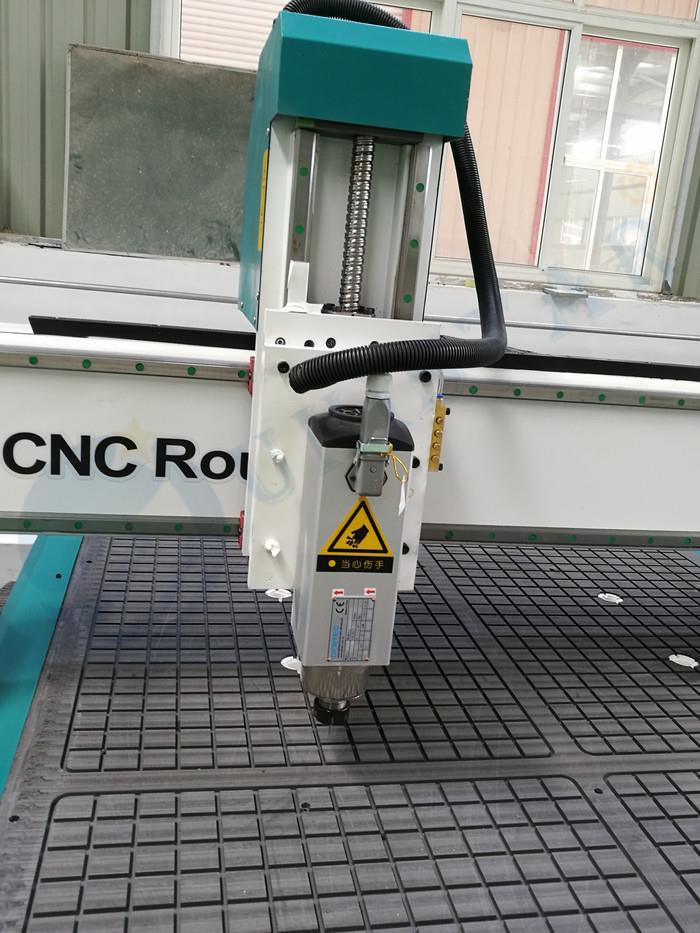

China Domestic 3 kw air cooling spindle The 1325 mdf engraving machine adopt China domestic air cooling spindle with perfect cooling effect and high speed, specially used in CNC woodworking machine. |  |

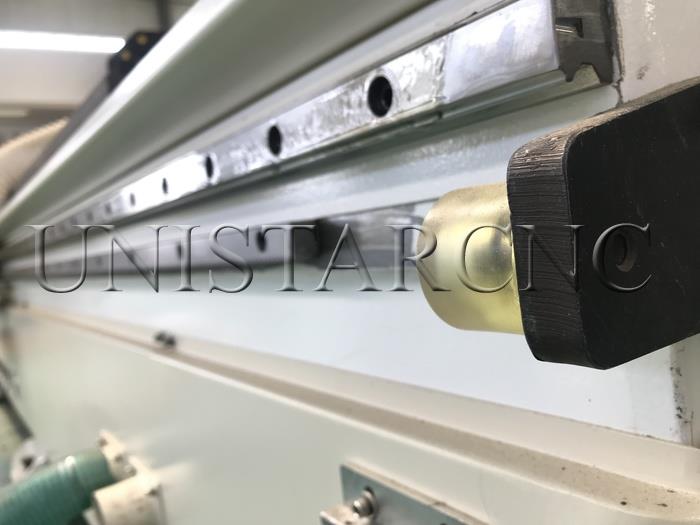

Taiwan HIWIN guide rail The machine adopts famous Taiwan HIWIN square linear guide,with high precision, self-lubrication and long service life. |  |

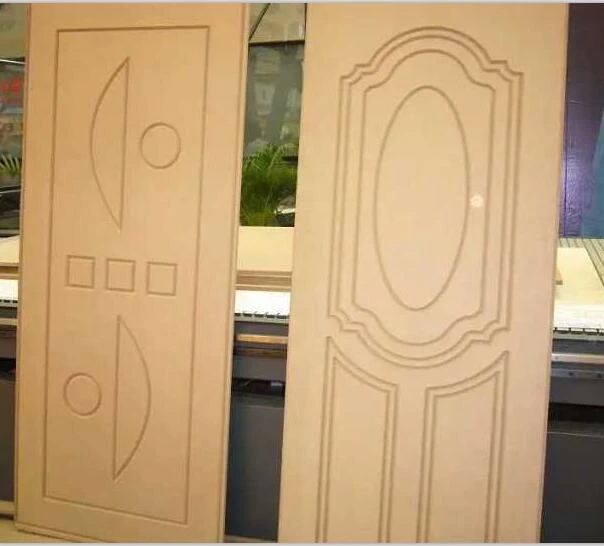

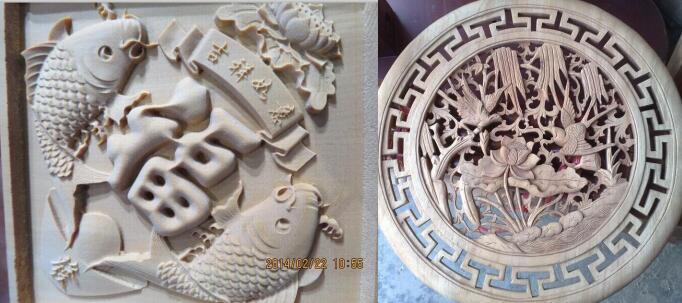

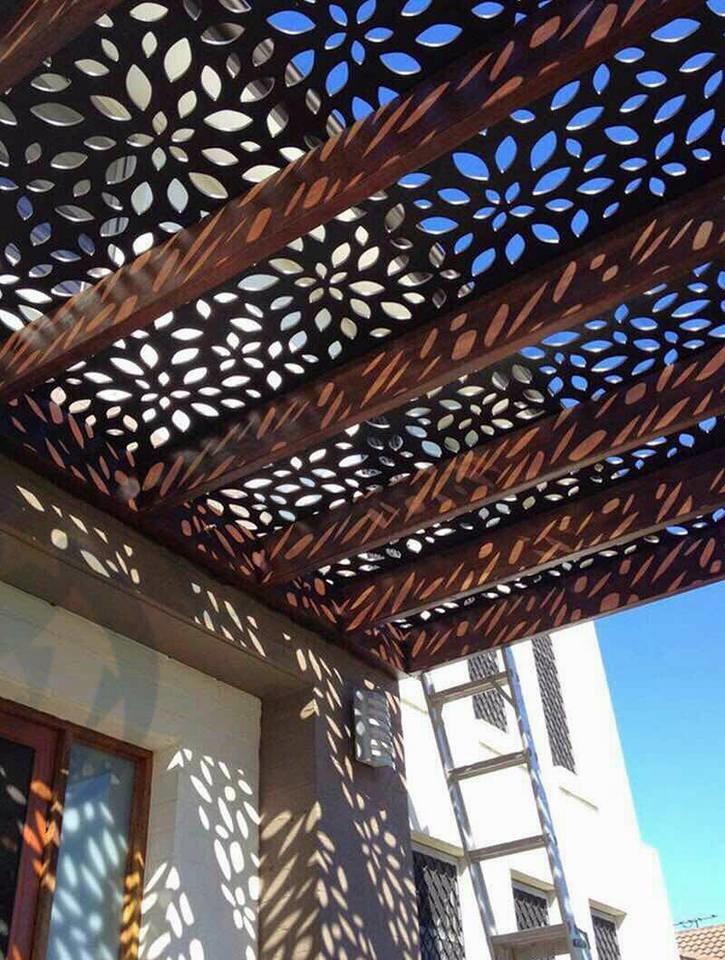

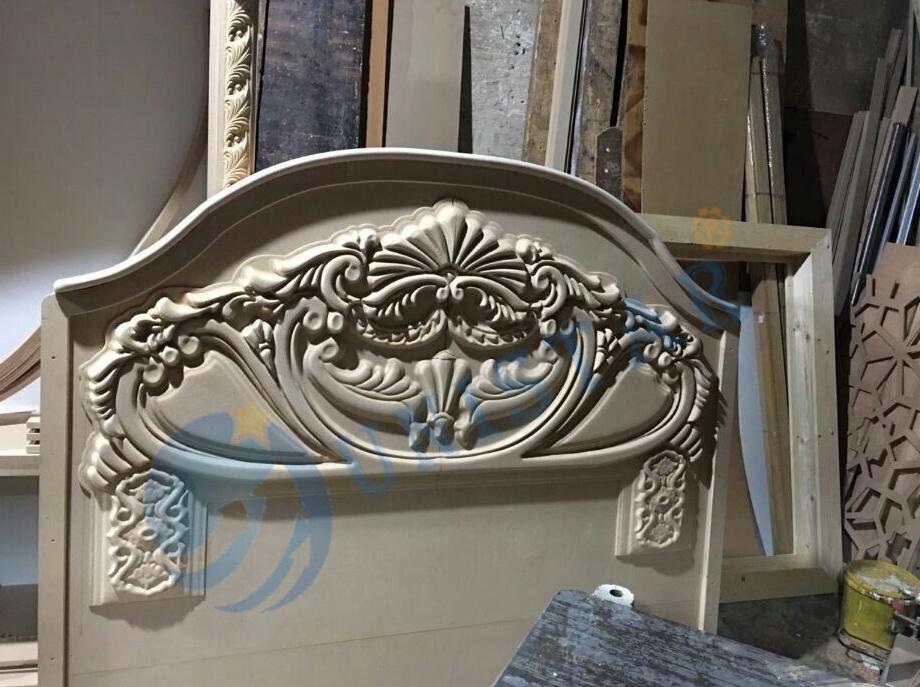

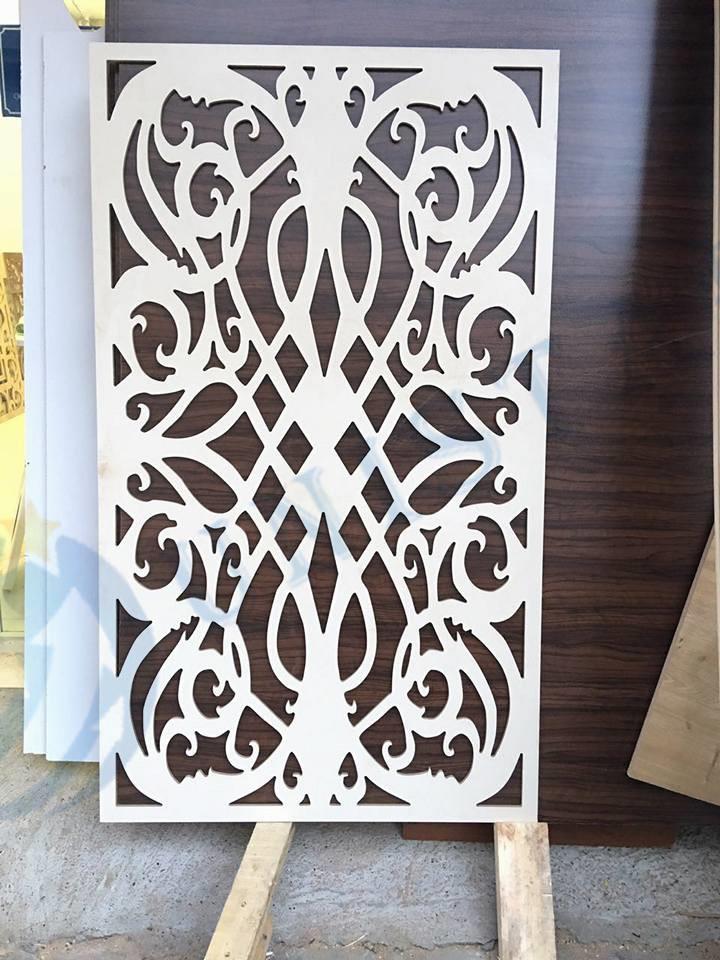

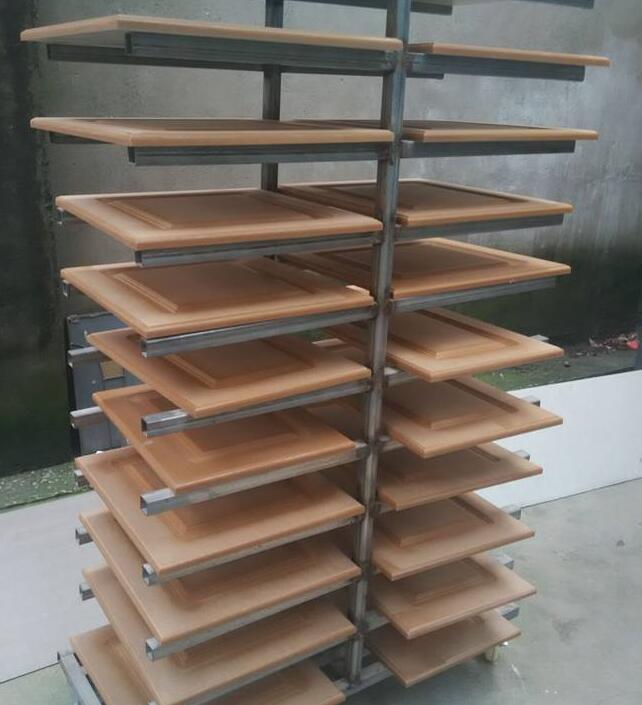

Sample Picture

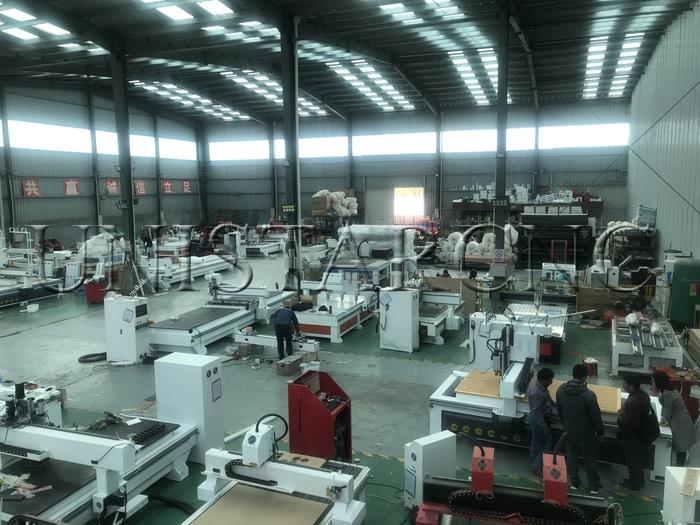

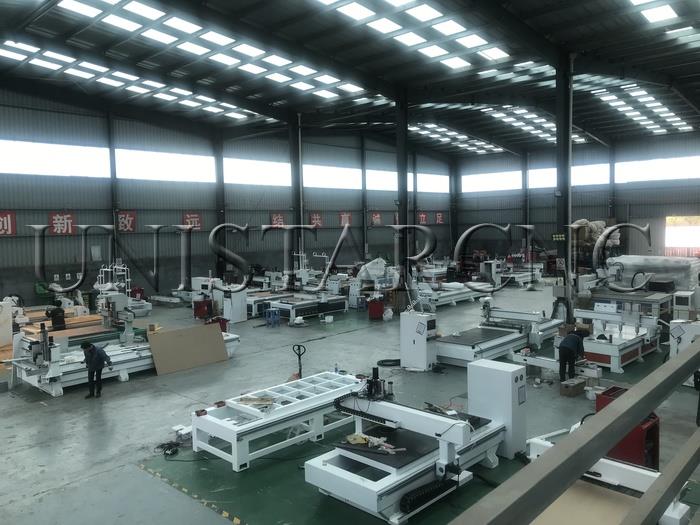

Factory

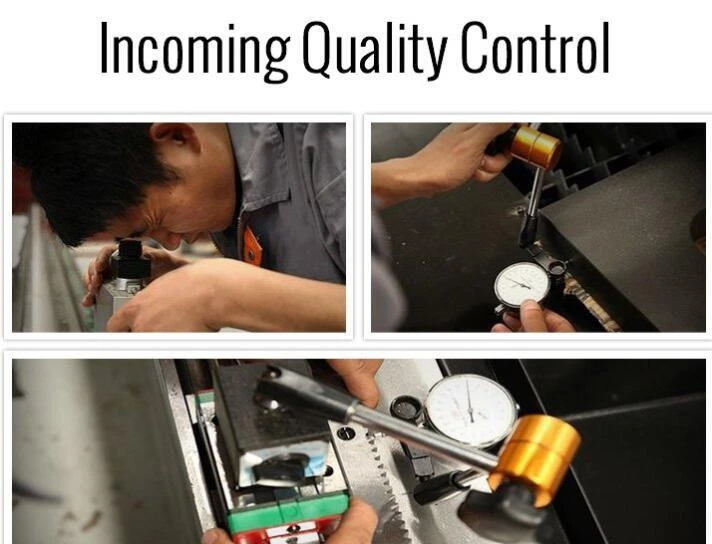

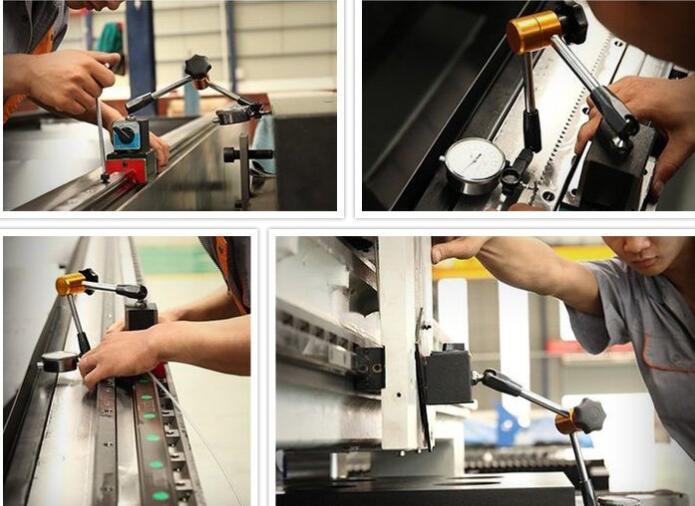

Machine Quality Control

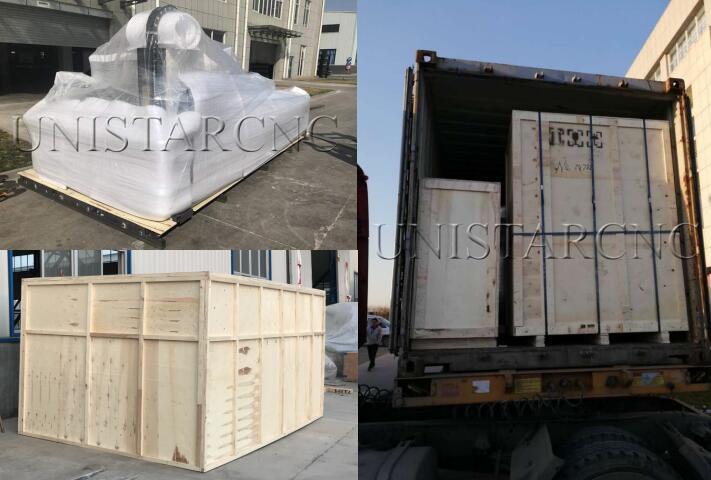

Packing and shipping
The cnc 1325 MDF engraving machine is to be packed with plastic sheet for cleaning and damp proofing.
Fasten the cnc machine into the wood case for safety and against clashing.
Transport the wood case into the container.
Our service
1. We provide 12 months warranty for the machine.
2. Consumable parts will be replaced free during the warranty.
3. Our engineer could provide technology support and training for you in your country, if necessary.
4. Our engineer could service for you 24 hours online, by Whatsapp,Wechat, or by cellphone etc.
