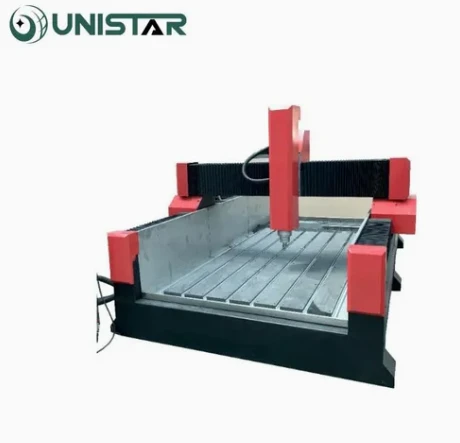

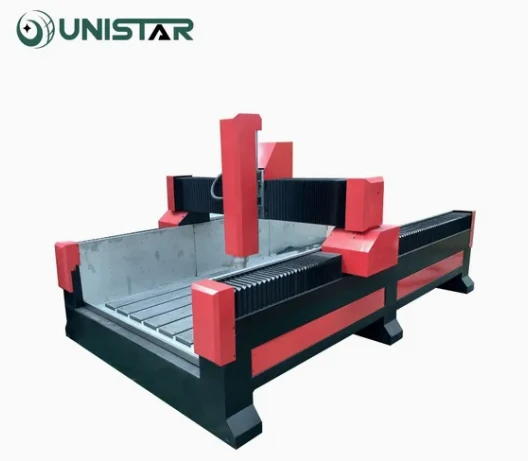

Products Description
The Stone CNC Router is mainly used to process the marble,granite and so on.It also can process the wood and metal materials.
It may take half a month to carve a stone manually, but with this machine, it can be completed in a few hours, which can greatly shorten the processing time and improve production efficiency.
Products parameters
| Products name | USM-1325 |
| Machine area (X) | 1300mm |
| Machine area (Y) | 2500mm |
| Machine Area (Z) | 200mm |
| Working area | 1300*2500*200mm |
| Spindle | Water cooling spindle |
| Control system | DSP control system |
| Table type | T-slot aluminum table |
| Motor and driver | Leadshine servo motor and drivers 1KW |
| Inverter | Fuling inverter 11KW |
| Transmission | X, Y axis by high precision Helical racks and pinions. Z axis Taiwan TBI ball screw (has good performance ,long life ,import from taiwan ) |
| Rail guide | Taiwan Hiwin square linear guide way for x,y axis, import Taiwan High quality rail guide |
| Electricity | French electricity parts |
| Limited switch | OMRON limited switch |
| Prevent dust system | Dust proof system |
| Oil system | Automatic Oil Lubrication System |
| Tool sensor | Auto tool sensor |
| Dust collect system | 5.5KW double bags dust collector |
| Working voltage | AC380v/3ph/50HZ |
Detailed photos
Spindle
We use the 5.5KW water cooling spindle.It is a well-known brand in China. Water-cooling spindles are quieter and less expensive than air-cooling spindles.
Rail Guid
We adopt the world famous rail and guide manufacturer Taiwan Hiwin squarerails ,self-lubricating sliding block.This ensures equal force in all directions and accuracy and strength of the machine.
Table Type
We adopt t-slot aluminum table.Simple operation suitable for novice operators
Control syste
DSP control system don't need connect to PC.It included three parts, control card, U disk,and handle Controller.When you set the toolpath by the software(Artcam ,Type3,etc),then copy it to U disk,then insert U disk to control card ,the toolpath will show in the hand controller.You can control the tool cut or engrave. DSP is easily operate and learned,especially for the freshman.But it can't show the
whole Manufacturing process .
Inverter
The meachine adjusted by fuling inverter;this guarantees the high working speed and accuracy,and can realize milling with high speed,high rotating precision,good rotating with low noise.
Electrical accessory
French imports electricity parts with best quality

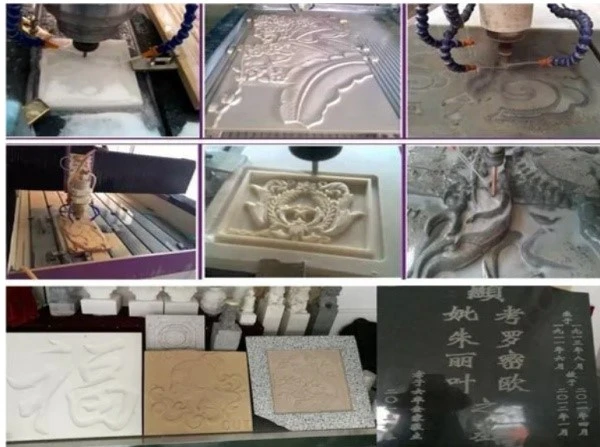

samples
advantages
Advantages of machine
Improve production efficiency and quality
The stone engraving machine adopts advanced CNC technology, which can automatically complete the engraving work and greatly improve the production efficiency. Compared with traditional manual work, the machine can carry out precise control, reducing the time and cost of manual operation. In addition, due to the high precision of engraving, more delicate and complex engraving effects can be achieved, improving the quality and aesthetics of engraving.
Saving labour costs
The automated nature of the stone engraving machine reduces the need for manual labour, resulting in significant savings in labour costs. The operator only needs to carry out basic programme input and tool setting and other preparatory work, and mainly observes and supervises the operation of the machine during processing.
Improved production safety
Due to the automated operation of the stone engraving machine, the risk of manual operation is reduced, thus improving production safety. The use of the machine reduces the chance of workers coming into contact with dangerous tools and materials, reducing the incidence of workplace accidents.
Strong adaptability
The stone engraving machine can be adapted to a variety of different types of stone with strong adaptability. Whether it is hard granite or softer marble, it can carry out efficient carving operations.
Energy saving and emission reduction
The motor and control system used in the stone engraving machine are reasonably designed to save energy and reduce operating costs. This energy-saving machinery and equipment not only reduces the impact on the environment, but also saves the user the cost of long-term operation.
our customer

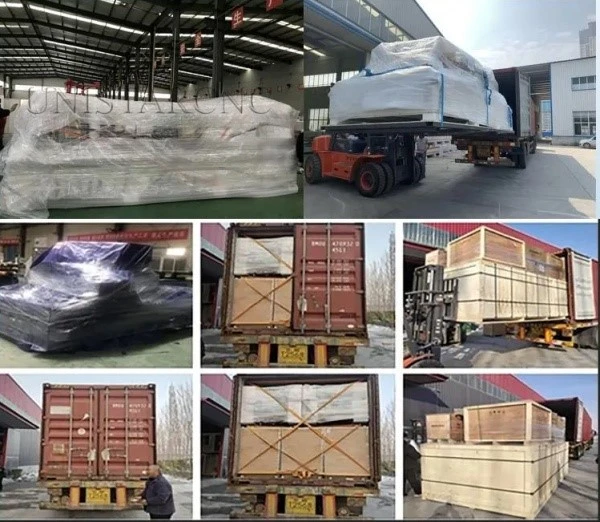

packing
why choose us
Jinan Unistar Machinery Co.,Ltd are specializing in manufacturing and exporting cnc machine and laser machine since 2002 years. The company has two big factory, one is cnc router factory, another is laser machine factory.
UNISTRCNC has professional technical and research teams with rich experience of cnc router, ATC cnc Router, Laser machine, Laser cutting machine, Laser marking machine, cnc metal engraving machine, cnc plasma cutting machine, Fiber metal cutting machine.
fAQ
How to pay for the machine?
1) 30% T/T at deposit,after machine finished,70% T/T balance before shipping machine (Prefered ).
2) Visa card or Mastercard are supported.
3) By Paybal or western Union or Moneygram.
4) 30% T/T in advance ,70% L/C at sight , or 100% L/C at sight.
2.How to transport the machine?
Usually we ship the machine by ship, but also by plane according to customer needs. When the machine arrives at your seaport
or destination, you can use the bill of lading provided by us to pick up the goods.
3.If my budget is limited , how can I get a affordable machine for developing business?
Do not worry , we are professional at providing machine solution , tell us your producing demand , we will give the most economic model with good quality.
