1390 High-Speed Laser Cutting Machine High Precision CNC Fiber Laser Cutting Machine 1mm 3mm 5mm 8mm For Metal Steel Fiber 1000W

1390 High-Speed Laser Cutting Machine High Precision CNC Fiber Laser Cutting Machine 1mm 3mm 5mm 8mm for Metal Steel Fiber 1000W

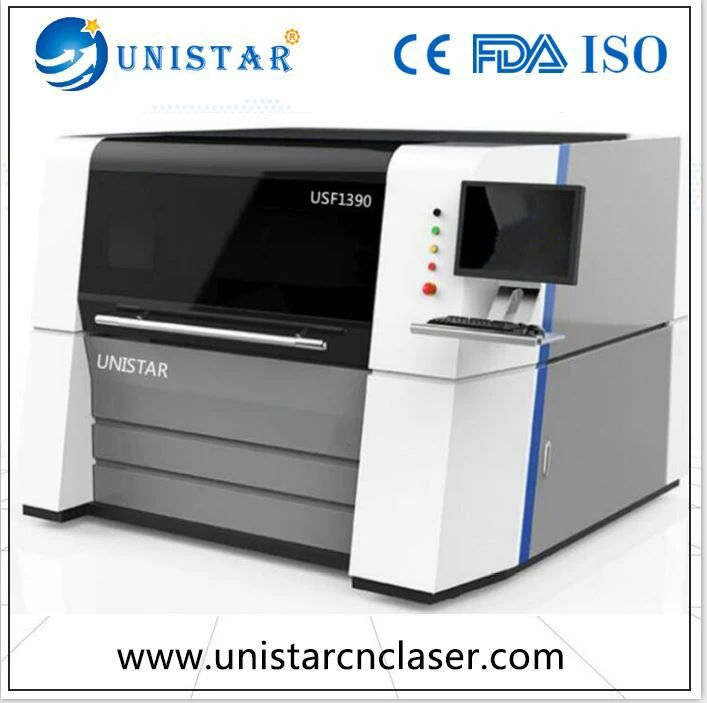

USJ1390 is fast speed mild steel cnc fiber laser cutting machine with 1300*900mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Application:Laser Cutting belongs to thermal processing equipment with CNC control,  it is the  popular and efficient way of all metal cutting machinery. Laser is widely used in Agricultural Machinery, Metal working machinery, Electrical Equipment, Kitchen, Elevator,Advertise, Signs, Auto decoration, Lighting hardware, LED Field, Precision Metal Parts, Metal Products and other Metal industries.

Materials: Able to cut a variety of sheet metals, stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum, manganese steel, various alloy plates, rare Metal and other materials.

Principle: It funtions by working highly focused energy and density spot of laser onto metal work pieces, causing the thermal zone melt and vaporized. Under mechanical motion control, automatic laser cutting is realzied. It is currently one of advanced  processing technologies which involves Fiber Optics, CNC Control and Precision Mechanics.

Parameter:

Main Features

•The UNISTAR Fiber Lasers bring a cost exective, low-maintenance, low operating cost and environ-mentally friendly solution to your organization. Our aber laser machines provide quality cutting and tolerances with minimal productivity loss between jobs, equating to a higher re turn on investment.

• Acceleration speed: 19,6 m/s2 (2G).

• Maximum simultaneous positioning speed: 160m/min.

• Precision: + - 0.05 mm.

• Energy efficiency: greatly reduced power consumption.

• Excellent cutting quality for fine thic kness and medium thickness sheet metals.

• IPG Resonator. Power output from 1 kw to 6 kw .

• Precitec light cutter cutting head with po wer output up to 2kw.

• Precitec HP cutting head for po wer output of more than 2kw.

• Fully enclosed and cabinned to ensur e máximum operator protection.

• Effective high to low pressure gas exchange system.

• Capacitative Sensor, high pressure cutting head.

• TCI Cutting parameter tables.

• Pre-cut film protector.

• Automatic mechanized Nesting power output control function (edges, start-ups).

• Automatic time and unit cost calculation function.

• Network connection from external.

• Automatic table exchanger (included in series models).

• Smoke extraction (included in series models).

• 3 point reference sensor (sheet metal rotation detector).

• Piercing Sensor.

• Collection of work pieces and trimmings.

• Dual proportional valve control system for different gas pressures and special system for high pressure cutting.

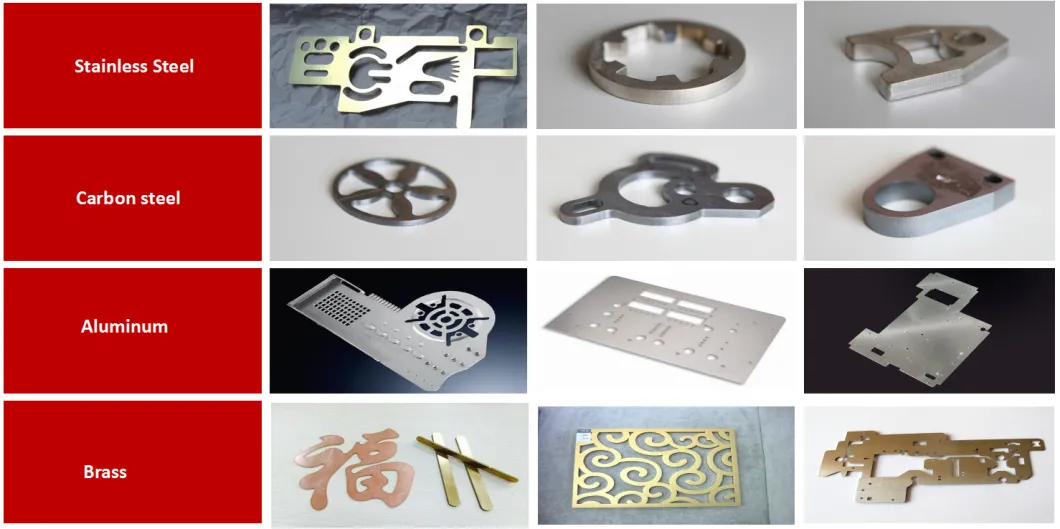

Cutting Samples

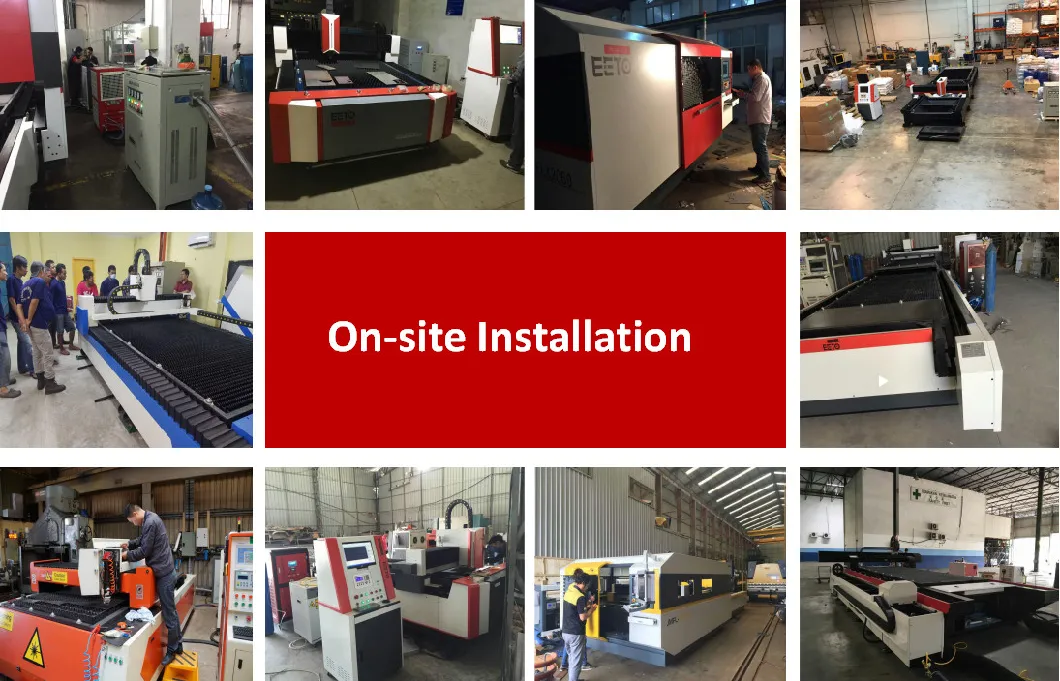

Installation and TrainingUnistar provide complete and in-time after-sales service for customers around the world,  including production, package, delivery, installation, training, as long as you order, we will send our machine directly to your factory, our response time 2 hours.

Package

Package and Delivery are of great important part in aftersales service,  we provide all-round and complete services to customer to make sure your products arrive safely without damages. For packaging. 1. We use wooden cases that meet international export standard 2. All the motion parts are lubricated  and covered with firm to avoide direct air contact and thus prevent getting rust. 3. The whole machine and parts are well packed and  fixed inside of the wooden case without moving or sliding inside. 4. The inner space of the wooden case will be made into vaccum to keep dry and the plywood case will be covered with waterproof cloth to stop rain drops or sea water from entering the wooden case.

After-sales Service

1. Based on Service-oriented conception, complete pre-sales and after-sales services for customers will be provided like installation, testing, training and maintenance. 2. Before signing a contract, parameters and processing technics will be explained and given to customers to make product fully comprehended. 3. After signing a contract, transport vehicle or ship will be arranged to carry goods to the appointed location within delivery period, and engineers will be sent on site later for installation, lasting 1-2 days. 4. Training period takes about 3-4 days till all the operations are perfectly performed under regulations.

Power-on/off procedures Operations of control panel ; Parameter setup Operations of software; Clean and maintenance Common hardware troubleshooting; Warnings during operation.

Extra Tech Support

Two-year warranty guaranteed from factory, meanwhile, lifelong maintenance succeeds after warranty. Any malfunction or damage occurs during warranty ( man-made causes and force majeure exclusively), please email or call us immediately, professional engineers will be arranged on the resolution, all the charges are free including cost of changing new parts (consumable parts excluded).

 Our promises: 24 hours on-line service and response time less than 2 hours

15 days after signing a contract, a layout drawing will be sent to user( including preparations on foundation, water, electricity, gas, air/water pipe, interface, etc). Preparatory works and space spared for machine installation are required on user side . Professional engineers then will be dispatched after all these preparations are finished, In order to run everything smoothly, on-site assistance from user side will be quite necessary.

FAQ:

Q: What's working area of our fiber laser cutting machine?

A: Our standard size: 1300*900mm,  also there are  3000*1500mm, 4000*2000mm, and 6000*2000mm for option.

Q: What's the laser power of your fiber laser cutting machine?

A:  We have laser power from 300-4000w, able to different metals with varied thickness

1.Low power 300W, 500W, 700W, 750W, 1000W, which cut metals lower than 10mm

2.Medium power 1500W, 2000W, able to cut steels up to 16mm

3.High power 3000W and 4000W, extending cutting capability to 25mm

Q: What materials can we cut? What's cutting thickness of fiber laser cutting machine?

A: Fiber laser cutting machine can cut  metal materials, including carbon steel/stainless steel/aluminum/galvanized sheet, but high reflective materials are restricted to be cut with fiber fiber, like brass/silver/bronze, if you have such material to cut, please connect us for professional advice

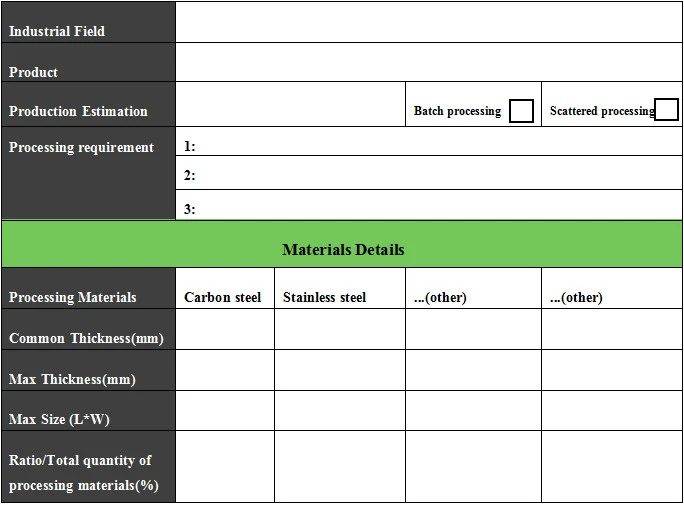

B: Cutting thickness from 0.5mm to 25mm according to different laser power.   For better choosing a suitable product, please let us know the following information:
