1325 1530 Woodworking CNC Router Atc for Wooden Door Furnitures Cabinets Wood Caving and Engraving Machine
Specification
Model | UNISTAR-1325 |
X, Y Working size | 1300*2500mm |
Z feed Height | 200mm |
Table Surface | Vacuum table |
X, Y Structure | Rack and Pinion Drive, TBI Linear Square Guide Rail |
Z Structure | TBI Linear Square Guide Rail and Ball Screw |
Max. Power Consumption | (Without spindle) 2.0Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9.0KW HQD ATC spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Yaskawa servo motor and driver |
Working Voltage: | AC220V/50/60Hz |
Command Language | G code |

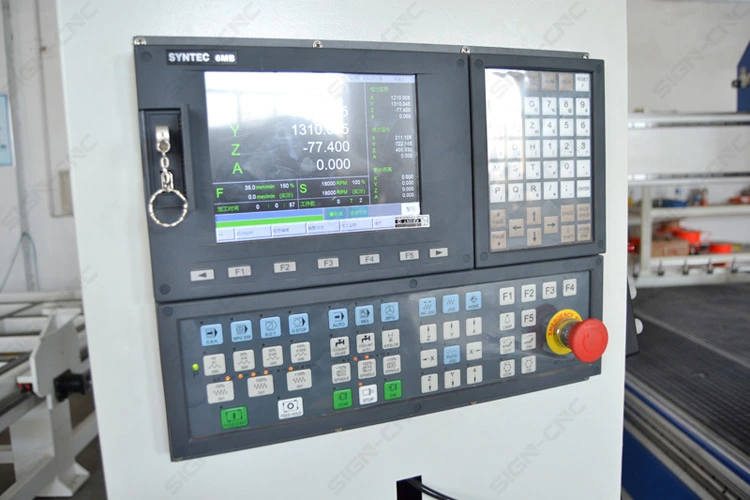

Control System | SYNTEC 6MB |
X,Y,Z repositioning Accuracy | ±0.01mm |
X,Y Resolution | <0.01mm |
Software | Artcam |
Running Temperature | 0 degree - 45 degree |
Relative Humidity | 30% - 75% |
Optional Parts | Rotary system, Panasonic Servo motors |

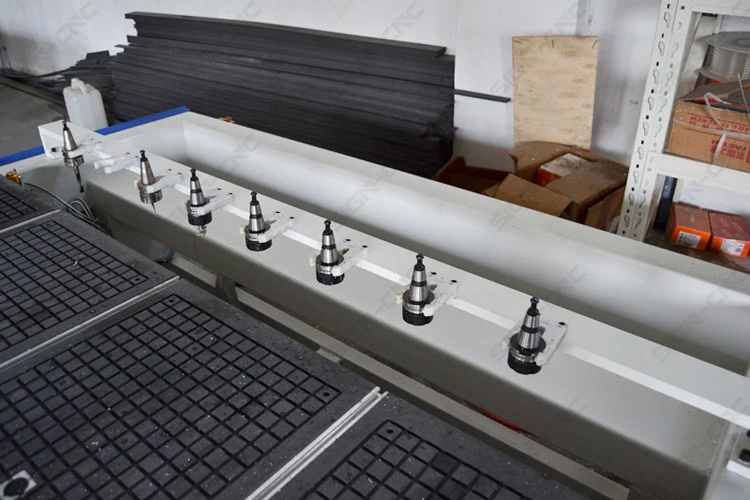

Machine details

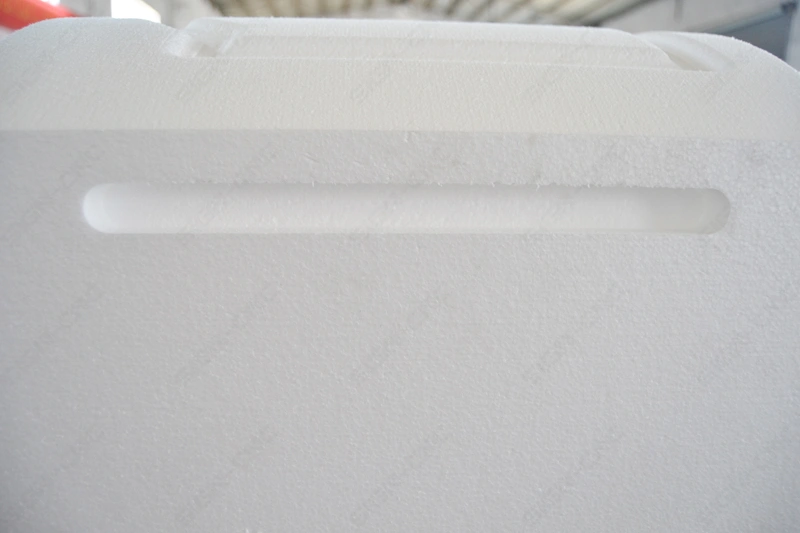

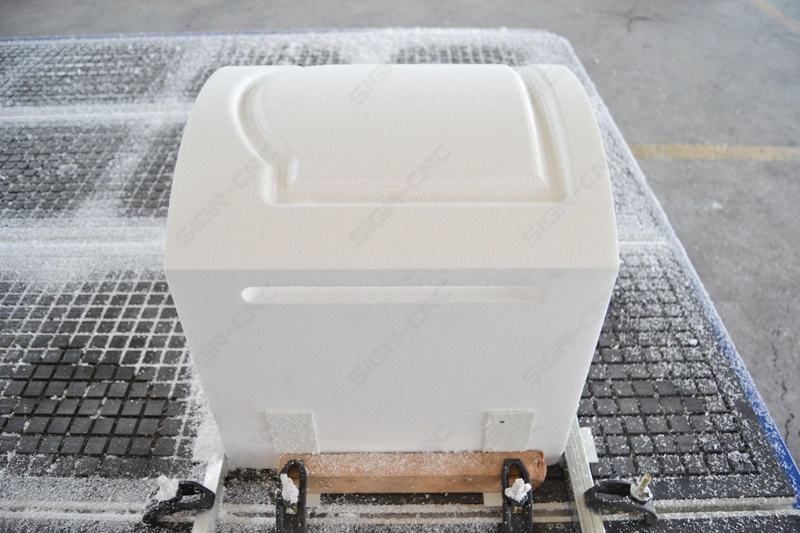

Sample

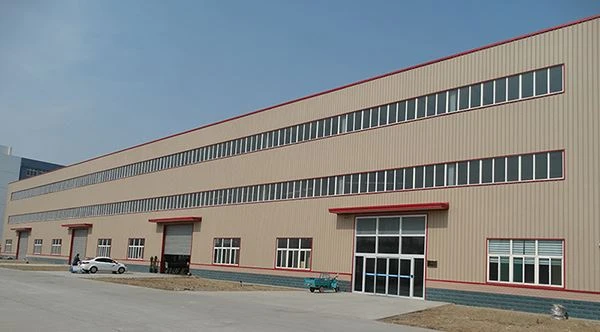

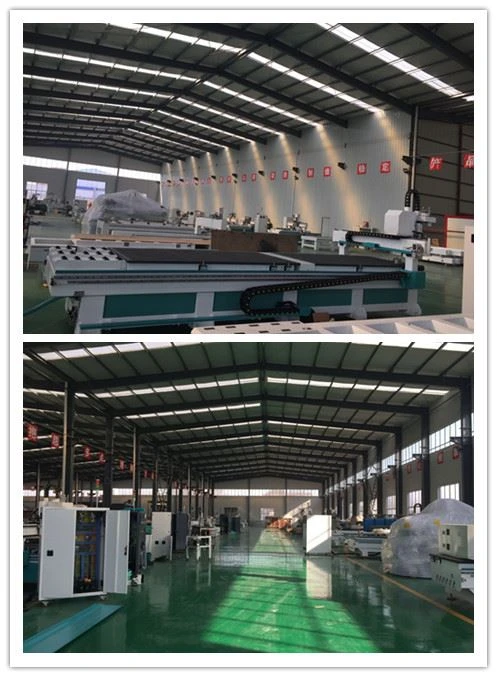

COMPANY
FAQ
1. How can I run it ?
Send you the operation video and English instruction for use.
We provide free technical support
2. What else I need except the machine?
computer (windows XP with a card trough).
3.What is the warranty?
1 year for router ,2 years for laser cutting machine .
4. What is your payment?
T/T 30% deposit ,70% before shipping.
Western Union ,Alibaba Secure payment.
