How To Choose The Right Router Bits for Woodworking?

• Flat bottom or column router bits, mostly rely on the side edge for cutting, and the bottom edge is mainly used for flat polishing. The end face of the head of the column router bit is large, and the working efficiency is high. It is mainly used for contour cutting, milling plane, area and surface rough carving.

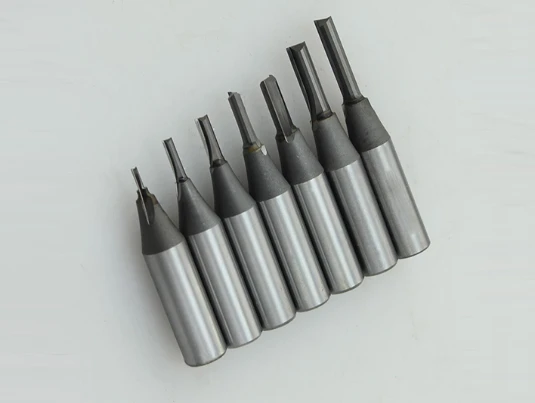

• Another relatively common type is straight, which is often used to carve large characters. The edge of the material cut by it is straight, which is generally used for PVC and acrylic cutting to make characters.

• Milling cutter is the most common tool in automatic woodworking. Milling cutters are divided into many types according to their shapes.

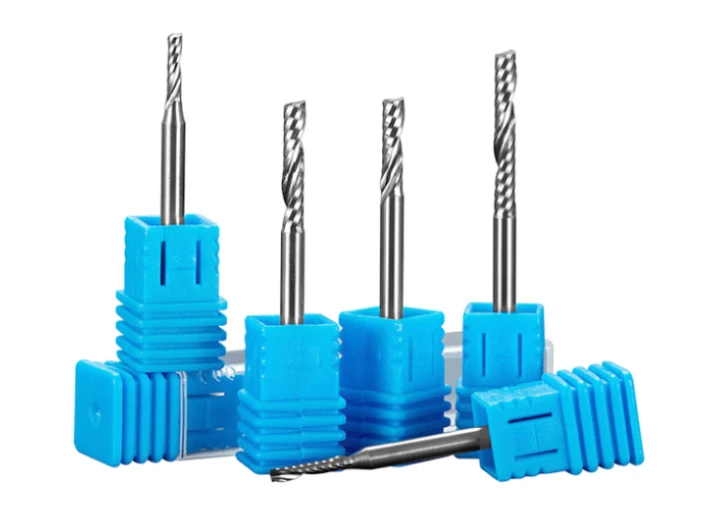

For example, double-edged spiral milling cutters used when cutting acrylic and MDF, single-edged spiral ball-end milling cutters for large deep relief processing of cork, MDF, solid wood, and acrylic. It is a prismatic milling cutter used when making high-density boards, solid wood doors, and furniture.

Of course, many tool manufacturers will also make special tools according to the special requirements of many customers, such as large chip-removing spiral milling cutters that are more suitable for cutting density boards and chip removal. The round bottom cutter is more suitable for precision small relief carving.

• The cutting edge of a ball end tool is arc-shaped, forming a hemisphere during the carving process of the wood cutting machine, the process is evenly stressed and the cutting is stable. Ball tools are not suitable for milling planes.

• Bullnose bit is a mixture of fluted column bit and ball end bit. In addition, it has the features of a ball end bit to carve curved surfaces, and on the other hand, it has the features of a fluted column bit and can be used for plane milling.

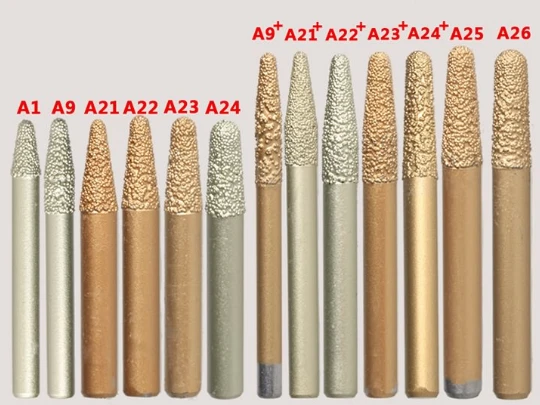

• Tapered flat bottom bits, abbreviated as tapered bits. They have the widest range of applications in the carpentry. The bottom edge of the cone bit, commonly known as the tip, is similar to a column bit, and can be used for the finishing of small planes. The side edge of the cone bit is inclined at a certain angle to form an inclined side surface during the working process.

The structural features of the cone bit can enable it to achieve the unique 3-dimensional angle clearing effect of the carving industry. Cone bits are mainly used for single-line carving, area rough carving, area fine carving, 3D clear angle, projection carving, image gray scale carving.

• Tapered end mill, referred to as tapered ball nose bit. It's a mixture of cone milling cutter and ball milling cutter. Furthermore, it has the features of a cone cutter with a small tip, and on the other hand, it has the features of a ball bit, which can mill relatively fine curved surfaces.

• Tapered bullnose bit is a mixture of cone bit and bullnose bit. Moreover, it has the features of a cone shaped bit to cut relatively fine curved surfaces, and on the other hand, it has a bullnose shaper cutter. Because of its features, the tapered bullnose router bit is often used for relief carving.

• The V-Groove router bits are designed to cut deep or shallow V-shaped grooves.

• Drill bits are mainly used for drilling. When the hole is relatively shallow, clearing bottom router bits can be used to drill holes.
