How many types of laser cleaning machine?
There're two most common types of laser cleaning machines:

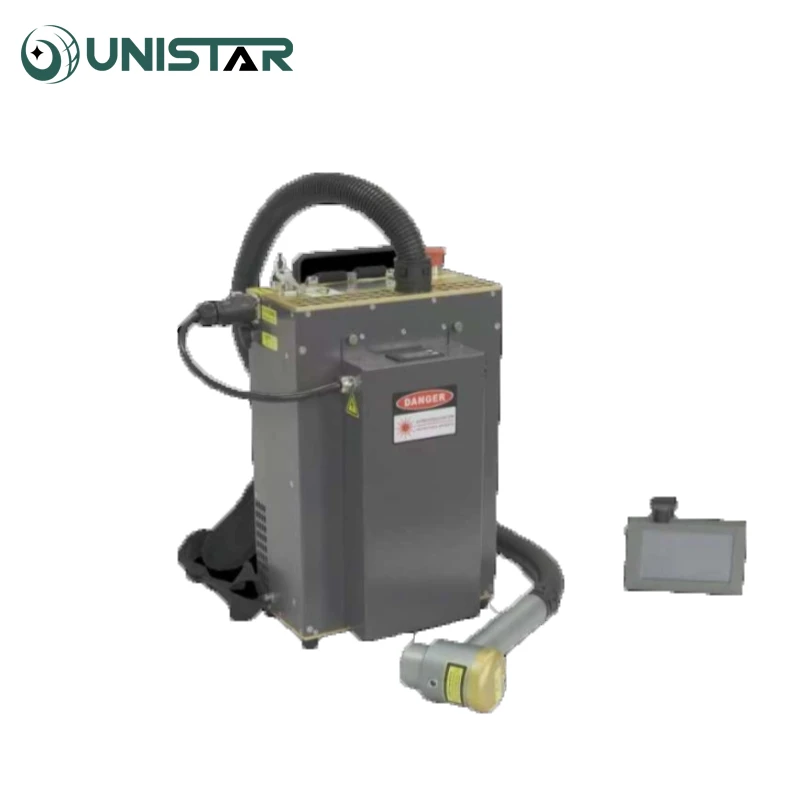

1.One is pulsed laser cleaning machine.
Pulsed laser cleaning machine with pulse laser source and galvo cleaning head, if you have high-value products to be cleaned without harm the base materials, you must use this Pulsed laser cleaning machine, because CW laser cleaning machine will damage the base materials. If you wanna cleaning oil fouling, blot, and dirt on molds, you can choose this damage-free pulsed laser cleaning machine, it support 50w, 100w, 200w 300w 500w 1000w.
2.Another one is CW fiber laser cleaning machine;
CW fiber laser adopt handheld cleaning head with continuous laser source, the advantage of CW laser cleaning machine is of high cost performance, if you have low requirements for laser cleaning and only remove rust or thin paint of stainless steel, mild steel, iron and other metals, you can choose the CW laser cleaning machine. The laser power support 1000w, 1500w, 2000w.
How is it working?
Laser cleaning machine is a type of laser ablation machine to irradiate and heat the surface material of object with a CW (Continuous wave) laser or pulsed laser and make it evaporate or sublime to achieve the purpose of removing the surface materials.Users don't have to touch the surface polluted material, mount the cleaning head to polluted area, press down the trigger, the laser will promptly shoot out and clean the rust away.
Pulse laser cleaning Security identification & Electrical safety
Pulse cleaning machine Features:
Which features of the handheld laser cleaning machine?
Compare with traditional cleaning machine, what advantages of our laser cleaning machine?
| Item | Traditional | New Generation | |
| Dry Ice Cleaning | Mechanical Polishing | Laser cleaning machine | |
| Workpiece Damage | Damaged | Damaged | No Damage |
| Side effect | No Pollution | Polluted | No pollution |
| Operation | Simple | High-intensity work | Simple |
| Contact | No contact | Touch and grind | Non contact |
| Cleaning Size | No limit | No limit | Accurate size cleaning |
| Consumable | Dry Ice | Sandpaper, grinding, wheel, oil stone etc | Only power on the machine |
| Frequency or Efficiency | Slow | Generally | Fast, improve at least 6times |
| Using Cost | Initial:Middle | Initial:Low | Initial:High |
| Later:High | Later:High | Later:Low | |
All-in-one design make the laser cleaning machine all outside parts can be collected inside the machine, including cleaning head, holder, laser cable, supporter and tool kit, users can hold the handle and push it along.
Installation Instructions
Application
Pulse Laser cleaning machine is widely using in construction works,Machinery repair shops, Advertisement, Building material shops, Auto parts, Ship industry, for example rubber mold,High-end machine manufacturing,tire mold track,environmental protection industry,energy and Mining, Manufacturing plant etc
