​The laser marking machine supplied by Unistar is based on a new generation of new products from traditional laser marking machines. The system uses industrial standardization design and adopts a new generation of glass-encapsulated CO2 lasers.

Send InquiryChat Now
Product Details

High Accuracy CO2 Glass Tube Laser Marking Machine Supplier

The laser marking machine supplied by Unistar is based on a new generation of new products from traditional laser marking machines. The system uses industrial standardization design and adopts a new generation of glass-encapsulated CO2 lasers. It is all equipped with high-speed scanning galvanometer and beam expander focusing system, high stability, anti-jamming industrial computer intelligent control, high-precision lifting platform, to achieve 24-hour continuous stability Reliable operation, high marking accuracy, high speed, low processing cost, and extremely high ratio.


Laser Marking Machine Application Area

1. Application industry: BA applies to advertising decoration, crafts, clothing, leather, toys, packaging, printing, paper products and other industries.

2. Applicable materials: Suitable for marking various non-metal materials and surface of products, such as leather, denim, acrylic, epoxy resin, unsaturated resin, textile, organic glass, plastic, synthetic material, wood, rubber, paper Products and so on.

Techinical Parameter

# Model Number:Model

# Laser Power:  60W(80w,100w,130w for option)
# Laser Tube: Glass Laser Tube
# Table: Aluminum Alloy Table
# Cooling Mode: Industrial Water Cooling
# Control Software: EZCAD Control Software

# Control System:Chins PC Control System
# Laser Wavelength:  10.64um

# Marking Scope:110*110MM/175*175MM/200*200MM/300*300MM

# Cooling Method: Water Cooling

# Maximum Marking Speed:  7000MM/S

# maximum Marking Depth:  Less than or Equal to 0.5mm

# Wave Length:  10600nm ;

# Repeatability:  Plus or Minus 0.03MM

# Response Time: 0.8ms;

# Total Weight:  150kg

# Power of the Whole Machine: <1.5kw;

# Working Power: AC 110/220V plus or minus 10% 50/60HZa

# Working Environment:  Operating temperature / 10-30 degrees Celsius Operating # humidity / 5% 85% (non-condensing water)

# Supported Formats:  PLT, DST, Al, DXF, BMP, JPG, CAD, CDR, DWG

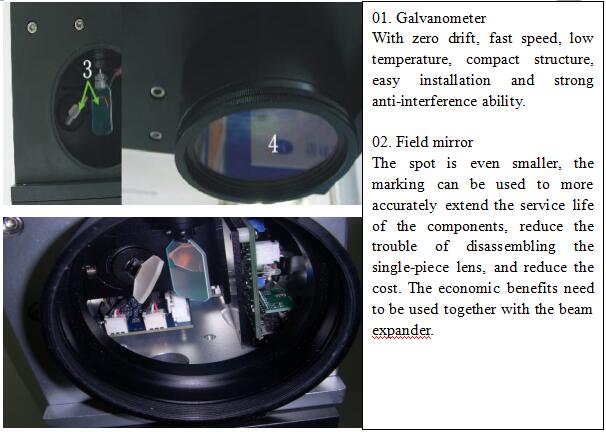

Product Detail Display

Laser Marking Machine

Laser Marking Machine

Galvanometer Parameters

Working temperature

0*C-45*C

Linearity

99.9%

Small step response time

≤0.80ms

Ratio drift

<40PPM/*C

Zero drift

< 15pRad./"c

Long-term drift (24 hours of continuous work)

<0.5mRad.

Average operating current

6.0A

Peak current

20A (Max)

Maximum scan angle

±15°

Storage temperature

-10 to +60C

Repeatability

8μRad

Input aperture

20.0mm

Beam displacemen

26.0mm

Frequency

S400HZ




Sample Picture
