Laser Marking Machine for Metal

Laser Marking Machine for Metal

The laser marking machine for metal is not only mark on metal, but also mark on non-metal with high accuracy, fast speed.

Send InquiryChat Now
Product Details

Manufacture price Laser marking machine for metal on hot sale

Laser Marking Machine for Metal

● Specific parameters

Working Area

100*100mm

Optional working area

can customized

Cooling Type

Air cooling

Laser power

RAYCUS:30W,good brand in china

Control system

China PC control system

Working table

Aluminum alloy table,red point

Galvanometer and field lens

High speed galvanometer,field lens

Software

JCZ EZCAD software

laser wavelength

1064nm

Q-frequency

20KHz~80KHz

Divergence

0.3mard

Minimum Line Width

0.01mm

Minimum Character

0.15mm

Marking Depth

0 ~0.5mm

Engraving Line Speed

≤7000mm/s

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Graphic Format Supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Working Voltage

220V±10%/50Hz/4A

Unit Power

<500w

Use of the Environment

Clean and Dust Free or Dust less

Working Condition:Humidity

5%-75%,Free of Condensed Water

Laser Module Life

>100000 hours

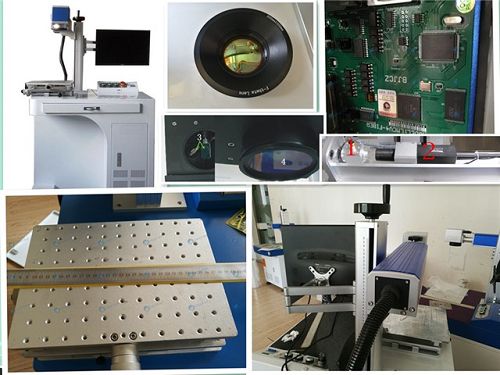

● Parts of the fiber laser marking machine


The above contains Beautiful appearance of Laser marking machine for metal.high tech viberating mirror and filed lens. original version software. up-down platform and so on.

● Advantages
1. with high quality and high tech means long lifetime and high accuracy.
2. Low price but not present little function.it can marking on metal and non-metal.
3. Due to the material and volume,it can working in many area.
4. Advanced control system help you operate it easier and without much problem.

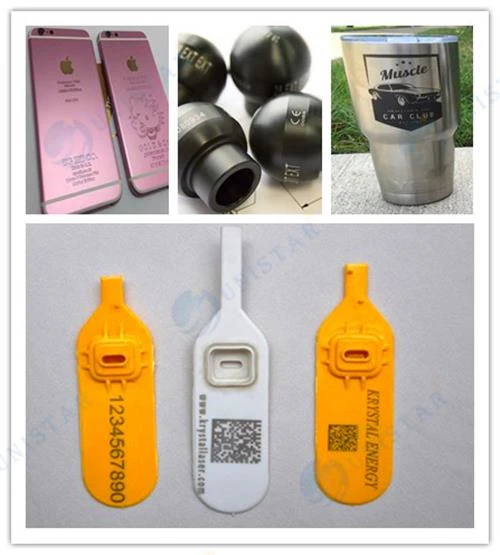

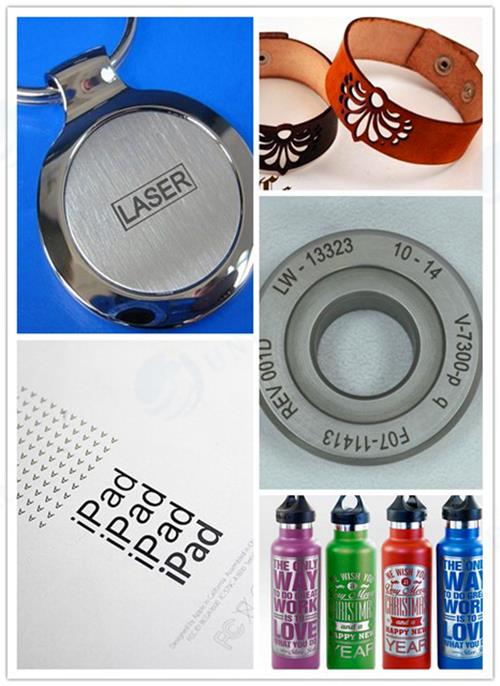

● Samples



● Packing and shipping

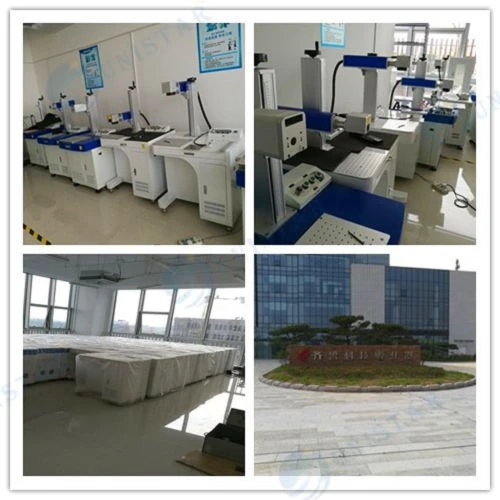

● Our company and factory


● FAQ
Q: How much time could I get the machine?
If you plan the order, we could product for you, generally, 20 days is enough. then is sea sail time. different areas are different, you could consult us.

Q: How to get a good machine
1)Machine quality. If you plan to choose a so cheap machine, maybe the quality is bad.And you have to order another machine after you use it for a period.This situation will have a bad effect on your producing.So the quality of the machine is most important factors to choose a laser machine.
2)After sales service. if you buy a machine without after sales service, it's terrible.a good service after you get the machine can help you save a lot of time.besides, it can solve many problems immediately you met.
3)The third is technical support.Because of time difference, their is a big problem to communicate with the seller, so you should sure that the seller could or couldn't help you timely.
