3D Dynamic Focusing Laser Marking Machine

3D Dynamic Focusing Laser Marking Machine adopts imported metal-sealed RF-excited CO2 laser, which is stable and reliable in performance, high in repeatability and positioning accuracy, and does not produce any chemical substances harmful to the environment and human body.

Send InquiryChat Now
Product Details

Auto 3D Dynamic Focusing Laser Marking Machine for big marking area

3D Dynamic Focusing Laser Marking Machine adopts imported metal-sealed RF-excited CO2 laser, which is stable and reliable in performance, high in repeatability and positioning accuracy, and does not produce any chemical substances harmful to the environment and human body. It is an environmentally friendly marking method. The laser beam is non-contact on the surface of the object, and the characters and patterns are engraved. The engraved marks are not easy to be copied and changed, and the operation is simple. The traditional glass CO2 laser has a short life span, and the laser used in this machine has a life of more than 40,000 hours and can be operated at full load for 24 hours, which can well meet the needs of large-scale production and processing of enterprises.


3D Dynamic Focusing Laser Marking Machine Functional features

1. Imported coherent RF CO2 laser metal tube laser from the United States, with high power, good spot quality,stable power and long service life.

2. The three-axis laser scanning system of dynamitc focusing laser marking has the characteristics of compact structure, strong dust prevention, convenient and accurate installation, and strong anti-interference ability.The design of the system takes fully into account the heat dissipation of the vibroscope motor and drive plate, and ensures the stability of the system under long-term working condition.

3. Adopt the RD laser generator water cooling, beam expanding lens water cooling  to make the whole machine run more stable and have a higher life.

4. The control card adopts USB interface bus, which supports off-line operation, supports X, Y, Z and R four-axis stepper motors (X, Y and Z linkage), and supports external control to start and stop marking.

5.  Two distortion correction methods, formula correction and Newton interpolation correction, are supported.

6.Wide range,the maximum range of marking, punching, carving, cutting and other processes can be achieved within 600*600mm/ 800mm * 800mm/1600*1000mm

7.Dynamic focusing laser marking machine is especially suitable for engraving and cutting large areas of leather ,paper,clothes footwear and other materials.

8. The marking performance is stable, the marking height and position can be adjusted arbitrarily, the marking is clear, and it is not easy to wear.


Dynamic Focusing Laser Marking Machine Applicable materials:

for most non-metallic materials, such as leather, Jeans, T-shirt ,wood, bamboo, paper, organic materials, acrylic, etc.


3D Focusing Laser Marking Machine Application industry:

Glasses industry, leather products, clothing industry, wood products industry, craft gifts, packaging industry.


Focusing Laser Marking Machine Detail parameter

Speciifcation  USL100CX/USL150CX

Laser wavelength :10.64μm

Laser source :150w~100w option

Marking area 200×200mm~600×600mm

Marking speed ≤7000mm/s

Mark minimum character>0.3mm

Repeated accuracy 0.003mm

Marking max speed :7000mm/s

Control system : FEELTEC dynamic focusing system and control card

Water cooling system : CW 5000 water chiller

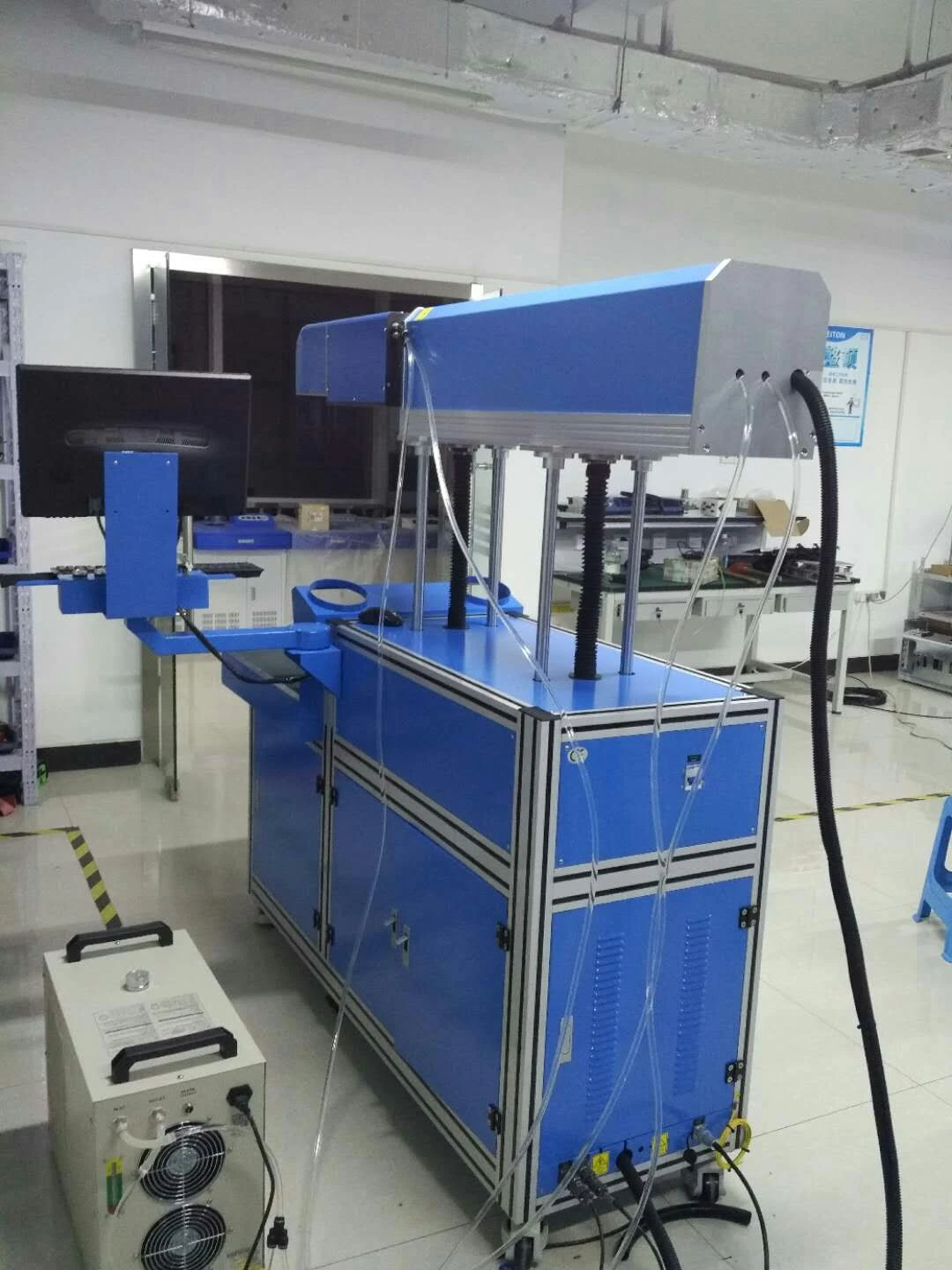

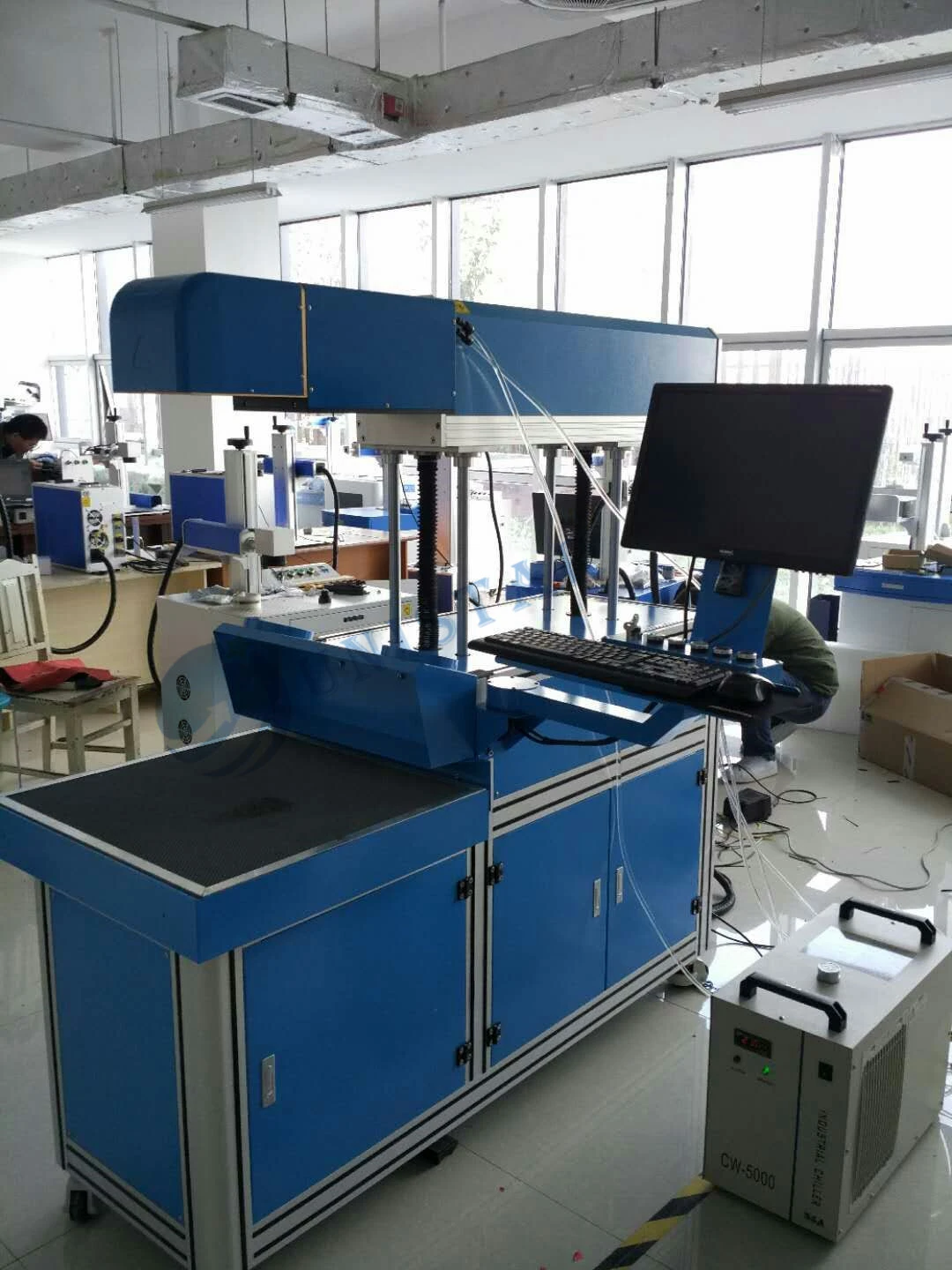

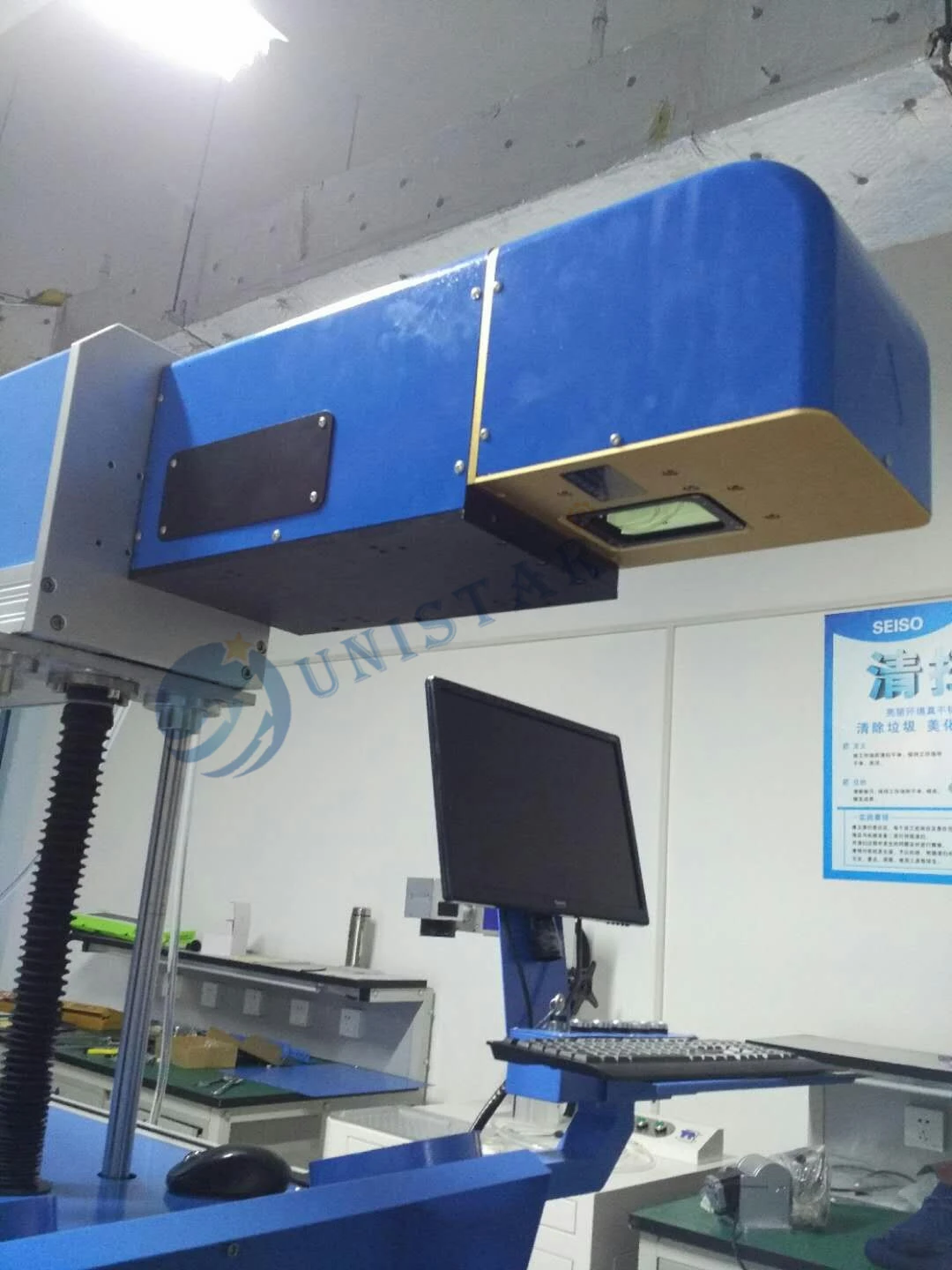

Laser Marking Machine Detail pcitures

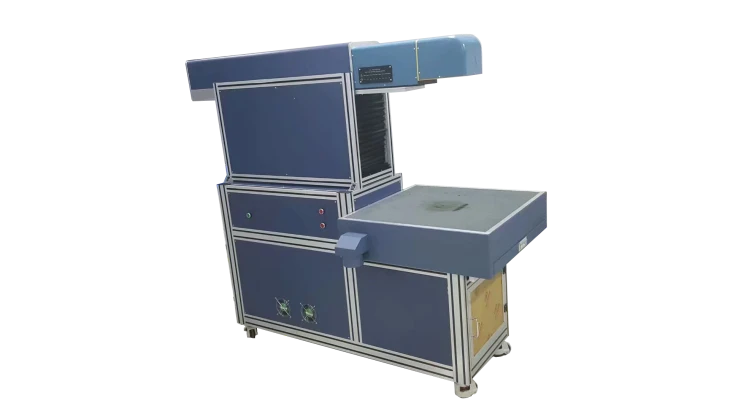

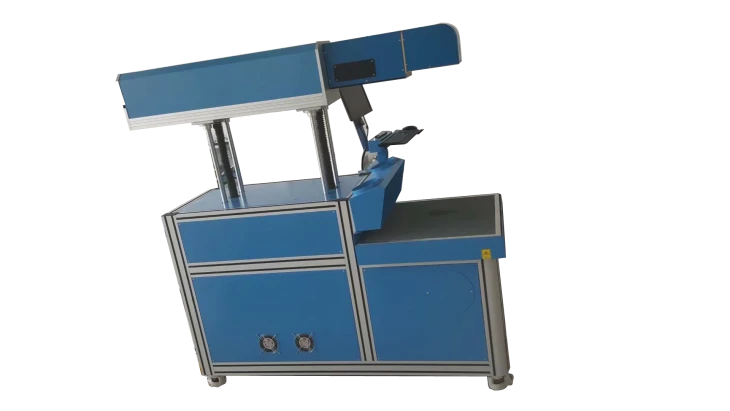

3D Dynamic Focusing Laser Marking Machine

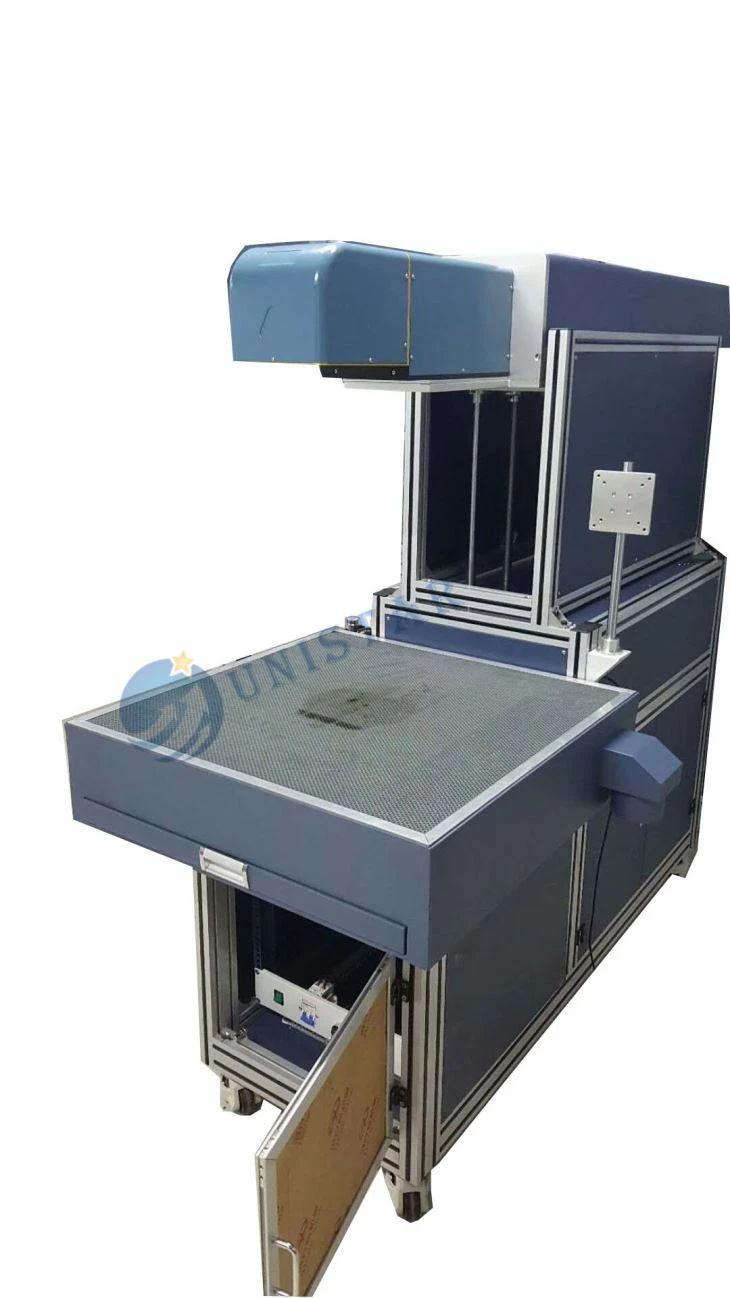

Dynamic Focusing Laser Marking Machine

3D Focusing Laser Marking Machine

Focusing Laser Marking Machine


High speed dynamic focusing laser marking samples

Laser Marking Machine
