This 1610 lLaser Engraving and Cutting Machine is equipped two laser tube, the double-headed property achieve this goal: when two working heads complete the engraving or cutting work of the main part of the material simultaneously, one of the working heads will finish the rest of the work separately for the remaining scrap. Greatly improve work efficiency.

Send InquiryChat Now
Product Details

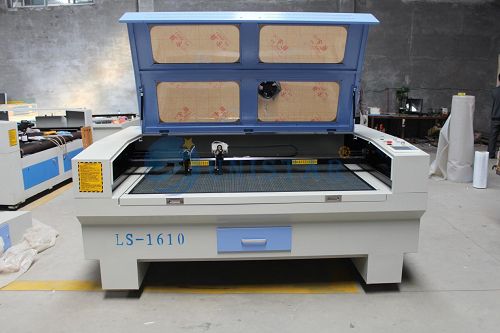

Best Sale 1610 Moderate Size Laser Engraving and Cutting Machine

Laser Engraving and Cutting Machine

This 1610 Laser Engraving and Cutting Machine is equipped two laser tube, the double-headed property achieve this goal: when two working heads complete the engraving or cutting work of the main part of the material simultaneously, one of the working heads will finish the rest of the work separately for the remaining scrap. Greatly improve work efficiency.


● Equipment application industry
Laser cutting &engraving machine widely apply in the industry of adverting, clothing, fabric, leather and so on. They are also popular in bamboo crafts industry.

● Product parameter

NO.

Model

USJ-1610-80W Laser Engraving and Cutting Machine

1

Laser medium

CO2

2

Working area

1600*1000mm

3

Working table

Blade table(or honeycomb table, could add Motorized up-down working table)

4

Laser power

80 W(100W,130W,150W)

5

Power Supply

220V/50Hz, 380V/60Hz

6

Min line width

≤0.15mm

7

Positon accuracy

0.01mm

8

Repetition accuracy

0.02mm

10

Guide rail

HIWIN linear square guide rail from Taiwan

11

Transmission method

Fulong belt from shanghai

12

Drive system

Leadshine driving system and stepper motor

13

Cooling system

Water-cooling

14

Control system

LEETRO 6585 controller

15

Software supported

Coreldraw, Photoshop, AutoCAD, Tajima

16

Graphic format support

PLT, DXF, BMP, JPG ,AI and ect

17

Working environment

0-45°C,

18

Operating Humidity

5-95%

19

Recommended Spare Parts

Laser Tube and Lens
(Suggest additional sets)

20

Optional Parts

USB Feature,
Up-down work table,
Red light pointer,
Rotary System

● Detail

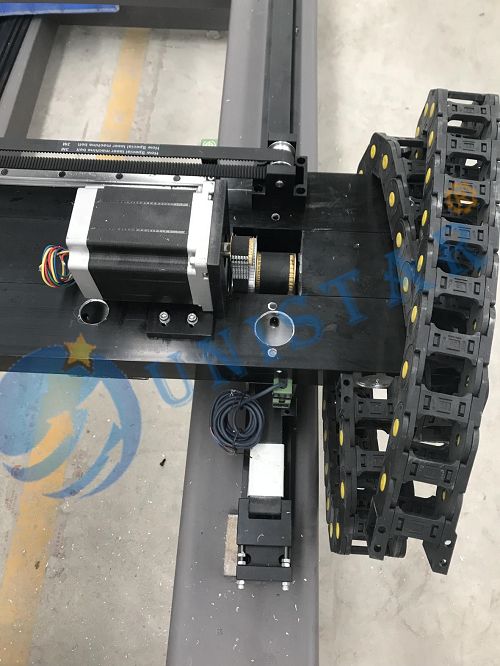

1. Adopt high-precision stepper motor, with a separate drive, configure your match.

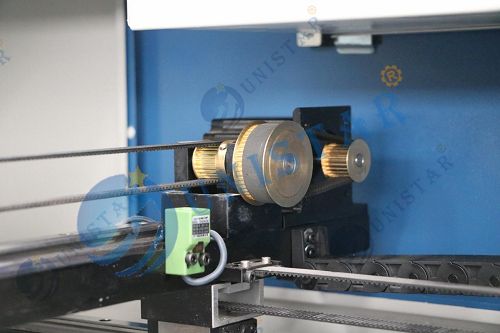

2. The mechanical structure of Taiwan's original straight-line high-precision linear stepper belt aluminum wear-resistant 24 teeth

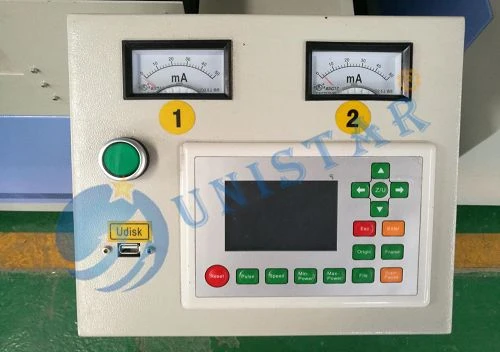

3. The control system has better hardware stability, better compression resistance, Anti-static interference characteristics.


4. Especially with vertical red light positioning device accurately indicates the location of the processing of the laser head,eliminate the trouble about manual position.

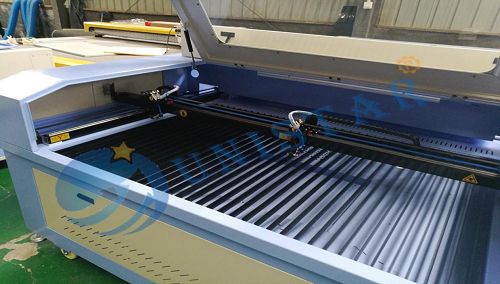

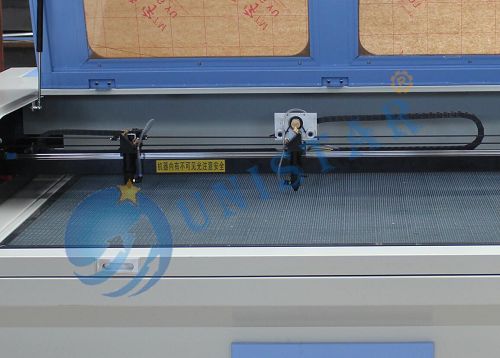

Two cutting heads greatly improve work efficiency.


5. Equipment table is divided into the blade table and the honeycomb table can choose one of the two classes, can also choose to design lifting table

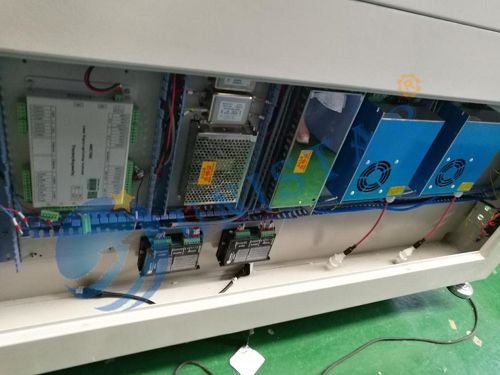

6. Control box include main board, power, filter and stepper driver.

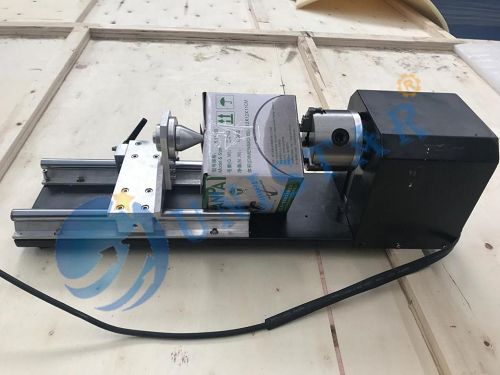

7. Rotary parts,convenient to engrave rotary material.


● Sample of laser cutting and engraving machine


● Packing and shipping
1. Standard plywood case, its strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in waterproof.
3.When importing, the plywood case is with fumigation-free, the procedure is simple.


● Our after - sales service
#. In the processing of production, our technical engineers inspect the processing to make sure the quality of products
#. Machine has been adjusted before delivery.
#. 18 months guarantee of the whole machine.
#. Main parts of the machine (excluding the consumables) we will changed them for free, if there is any problem during the warranty period.
#. Every machine must be tested before delivery for 8 hours, all of them are absolutely qualified.
#. Lifetime maintenance free of charge.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary

● How to choose a good machine
1) Machine's quality, if you to spend less money to get a machine. Maybe the quality is not good. And you must buy the other one after you use it for a period of the time..So the quality of the machine is so important.
2) After-sales service is also very important.Good after-sales service representative the strength of the company. After you use the machine and some thing go wrong, then a good after-sales can dealing with it effectively and protect the rights of consumers.
3) The third is technical support. Because of time difference, When you need help,other place maybe is sleeping. So the effectively contact information and serve is also useful to you.
4) The last is company. In order to ensure their image, good reputation company will product good machine.
