Laser Engrave Wood Machine

Laser Engrave Wood Machine

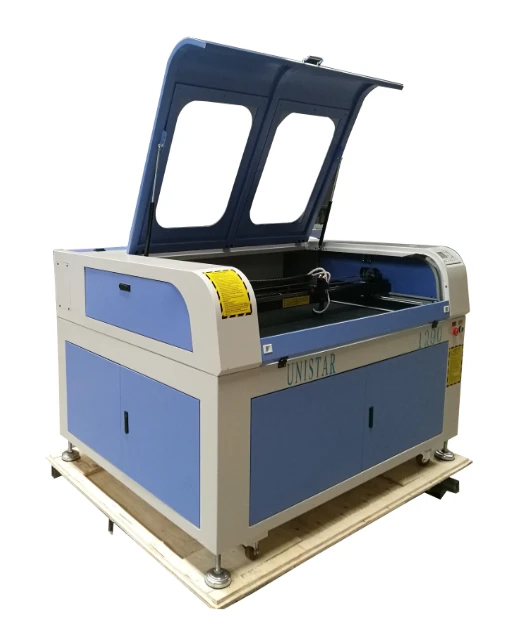

This Laser Engrave Wood Machine is an upgraded model based on the common model of our company. It adopts modular design, steel frame structure, and the machine runs more smoothly. The user-friendly design makes the use more convenient.

Send InquiryChat Now
Product Details

Durable laser engrave wood machine with high quality and manufacture price


This Laser Engrave Wood Machine is an upgraded model based on the common model of our company. It adopts modular design, steel frame structure, and the machine runs more smoothly. The user-friendly design makes the use more convenient. It has a working area  of 1300mm*900mm. It is widely used in laser cutting of acrylic cutting board, acrylic laser cutting, crystal laser engraving, bamboo laser engraving and so on. It is a laser engraving machine with superior performance.


Configurations of this machine

# Working area1300*2500mm

# Control systemRD Color touch screen control system (best in china)

# Beijing EFR Laser tube 100W

# Taiwan import linear square Rails

#Red point

# Leadshine stepper motor and yako drivers with high quality

# Dust collector system

# Air pump

# Exhaust Fan,

# Fulong Belts,

# Singapore Lenses and mirror (3 mirror and 1 lenses )

#CW 3000 water chiller

# In the casing surface spray treatment, stainless steel box cover .

# Blade table for cutting acrylic , PVC , wood and so on

# Standard tools box

# USB offline


Laser Engrave Wood Machine Features

1. Steel frame structure, detachable transportation, novel design and convenient operation.

2. With follow-up up and down ventilation system to ensure excellent cutting results and maintain a good working environment.

3. Configure a new generation of fully offline EM controllers.

4. Adjustable laser mounting bracket to support different types of laser installation.

5. Modular design, strong interchangeability.

6. Newly optimized optical design, the light path is more stable.

7. Adopt a new electrical design scheme and select electrical components with excellent performance to ensure normal operation of the system.


Laser Engrave Wood Machine Application

It could used in wood products, paper, leather, cloth, organic glass, epoxy resin, wool, plastics, ceramics, crystal, jade, bamboo products, electronic products and other non-metallic materials.


Parts introduction:

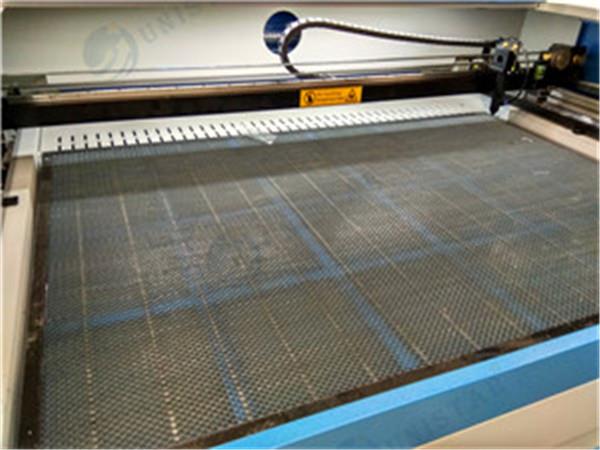

1. Working table:honey table cutting acrylic , PVC , wood and so on

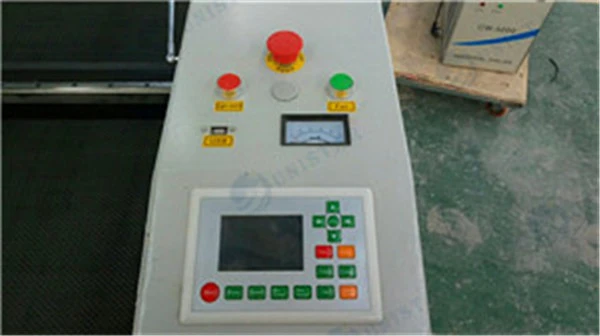

2.control system:RD Color touch sreen control systerm is easy to operate(best in china)

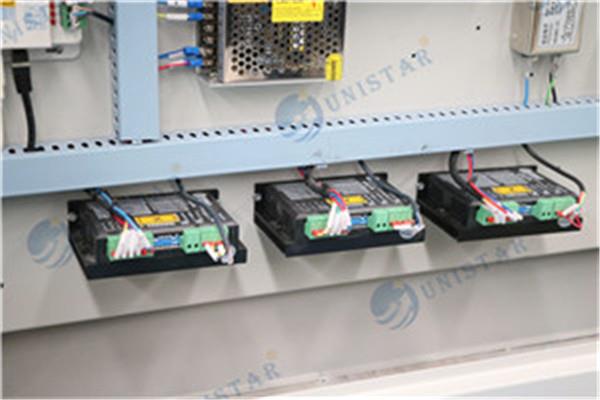

3.Motor and driver:Stepper motor and drivers(has high quality and good performance)

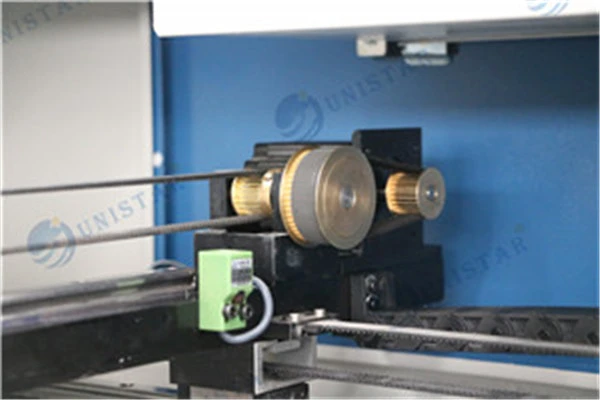

4. Belts:Fulong belts with Big friction

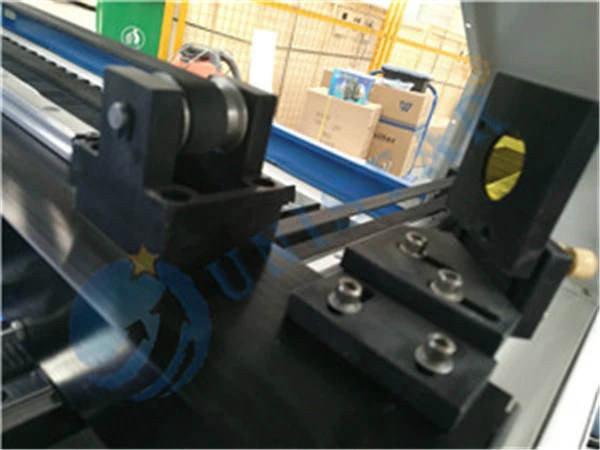

5.Lenses and mirror:Singapore import Lenses and mirror

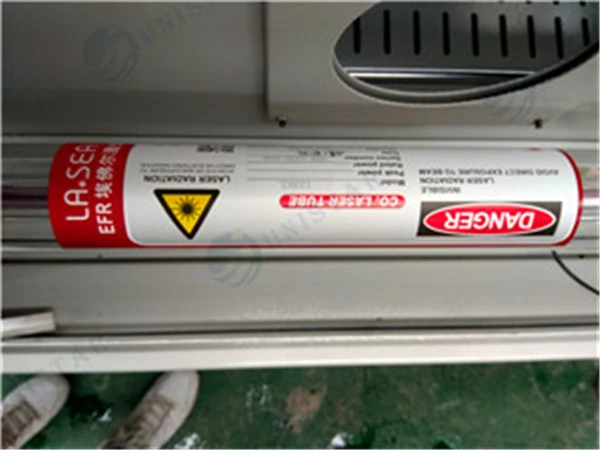

6.Laser tube:Beijing EFR Laser tube 100W


Samples pictures:
