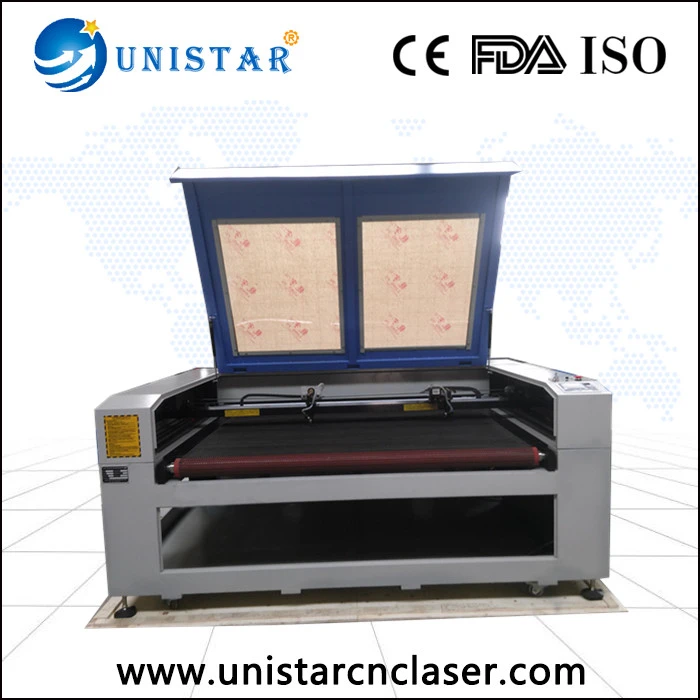

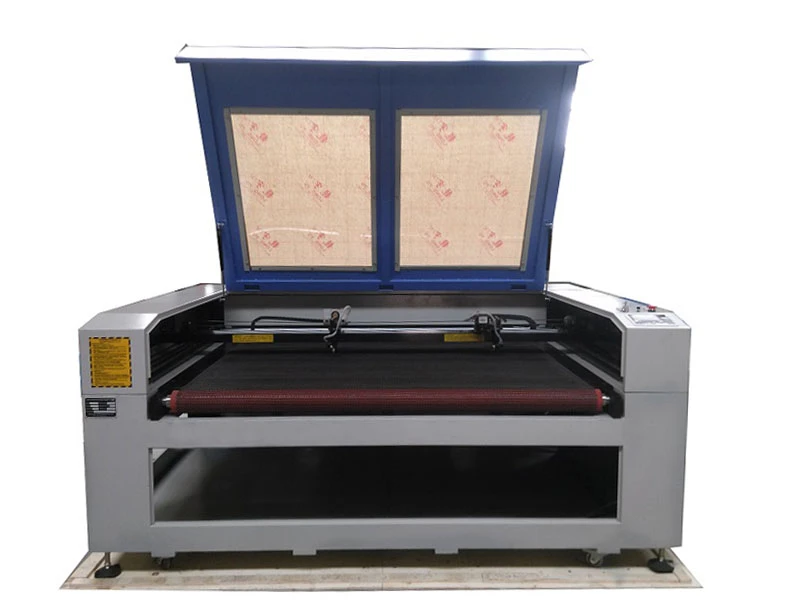

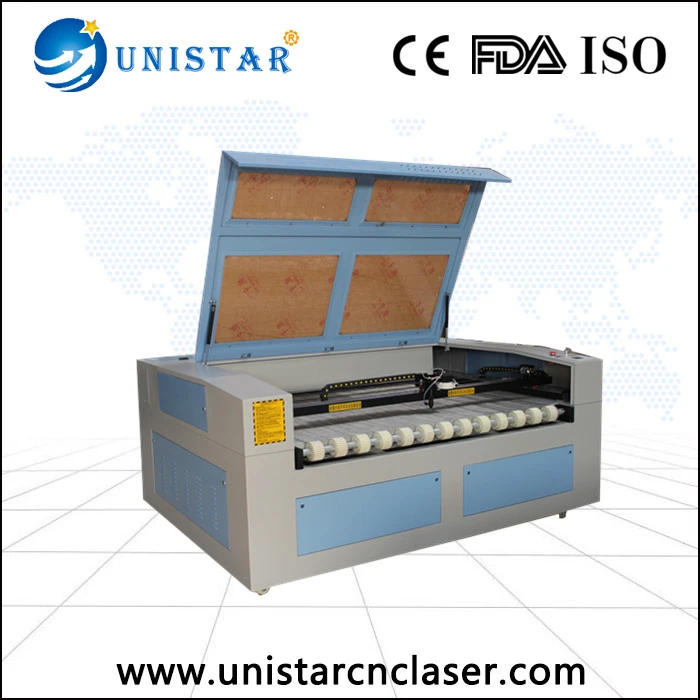

Double heads auto feeding laser cutting machine with camera

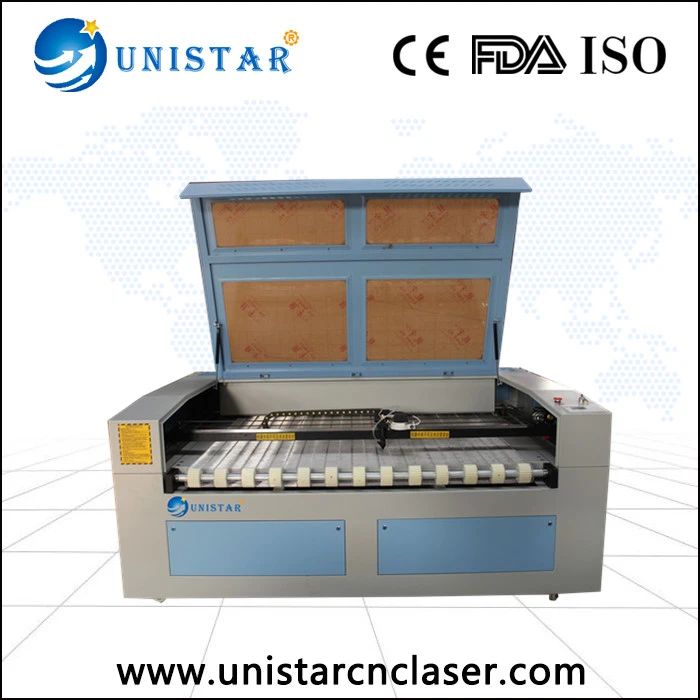

Double Heads Auto Feeding Laser Cutting Machine


When do I need a camera auto feeding laser cutting machine?

Cutting patterns anywhere in the material certainly does not require a camera laser cutter. If you are in the embroidery industry,

you need to cut the repaired product down the edge.

If you are in the trademark industry, you need to accurately cut the printed trademark LOGO. If you are in the computer weaving mark industry, you need accurate positioning for cutting.. Products like these need to be precisely cut off by printing the embroidered patterns in advance.

the ordinary laser cutting machine can not be used for positioning, or positioning is very difficult, the production efficiency is very low. This requires the camera to position the laser cutting machine for cutting

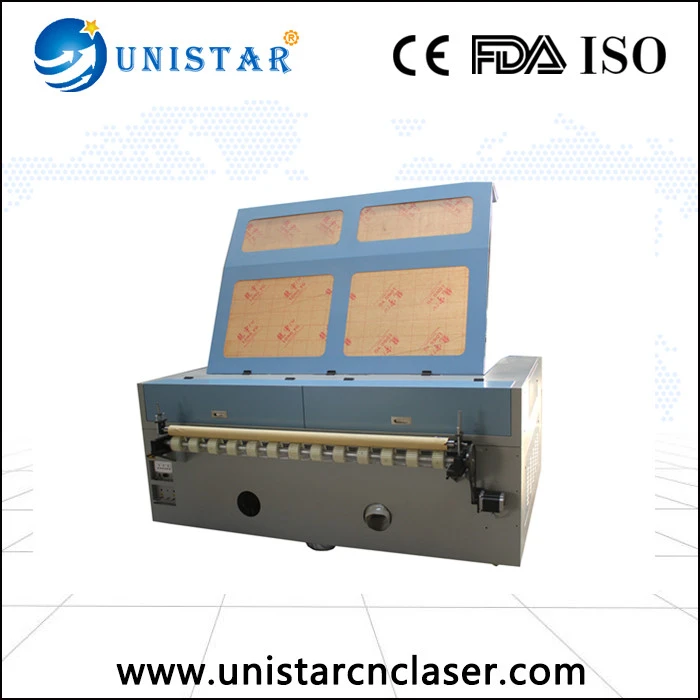

Option one head auto feeding laser cutting machine with CCD camera




3.2 million pixels,The cutting can be taken on the contour of the image, and the edge can be cut automatically with high precision



Features

1. Control system is equipped with a 32-bit DSP control system with fast speed and high precision.

Imported linear guide rail and high speed stepper motor and drive are selected to make the cutting edge smooth and uncorrugated.

Integrated framework structure design is adopted to ensure stable and noiseless operation of the system.

Fast curve cutting function: any curve can be cut quickly and continuously, and the laser head can move smoothly

2.The off-line system can realize the design of one computer and the operation of multiple machines, which greatly saves the resources of the computer.The balance laser has flexible power, speed and focal length adjustment.

3.Auto feeding laser cutting machine can support CAD、CORELDRAW、PHOTOSHOP design software ,friendly human-machine interface.

4. Smooth circuit stability design,CO2 laser tube  with the industrial water cooler, to ensure a large surface cutting, the laser power output at all positions on the table consistent, high efficiency, stable processing quality.

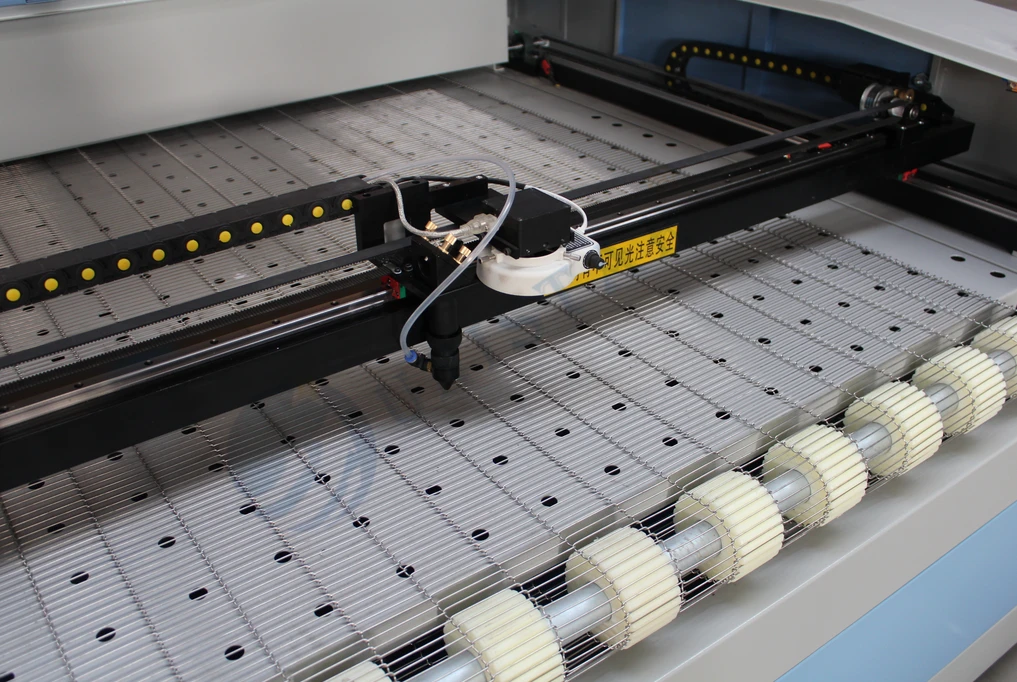

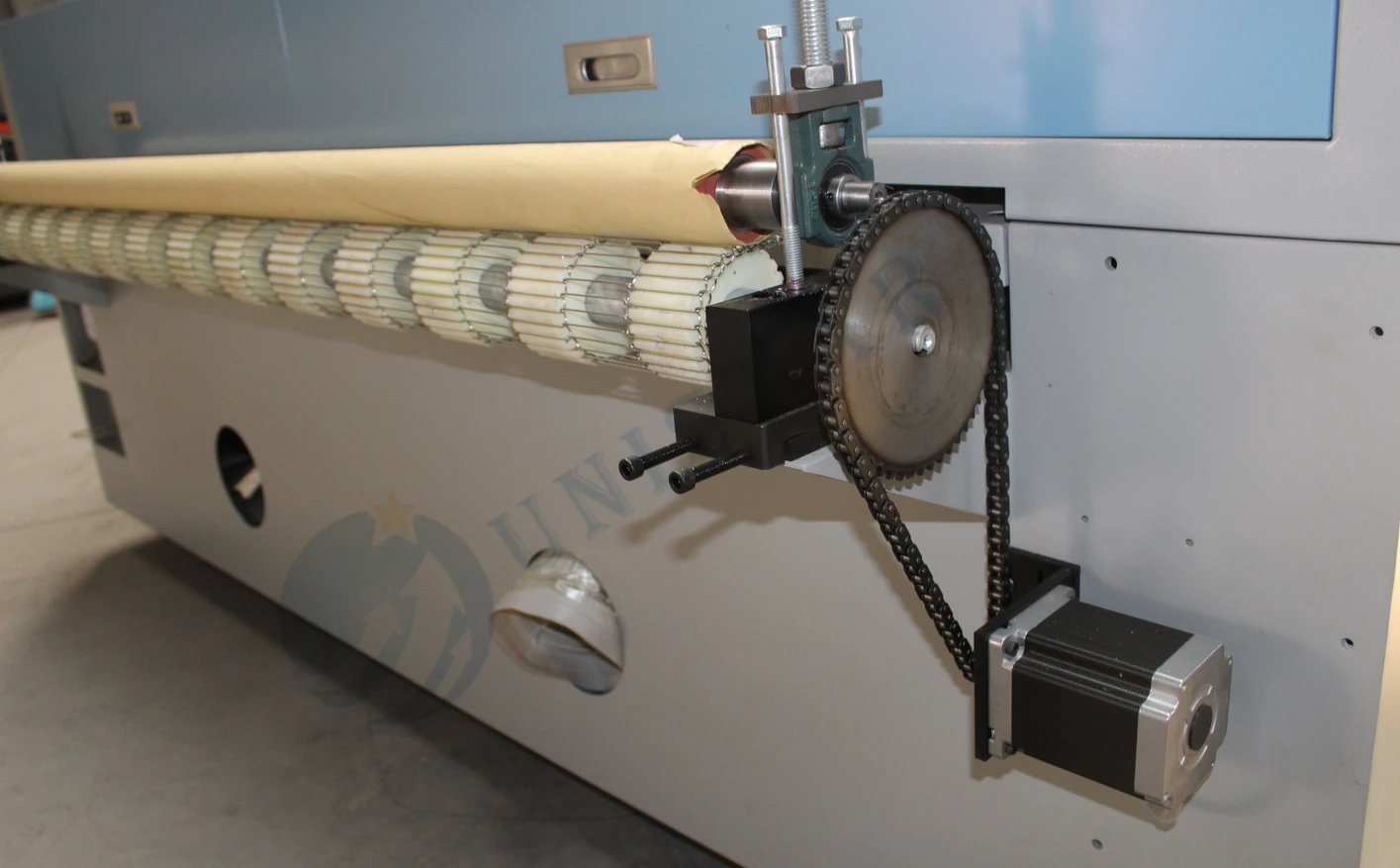

5.The laser auto feeding system adopt professional feeding table  ,automatic feeding device ,It is convenient for the workpiece to move freely on the cutting table.

Original imported lenses of Singapore make the laser light spot smaller, have stronger cutting ability, greatly improve the working efficiency and reduce the material cost.

6. Full automatic feeding and receiving, save much time ,improve process effeciency .

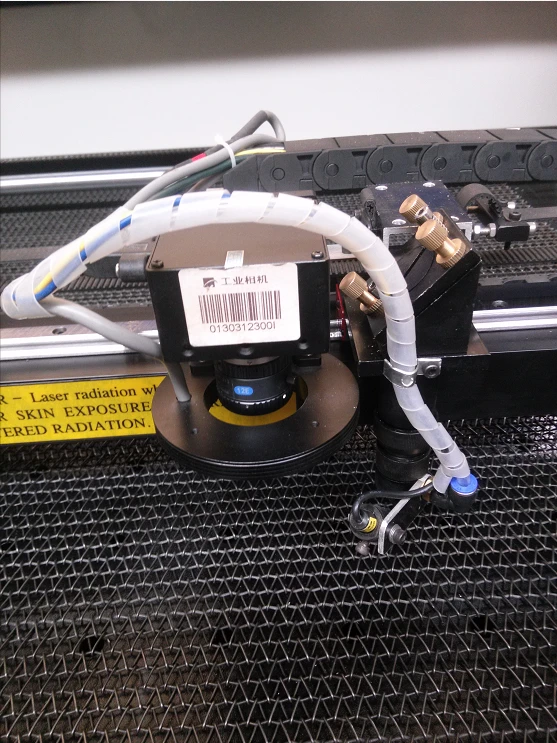

7.laser cutting machine positioned by the camera cuts,auto feeding laser cutting machine with  3.2 million pixelsCCD camera which can automatically cut edges by photographing the profile of cut image.


Apply industry and material

It is  used in clothing, textile, leather, Packaging printing, printing and dyeing, marking, clothing, leather and other non-metal material .

Cutting material: carve plate, cloth, leather Artificial leather, soft leather, decorative leather, packaging leather and other leather materials, pure cotton, silk, various types of chemical fiber, jeans, velvet and other textile materials or non-woven materials.

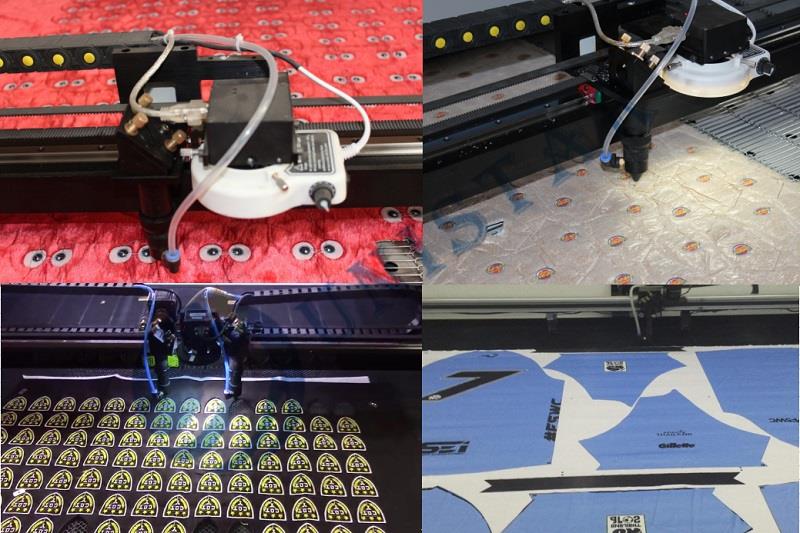

Samples
