Laser engraving is using the CNC technology, laser processing perform as medium. Processing materials in the laser engraving instantaneous melting and gasification of the physical degeneration, laser engraving can achieve the purpose of processing. Laser engraving is the use of laser technology to write text above the object, this technique carved out of the word is not nicked, the surface is still smooth, writing will not wear.

Send InquiryChat Now
Product Details

Product Description:

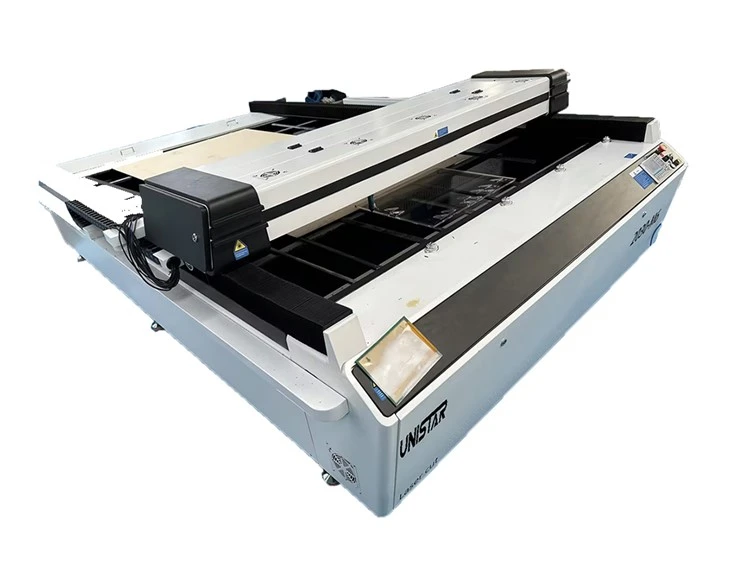

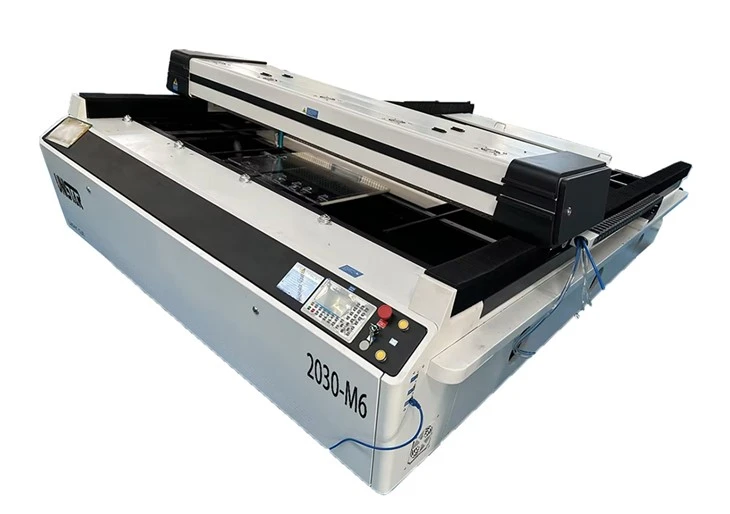

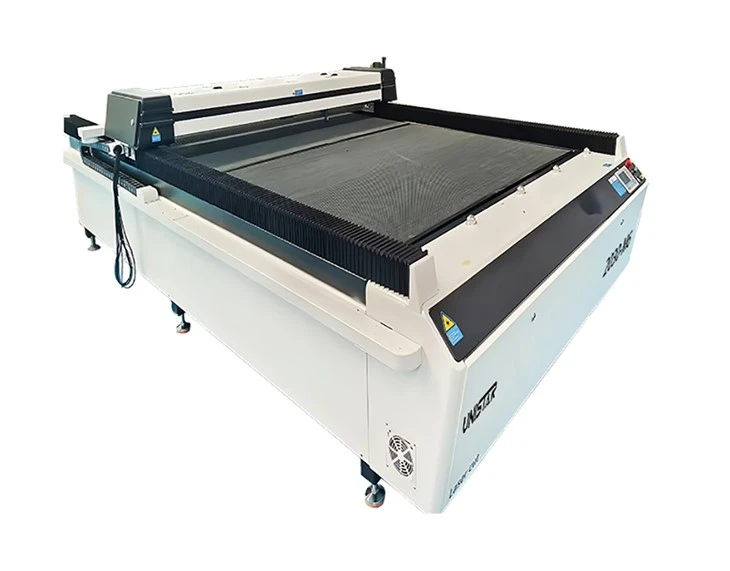

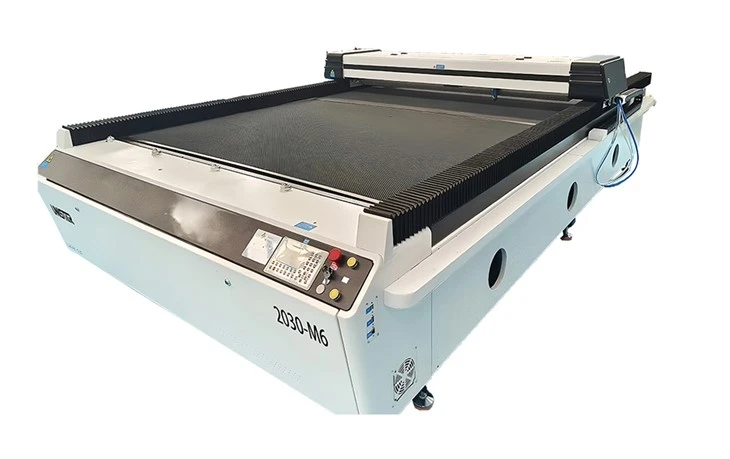

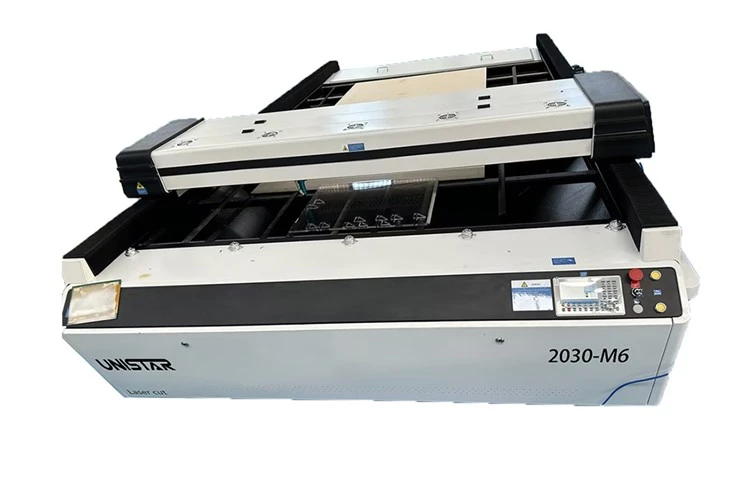

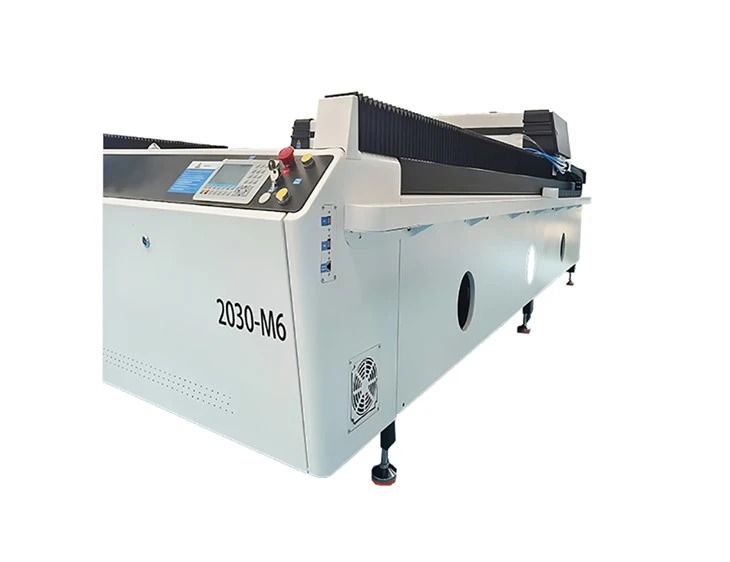

This 3d laser wood engraving machine is a kind of small size laser engraving and cutting system, which  can create 3D engravings from a grayscale graphic file. This  3d laser wood engraving machine can recognize a variety of different levels of gray tone and signal the laser to increase or decrease the power. Darker areas will engrave deeper than the lighter areas, creating a dimensional depth to the substrate.

Features:

  • Imported high precision linear guide rail and professional optical system, dustproof and lubricate

  • Special Front and back running-through design, the unique door for the limitless engraved materials through

  • Professional  strip work table, which meet the needs of diversified laser procession;

  • Adopting  water chiller with alarm protection, which can avoid over burning, to protect the water circulation from electricity-off

  • Equipped with luxury consumables, imported lens and mirror,  which make the light reflectance and focusing rate of more than 99%, to minimize the use of power tubes and increase the life of the laser

  • High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision

  • Red Light Pointer realizes the exact position without laser

  • Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system

Applications:

Woodworking: MDF,wooden mould, wood planks,bamboo, density board

Product Details:

Product name

3d laser wood engraving machine
Processing area(X*Y)

2000*3000mm

Table type

Blade table(or honeycomb table, could add Motorized up-down working table)

Laser power

80 W(100W,130W,150W)

Working styleXYZ 3D system

Working voltage

220V/50Hz, 380V/60Hz

Line width(MIN.)

≤0.15mm

Positon precision

0.01mm

Repetition precision

0.02mm

Rail

HIWIN linear square guide rail from Taiwan

Synchronous belt

Fulong belt from shanghai

Drive mode

Leadshine driving system and stepper motor

Cooling mode

Water-cooling with alarm protection

Controller

RD laser motion control system

Compatible software

Coreldraw, Photoshop, AutoCAD, Tajima

Supported graphic format

PLT, DXF, BMP, JPG ,AI and ect

Operating temperature

0-45°C,

Operating humidity

5-95%

Accessories

Laser tube and lens from Singapore

Optional parts

USB Feature, Up-down work table, Red light pointer, Rotary System
