CO2 laser engraving machine structure
The complete working system is composed of laser engraving machine, laser power source, laser engraving software, suction fan, air pump, diving pump, water tank, air duct,
computer, communication cable, etc.The devices that are configured according to the work object are printers, scanners, various design software, and so on.
3: laser tube longer cover
4: the third mirror
5: focusing on the adjusting screw head
6: focus on the first
7: jet nozzle
8: current meter
9: operating panel
10: linear guide X
11: X beam
12: cutting platform
13: the cooling fan
14:The door is to control
15:the laser power
16: the second mirror
17: the third mirror into the light hole
18: Y guide rail

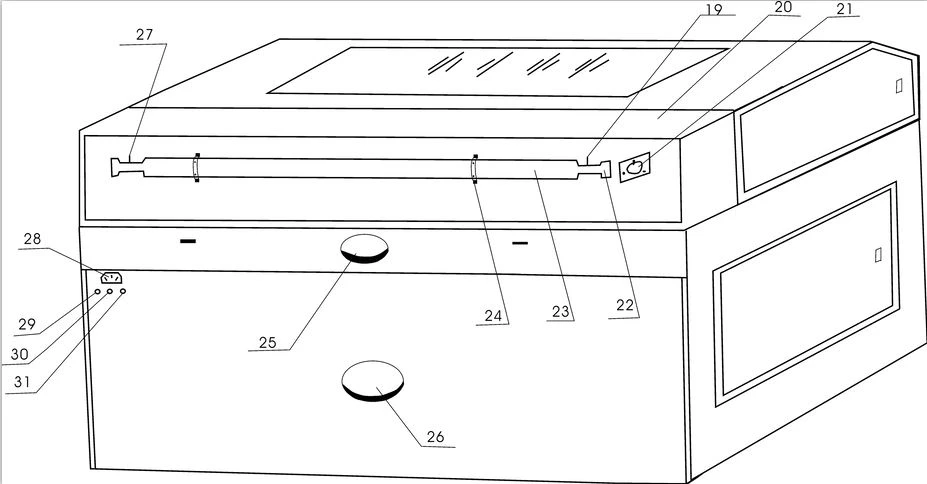

2> Schematic diagram of backgroup laser engraving machine
19. Laser tube cathode
20: laser tube housing
21: first reflector
22: laser tube aperture
23: laser tube aperture
24: laser tube clamp ring
25: upper exhaust port
26: lower exhaust port
27: laser tube anode
28:22 0V power port
29: water inlet port
30: Inlet port
31: outlet port
