Stone CNC Machine

Stone CNC Machine

Stone cnc machine can be carved in natural stone, glass, ceramic high-tech automatic computer-controlled engraving equipment.Can be used as handicraft industry, stone industry, inscription industry, ceramic company advanced engraving processing equipment.

Send InquiryChat Now
Product Details

High quality Stone CNC Machine used for stone Processing

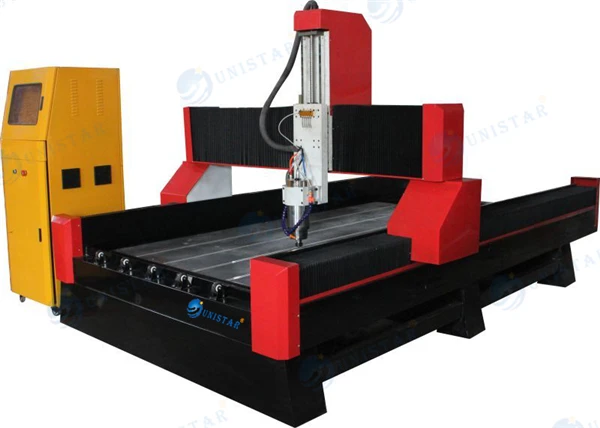

Stone CNC Machine



Stone CNC Machine Configurations

Parameter

Specification

Machine area (X)


1300mm

Machine area (Y)


2500mm

Machine Area (Z)


200mm

Working area

1300*2500*200mm

Spindle

3 KW China famous brand water cooling spindle

Machine body

Strong machine heavy duty body

Control system


NC-Studio control system

Motor and driver

Leadshine stepper motor and driver (has high accuracy and good quality )

Inverter

Fuling inverter

Transmission

Taiwan ball srew (has good performance ,long life ,import from Taiwan )

Rail

Taiwan HIWN rail guide original import from Taiwan

Table

T-Slot working table with sink

Traveling speed

Max 40m/.min

Processing speed

Max25m/min

Spindle RPM(max)

18000-24000RPM

Tool sensor

Auto tool sensor

Dust collect system

Double bottle collect system

Working voltage

AC 380V/50HZ

Running mode

G code


Applicable materials

The Stone cnc machine used for Marble, Granite, Bluestone, Jade, Crystal, Tombstone, Agate, Ceramics, Glass, Plastics, Synthetic I, Bamboo, Wood, Curved, Spherical, Stainless, Iron, Copper, Lead, Titanium and so on.

Stone CNC Machine Applicable area

It can sculpture in the stone, glass body, patterns, Yin carving, Yang carving, hand-written characters, celebrity calligraphy, matte painting, flat carved painting.


Advantages of stone cnc machine

The stone cnc machine adopt water cooling circulation system, with the function of cooling spindle and engraving knife. Engraving stone does not generate heat. Unique sink device makes the water recyclable, the whole casting, guarantees long-term work, no jitter, no deformation

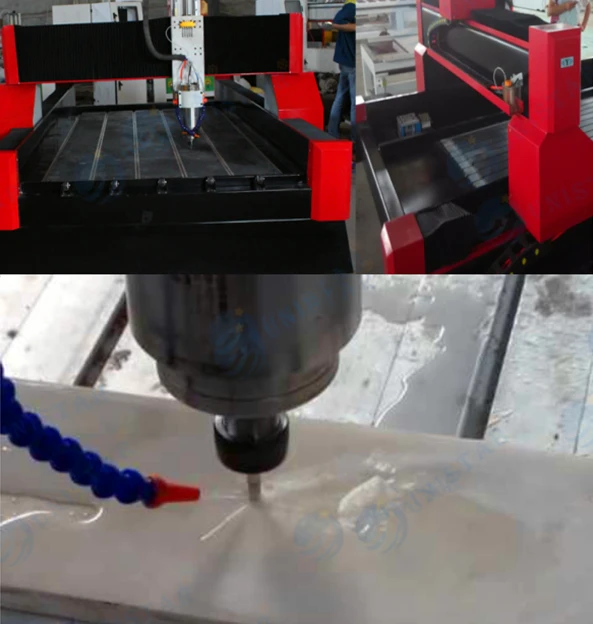

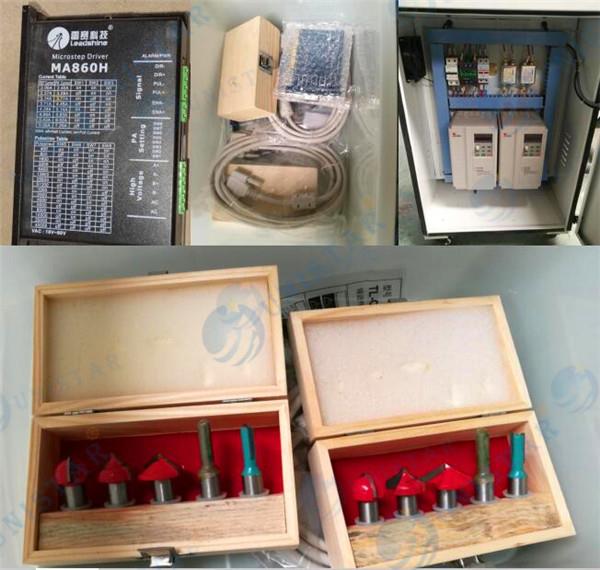

Parts images

Stone CNC Machine

Stone CNC Machine

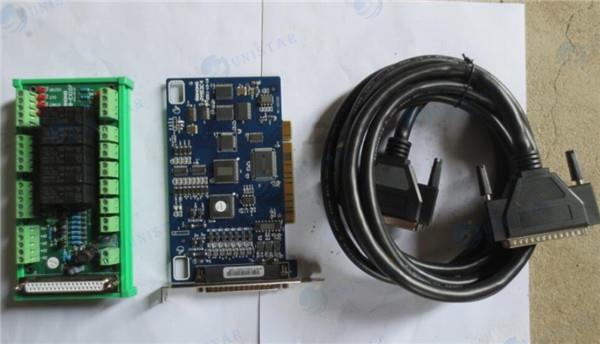

NC-studio 板卡.jpg

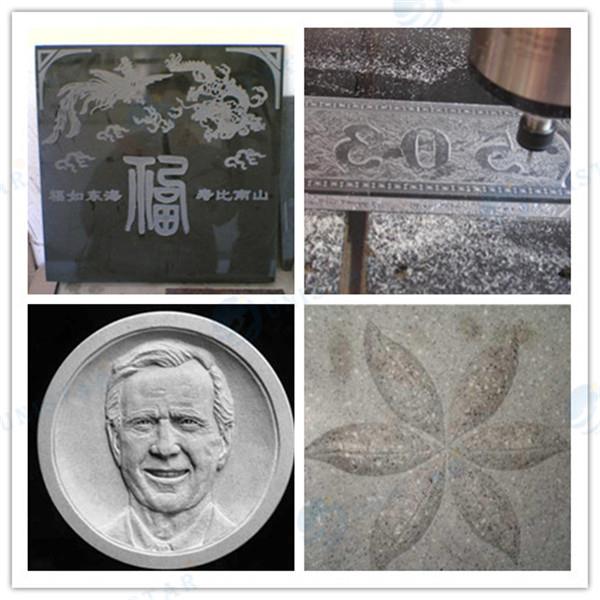

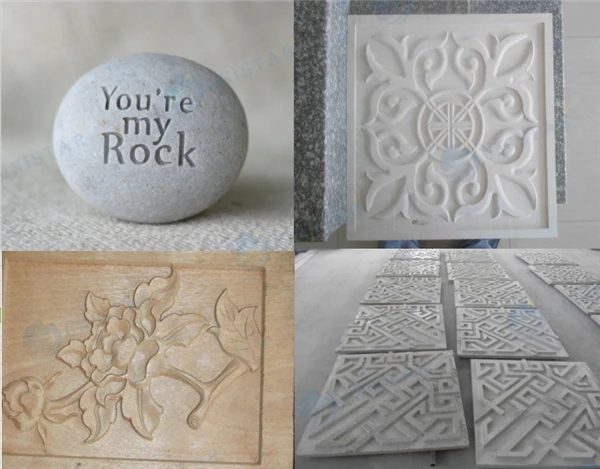

Samples pictures
