Double spindle stone CNC Router Machine which applies to a variety of stone .Work more efficiently . It features a reliably-firm seamlessly-welded steel structure. Moreover, the distinctive absorption table surface and water tank design facilitates engraving.

Send InquiryChat Now
Product Details

Industrial Heavy Duty Body Stone Hobby CNC Machine with Rotary



Hobby CNC Machine Applicable industries

1: Decoration industry---Can be boring milled and processed in stone, PVC, acrylic, marble, organic board and other materials.

2: Furniture---doors, cabinets, office furniture, solid wood furniture, tables, chairs, windows and doors

3: Wood Products --- audio, game cabinets, computer tables, musical instruments


CNC Machine Industrial Parameter

Product Name

Hobby CNC Machine

X,Y,Z Working Area

1300x2500x250mm

X,Y,Z Traveling Accuracy

±0.05mm

Rotary system

With Rotary System

Table Surface

Aluminum T-slot Table with Water Tank

Frame

Strong Square Pipe Welded Structure

Operating System

NC studio control system

Drive Motors

Stepper System

Spindle Power

Water-cooling 5.5kw Spindle

X, Y Axis Transmission

Rack and Pinion Gear

Z Axis Transmission

Taiwan Import Ball screw

Max Traveling Speed

25000mm/min

Max Working Speed

15000mm/min

Rail Configuration

20 Square Rail

Spindle Rotating Speed

0-24000RPM

Working Voltage

AC380V ,50Hz ,3PH

Command Language

G code, mmg, PLT, HPG

Software Compatibility

Type3,Wentai,Artcut

Packing

Wooden case

N.W.

1600KG


Product Feature

1. High-power spindle motor: high-power spindle frequency motor has strong cutting power and are durable, constant power spindle motor own big cutting force and high efficiency.

2. High-strength body: The machine uses heavy bed, thick-walled steel welded together to ensure that the body is not deformed, good rigidity and strength.

3. With two working spindle and two rotary , not only can process plate stone material ,  but also can engrave Cylindrical stone, use widely , more convient.

4. Taiwan imported square linear guide, rack and pinion drive, high rigidity, high level, flexible transmission.

5. Equipped with high-speed high-power stepper motors and drives, fast, powerful.

6. Power-off protective memory function assures restarting work in the same position after power-off .

7. Water cooling system: the water cooling system, with cooling spindle and carving knife function, carving stone does not heat, the unique sink device allows water can be recycled to ensure long-term work does not shake and deform.

8. Advanced NC Studio control system can provide better stability.

9. With dust-proof and water-proof system.

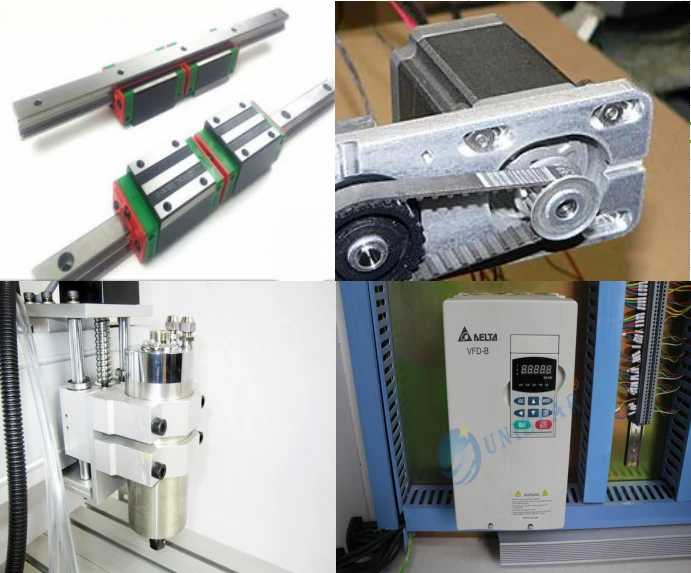

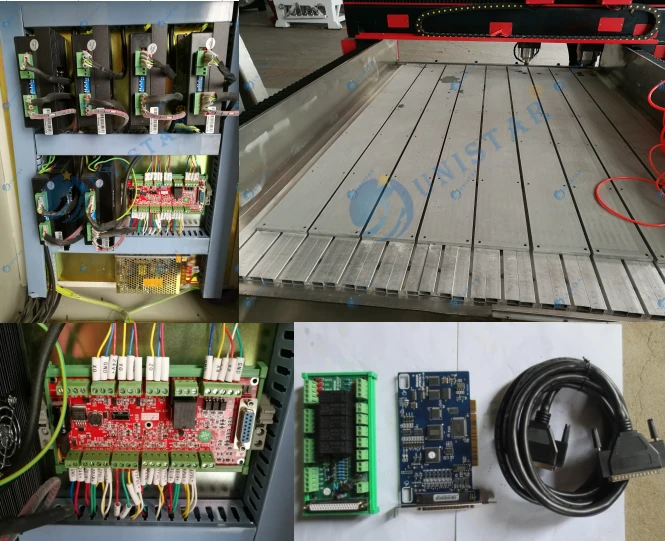

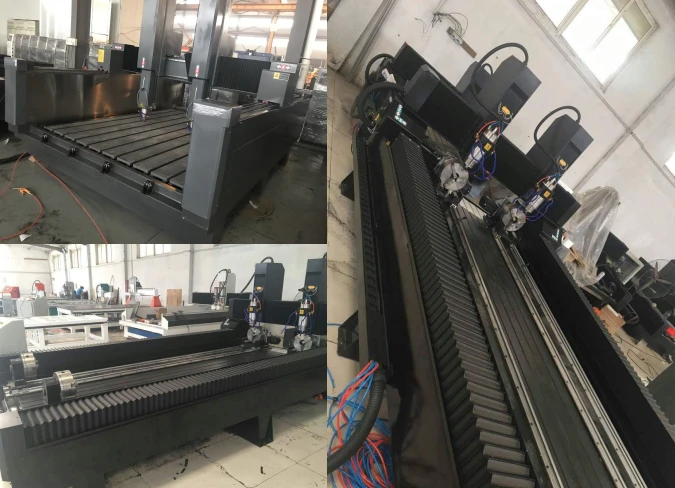

Machine's Detial pictures show

Hobby CNC Machine

Hobby CNC Machine

CNC Machine


Other option



Stone engraving and cutting sample





Packing and shipping
