Small CNC Wood Router

Small CNC Wood Router

This Small CNC Wood Router is very practical and economical , widely used in various industries like advertising industrial , plate furniture ,stone engraving ,Hard plastic, antique furniture, solid wood art murals Three-dimensional surface of musical instruments, contour cutting, etc.

Send InquiryChat Now
Product Details

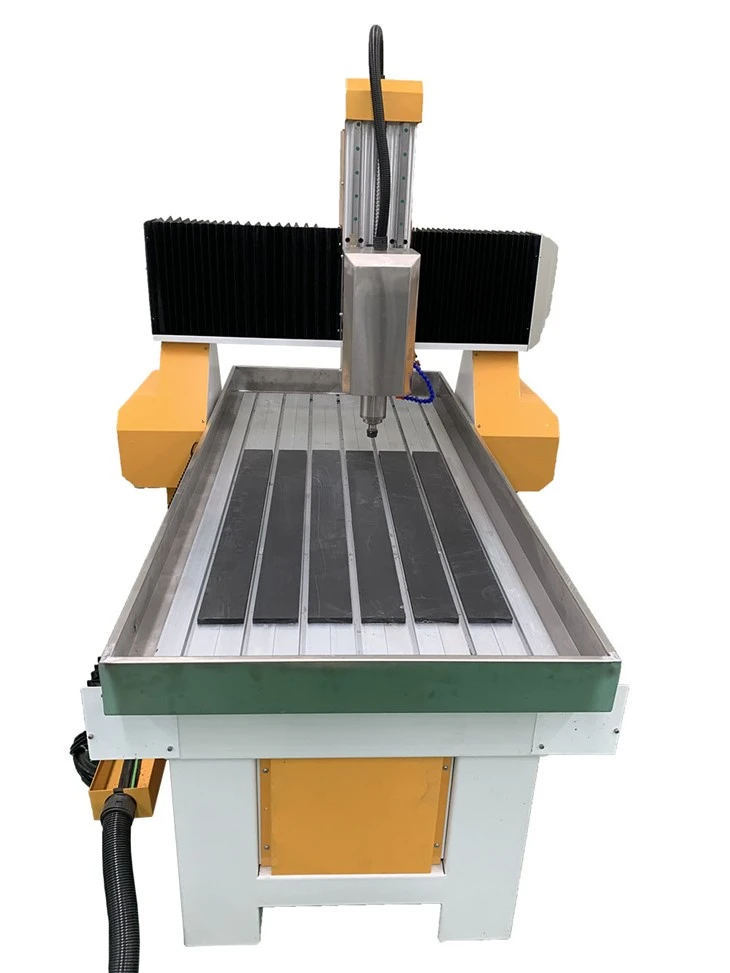

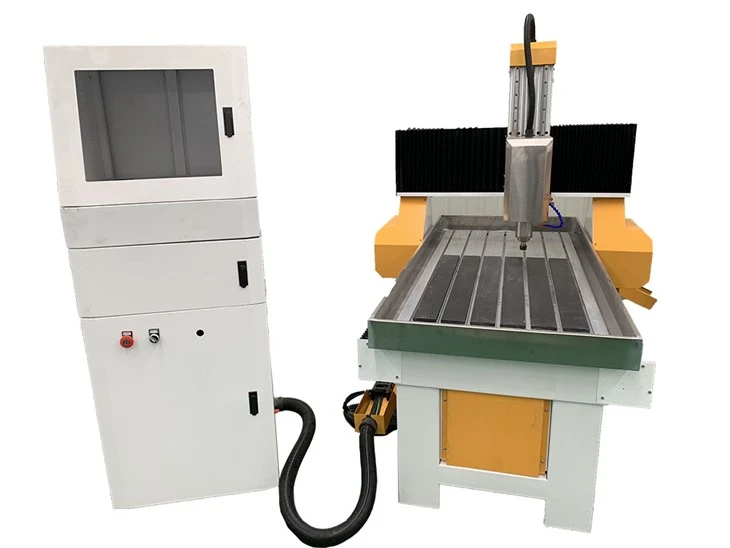

Practical and Economical Small CNC Wood Router

Small CNC Wood Router


Application

The machine can process flat engraving, three-dimensional relief, hollow cutting, 2D/3D engraving.


Techinical parameter

Product name

small CNC wood router

X,Y,Z Working area

600x900x250mm

X,Y,Z Traveling positioning accuracy

±0.05mm

X,Y,Z Repositioning accuracy

±0.05mm

Spindle power

Water-cooling 2.2 kw

Table Surface

Aluminum T-slot table

Frame

Square pipe welded structure

X, Y, Z axis transmission

Ball screw transmission

Max traveling speed

25000mm/min

Max working speed

15000mm/min

Rail configuration

20 square rail

Spindle rotating speed

0-24000RPM

Drive motors

Stepper System (Option: Servo motors)

Working voltage

AC380V ,50Hz ,3PH

Operating system

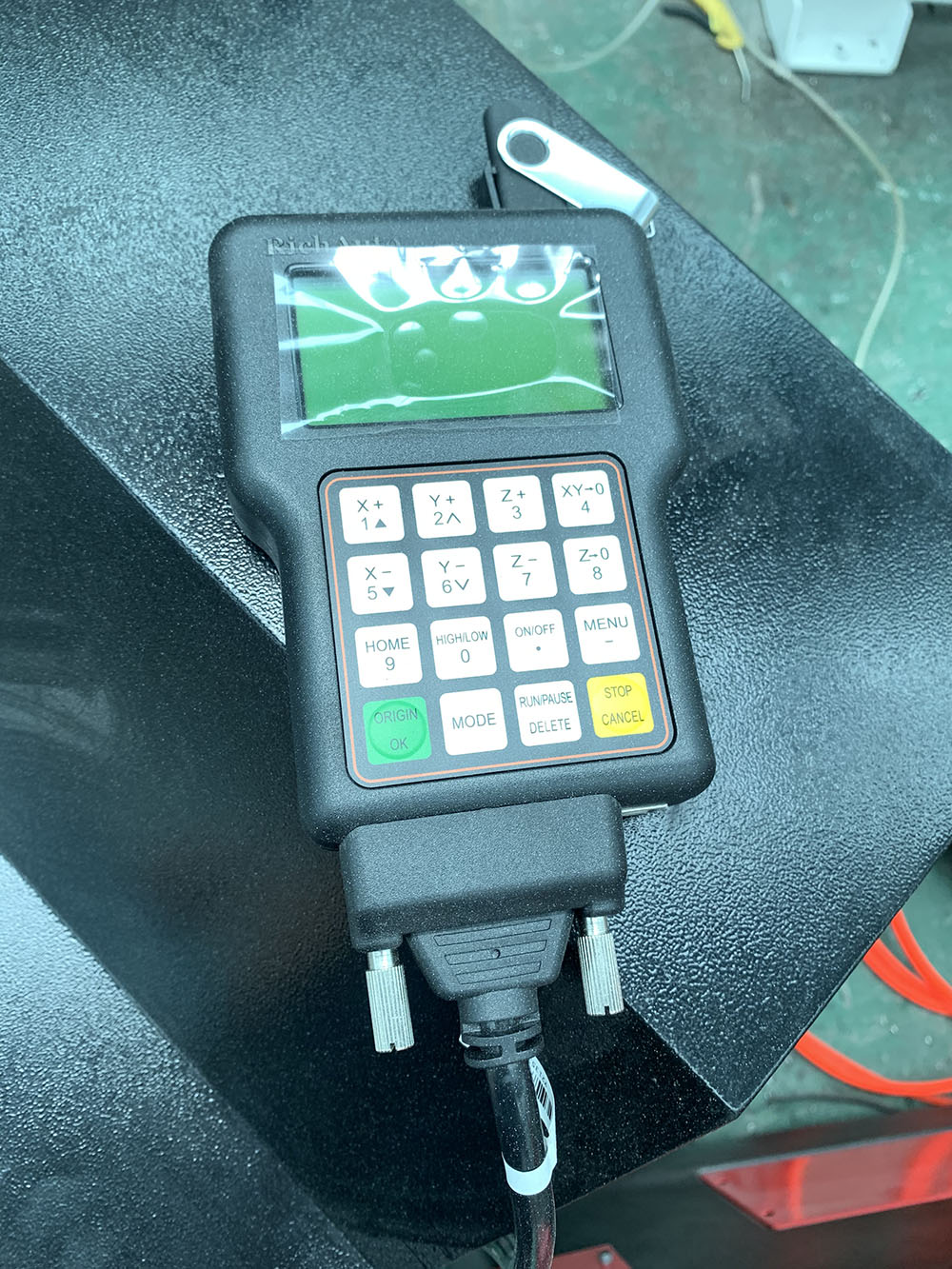

NC studio system (Option: DSP)

Command language

G code, mmg, PLT, HPG

Software compatibility

Type3,Wentai,Artcut

Packing

Wooden case

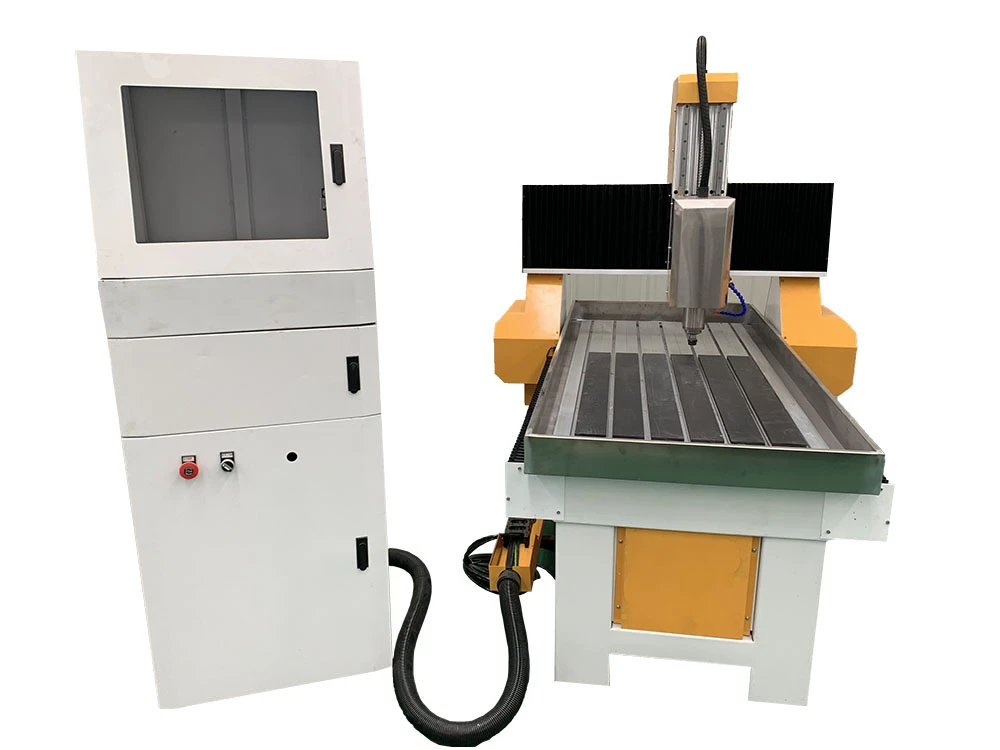

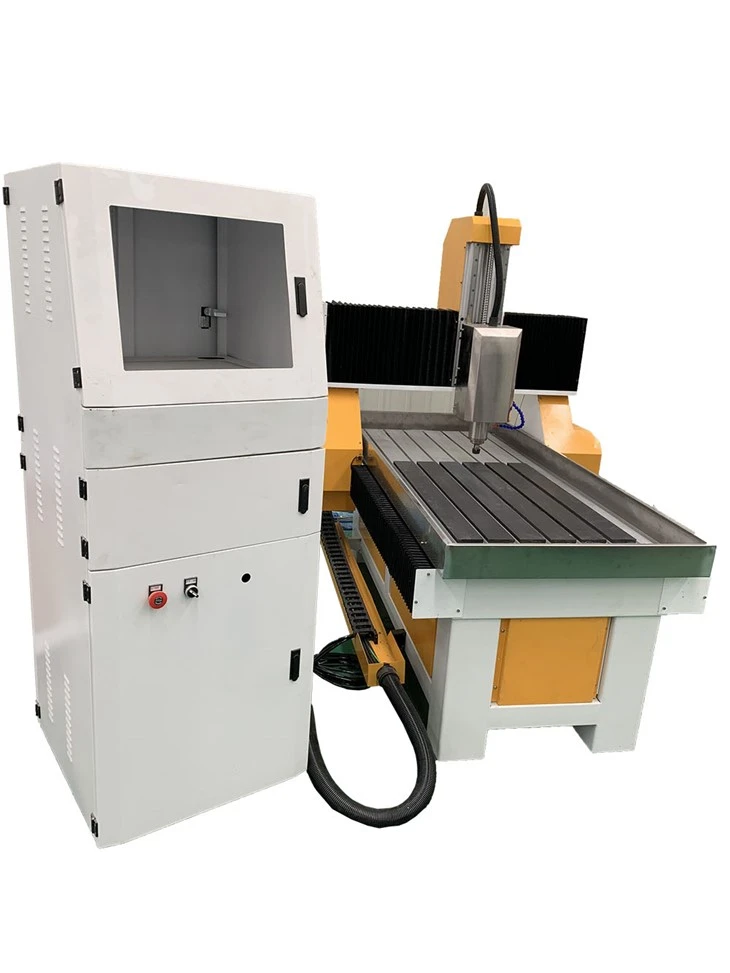

Product Detial Show



Addvantage

1. High engraving speed

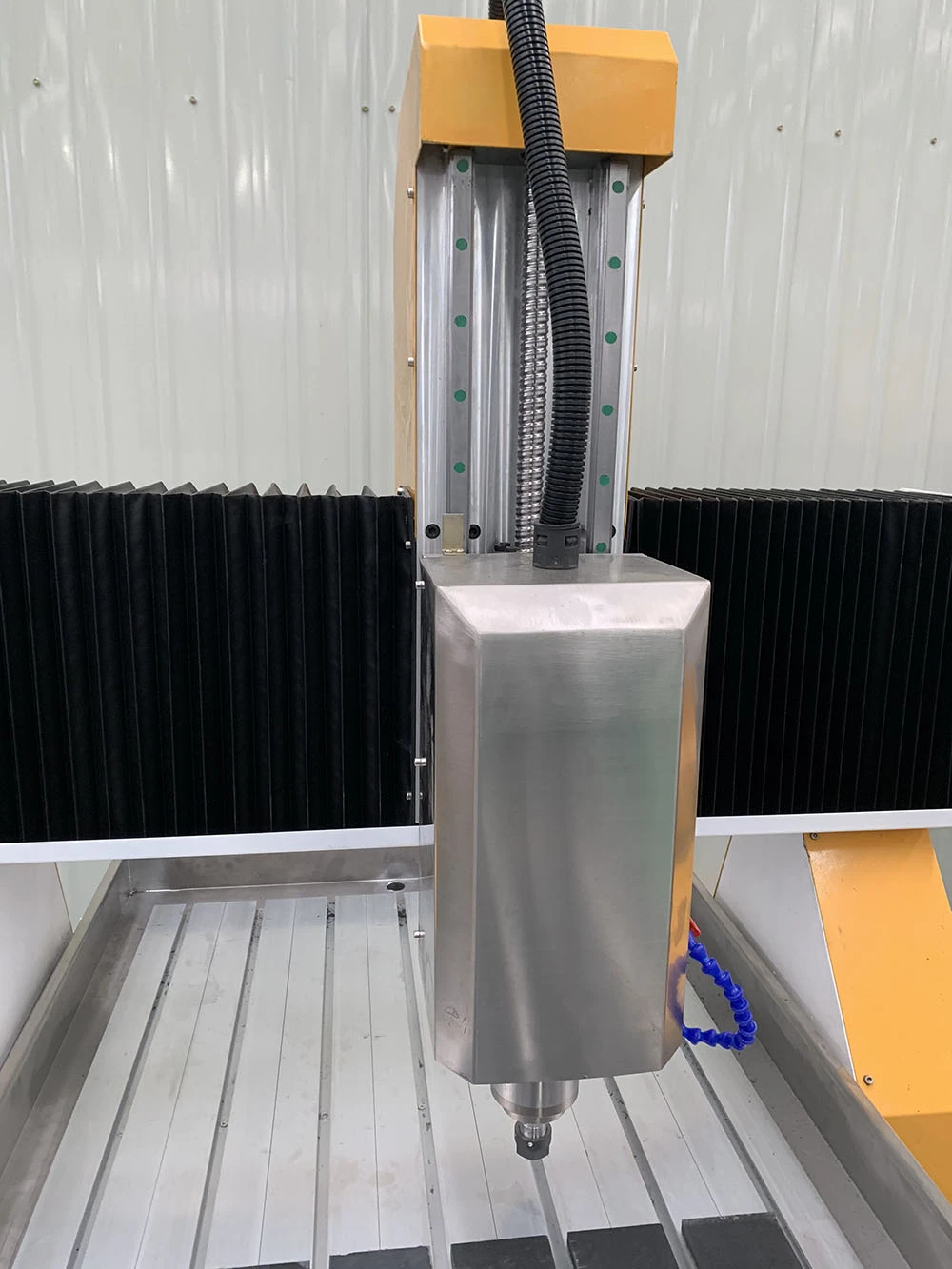

The spindle adopts double motor to drive heavy-duty bearing and long service life. The equipment adopts dual-tooth drive, the operation is simpler and the design is more humanized.

High-quality silver double nut screw greatly improves the cutting and engraving operation accuracy.





2. High cutting accuracy

High-quality silver double nut screw greatly improves the cutting and engraving operation accuracy.



3. Operating stable

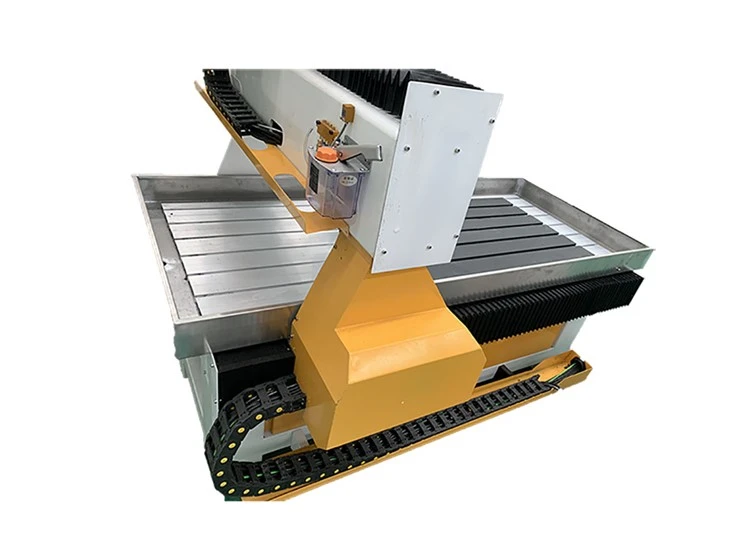

The machine uses a one-centimeter square steel gantry after heat treatment. It has better rigidity, smoother operation and higher machine accuracy.



4. Long life time

With standard 450A stepper motor, good quality, low noise, low energy consumption, long life, high effect speed.  (Customers can choose according to their own needs, option stepping, servo, mixed PW)



Sample picture






Certification is our  stronge power
