Furniture Cutting Machine

Furniture Cutting Machine

Wooden furniture cutting machine for Wood Production line for panel furniture, kitchen cabinet, Auto feeding cnc router machine with high efficiency cnc router for Wood engraving Production line for wooden door, office desk, cabinet etc.

Send InquiryChat Now
Product Details

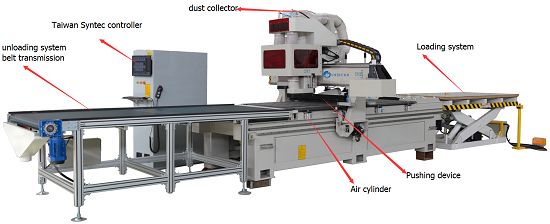

Auto feeding wooden furniture cutting machine for panel furniture, kitchen equipment

Panel Furniture Production Line

Features
1> Automatic feeding: The forklift place a dozen plates in feeding place, the feeding zone have automatic induction switch, when the device automatically adsorp one panel. Feeding place will automatically rise to the height of the device also, convenient grab materials next time.
2> Automatic vertical drilling hole, the sucking disc automatic grab materials after a device to adjust to the best condition, the system reads processing code generated by the software, platoon drill automatically perform vertical hole.
3> Automatic cutting (vice abnormity cutting) after the punch for the material (including cutting special-shaped), plate cutting and pushing device down to the table.
4> Automatic unloading, the finish cutting board that push to the next area, at the same time level at a new plate to the processing zone, the section on at the same time
5> Save human labor, suitable for large engineering customized programs for processing.

Detail parameters

Model

US132 wooden furniture cutting machine

Working travel

1300*2500*200mm

Table structure

vacuum table

Guide rail

Taiwan HIWIN/PMI square guide rail 25

XY axis transmission

rack&pinion transmission

Z axis

Taiwan TBI ball screw transmission

Working precision

±0.02mm

Repositioning precision

±0.03mm

Max air move speed

500000mm/min

Max working speed

150000mm/min

Controlling system

Syntec control System

Spindle

Imported Italy HSD atc air cooling spindle(auto change tools)

Spindle power

9kw

Spindle rotating speed

0-18000rpm

pop-up pins

for materials placement

Inverter

Delta inverter

Driving system

Japan YASKAWA servo motor with reducer

Command

G code

Oiling system

Automatic

Working voltage

AC 380v/3phase(220v is optional)

Function

Automatic loading and unloading device, automatic label function

Dust collector

2 units of double bags dust collector

Vacuum pump

7.5kw air vacuum pump

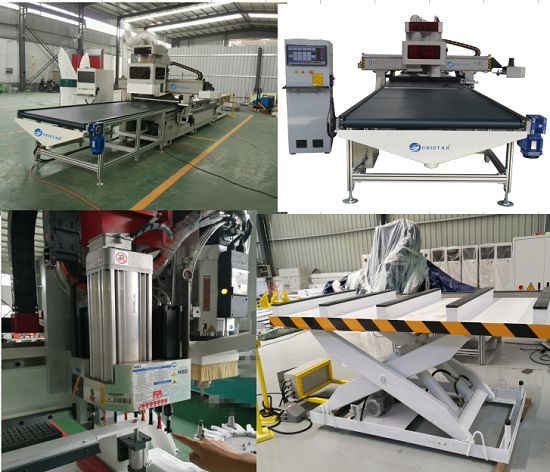

Parts of wooden furniture cutting machine

Panel Furniture Production Line

Sample pictures



Customer visit US
