CO2 Laser Marking Machine

CO2 Laser Marking Machine

CO2 laser marking for wood, Acrylic, PVC, plastic plates and other non-metallic materials. There is a very high working efficiency.

Send InquiryChat Now
Product Details

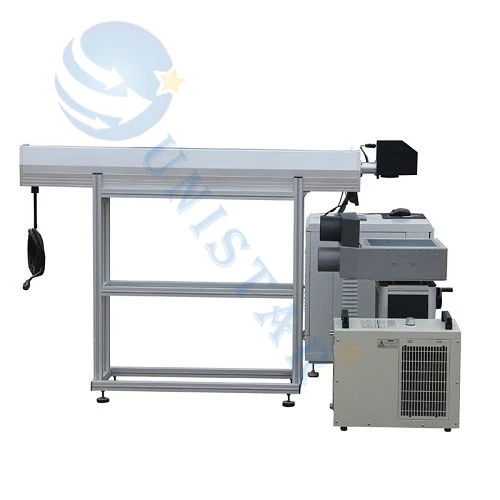

High Quality CO2 Laser Marking Machine



Applicable Industry:

Food,medicine packing,alcohol,electronic components,integrated circuit,eletrical appliances,mobile communications,PVC pipes,etc industry.

Materials:

Applies to most non-metallic materials,such as leather,cloth,wood,bamboo,paper,organic meterials,acrylic,plastic,epoxy resin,etc.

Laser Marking Machine Features:

1.laser tube: a light stable, low failure rate, the use and maintenance costs are very low.
2. control computer: to ensure long-term stability of industrial equipment in industrial environments, not crash.
3.control software: powerful, with graphical alignment, hierarchical settings parameters and red position preview function. Graphical calculation is accurate. Can mark a variety of bar codes and graphic codes, and has anti-fight function.
4.cooling system: the use of optimized water cooling, enhanced laser tube life, easy to operate and use.

Parameters of laser marking

Laser  Power

80W(60w, 100w, 130w for option)

Laser  tube

Glass laser tube(Beijing EFR)

Working  Area

200*200mm/300*300/100*100mm

Table

Aluminum alloy table

Cooling Mode

Industrial Water Cooling

Control Software

EZCAD Control Software

Control system

Chins PC control system

Laser Wavelength

10.64um

Response Time

0.5ms

Frequency of pulse

20-100KHz

Marking Depth

≤0.4mm

Marking Speed

≤7000mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01mm

Minimum Character

0.15mm

Repeatability Accuracy

±0.002mm

Resolution Ratio

0.1mm

Marking Content

Text, pattern, date, bar code, etc

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DST, etc.

Unit Power
Operation Temperature

≤1.2KW
5°C-40°C

Marking Content

Text,pattern,date,bar code,etc

Graphic Format Supported

BMP,JPG,GIF,TGA,AI,DXF,PLT,PNG,TIF,DST,etc.


Parameter Detail:

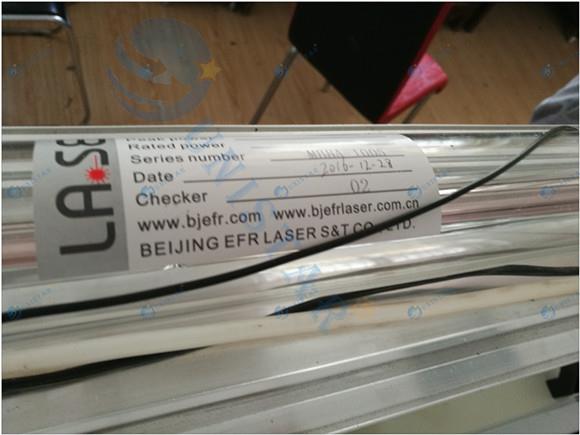

Beijing EFR laser tube with High cost performance

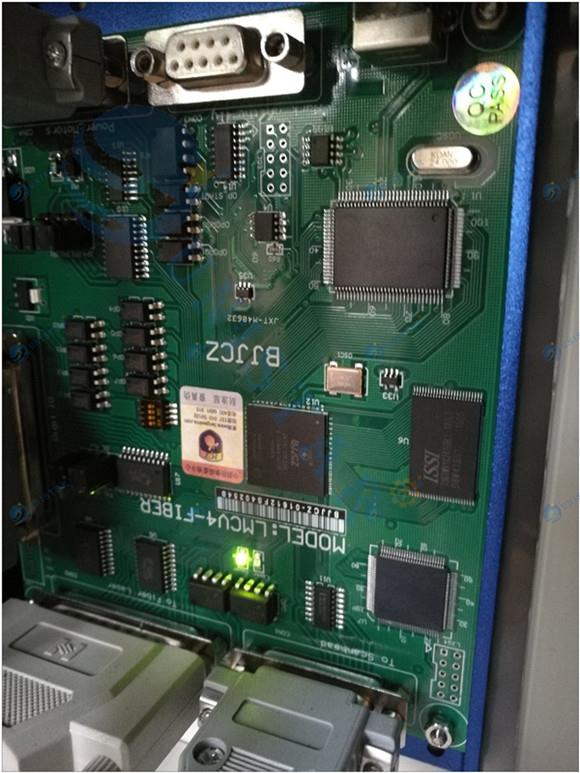

Bejing JCZ Control board

Laser Marking Machine

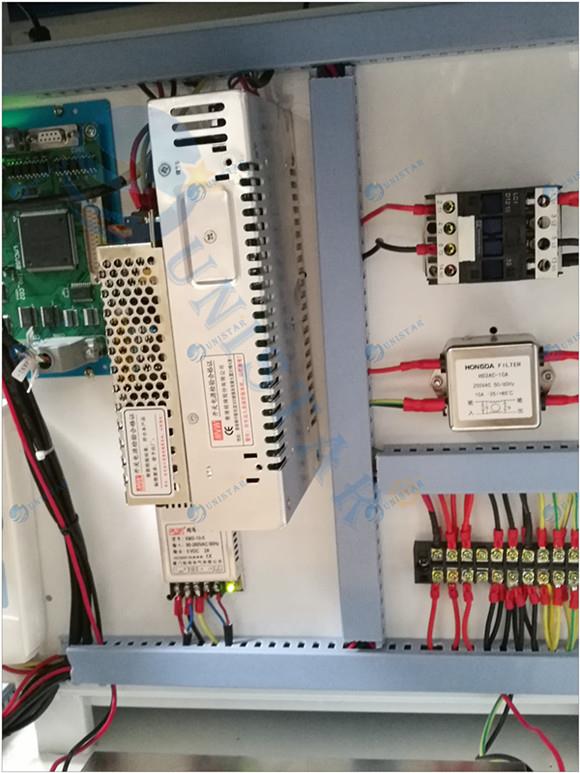

HongDa filter,Prevent voltage and current interference


Samples:

201803081416008619699.jpg201803081441461241799 (1).jpg


Packing



Our Warranty and service:

1> Jinan Unistar CNC Factory guarantees all new machines sold to be free of manufacturer's defective workmanship, parts and material. We will repair or replace, without charge.
2> If your machinery breaks due to the operator's error, the warranty will pay for the work to repair the machine. Examples are spindles crashing, damaged guide rails.
3> If the Machinery was new when the warranty began, in the event of a total loss, we pay the new replacement value of the machine including the cost of dismantling less the value of salvaged parts.


If you interested in our machine,please contact with me:

Facebook: Unistar

WhatsApp:+8615853176263

Email:admin@unistarcnc.com



Hot Tags: CO2 Laser Marking Machine, China, manufacturers, suppliers, factory, price, for sale
