Cnc Turning Wood Lathe Machine

Cnc Turning Wood Lathe Machine

cnc wood turning lathe machine with Self-developed double knife simultaneous processing technology, within the diameter of 300mm, one knife forming, no need to return the knife, accuracy and smoothness improvement. Suitable for processing large diameter or high smoothness furniture parts.

Send InquiryChat Now
Product Details

Multifinction  cnc turning wood lathe machine with high speed


Features

1.Casting and forming, stable structure, high frequency quenching and grinding imported straight rail,

Casting knife table, casting tail seat.low vibration, high precision machining.

2. Cnc wood lathe machine operate system : Adopt DSP handler , it's more easy to operate ,

It has the functions of processing speed stepless speed regulation, power off memory, arbitrary setting of starting point, breaking point, etc., and supports the laser scanning system, which saves the trouble of making pictures

3.The X and Z axis adopts 12N high precision stepping motor: grinding screw drive,The Y axis adopts 16N high precision stepping motor: grinding screw drive

4.Taiwan guide rail, combined with ball screw transmission, strong environmental adaptability, not afraid of dust. Ensure machining accuracy. Variable frequency speed control, spindle automatic operation, high degree of processing automation

casting and forming, stable structure, high frequency quenching and grinding imported straight rail, low vibration, high precision machining.

5.Main shaft: divided into single shaft and double shaft, single shaft can be installed chuck,

double shaft can be processed 2 pieces at the same time , improve high accuracy .

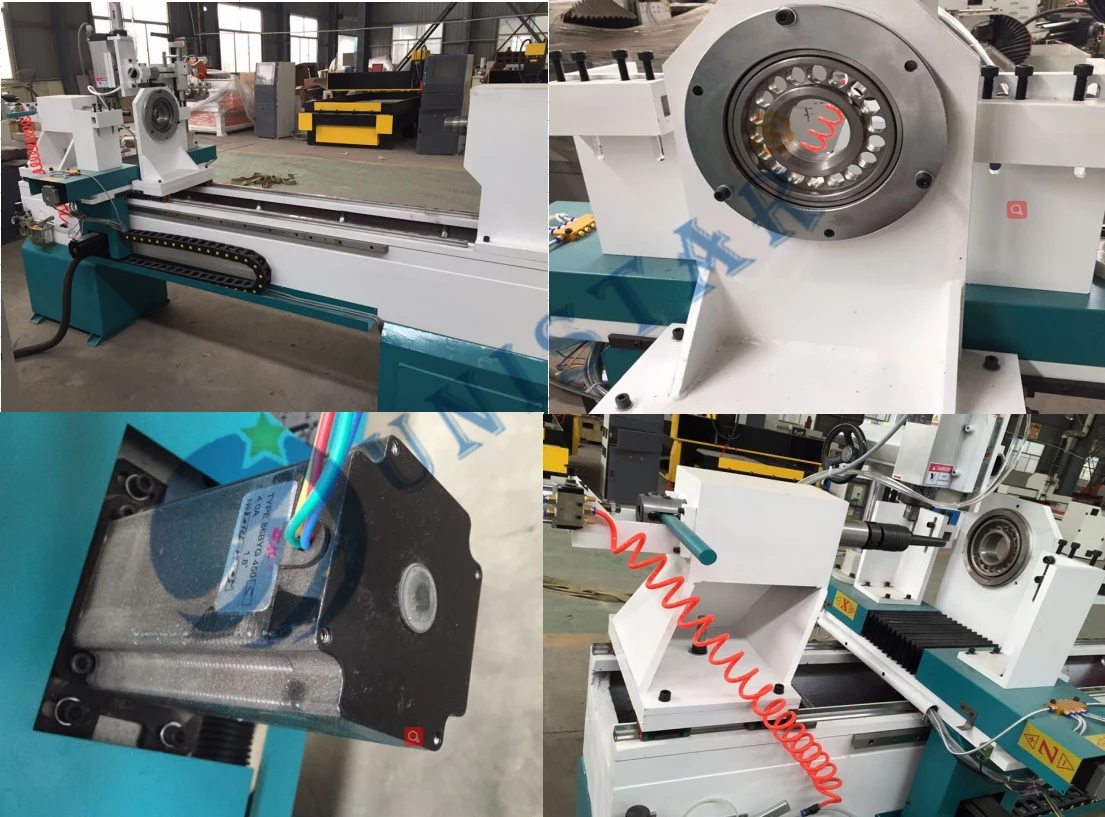

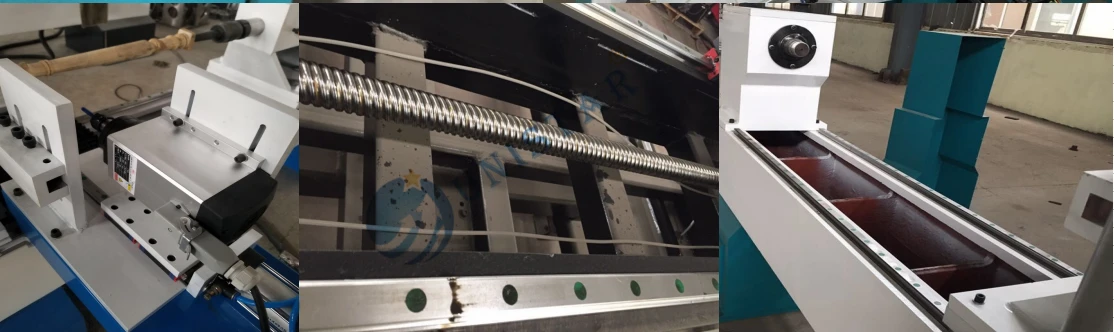

Detail pictures


Parameter

Cnc wood lathe machine / USM1530 double axis double knifes
Item Specification
Max processing length 1500mm(can customized 2000/2500/3000mm)
Max turning diameter 300mm
Air pressure 0.6-0.8mpa
Power supply AC 380v 3 phase 50HZ/60HZ ( can custom 220v)
Max feed rate 200cm/min
Min setting unit 0.01cm
Transmission type X, Z axis Taiwan TBI ball srew , Y axis rack gear
Guider Taiwan Hiwin rail guide
Main shaft rotate speed 0-3000r/min
Motor power 4KW
Spindle motor 3.5KW air cooling spindle
Cutting material Super hard alloy
Control system DSP control system
Motor Stepper motor
Diver Stepper M860H drivers
Inverter Best inverter
Drawing software AutoCAD
Hand controller recognize file format *dxf
Machine size 3*1*1.5m
Packing size 3.1*1.2*1.7m
Net weight 1500KG
Gross weight 1600KG


Samples
