Four Processes CNC Router Machine

Four Processes CNC Router Machine

The four process CNC router machine mainly for wooden doors making. During produce the product, it could finished the work piece smoothly. It needn’t change the tools by human. And the design of the machine structure ensure the accuracy when it works. It’s worth to keep.

Send InquiryChat Now
Product Details

Four Processes CNC Router Machine

Four Processes CNC Router Machine

Configurations

X, Y, Z Axis working area

1300mm*2500mm*200mm

Working table

Vacuum working table (with vacuum pump )

Transmission(X,Y)

X,Y Rack and pinion

Transmission(Z)

Taiwan Ball Screws

Spindle power

4.5 kw HQD air cooling *4

Operation system

NK-260 control system

Inverter

Fuling inverter

Motor and drivers

Delta servo motors and drivers *4

Dust collect

Auto dust collect system

Oil injection

Auto oil injection system

Max Spindle speed

24000r/min

Max traveling speed

25m/s

Max. working Speed

18m/s

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Command language

HPGL, G code

Working voltage

AC380V /50HZ

Interface

USB

Command

G code*.u00*.mmg*plt


Applicable area

1 Wooden doors and furniture decoration industry: solid wood and composite doors, cabinet doors, large area plate plane engraving, solid wood carving boring and milling, plate furniture carving, antique mahogany furniture carving, solid wood mural carving and other industries.

2 Wooden crafts processing: watch boxes, craft photo frames, thin aluminum plate craft carving, electrical countertops, sports equipment.

3 Electronic products industry: circuit boards, insulation materials, LED displays, home appliances (color TVs, washing machines, refrigerators) shell or model engraving and milling.

4 Musical instrument production industry: 3D curved surface of sculptured musical instruments, shape cutting, such as large, violin panel, head carving boring and milling.

5. EVA processing industry: EVA material packaging tools, medical equipment, electronic products, glassware and other lining carving boring and milling.


Advantages

#The Four Processes CNC Router Machine can complete the processing of the workpiece through a complete set of operations. No tool change. Save time and increase productivity.

#The engraving machine adopts gantry type movement, which is sturdy and durable.

#Engraving machine can be compatible type3/artcam / precision / Wentai and other CAD / CAM design software generated by the processing code.

#Suitable for processing cabinet doors, wooden doors, craft gifts, embossing technology, carving and cutting and many other industries.

#The vacuum system can remove wood chips and broken foam during processing, and maintain the workbench clean and disguised.

# Adopt Weihong control system, which has the functions of break point, power-off and continuous engraving, and automatic error correction function of origin return, which effectively guarantees the processing accuracy when working in all weather conditions.


Parts images

1. Double Acrylic Vacuum Table with Super Absorbent Force

2. Shanghai Weihong NK-260 control board


3. HQD 4.5KW air cooling spindle*4


4. Taiwan Delta servo drivers *4

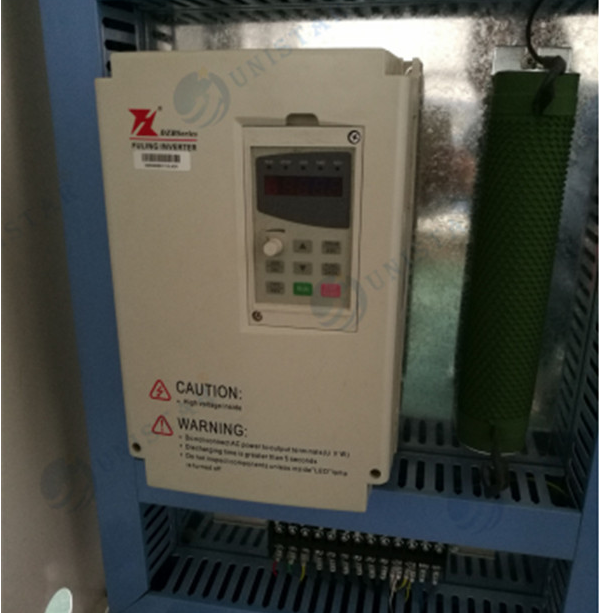

5. Fuling inverter


6. Dust collect bags

7. Helical teeth are stronger and more stable


Samples pictures
