From theory of CNC Router, it is a kind of drilling and milling combined processing. The CNC Router has a wide range of applications and product is widely used in our normal life. The ENC Router has many different powers, Users need to choose the right power according to the different materials.

Send InquiryChat Now
Product Details

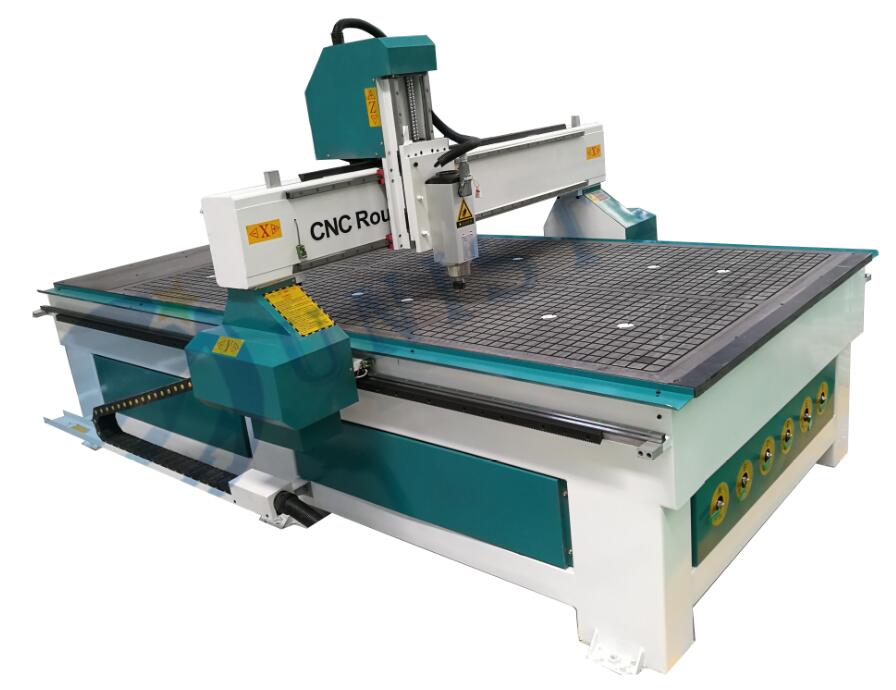

                                    High Quality CNC Wood Cutting Machine


12345


Applicable Industry and materials of CNC Wood Cutting Machine


Furniture: Solid wood doors, composite doors, cabnet doors, wood carving designs, wardrobes, panel furniture carving and office furniture.

Wood: Clock stands, Sport Equipment, Audio, Musical instrument.

Panel Processing: Insulation parts, PCB, bowing track, epoxy resin, high density board, solid wood engraving

Decoration Industry: Acrylic, PVC, MDF, Plexiglass, plastic, aluminum plate engraving and other soft metals.


CNC Routers features


1: Equipped with imported double nut screw.


2: The use of breakpoint memory ensures that it can be processed in case of accident (broken knife)


3: High-power cutting not only makes the engraving product fine and non-serrated, but also makes the bottom surface smooth and clear.


4: This machine is very suitable for building models, Advertising, molding, electronics, construction, printing and packaging, wood, decoration, tombstone, crystal products


5: For glass engraving, engraving thickness is above 5MM.


Technical Parameters of cnc router wood carving machine


Machine working Size

1300mm*2500mm

Working Area

X axis 1300mm

Y axis 2500mm

Z axis 200mm

Working Table

Vacuum Table/ T- slot table

Orbit

Taiwan HIWIN or PMI Square rail guide

Transmission type

X,Y axis by rack and Z axis by ball screw

Working Accuracy

±0.05mm

Reposition Accuracy

±0.05mm

Max traveling speed

30000mm/min

Max Working Speed

15000mm/min



Spindle parameter

Type of cooling

Air cooling


power

4.5kw


Speed

18000r/min

Inverter

Fuling Inverter

Drive System

Stepper motor and Driver

Command Code

G code

Control System

Weihong NK105 DSP A11, NC Studio

Oiling System

Manual

Working Voltage

AC380V/3PH/50HZ


Detailed photos of cnc engraving and milling machine

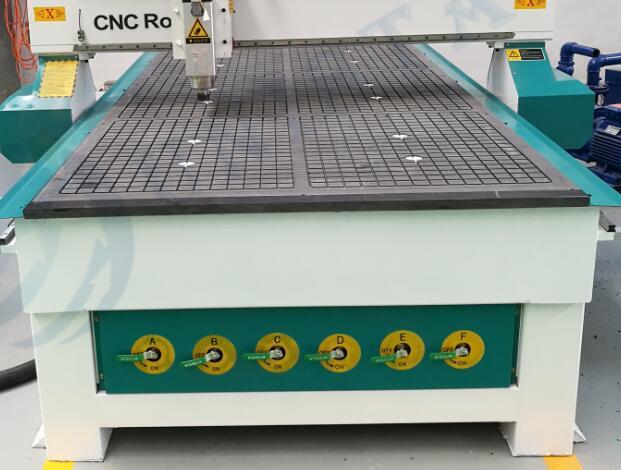

Machine body: Weld heavy duty bed, more strong and stable when it's working


123

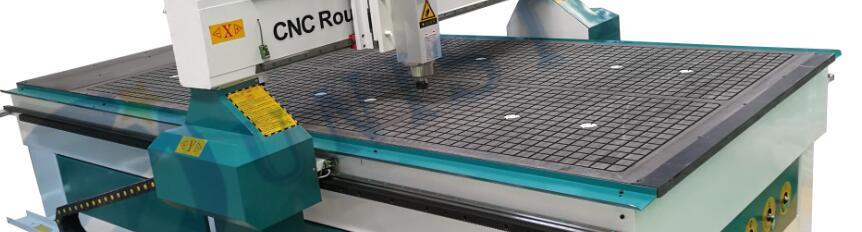

Working table: Vacuum working table: It can save time to fix materials and more firmly.

台面

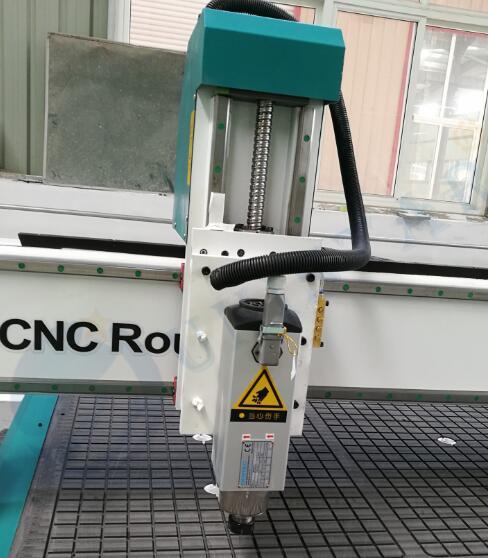

Spindle: Imported from Italy with best quality and long life


125

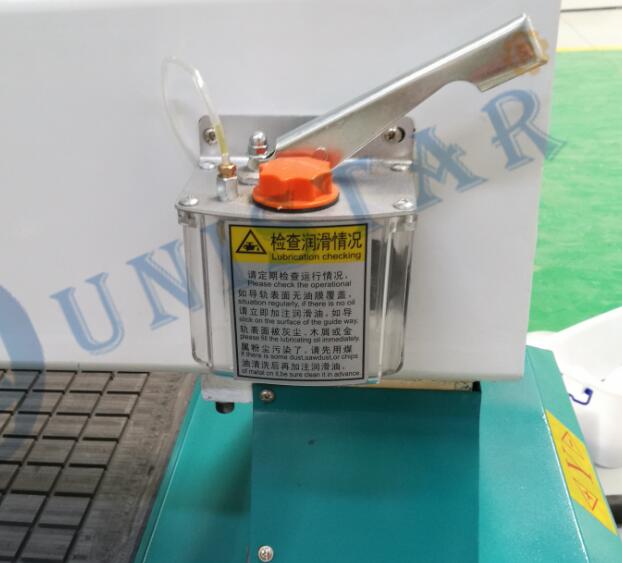

Oiling system: Keep the CNC Router work smoothly


102

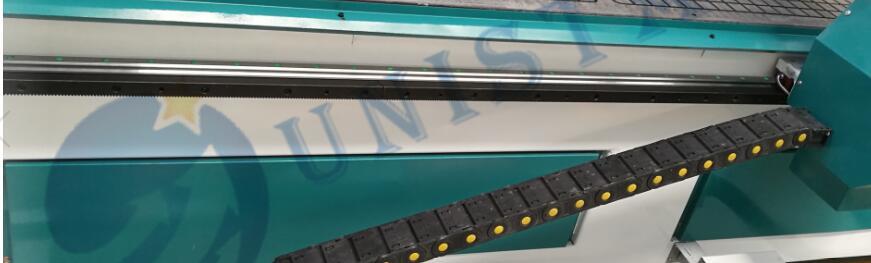

Orbit: Imported from Taiwan with high quality and long life


456

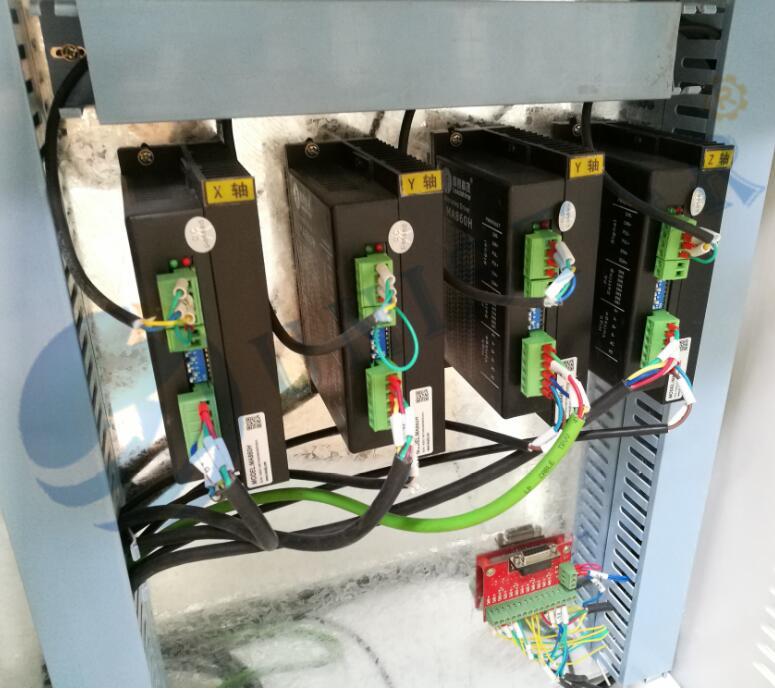

Drive System: Leadshine hybird servo motor and driver


25

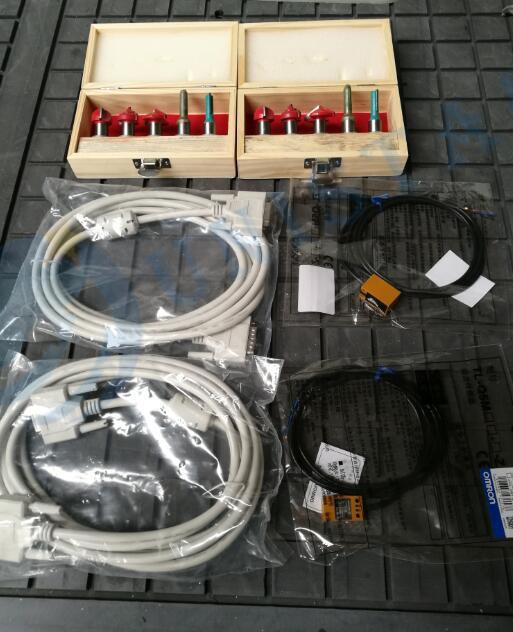

Related tools: We provides all the needed parts for the customers.


258


Advantages:


1: We got CE Certificate.

2: Our technical Engineer 24 hours online service

3: Shipping machine with all the English manual and installation video

4: Free training anytime when customer need

5: Provide hotel and foods for customer visiting.

6: All machine before shipping are 100% strictly tested by our QC department and engineering department.


Payment terms:


1. 30% T/T in advance, 70% T/T before ship from the factory.

2: 30% T/T in advance,70% by L/C at sight.

3: 30%T/T in advance, 70% against Copy bill off lading

4: For small order, Paypal, Western Union, MoneyGram are supported


Our Service:


1. Provide 1 year warranty for the whole CNC Wood Cutting Machine.

2. Professional technical support, operating video and manuals sent with the machine .

3: Provide 24 hours Engineer online guidance.

    If you have any problems , please feel free to call us.

4:  We can support engineer to serve machinery overseas .


Packing and shipping


#International strong plywood case packing

#Shipping: by air or by sea

#Lead time:7 days

#Terms of delivery: EXW, FOB, CFR, CIF, DDU.


包装拼图


Samples of CNC Wood Cutting Machine


0DD83DD565B6236CE6EAAF0F81121760

QQ图片20180322101629
