Jinan UNISTARCNC is professional manufacturer of cnc router, cnc woodworking machine , cnc laser , cnc router engraving machine, CNC machine is widely use for wood , MDF, acrylic , foam , aluminum plate cutting and engraving ,improve process efficiency

Send InquiryChat Now
Product Details

Jinan Unsitar cnc router wood engraving machine hot sale


Cnc Router Wood Engraving

Features

  • 200*200mm square metal tube welding ,more stronger ,High temperature tempering treatment

    More stable , not easy to deform.

  • Yaxis we adopt double motor travelling , ensure working stable and smoothly

  • Adopt high precision helical rack and pinion , strong power , fast speed

  • Imported four rows of steel bead linear guide rail, self-lubricating block, make each direction force equal, guaranteed the mechanical precision and strength

  • Double PVC board ,more thickness, not broken

  • Computer control system , new design , can satified customer operate machine easily


Applicable material and industry

Apply material : apply for all kinds of wooden materials;Aluminum plate, aluminum plate, plastic board;PVC, acrylic, double color boards, advertising material such as density board, crystal plates;And artificial marble etc. Nonmetal soft and light metal material


Cnc Wood Engraving machine Apply industry :

arts and crafts industry , wooden furniture industry , advertising industry,Decoration industry ,panel processing, etc.


Wood Cnc Router Detail specification

Name

Specification

Machine area (X)

1300mm

Machine area (Y)

2500mm

Machine Area (Z)

200mm

Working area

1500*3000*200mm

Spindle

3 KW water cooling spindle

Machine body

Heavy duty structure weld steel  8mm thickness

Control system

NC -studio control system

Table type

Double PVC T-slot table

Motor and driver

Stepper motor and drivers/Option servo motor and drivers

Inverter

Fuling inverter (best in China )

Transmission

High precision Helical racks and pinions. Taiwan TBI ball srew

Rail guide

Original Taiwan square linear guide way

for x,y,z axis, import Taiwan High quality rail guide

Prevent dust system

Dust proof system

Transmission

Original TBI ball screw for Z axis

Oil system

Oil Lubrication System

Traveling speed

60m-80m/min

Processing speed

25m/min

Spindle RPM(max)

0-24000 RPM

Position accuracy

±0.02mm

Tool sensor

Auto tool sensor

Dust collect system

3KW double bags dust collector

Working voltage

The machine working voltage is 3 phase 380V/50HZ

Box tool

We will send you one box tools, The machine with tool box include wrench ,tools , dust cover and so on

Packing

We adopt international strong plywood case packing waterproof


Detail machine pictures

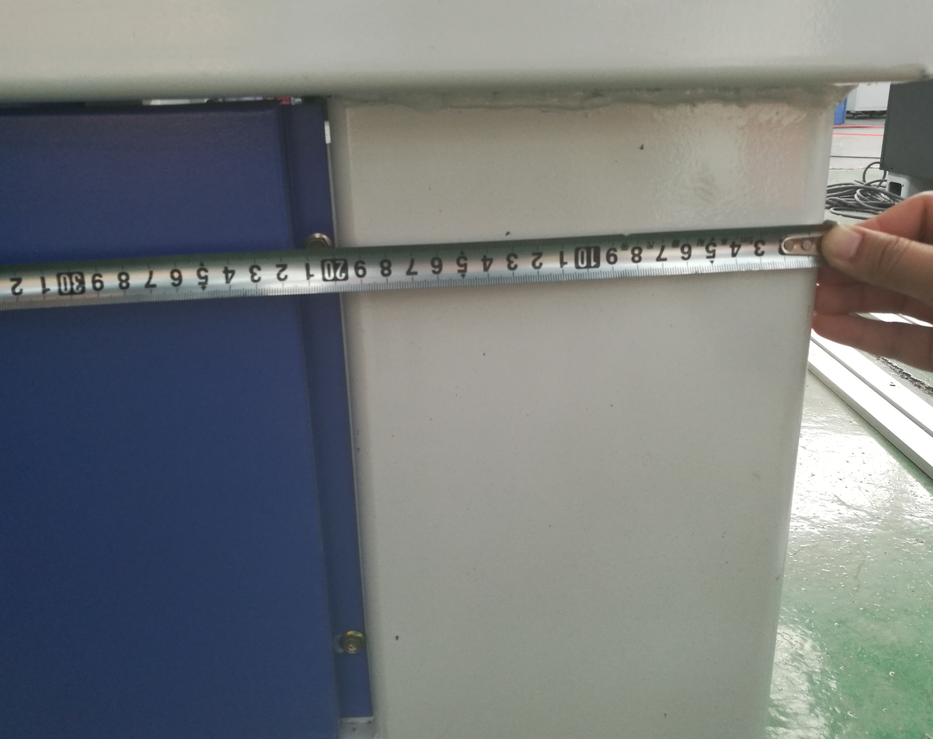

Stronger machine body with steel  square tube welding

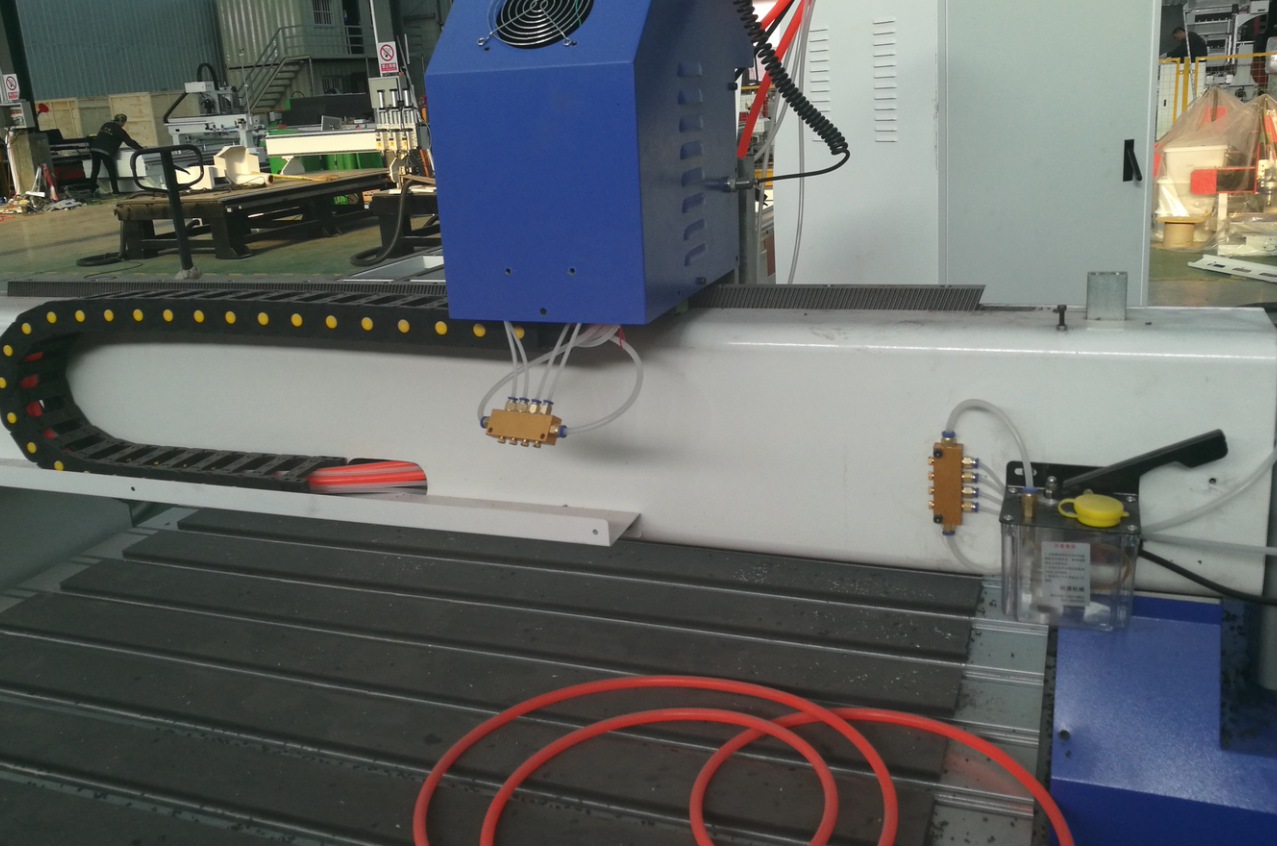

Helical rack with high accuracy ,to increase the contact ratio of gear meshing

and the gear transmission is smooth, reduce noise

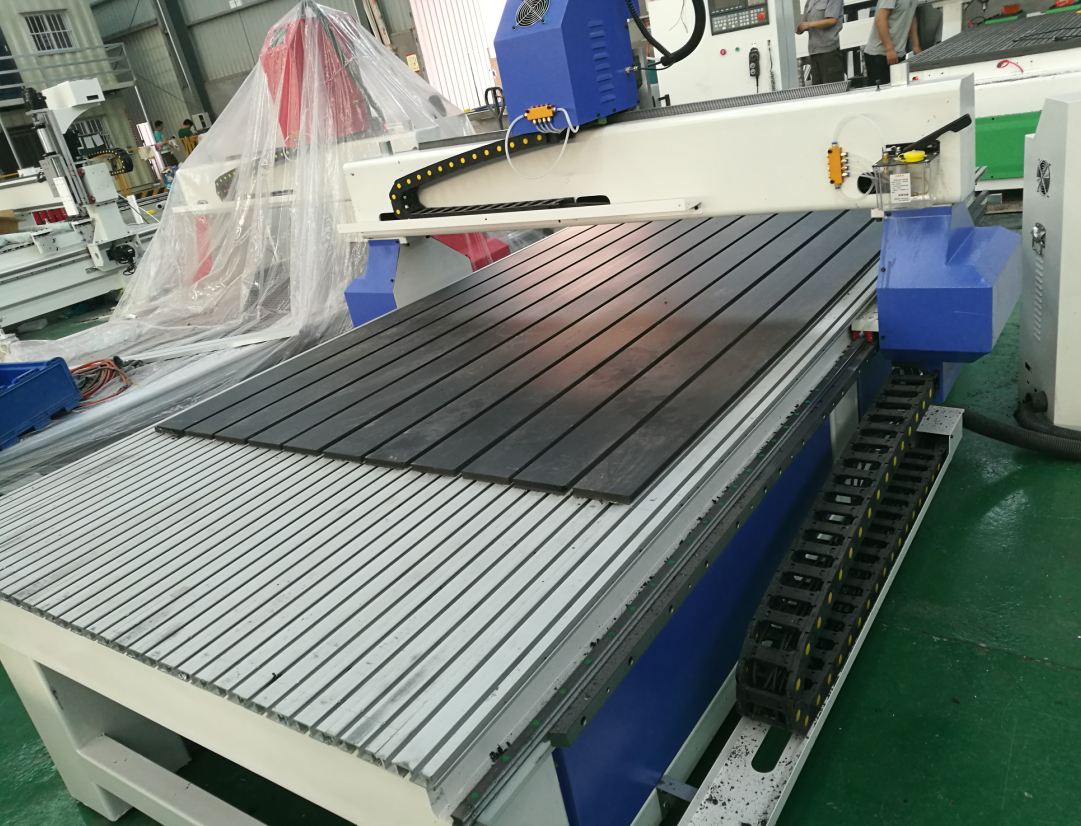

Double PVC board T-slot aluminum table (option vaccum table )

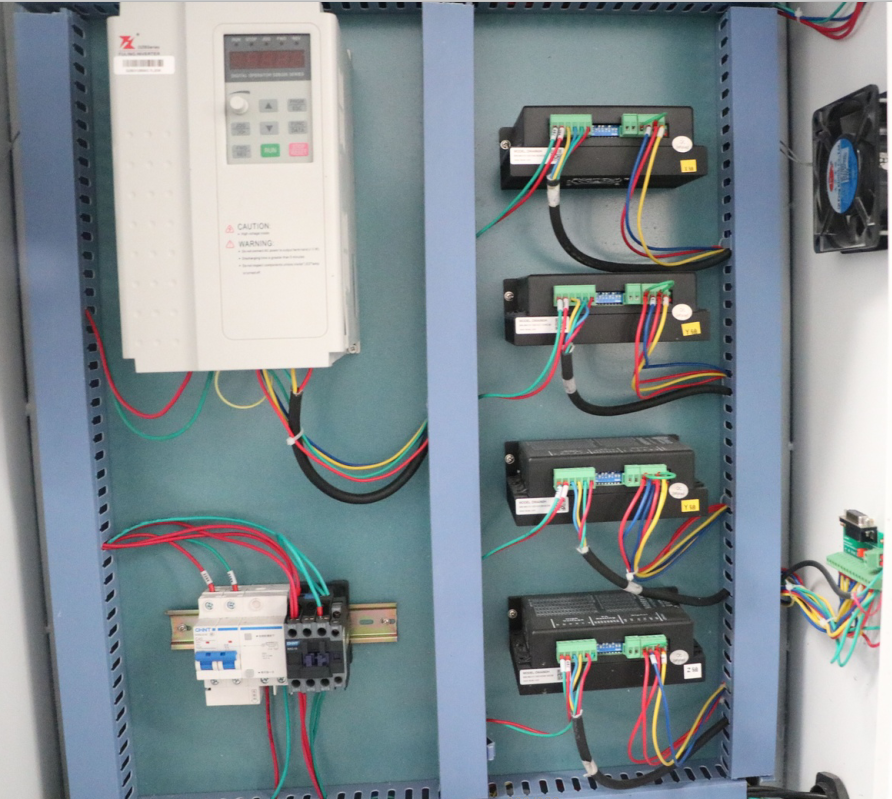

Control cabinet with stepper motor and drivers

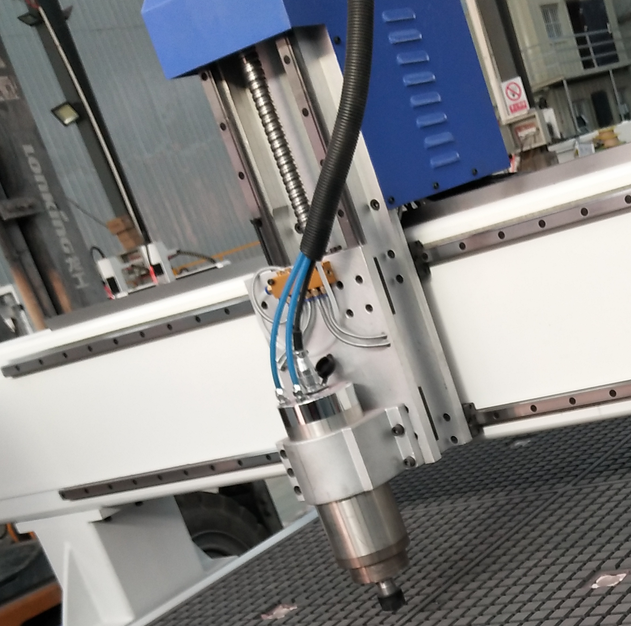

3KW water cooling spindle (option 4.5kw/6kw/7.5kw/9KW )

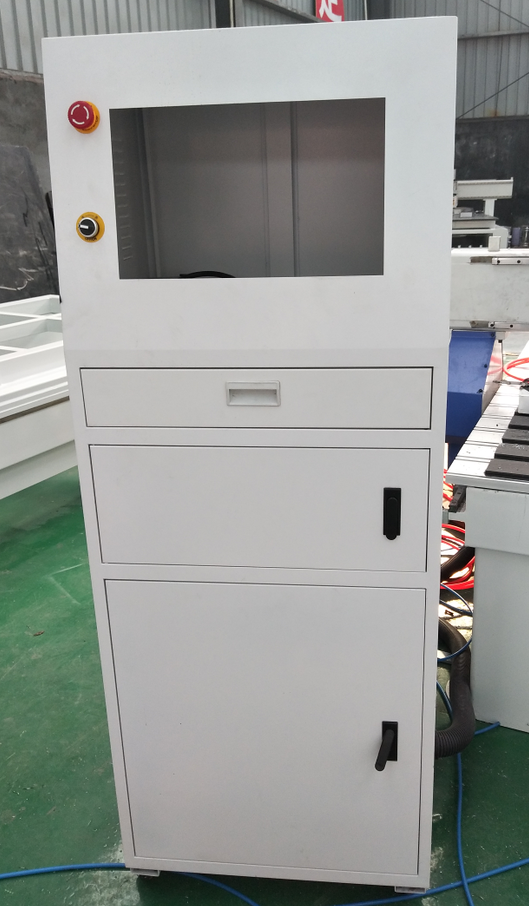

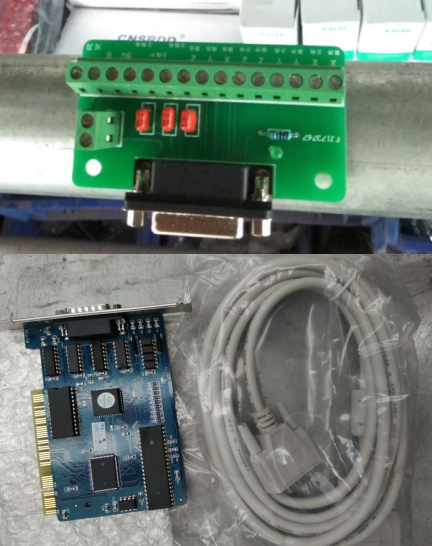

Control system NC studio control system with computer operation

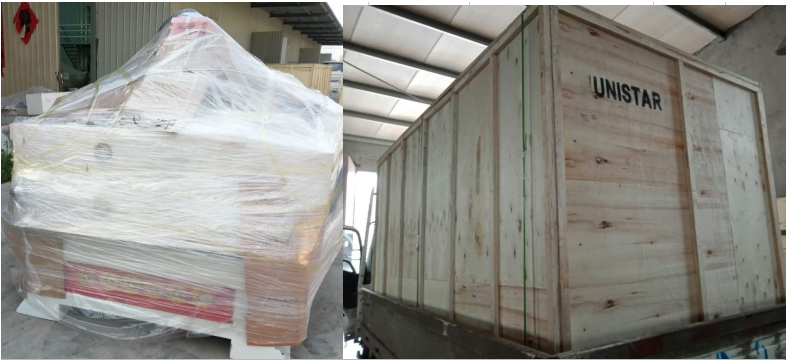

Machine packing and shipping



Our warranty

  1. Engineer 24 hours online service once we get your information

  2. During warranty time , we can replace broken parts free

  3. Customer can though E-mail , skype , Mobile to contact us for technical support

  4. Before shipping machine , we have professional technical test machine run

    working within 12 hours to check machine working smoothly

  5. We also can offer Engineer oversea service if customer need


Welcome to contact us , Jinan UNISTARCNC

Your best Choice


E-mail :admin@unistarcnc.com

Whatsapp &wechat :+8615064021290

Skype :unistarcnc

Facebook :Sarah Fu
