CNC Wood Cutting Machine

CNC Wood Cutting Machine

Imported linear square rails, ball slide, large bearing capacity, stable operation, high precision and long life. Imported ball screw with high precision and accurate under the knife

Send InquiryChat Now
Product Details

CNC Wood Cutting Machine




Applicable Industry:

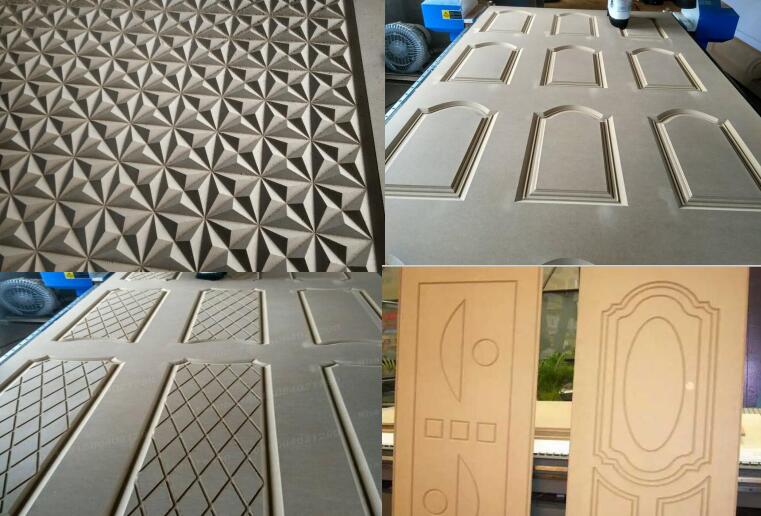

Ideally suitable for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF
painfree door, wood composite door, cabinet, kitchen doors,art model, wall art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate,

electrical cabinets panels, sports equipment, and other wooden industrial products


Applicable Material:
Acrylic, double color plate, PVC, ABS board, aluminum plate, density board, artificial stone, organic glass, soft metals , cut matrix, character, signs, etc.


Features:

1.Vacuum table top with more partitions independently controlled adsorption system, effective control of adsorption, meanwhile , able to select the absorption zone according to the size of processing material .

2. Imported linear square rails, ball slide, large bearing capacity, stable operation, high precision and long life. Imported ball screw with high precision and accurate under the knife.

3.The body structure determine the machine stability, rigid ,high precision.

4. High-performance driven motor to ensure that the machines high speed and accuracy.

5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.


Detail parameter:

parameter

specification

working area

1300mm*2500mm

spindle

5KW air cooling spindle

Machine body

Strong machine heavy duty body

Control system

NC Studio control system

Motor and driver

Stepper motor and driver (has high accuracy and good quality )

Inverter

Fuling inverter

Transmission

Taiwan ball srew (has good performance ,long life ,import from taiwan )

Rail

Taiwan HIWN rail guide original import from Taiwan

Dust collect system

Double bottle collect system

Working Voltage

AC380V ,50Hz ,3PH

Command Language

G code, u00, PLT, HPG and etc.

Prevent dust system

Dust proof system with 3KW double bags dust collector

Table

Vacuum table

Oil system

Manual oil injection system

Spindle RPM(max)

24000RPM


Detail parts:

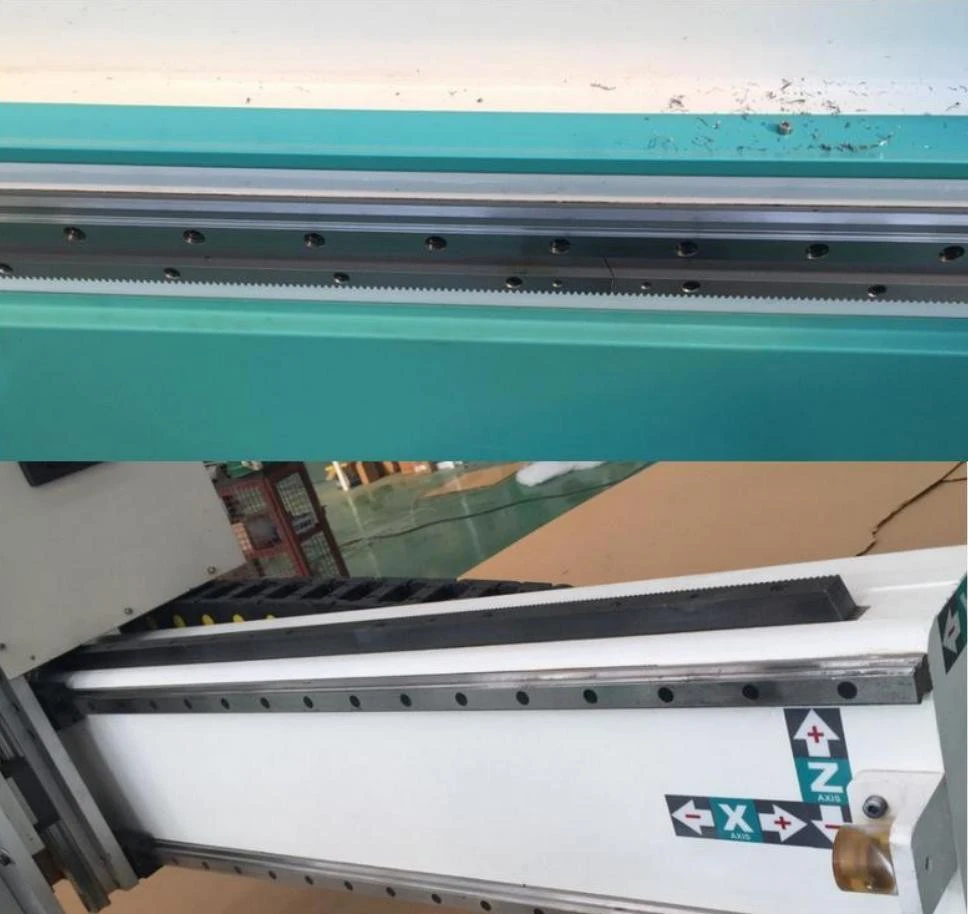

Taiwan Hiwin rail guide with high quality , has long lifetime

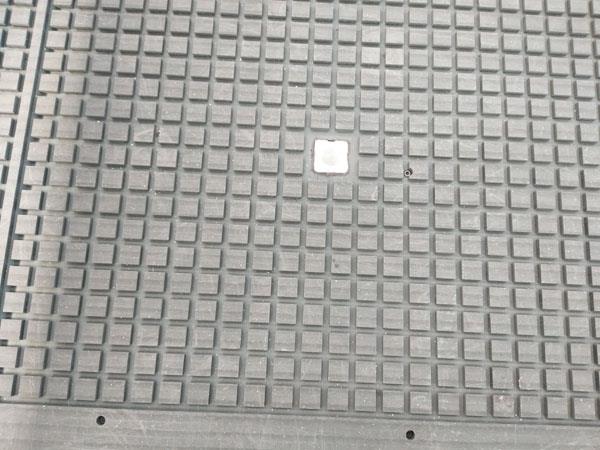

Strong  vacuum table

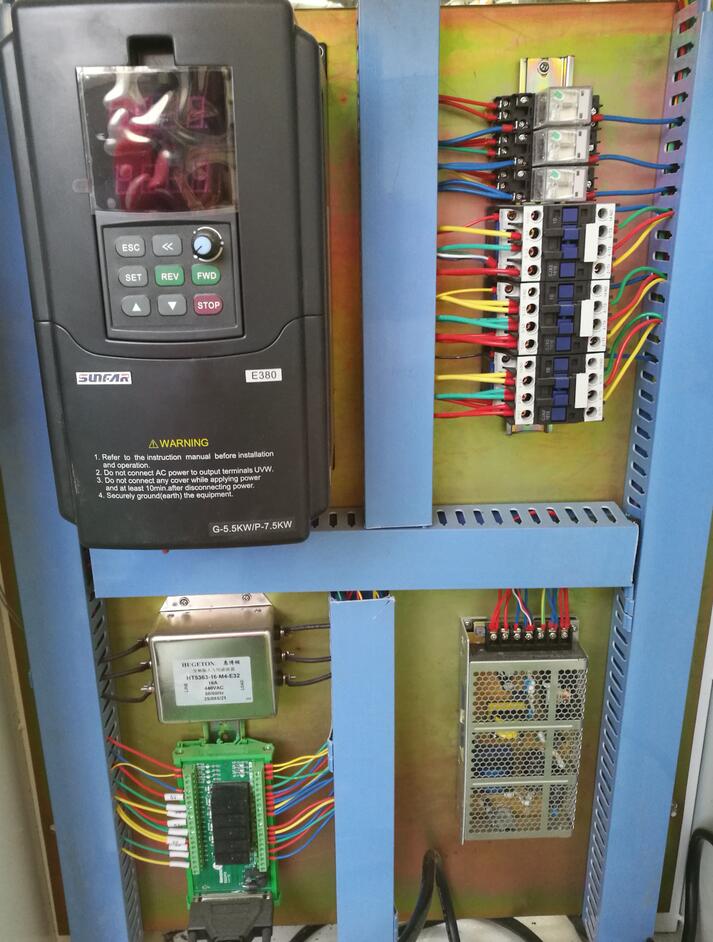

Advanced NC studio contronal system can provide better stability.

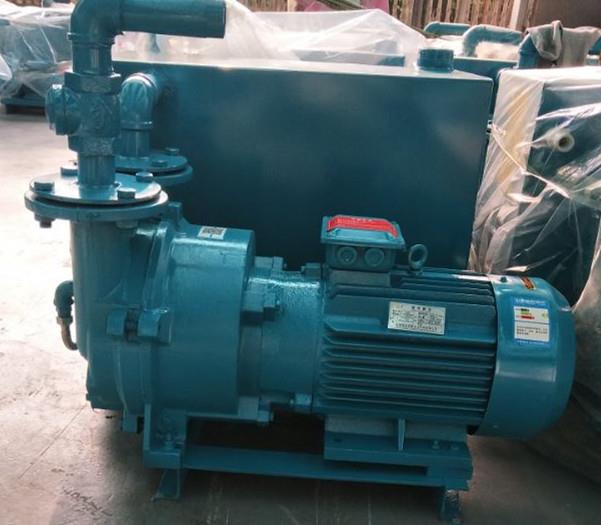

The vacum pump can cooling the laser head and clear dregs.

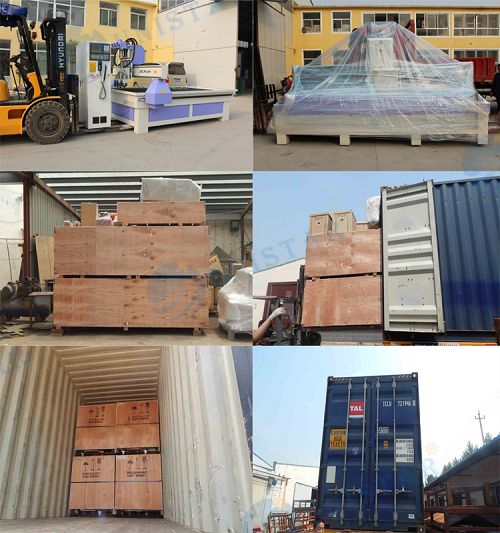

Samples and packing:



If you are interested in our machine , Please feel free to contact me through
admin@unistarcnc.com
Whatsapp:+86 15853176231
