Design CNC Router Machine

Design CNC Router Machine

This Design CNC Router Machine can be used in many materials such like Acrylic, double color board, PVC, plast board, light slab, light box. The machine body adopts heavy square welded steel, very stable and have long serving time.

Send InquiryChat Now
Product Details

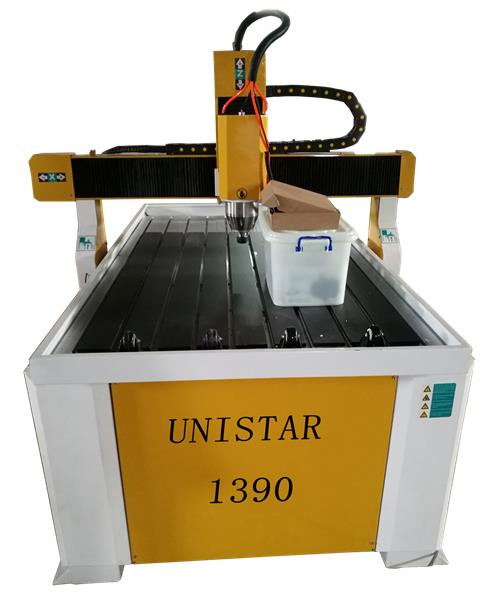

Hot sale muilt-function Design CNC Router Machine USM-1390

Design CNC Router Machine

Design CNC Router Machine Application range
Suitable for advertising characters cutting, plate making, LED / neon trough, hole-shaped literal cutting, plastic light box mold making, handicrafts, seals, badges, department licensing, rulers, models, stationery and other industries.


CNC Router Machine Features
1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe bodyis stabilized and will not be deformed forever.
2.Three axes adopt Taiwan brand linear guide rail with high precision.
3.Z axis adopts Taiwan made ball screw, so high precision and long life time using are assured.
4.X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
5.Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc.
6.This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
7.Manual/automatic oil-injection system allows the machine maintenance mush easier.
8.Dust-collection device and considerate oil plate can always keep the working table clean.
9.High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
10.We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
11.Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.
12.Whole machine will be wrapped with cling plastic and then packed into fumigation-free IPPC wooden case.


Technical Parameter of USM1390 Design CNC Router Machine

Max. Rapid Travel Rate:Ball Screw
Max. Working Speed:Hiwin Rail Linear Bearings
Spindle Speed:1.5Kw
Drive Motors6000mm/min
Working Voltage4000mm/min
Command Language:0-24000RPM
Operating System:Stepper system
Interface:AC220V/50/60Hz
Flash Memory:G code

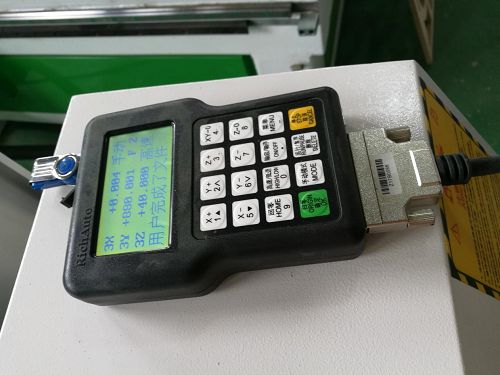

Collect:DSP A11 control system
X,Y Resolution:USB
Software Compatibilit:128M(U Disk)
ER11
Running Environment:<0.01mm
Type3 software, Ucancam software, (Option: Artcam software)
Support format:Temperature: 0℃~45℃
Relative humidity: 30%~75%
AI, BMP, DST,PLT

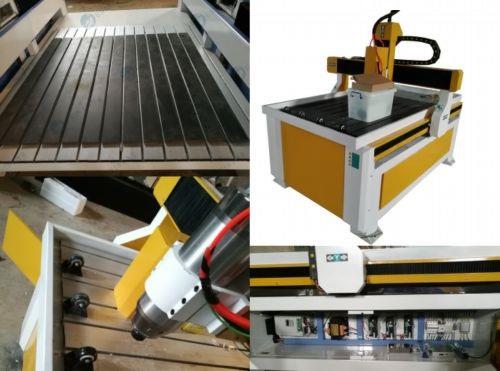

CNC Router Picture show

CNC Router Machine

Design CNC Router


Design CNC Router Sample pictures

Design CNC Machine

CNC Router


Packing and shipping




Payment terms
T/T ( 30% of the total payment in advance, the left 70% in balance be paid before shipping)
Westen Union


After sale service
1> 12 months guarantee of the whole machine.
2> Main parts(excluding the consumables) shall be changed free of charge if
there is any problem during the warranty period.
3> Lifetime maintenance free of charge.
4> We will provide the consumable parts at an agency price when you need replacement.
5> Machine has been adjusted before delivery.
