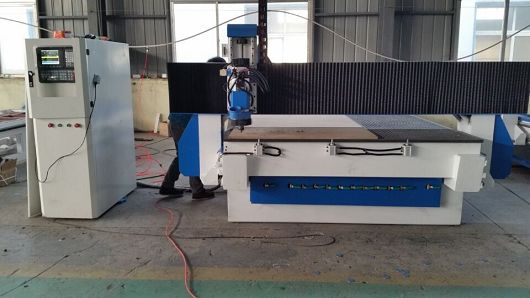

Linear ATC CNC Router

Linear ATC CNC Router

Jinan Unistar Linear atc cnc router row magazine fixed behind o the bed size, changing time speed 13S, Tool change capacity is 6 pieces, convenient to complete complex processing task of multiple head.

Send InquiryChat Now
Product Details

Raw type linear atc cnc router processing center with high quality


Features of linear ATC cnc router
● In-line change knife carving machine suitable for machining or diversity, complexity of multivariate function: widely used in milling, drilling, cutting, side milling, pour edge, etc.
● The straight line of woodworking engraving machine tool changer of various mechanical and electrical components are all top products in the international.
● Give expulsion-typely automatic tool change system, dao database is eight, tool change time just a few seconds, high efficiency.
● Dual-track bilateral drive the machine, it's heavy cutting processing model.
● Suitable for diverse and demanding mode of production and processing, belongs to the accuracy of high efficient processing equipment.
● The worktable can be directly adsorption process, the whole Zhang Daban don't need to pass any material cutting.
● Other models for customers to choose

Detail parameter of raw type TAC cnc router

Name

Specification (Linear ATC cnc router )

Machine area (X)

2000mm

Machine area (Y)

4000mm

Machine Area (Z)

200mm

Working area

2000*4000*200mm

Spindle

9KW HSD  auto tool change spindle

Machine body

Heavy duty structure weld steel 12mm thickness

Control system

Taiwan syntec control system with high quality

Table type

Strong vacuum suction table

Motor and driver

Japan yaskawa servo motor and drivers

Inverter

Surfar inverter (best in China )

Transmission

Taiwan TBI ball srew (has good performance, long life, import from taiwan)

Rail guide

Taiwan Yintai rail guide,

Prevent dust system

Dust proof system

Transmission

X,Y Helical rack -pinion ,Z ball srew

Oil system

Auto oil injection system

Traveling speed

60m-80m/min

Processing speed

25m/min

Spindle RPM(max)

0-24000 RPM

Position accuracy

±0.02mm

Tool sensor

Auto tool sensor

Dust collect system

Double bottle collect system

Vauum pump

7.5KW vacuum pump for vacuum table

Tool magazine

Carousel style ATC 8 position

Tool holder

8 tool holder

Date of delivery

20 WORKING DAYS AFTER GET PAYMENT

Detail images

image005.jpg  image007.jpg

image009.jpg  image011.jpg

image013.jpg  image015.jpg

image017.jpg  image019.jpg

Samples of linear ATC cnc router

FAQ:
If you want to know if the machine can work on your material, please tell me:
1. What materials do you want to engrave or cut?

Because different types cnc machine apply to different materials.
Then we can recommend you suit cnc router
2. What's the max size of the material?(Length *width* thickness)
Because we have different cnc router size, like 1212,1325,2030 working area, So for your description, We will know which machine size is best suit for you Or we make customization size
3. This is the first time I use this kind of machine, is it easy to operate?
1) English guide video and instruction book are sent to you free together with the cnc router.
2) Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3) 24 hours technical support by calling, video and email.

We only do high quality machine, your best choice
