Disk Type Automatic Tool Changer CNC Router
The disc changer engraving machine we provide can realize a multi-purpose machine. It can cut the material and shape the sculpture. It can automatically position the plate and save time and effort. It can also hole and slot both sides of the plate.In the woodworking industry, meet the needs of different customers.
Multifunction Disk type automatic tool changer cnc router
Automatic Tool Changer CNC Router Application
Applicable to furniture, carpentry decoration, carved wood furniture, cabinet doors, paint free doors, screens, advertising, musical instruments processing and other industries.
Machinable materials: a variety of non-metallic materials such as various wood materials, plastics, organic glass, insulating materials, PVC, acrylic, two-color board, ABS board and so on.
Disk Type Automatic Tool Changer CNC Router Specification
Name | Specification |
Machine area (X) | 1300mm |
Machine area (Y) | 2500mm |
Machine Area (Z) | 200mm |
Working area | 1300*2500*200mm |
Spindle | 9KW air cooling HQD auto tool change spindle |
Machine body | Heavy duty structure weld steel 12mm thickness |
Control system | SNYTEC control system with high quality |
Table type | Strong vacuum suction table ( Option: T-slot table) |
Motor and driver | Taiwan delta servo motor and drivers |
Inverter | Surfar inverter (Best in China ) |
Transmission | Taiwan ball screw (Has good performance ,long life) |
Rail guide | Taiwan TBI rail guide , |
Prevent dust system | Dust proof system |
Transmission | X,Y Helical rack -pinion ,Z ball screw |
Oil system | Auto oil injection system |
Traveling speed | 60m-80m/min |
Processing speed | 25m/min |
Spindle RPM(max) | 0-24000 RPM |
Position accuracy | ±0.02mm |
Tool sensor | Auto tool sensor |
Dust collect system | 3KW Double bags collect system |
Vacuum pump | 5.5KW vacuum pump for vacuum table |
Tool magazine | Carousel style ATC 8 position |
Tool holder | 8 tool holder (Option: 10 /12 tool holder) |
Date of delivery | 25 WORKING DAYS AFTER GET PAYMEN |
Disk Type Automatic Tool Changer CNC Router Feature
■ Heavy-duty bed, through tempering sandblasting anti-rust treatment, five-sided milling machine center hole, guaranteed accuracy within 5 wires
■ When processing a product, it is sometimes necessary to sculpt a number of tools to produce different flower patterns. The automatic disk tool changer engraving machine is specifically designed and manufactured to simplify the tool change process in the engraving process.
■ After one time successfully set knife, no need to re-set again , shortening the time of tool change and knife setting. It is very suitable for processing a product that has been changed several times.
■ Vacuum tabletop with more partitions independently controlled adsorption system, effective control of adsorption, meanwhile , able to select the absorption zone according to the size of processing material ,thereby reducing energy consumption.
■ With automatic lubrication system, all the slides can be lubricated according to setting time.
■ Intelligent cross-border protection (limit protection) to prevent the mechanical collision caused by the design layout exceeding the processing width.
■ Advanced professional SNYTEC control system , compatible with multiple types of software Type3/Artcam/Castmate/pro-e/UG/CAD/IIIustrator.
■ Optional accessories: optional dust suction device, vacuum adsorption device, automatic feeding device (save manpower to achieve sheet metal processing automation).

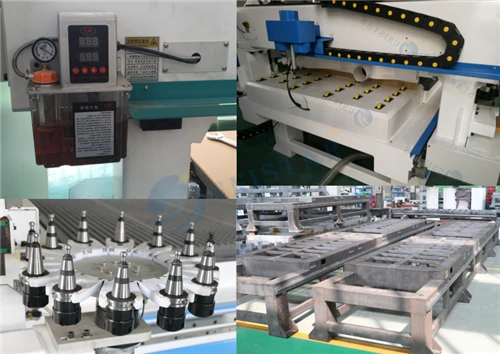

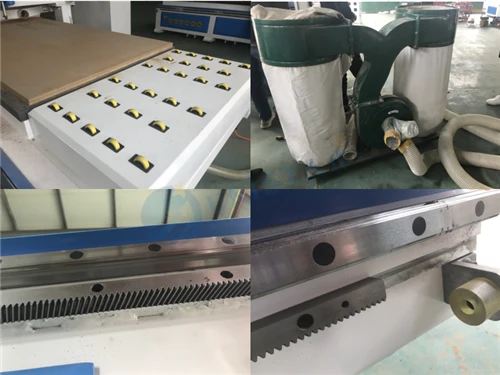

Automatic Tool Changer CNC Router picture
Sample display
