The disk Tool changer engraving machine can completely to processes, such as drilling, cutting, engraving, keyhole and other processes can be completed in one time. Because the we use the imported square linear guide for high accuracy working and the operation is very traveling is also very stable.

Send InquiryChat Now
Product Details

                              High Efficiency Disk Tool changer CNC Engraving Machine for Wood

QQ截图20190113170911


Applicable industry and materials:


Furniture: panel furniture, office furniture, customizing furniture, cabinets, wardrobes, wooden doors, bedside tables, etc.


Wood products: audio, game cabinets, computer desks, musical instruments, etc.


Sheet metal processing: insulating parts, plasticized parts; PCB, motor vehicle inner parts, epoxy resin, ABS, PP/PE and other


Technical Parameters of CNC Disk Tool Changer Cutting machine


Working area

1300mm*2500mm*200mm

Machine Body

Heavy duty bed, more strong and stable

Working table

Vacuum working table

X Y transmission

Taiwan Helical Rack and pinion

Z Transmission

Taiwan TBI Ball Screws

Spindle power

9kw HQD air cooling tool changer spindle

Inverter

11 KW Fuling Inverter

Motor and drivers

750w Japan Yaskawa Servo Motor and Driver

Control system

Syntec control system

Vacuum pump

5.5 KW vacuum pump

Disk Tool changer

12 sets (servo tool magazines)

Dust collect

Auto dust collect system

Oil injection

Automatic Oil injection system

Max Spindle speed

24000r/min

Max traveling speed

60000mm/min

Max. working Speed

25000mm/min

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Command code

HPGL, G code

Working voltage

AC380V /50HZ

Interface

USB


Detailed Photos:

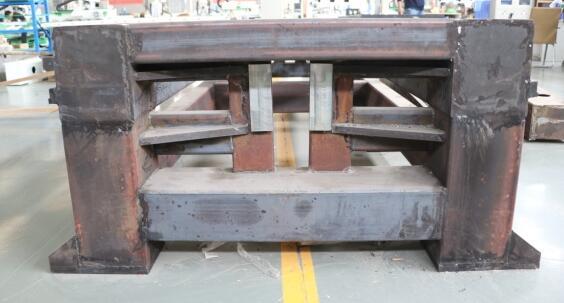

1, Heavy-duty bed, tempered sandblasted rust-proof treatment,

   five-sided milling center drilling the hole of the machine body, to ensure the high accuracy.


123

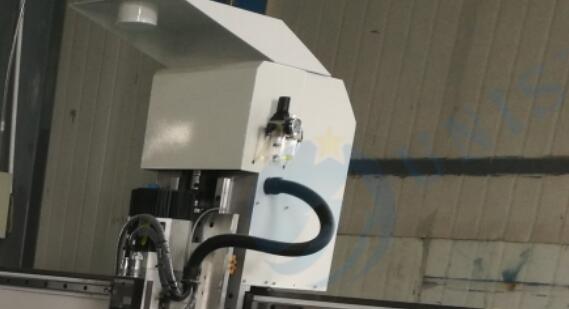

2: The machine head adopts aviation aluminum material to reduce weight,

    increase rigidity and screw tightness

223223

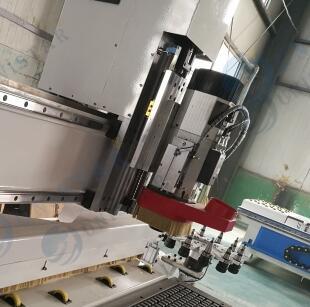

3: HQD 9kw automatic tool change spindle


4567

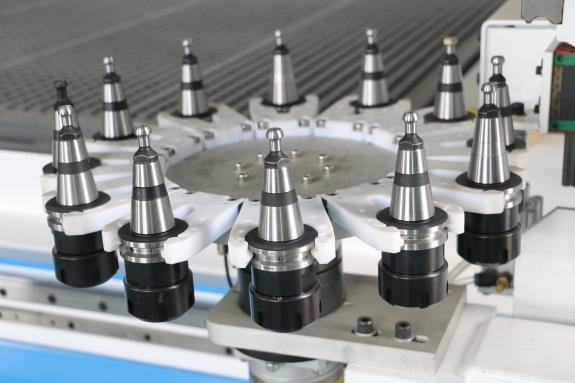

4: 12 disk servo tool magazines to increase high efficiency


BC7585D4@028E7356.BC99F35B

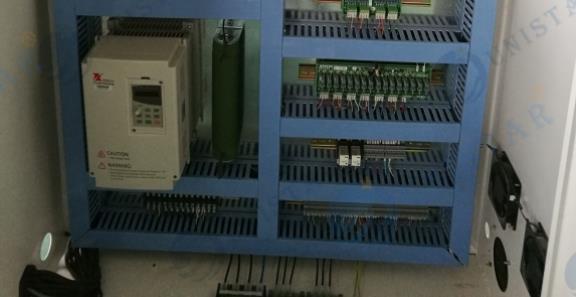

5: Zhejiang Fuling 11kw inverter to keep the whole machine work well


7C3A265B@B2234816.BC99F35B111111

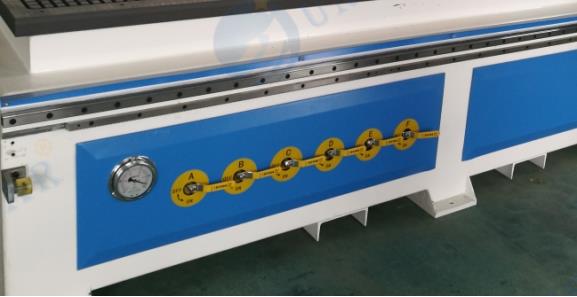

6: Imported from Taiwan HIWIN rail guide of high quality


1111111111

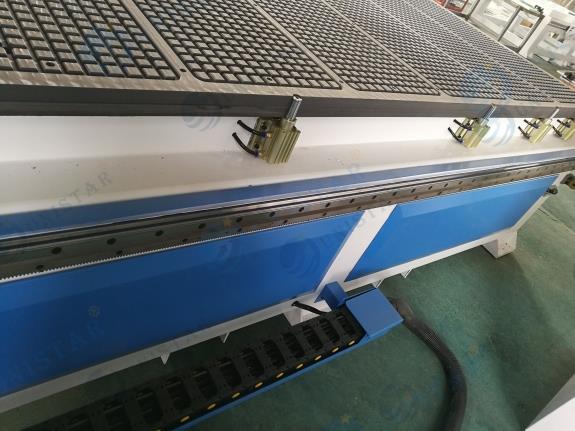

7: Positioning Cylinder: Quick action and quick response to put the materials in right place and save time


22222222222


8: Japan Yaskawa 750W servo drive, Z axis motor with holding brake


23345666666

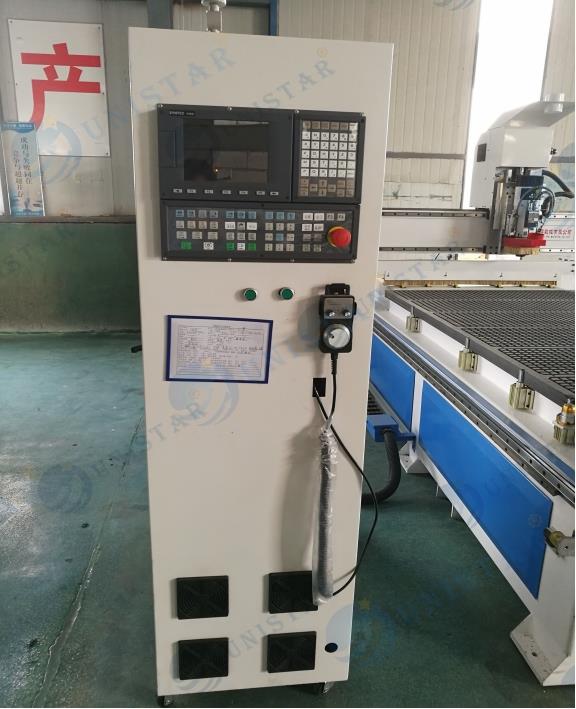

9: Taiwan's SYNTEC 6MB control system


333333333

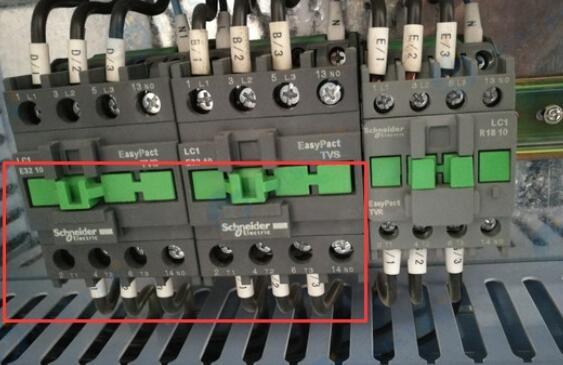

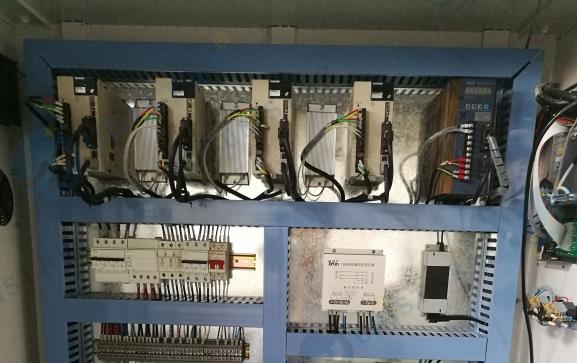

10: Zhengtai and France Schneider brand electrical components, Japan's Omron photoelectric limit


11111eeee

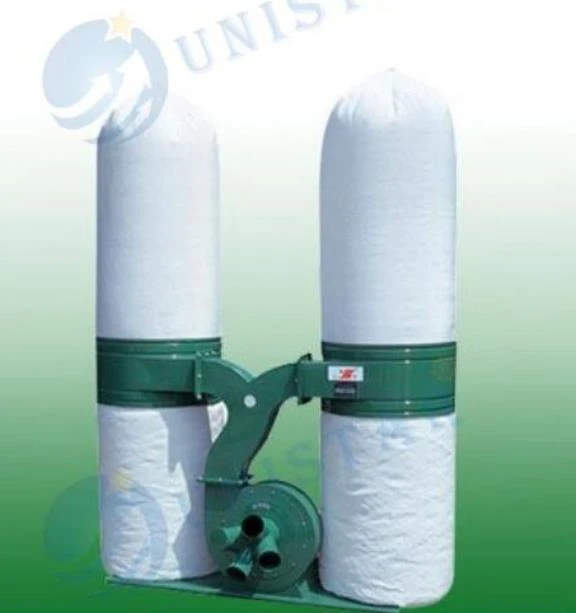

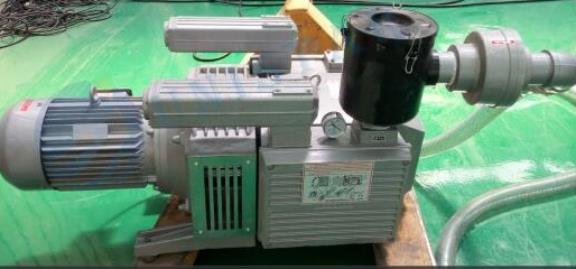

11: ,5.5kw water-cooled circulating vacuum pump, 3.0kw double-barrel vacuum cleaner

Samples image


bbbbbb


ADD2F927@7C332F48.BC99F35B


Samples of Disk tool changer engraving machine


木板划槽拼图

Payment terms:

1. 30% T/T in advance, 70% T/T before ship from the factory.

2: 30% T/T in advance,70% by L/C at sight.

3: 30%T/T in advance, 70% against Copy bill off lading

4: For small order, Paypal, Western Union, MoneyGram are supported


Our Service:

1.Provide 1 year warranty for the whole laser machine.

2.Professional technical support, operating video and manuals sent with the machine .

4:  Provide 24 hours Engineer online guidance.

If you have any problems , please feel free to call us.

5:  We can support engineer to service machinery overseas .


Packing and Shipping.

#International strong plywood case packing

#Shipping: by air or by sea

#Lead time:7 days

#Terms of delivery: EXW, FOB, CFR, CIF, DDU.


Shipping photos of CNC Disk Tool Changer Cutting machine
