USM1325 Disk ATC Process Center for furniture


Features:

1.Taiwan Syntec control system ,continuous carving during powerfailure and break point.

2.Italy import HSD 9KW tool changer spindle,electronic component used in the HSD electrospindles undergoes a double testing phase.Keep high quality standards.

3.Hardness double PVC board vaccum table ,smooth and flat.

4.Taiwan HIWIN rail guide have high quality.Keep high accuracy and precision to make machine.

5. 16 disk tool magazine , can finsih tool change time in 8 seconds

6. Japan yakskawa servo motor and drivers with high precision

Applicable industry:

Furniturem, wood, panel processing ,decoration industry.

Applicable materials:

Solid wood doors, composite doors,cabinet doors,wardrobes,office furniture,sports equipment,PVC,acrylic,MDF,plastic.

Technical Parameters:


Working area

1300mm*2500mm*200mm

Table structure

vacuum table

Rial guide

Taiwan HIWIN

Transmission type

X,Y aixs rack,Z ball srew

Spindle

Imported Italy HSD air cooling spindle

Power

9KW

Spindle speed

0-24000r/min

Inverter

Fuling inverter

Control system

Taiwan Synetc control system

Motor and drive

Japan yaskawa servo motor and drivers

Max travelling speed

60000mm/min

Max working speed

25000mm/min

Working accuracy

±0.05mm

Repositioning accuracy

±0.05mm

Working voltage

380v/50HZ

Automatic tool setting system

with

Automatic feeding device

with

Dust collect system

3KW double bags collect system

Tool holder

8 tool holder

Vauum pump

5.5KW vacuum pump

Oiling system

Automatic

Product detials:

1.Syntec control system

Disk ATC Process Center


2.Vacuum table

3.Fuling inverter

fulling inverter.jpg

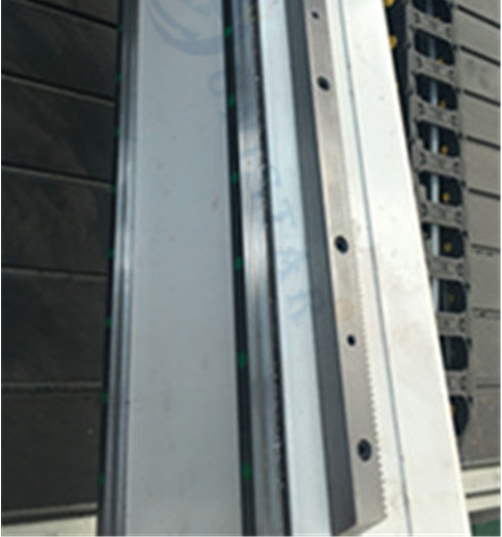

4.Taiwan HIWIN rail guide(high quality and high accuracy)


5.tool changer can finish changing time 10 seconds,tool channger capacity is 8 pieces or 10 pieces or more)


6.samples

一把刀样品.jpg 圆盘换刀   34工序样品.jpg

6.Packing

包装_副本.jpg 包装2_副本.jpg


Our Warranty and service:
1> Jinan Unistar CNC Factory guarantees all new machines sold to be free of manufacturer's defective workmanship, parts and material. We will repair or replace, without charge.
2> If your machinery breaks due to the operator's error, the warranty will pay for the work to repair the machine. Examples are spindles crashing, damaged guide rails.
3> If the Machinery was new when the warranty began, in the event of a total loss, we pay the new replacement value of the machine including the cost of dismantling less the value of salvaged parts.
