ATC Woodworking CNC Router

ATC Woodworking CNC Router

ATC woodworking cnc router is designed for high high efficiency and changes tools/bits automatically working, saving time and manpower. It is mainly use for Panel furniture, wooden door, kitchen equipment etc.

Send InquiryChat Now
Product Details

Disk ATC woodworking cnc router 8/10 tool changer for Furniture, MDF

ATC Woodworking CNC Router

● Features
• Automatic tool change spindle-- Italy import HSD atc air cooling spindle. Famous brand, long working life, low noise, more strength cutting ability to ensure the machine long time working.
• Taiwan Synetc control system -- operation touch screen. Support offline operation, more table.
• Taiwan delta servo motor --high-performance drive motor to ensure that the machines high speed and accuracy.
• HIWIN linear rail 25 from Taiwan -- Smooth and, low noise, high quality, not rust, keep machine high working quality
• Vacuum Mesa of adsorption worktable--Can both absorb big materials by vacuum power
• Helical rack transmission-- Ensure fast speed, big loading capacity, strong power, long lifetime, and it ensures the machine more stable.
• Carrousel Tool Magazine ATC woodworking cnc router, With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choose 6 or 10 tool holders and forks. it also can be added the Aggregates.

● Detail parameter

Table Size(XY)

1270mm x 2540mm

Travel(XYZ)

2560mmx1290mmx250mm

Column Space

1677mm

Z-Axis Clearance

150mm

XY Cutting Speed

20m/min

Z Cutting Speed

15m/min

Vaccum Table

6 zone /8 zone

Spindle

9KW Italy HSD spindle

Driver and motor

Delta servo motor and drivers

Table

Vacuum table

Spindle Speed

24000RPM

Collect

BT30; ER32; ER32

ATC

8/10/ disk tool change

Power

3Phase 380V 15KW

Overall Size

3780Lx2000Wx2100H

Weight

1700 KG

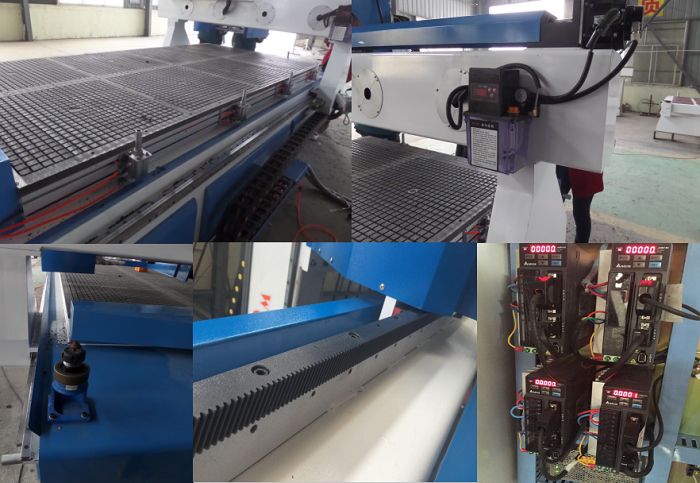

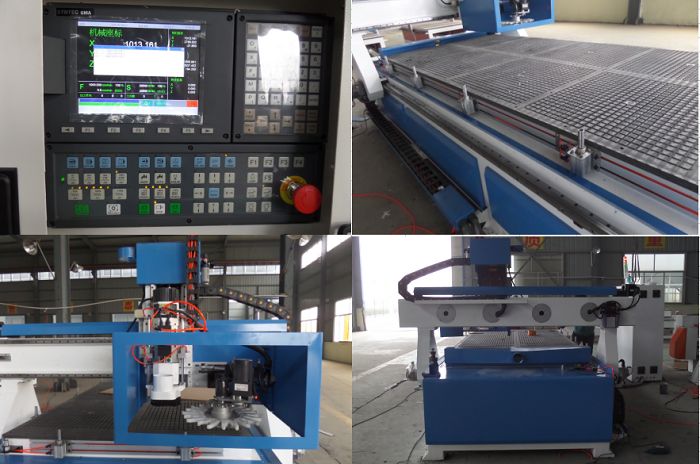

● Detail pictures



● Samples

● Machine packing and shipping


Our Warranty
#We have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours, all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products.
