Disk magazine fixed on the machine right beam, changing time is only need 10 seconds, Tool changer capacity is 8/10/12 pieces, more convenient to complete complex tasks of multiple head, new type servo tool library, high precision of tool position, tools changing in high efficiency.

Send InquiryChat Now
Product Details

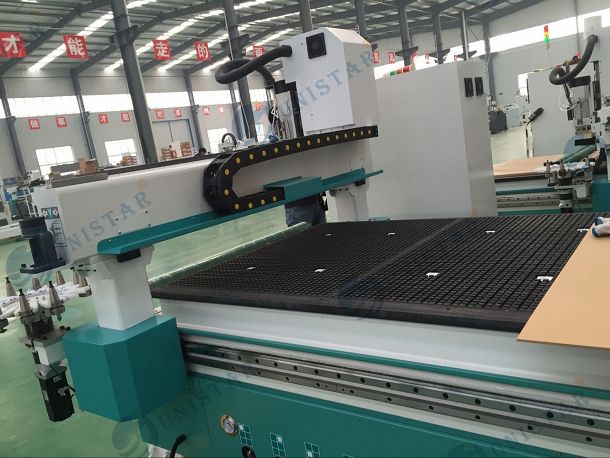

Disk ATC spindle cnc router for furniture process center with high precision

ATC Spindle CNC Router


Applicable industry and material
● Woodworking industry: three-dimensional wave board processing, cabinet door, solid wood doors, craft wooden door, folding screen, process window processing, shoe polisher, console cabinets and panel, mahjong table, computer desk and auxiliary panel furniture products processing.
● Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
● Mould industry: can carve copper, aluminum, iron and other metal molds, and artificial marble, sand, plastic board, PVC pipe, board and other non-metal mold.
● Other industries: can achieve a variety of carving, such as relief, graven images, valuable.such handiwork, plane engraving, cutting.Widely used in craft gifts industry
● Applicable to the cabinet door, solid wood doors, computer desk, panel furniture, antique furniture, etc.Can be used in large area, big output density board, wooden planks, guide plate, acrylic (plexiglass) plane engraving, cutting, such as 3d relief process


ATC Spindle CNC Router Features
1> Taiwan import Syntec control system, continuous carving during power failure and break point and speed control with easy one button operation
2> Imported Italy high power HSD 9KW tool change spindled, high precision, long life, torque, smooth operation;
3> The whole machine body has thicken square tube strong structure, welding aging treatment of science, the overall deformation.
4> We adopt import Japan Yaskawa servo motor and drivers, with fast speed, high precision, and shock resistance, besides the protection class of servo motor is IP65, it can be used in Harsh environment safety.
5> Low voltage electrical components is the top of the international and inland, for example, Schneider, siemens, ABB, Honeywell, Pmron, AMC,and so on


ATC Spindle CNC Router Specification

Model

USM-1325 disk ATC CNC ROUTER

Working area (X*Y*Z)

1300*2500*300mm

Table size

1750*3050*1740mm

Body structure

Strong Thicken steel made

X, Y Structure

Rack and pinion transmission

Guide rail

Taiwan 25 size hiwin square rails

Z Structure

Taiwan TBI ball screw

X, Y Resolution

<0.01mm

Max Moving Speed

60000mm/min

Max Engraving Speed

30000mm/min

X,Y,Z traveling positioning accuracy

±0.01mm

X,Y,Z repositioning accuracy

±0.01mm

Spindle power

9.0kw HSD Air cooling spindle

Spindle Speed

0-18,000rpm

Voltage

380v/3phase or as customer needed

Drive type

Yaskawa servo motors and drivers

Working Dictate

G Code

Operating system

Syntec 6MB control system

Tool sensor

Automatic too sensor

Auto oil lubricator

Automatic tool sensor

Wire protect

Yes,included

Running Environment

Temperature: 0℃~45℃

package

Export wooden box

After packed size

3300*2200*1900mm

G.W

1500kgs


Detail parts pictures

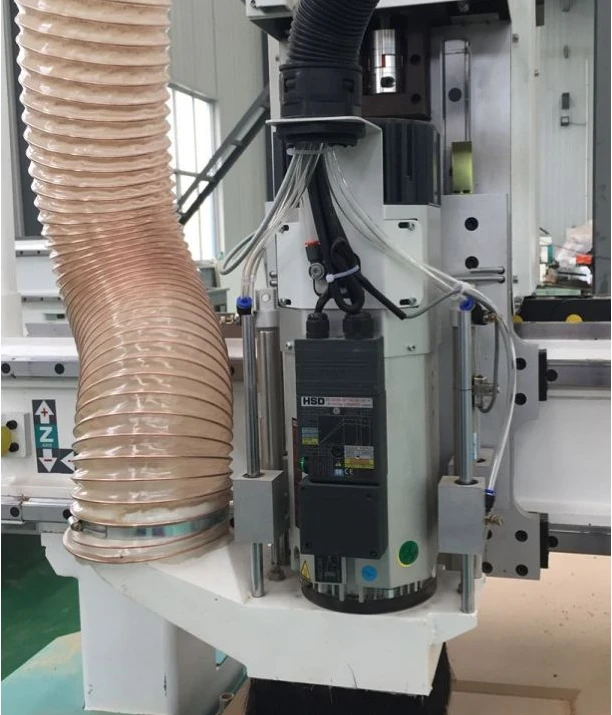

Italy 9KW HSD tool changer air cooling spindle

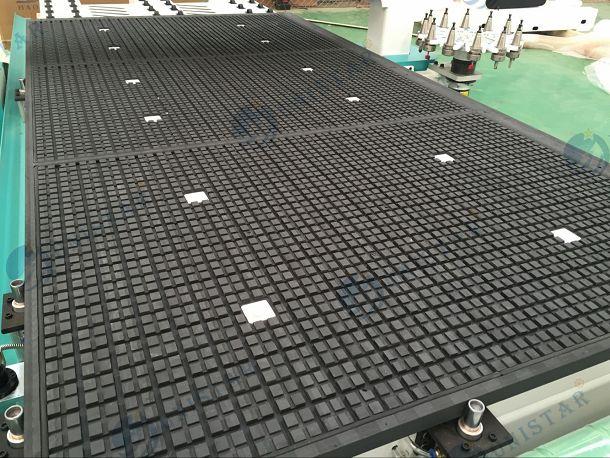

High hardness table with PVC engineer-plastics, smooth and flat, Also with air cylinder, easier and more accurate for positioning

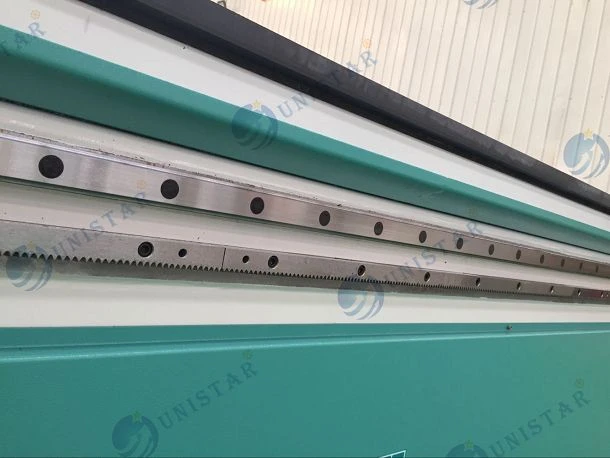

Taiwan high quality guide rail, good quality, to make machine working fast speed and high accuracy

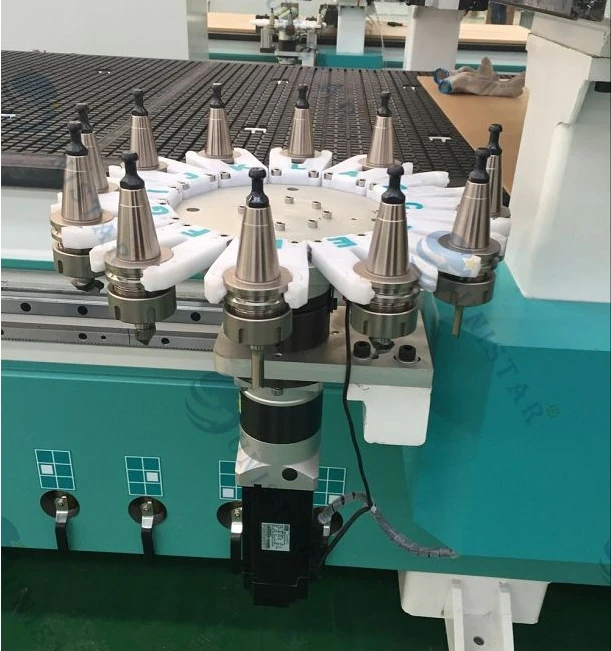

New type servo tool magazine, high precisoon of tool position, tools changing in high efficiency

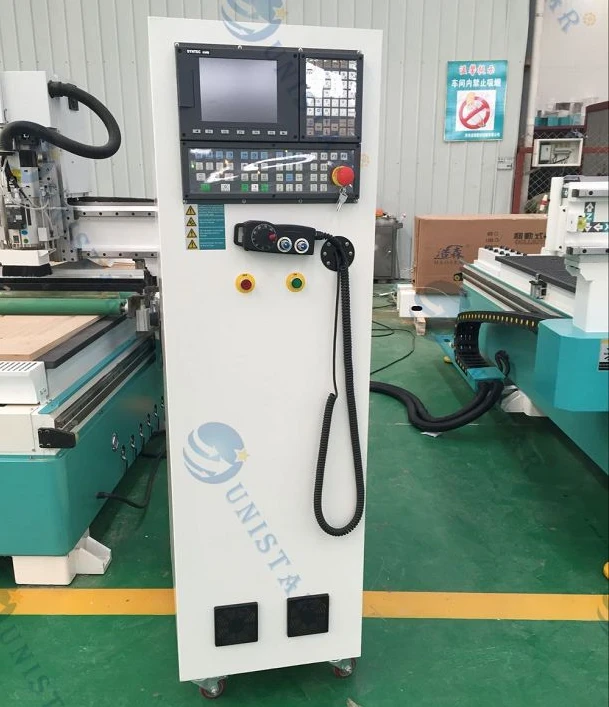

Taiwan Syntec control system with handwheel, more easy to operate

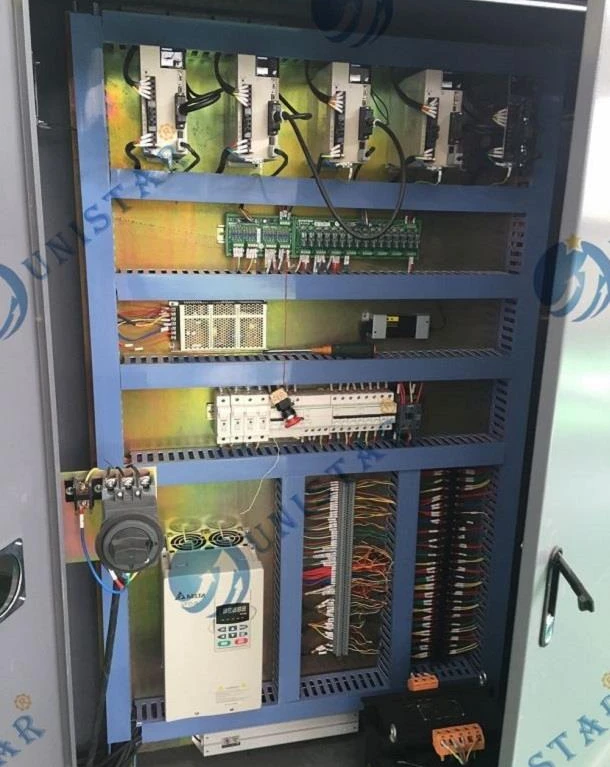

Japan yaskawa servo motor and drivers, Taiwan Delta inverter

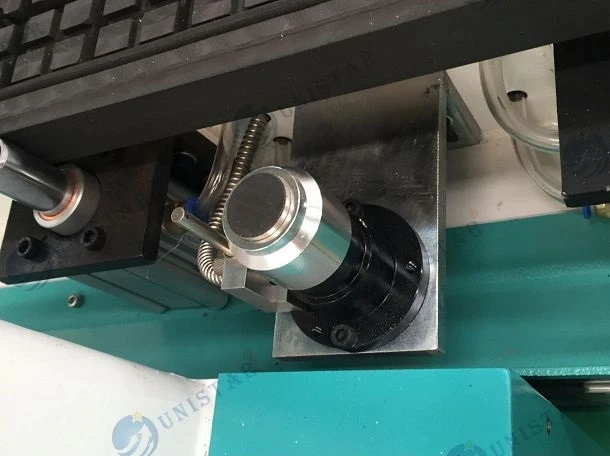

The auto tool sensor of thousands of classification accuracy's repositioning accuracy


Stong machine body back structure


Samples of disk atc spindle cnc router

Warranty
1> 18 months guarantee of the whole machine, We will provide the consumable parts at an agency price
2> two engineer team for after sell service immediately and effectively,
3> we could reply you in 3 hours after received your any questions even on weekend and holiday. if necessary, we could go to your country to support technology.
4> We will provide the consumable parts at an agency price when you need replacement.
5> Lifetime maintenance free of charge
6> Out of warranty period, the company's after-sales service center will provide repair service, such as the need to
change the machine accessories, will need to charge a reasonable cost of spare parts.
6> we can provide timely help by yahoo, MSN, skype or other communication platform , even on holiday


Contact way:
Facebook:Sarah Fu
Whatsapp:+8615064021290
Skype:unistarcnc
Mail: admin@unistarcnc.com
