Three process cnc router cnc machine is an economical tool changer cnc router machines.
It can auto-complete multi-process machining through three separate spindle automatic switching, save much time, improve process efficiency.

Send InquiryChat Now
Product Details

High quality USM1325 three process ATC cnc router machines for sale
Applicable industry and material
● Panel furniture decoration industry:
Solid wooded door, compound door, cupboard door, large area plank plane carving, wood
carve designs, board type furniture engraving, solid wood art mural engraving and so on.
● Wooden crafts processing:
Clock frame, picture frame, electrical counter face, sports equipment, thin aluminum board cutting and engraving
● Applicable to the computer desk, Can be used in large area, big output high density board, solid wood plane engraving, cutting, such as 3 d relief operation.
● The machine for diversified complexity processing models, suitable for board type furniture, such as complicated technology, modelling more products to mass production.
● For 2-3 kinds of pattern knife sculpture ornamental engraving and milling, processing a variety of designs (modelling)


Detail parameter

Description
X,Y,Z, Working Area
Table Size
Spindle power
X,Y,Z Traveling Positioning Accuracy
X,Y,Z Repositioning Accuracy:
Table Surface
Frame
X, Y Structure
Z Structure
Spindle Speed
Drive Motors
Working Voltage
Command Language
Operating System
Flash Memory
Collet
X,Y Resolution
Software Compatibility
Running Environment Temperature
Relative Humidity
N.W.
G.W.
Optional Parts
Vacuum Pump

Parameter
1300x2500x200mm
2150×3420mm
4.5KW HQD *2 spindle. 6 KW HQD air cooling spindle
±0.01/300mm
±0.03mm/300mm
Vacuum table with vacuum pump
Heavy Steel Tube Structure
Rack and Pinion Drive,Hiwin Rail Linear Bearings
Hiwin Rail Linear Bearings and TBI Ball Screw
0-24000RPM
Hybrid servo motor and drivers
AC380V/50/60Hz,3PH (Option: 220V)
G Code
NC studio control system
512M
ER25
<0.03mm
Type3/UcancameV9 software (Option: Artcam software)
0 - 45 Centigrade
30% - 75%
1600KG
1700KG
Mach 3/weihong Control system
Included 5.5KW vacuum pump

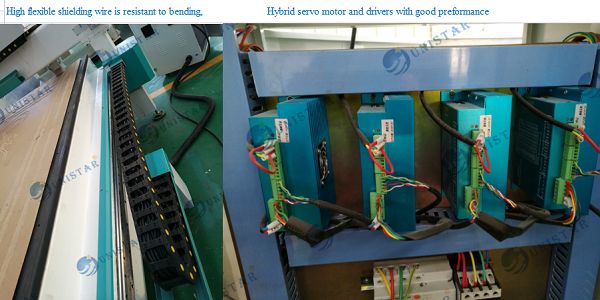

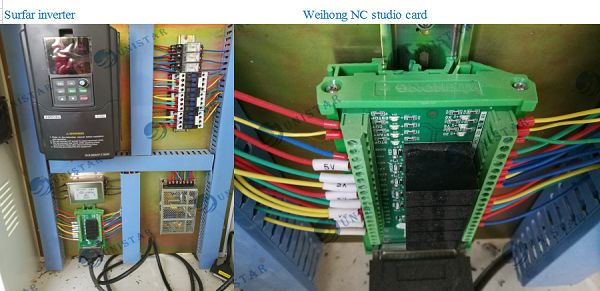

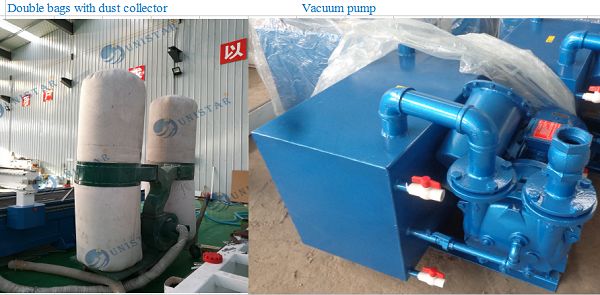

Parts pictures

ATC CNC Router Machines

Samples
