3D Wood Carving Machine

3D Wood Carving Machine

This model is suitable for sculpting boring and milling of 2-3 kinds of pattern cutters. There is no need of tool change for the processing of a variety of patterns, and the program is automatically executed. Its main features are less investment, high returns, less maintenance, and easy operation. For people with poor CNC operation, programming is also easy.

Send InquiryChat Now
Product Details

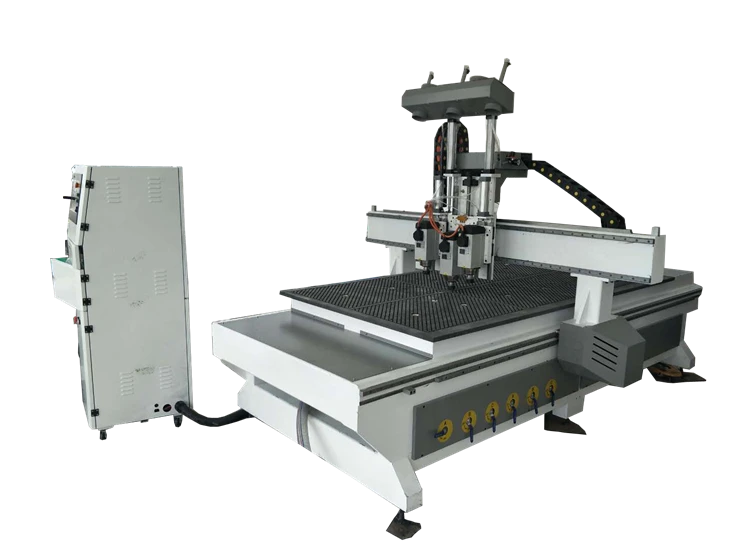

Auto Tool Changer 3D Wood Carving Machine with Industrial Strong Heavy Duty Body



3D Wood Carving Machine Application area

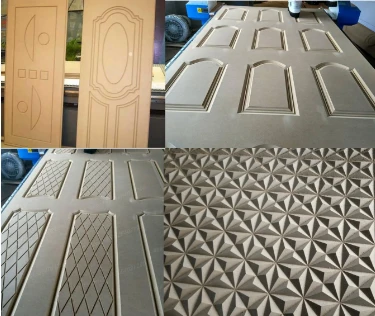

Woodworking industry: Three-dimensional wave board processing, cabinet doors, crafts wooden doors, paint-free doors, screens, craft fan window processing furniture products milling carving.


Wood Carving Machine Technical Parameter

Product name

3D wood carving machine

X,Y,Z Working area

1300x2500x250mm

X,Y,Z Traveling positioning accuracy

±0.05mm

X,Y,Z Repositioning accuracy

±0.05mm

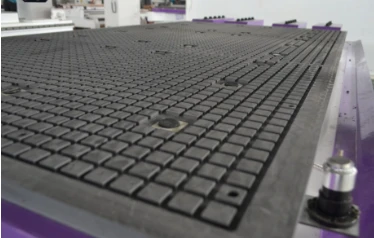

Table Surface

Vacuum table

X, Y axis transmission

Rack and pinion gear

Z axis transmission

Taiwan ball screw with high quality

Spindle power

HQD Air-cooling 5.5kw spindle

Spindle rotating speed

0-24000RPM

Drive and motor

Stepper System

Inverter

Surfar Inverter

Operating system

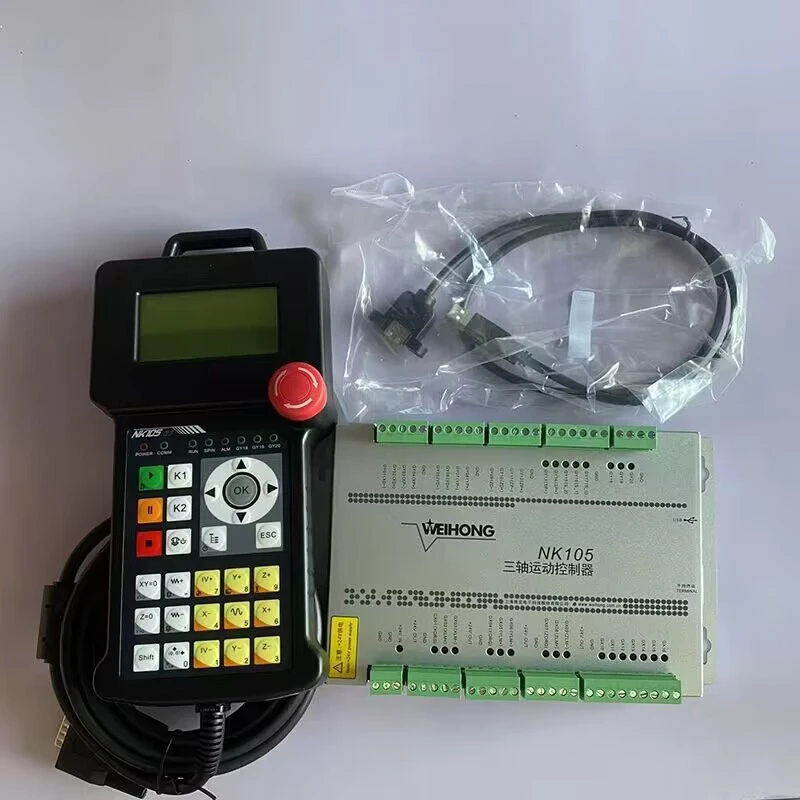

NC studio control system

Frame

Square pipe welded structure

Rail configuration

20 square rail

Dust collectDust collect with twp bags

Max traveling speed

25000mm/min

Max working speed

15000mm/min

Working voltage

AC380V ,50Hz ,3PH

Command language

G code, mmg, PLT, HPG

Software compatibility

Type3,Wentai,Artcut

Packing

Wooden case


3D Carving Machine advantages

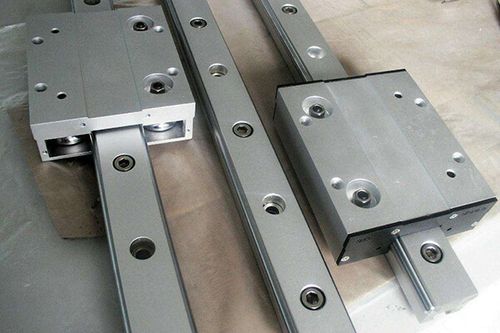

1. Adopting imported linear guide rails from Taiwan, double row and four-row ball sliders, with large bearing capacity, stable operation, high precision and long service life. Imported ball screw with high precision and accurate under the knife.

2. The spindle uses HQD 4.5KW high speed air-cooling motor. Power spindle , stable performance.

3. Good software compatibility, compatible with CAD/CAM design software such as type3/Actcam/Castmate/Wentai.

4. The Y-axis adopts dual-motor drive, which makes it possible to run at speeds of up to 25 m/min or more at high speeds. In combination with vigorous cutting of the spindle, the engraving speed can be increased.

5. Overall trapezoidal bed, strong stability.

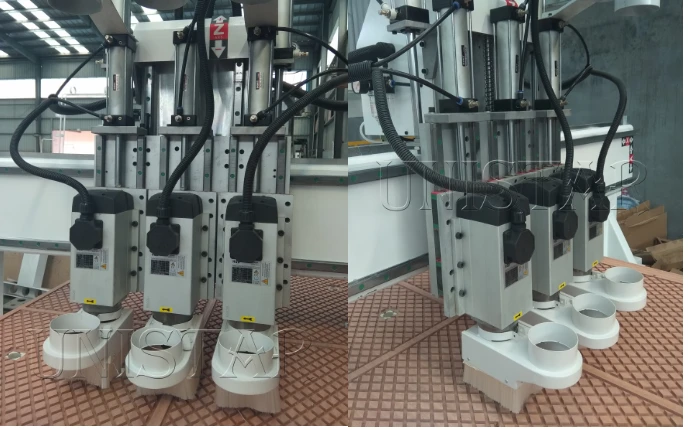

6. It can cut material, slotted hole, sculpture shape, etc., realize three knife head automatic tool change, specially designed for improving efficiency, three spindles can be switched freely with cylinder control, and can easily complete multi-programs designed by customers. Eliminating the tedium of intermediate tool change.

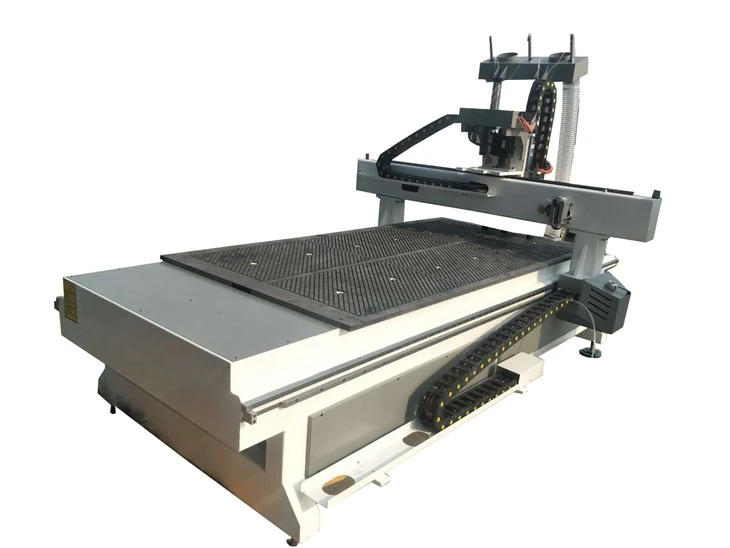

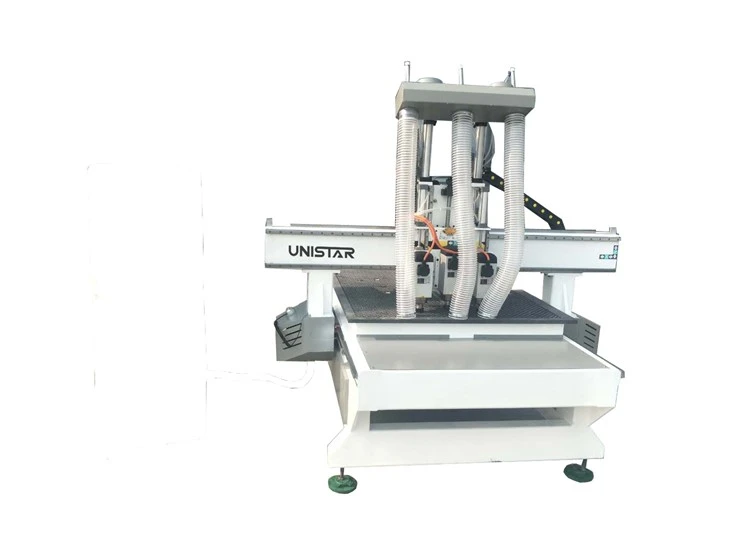

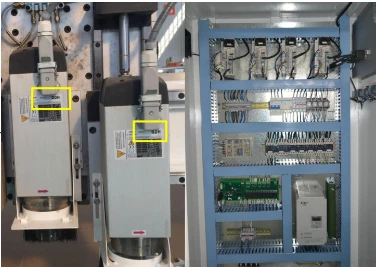

3D Wood cnc Machine  Details show quality

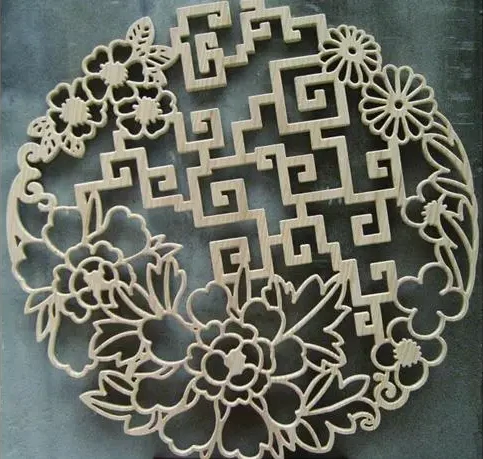

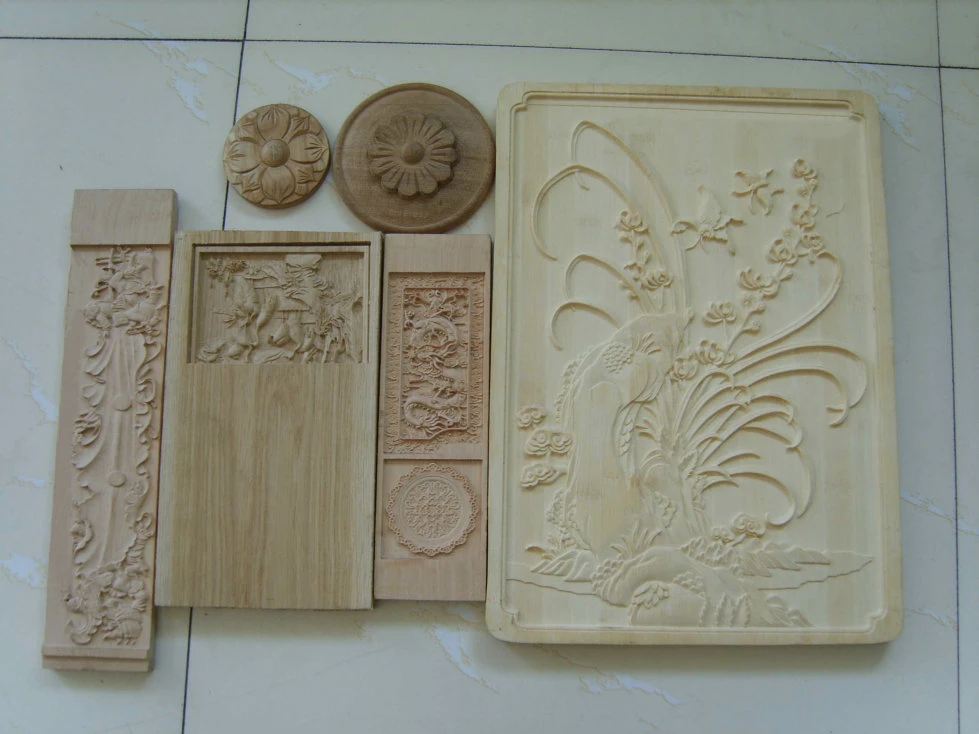

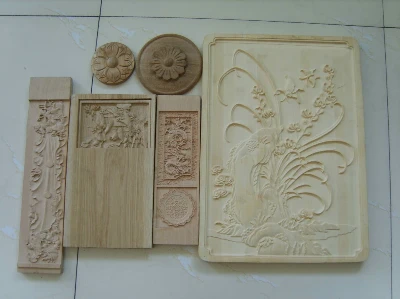

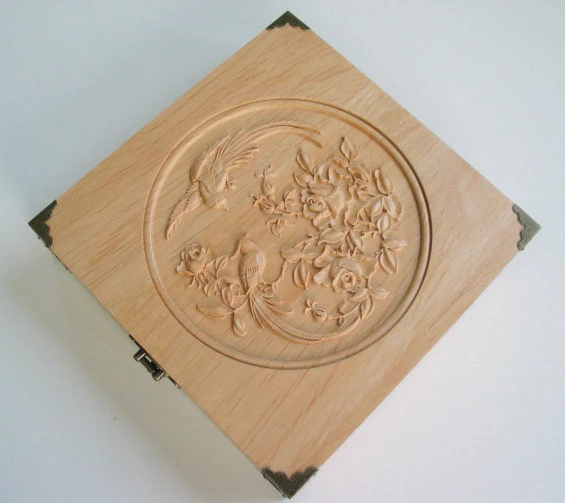

Sample




Packing and shipping



Our after - sales service

#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products

#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.

#. 12 months guarantee of the whole machine.

#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem

during the warranty period.

#. Lifetime maintenance free of charge.

#. We will provide the consumable parts at an agency price when you need replacement.

#. Machine has been adjusted before delivery.

#. Our staff can be sent to your company to install or adjust if necessary
