Plasma Metal Cutting Machine

Plasma Metal Cutting Machine

High efficiency, high precision, high reliability of cutting equipment. Good man-machine interface makes operation more convenient and simple, can quickly and accurately cut all kinds of complicated shape of plate, especially suitable for the thin non-ferrous metal plates, stainless steel and carbon steel sheet blanking automation.It USES a one-piece modular design, fast installation, mobile convenience.

Send InquiryChat Now
Product Details

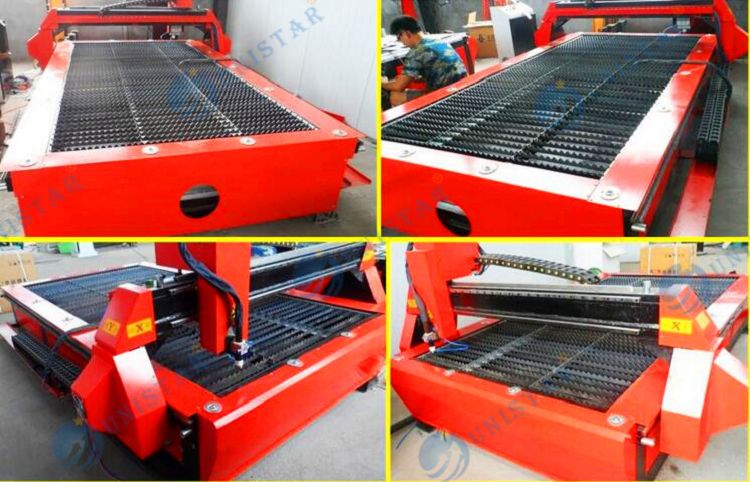

Multifunctional plasma metal cutting machine with rotation for steel


The desktop CNC cutting machine is a desktop cutting machine that combines high speed, precision and miniaturization. The man-machine interface is adopted, the installation is convenient, the operation is simple, the inertia is small, and the operation is stable. It is especially suitable for automatic cutting and cutting of medium and thin non-ferrous metal sheets, stainless steel and carbon steel sheets.

Advantages

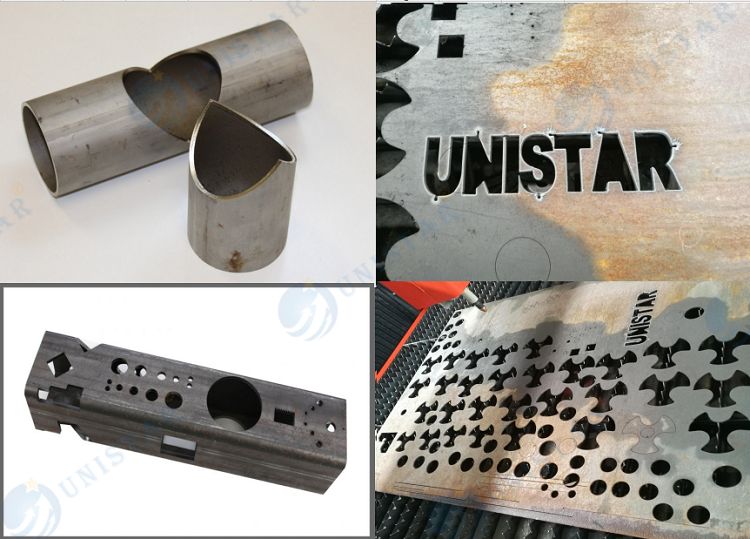

(1) Plasma metal cutting machine with rotation can cut cylindrical goods, it brings a lot of convenience.
(2) The type of this machine with high efficiency, could help you finish your work faster.
(3) Automatic oil filling system could save much time for you, keep the machine work well.
(4) Prevent dust system take a clean work table, give you a good mood.
(5) Brilliant design show you a wonderful product, never worry about the inconvenient experience.

(6)High efficiency, high precision, high reliability of cutting equipment.

(7)Good man-machine interface makes operation more convenient and simple, can quickly and accurately cut all kinds of complicated shape of plate, especially suitable for the thin non-ferrous metal plates, stainless steel and carbon steel sheet blanking automation.

(8)It USES a one-piece modular design, fast installation, mobile convenience.

Parameter

Name

Specification

Machine area (X)

1300mm

Machine area (Y)

2500mm

Working area

1300*2500mm

Supply power

China domestic Huayuan plasma power LGK63A

Control system

Advanced Beijing start control system

Motor and driver

Stepper motor and drivers with high accuracy

Rotation

High quality rotation with long lifetime

Transmission

X,Y Helical rack -pinion,Z ball srew from Taiwan

Rail guide

Taiwan PMI rail guide

Table type

3mm thickness Blade table (other factory use 2mm thickness)

Machine body

Weld steel machine body heavy one, working more stable

Software

Original Fastcam software special use for cnc plasma

THC system (follow-up system

Torch height control system (has touch screen, more easy to adjust the arc height)

Prevent dust system

Dust proof system create a clean working environment

Oil system

Auto oil injection system

Max. cutting speed

16000mm/min

Power cutting ability

0.5-30mm

Repeatability

0.005mm

Working voltage

380V/60HZ/50HZ

Spare parts

Electrode / Nozzle / stepper cover

 Air compressor

We added for you

Warranty

Machine 1.5 Years,during warranty, we can take broken parts free if no human damage

Date of delivery

20 WORKING DAYS AFTER GET PAYMENT

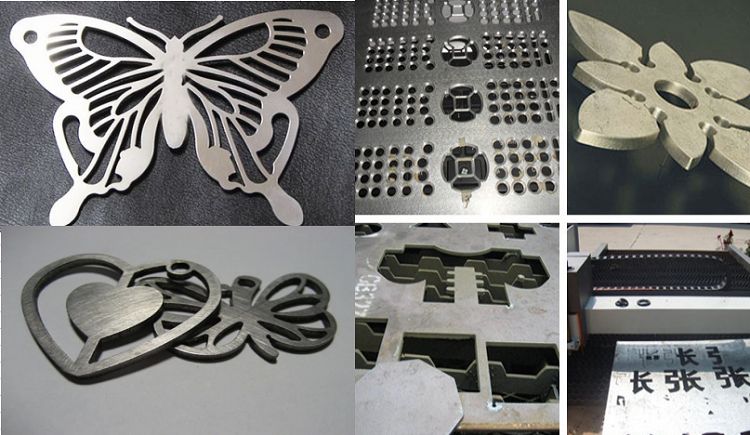

Samples
