The plasma cutter table have high rate of starting arc,humanity design improve the work efficiency. save much labor. mainly used for metal cutting. such as stainless steel,carbon steel,and iron.

Send InquiryChat Now
Product Details

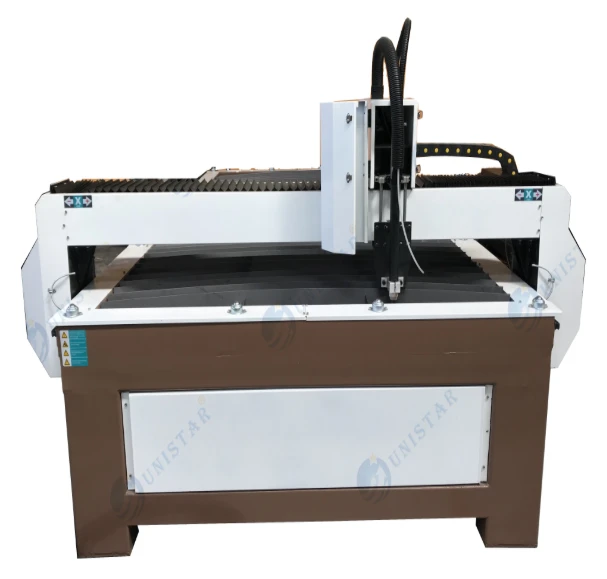

Manufacture price plasma cutter table have high working effectiveness


Machine parameters

Machine area (X): 1300mm

Machine area (Y): 2500mm

Supply power: Domestic brand Huayuan plasma power LGK

Control system: Beijing start control system

Motor and driver: Yaskawa Servo motor and drivers with high accuracy

Transmission: X,Y Helical rack -pinion ,Z ball srew from Taiwan

Rail guide: Taiwan rail guide

Table type: 3mm thickness Blade table (other factory use 2mm thickness)

Machine body: Weld steel machine body heavy one , working more stable

Software: Original one Fastcam software special use for cnc plasma machine

THCsystem (follow-up system): Torch height control system (has touch screen , more easy to adjust the arc height)

Prevent dust system: Dust proof system

Oil system: Auto oil injection system

Max. cutting speed: 16000mm/min

Power cutting ability: 0.5-30mm

Repeatability: 0.005mm

Working voltage: 380V/60HZ/50HZ

Spare parts: Electrode / Nozzle / stepper cover


The plasma cutting machine is a high-efficiency and energy-saving cutting device. It is suitable for precision cutting and cutting of carbon steel, stainless steel and non-ferrous metal plates of various thicknesses, improving the utilization rate of the plates, saving time and materials.


Plasma Cutter Table Features

Graphic editing is convenient, minimizing waste (large screen control, automatic nesting software):

High stability color large screen, human-machine interaction standard industrial control system configuration.

USB interface, fast analog input and output, PLC logic control.

Compatible with CorelDraw, AutoCAD, Wentai and other software.

Windows operating system, with plasma current regulation, air pressure control, Z-axis height control.

Arbitrarily realize linear line difference compensation, arc difference compensation, fitting, backlash compensation, screw pitch error compensation, kerf compensation and many other functions.

Optional installation of automatic nesting software, rational use of materials, reduce waste.

Power-off, breakpoint continuous cutting, processing time prediction, automatic tool setting and other functions, real humanized design.

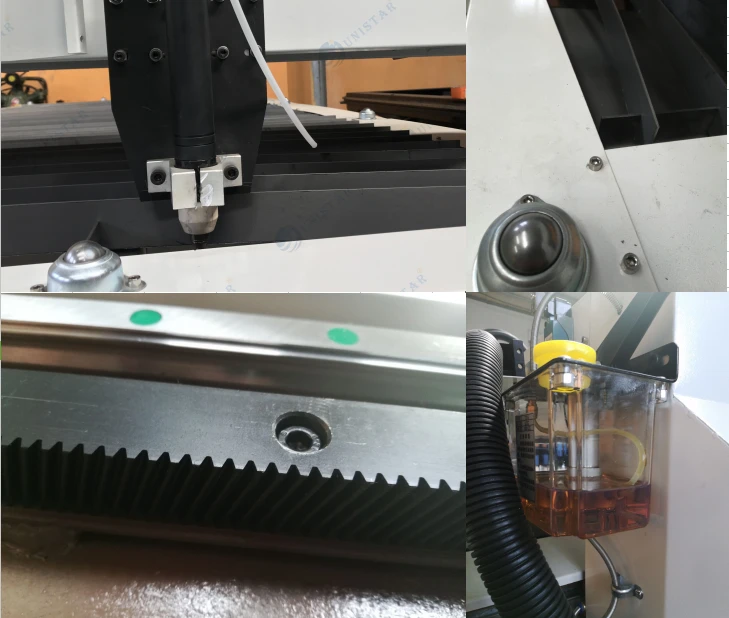

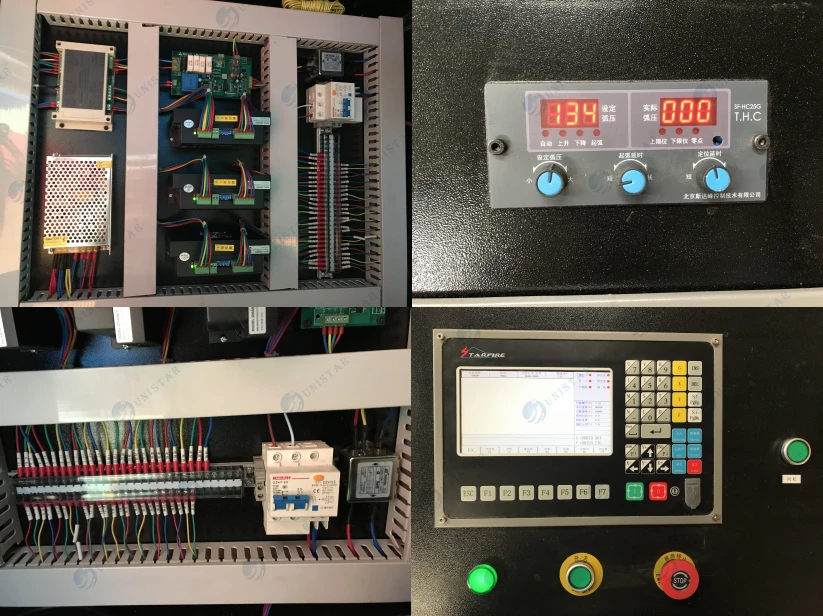

Parts pictures

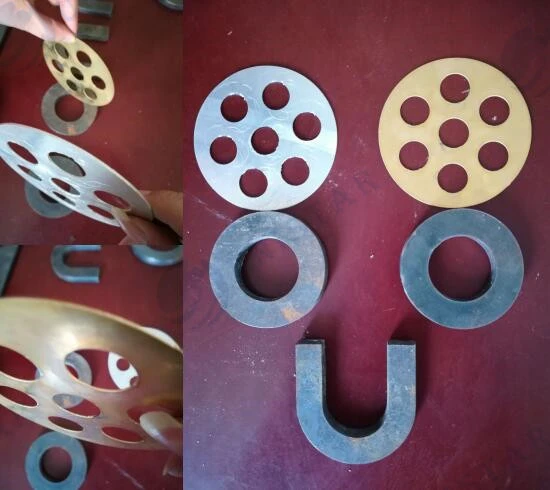

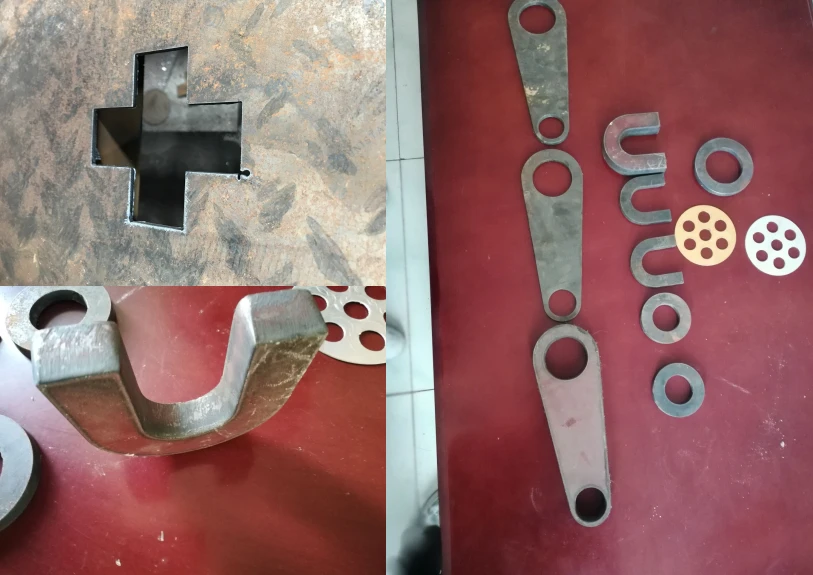

Samples of the machine




Packing and shipping



Our training&after service

1> our engineer would help you through long range control face to face with computer.

2>we are online 24 hours after sale service.

3>we have technical service email address.if you want consult questions,we will reply you in one day definitely.

4>If necessary, our engineer could be arranged to you.

5>In the processing of production, our professional technical engineers inspect the processing to ensure the quality.

6>Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.

7>18 months guarantee of the whole machine.

8>Main parts(excluding the consumables) shall be changed free of charge if there is any problem.

during the warranty period.

9>Lifetime maintenance free of charge.

10>We will provide the consumable parts at an agency price when you need replacement. if out of the warranty time.any parts need to replaced,  we will give you agent price.
