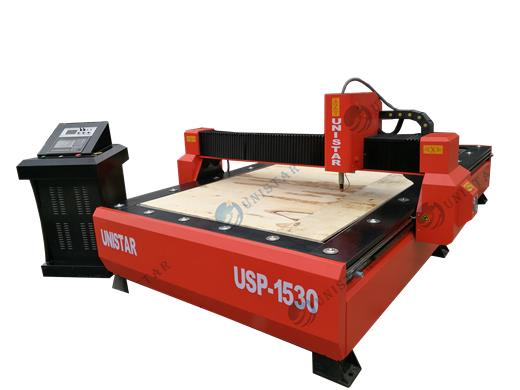

Unistar 1530 cnc plasma table with high speed, high efficiency, cutting speed can reach more than 10 m/min. The cutting area wide, can cut all sheet metal. and precision is higher than flame cutting, underwater cutting deformation, fine plasma cutting machine, precision is higher.

Send InquiryChat Now
Product Details

Hot sale cnc plasma table for metal (carbon steel,stainless steel.etc)


● CNC Plasma Table Description
A CNC Plasma Table is a cutting machine that converts ordinary industrial electricity into a high-temperature plasma arc, uses the energy of a plasma arc to burn the steel plate, and removes the residue by means of a plasma stream to form an incision.


Unistar cnc plasma table can be applied to many industries. It can cut steel, aluminum and so on. Plasma cutting machine with a different working gas can cut all kinds of metals that is difficult to cut by oxygen cutting. Especially for non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel), it has better cutting performance. When cutting small-thickness metal, the plasma cutting speed is fast. Especially when cutting ordinary carbon steel sheet, the speed can reach 5-6 times of the oxygen cutting method. The cutting surface is smooth, the thermal deformation is small, and there is almost no heat-affected zone.


Application

Plates of stainless steel, cast iron, copper, aluminum and other non-ferrous metals, or sheets with thickness less than 6mm, etc.

Basic configuration

Name

Specification

Machine area (X)

1500mm

Machine area (Y)

3000mm

Working area

1500*3000mm

Supply power

China domestic Huayuan plasma power LGK63A

Control system

Beijing start control system

Motor and driver

Stepper motor and drivers with high accuracy

Transmission

X,Y Helical rack -pinion,Z ball srew from Taiwan

Rail guide

Taiwan PMI rail guide

Table type

4mm thickness Blade table (other factory use 2mm thickness)

Machine body

Weld steel machine body heavy one, working more stable

Software

Original one Fastcam software special use for cnc plasma machine

THC system (follow-up system

Torch height control system (has touch screen , more easy to adjust the arc height)

Prevent dust system

Dust proof system

Oil system

Auto oil injection system

Max. cutting speed

16000mm/min

Power cutting ability

10mm thickness metal

Repeatability

0.005mm

Working voltage

380V/60HZ/50HZ

Spare parts

Electrode / Nozzle / stepper cover

Air compressor

We added for you

Warranty

Machine 1.5 Years,during warranty, we can take broken parts free if no human damage

Date of delivery

20 WORKING DAYS AFTER GET PAYMENT

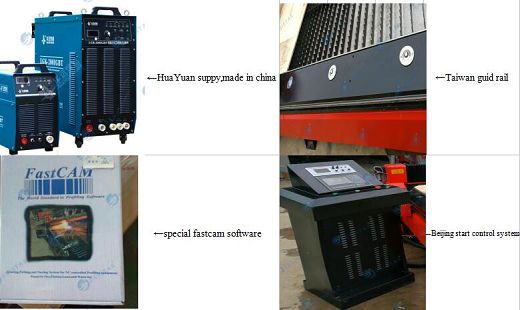

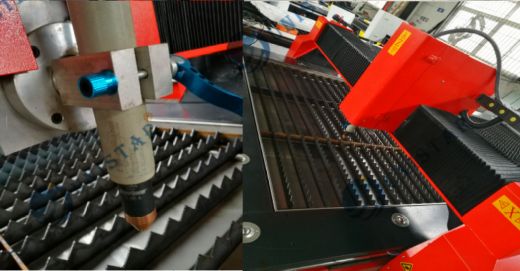

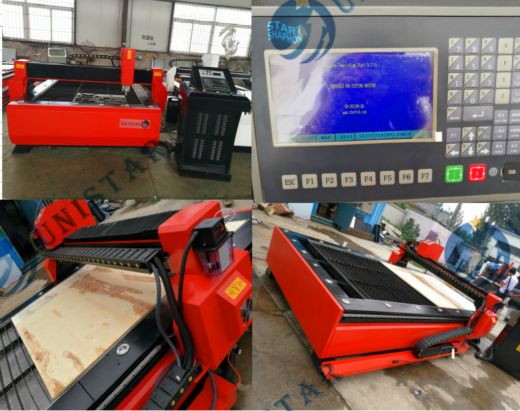

Detailed picture

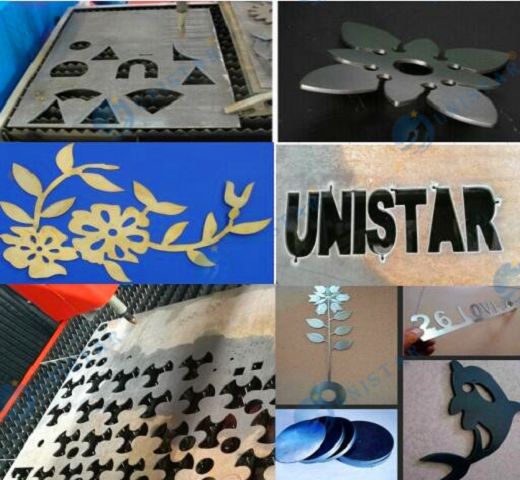

● Samples

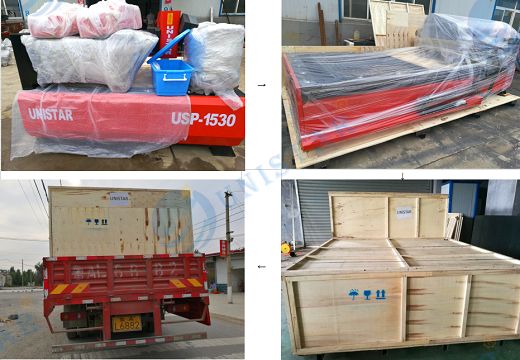

Packing and Shipping


1)Professional truck escort, to ensure that the machine will not be on the road risk
2)Accompanied by the whole process, to ensure safe boat on board.
