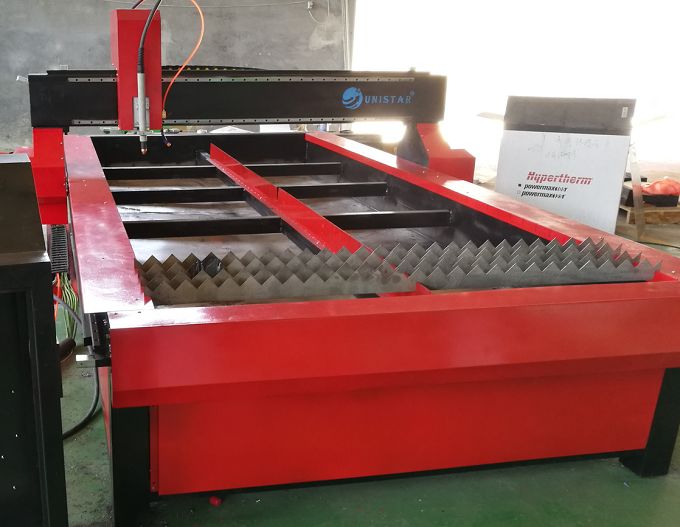

CNC Plasma Cutting Table

CNC Plasma Cutting Table

Cnc plasma cutting table machine with stainless steel water tank, have dust removal smoke and cooling effect. Hypertherm supply power with more cutting ability, Machine strong structure keep the steady when it works. The machine applied for multiple industries and many metal materials.

Send InquiryChat Now
Product Details

Long lifetime Cnc plasma cutting table with excellent working ability.



Characteristic
1) Steady structure with long working lifetime: The machine adopts all welded as seamless steel structure after quenching treatment. Welded thick profiled steel lathe bed, solid and stable. 10mm steel plates fixed on lathe table covered by cast sheath.The level difference of platform remains in 0-1.5mm.
2) High cutting speed and precision: is ensured by high configuration, such as Hypertherm power, Beijing Start control system and guide rail.
3) Good compatibility: File format: G-code, Suitable Software: Beijing fastcamn design.
4) Perfect details processing technology: every detail is treated very seriously built perfect machine. Advanced material inclined discharging design.
5) Easy and safe operation and low maintenance cost.

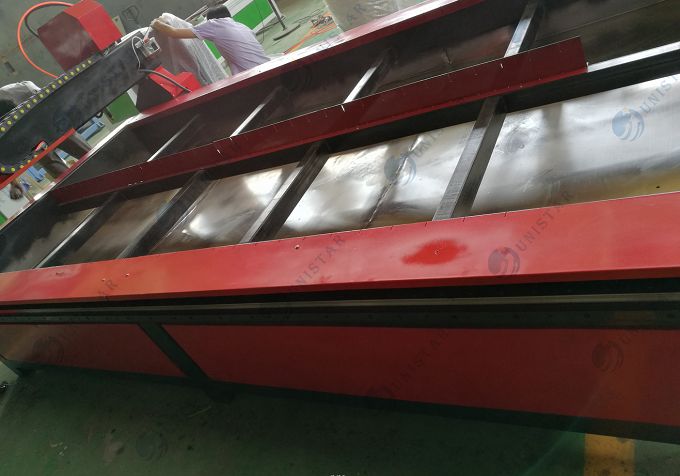

6) With stainless steel water tank, it's not easy to rust, remove dust and smoke, keep cooling system
7) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
8) Matured and perfect after-sales service system around the clock removes the worries for the future.

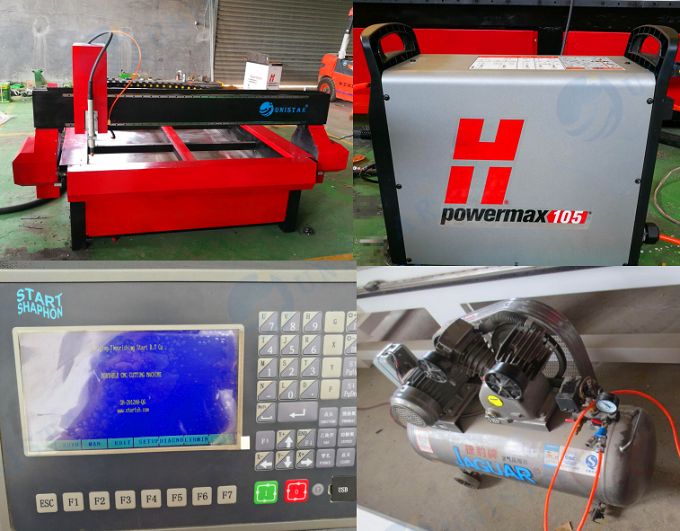

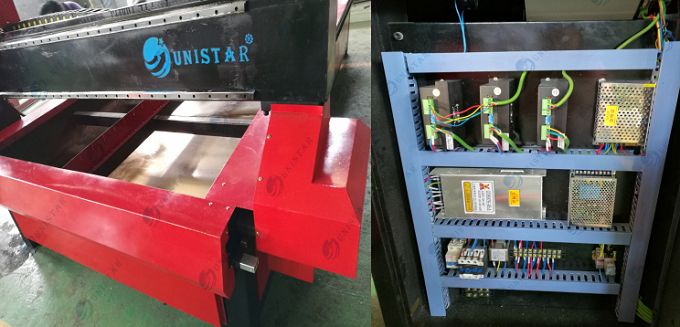

Parts and details

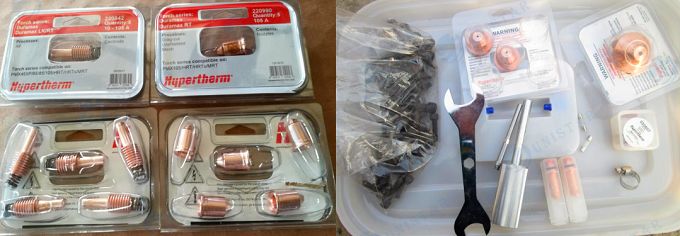

Spare parts (Nozzle, electrode, protector cap)


Configurations

Name

Specification

Machine area (X)

1500mm

Machine area (Y)

3000mm

Working area

1500*3000mm

Supply power

Hypertherm plasma power max 105A

Remove dust system

Stainless steel water tank, no rust

Control system

Beijing start control system

Motor and driver

Stepper motor and drivers with high accuracy

Transmission

Taiwan TBI ball srew with high accuracy

Transmission

X,Y Helical rack -pinion

Rail guide

Taiwan PMI rail guide

Table type

3mm thickness Blade table (other factory use 2mm thickness)

Machine body

Weld steel machine body heavy one , working more stable

Software

Original one Fastcam software special use for cnc plasma machine

THC system (follow-up system

Torch height control system (has touch screen, more easy to adjust the arc height)

Prevent dust system

Dust proof system

Oil system

Auto oil injection system

Max. cutting speed

16000mm/min

Power cutting ability

0.5-30mm

Repeatability

0.005mm

Working voltage

380V/60HZ/50HZ

Spare parts

Electrode / Nozzle / stepper cover

Air compressor

We added for you

Warranty

Machine 1.5 Years, during warranty, we can take broken parts free if no human damage

Date of delivery

20 WORKING DAYS AFTER GET PAYMENT

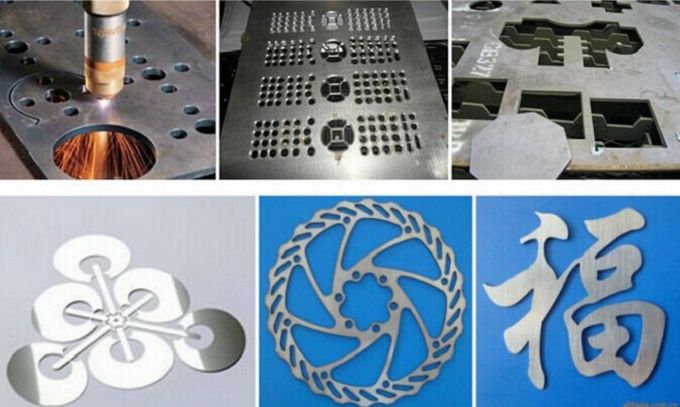

Samples pictures

Packing and shipping


Please contact with us
Skype: Unistarcnc02
Mail: jenny@unistarcnc.com
