CNC Plasma Cutter

CNC Plasma Cutter

CNC plasma cutter mainly applied for cutting copper, carbon steel, stainless steel, aluminum, etc. with high speed and accuracy.

Send InquiryChat Now
Product Details

USP1325 CNC Plasma Cutter For Cutting Steel Plate.

CNC Plasma Cutter

● Features As Follows:
(1) The cooling system ensure the temperature of cutting head surface keep it's fit.
(2) The guide rail from TaiWan guarantee the running speed and accuracy.
(3) Power with different type means cut different thickness metal,offering the best effect of cutting.
(4) High-level Control system is easy to understanding and operate.saving a lot of time for you.
(5) The overall use of high-precision stepper motor quasi-precision rack and pinion to ensure its small, smooth and accurate coordinate movement performance.

● Specific Parameter

Name

Specification

Machine area (X)

1300mm

Machine area (Y)

2500mm

Working area

1300*2500mm

Supply power

Imported Hypertherm plasma power 105A

Control system

Beijing start control system

Motor and driver

Stepper motor and drivers with high accuracy

Transmission

X,Y Helical rack -pinion ,Z ball srew from Taiwan

Rail guide

Taiwan PMI rail guide

Table type

3mm thickness Blade table (other factory use 2mm thickness)

Machine body

Weld steel machine body heavy one , working more stable

Software

Original one Fastcam software special use for cnc plasma cutter machine

THC system (follow-up system )

Torch height control system (has touch screen , more easy to adjust the arc height)

Prevent dust system

Dust proof system

Oil system

Auto oil injection system

Max. cutting speed

16000mm/min

Power cutting ability

0.5-30mm

Repeatability

0.005mm

Working voltage

380V/60HZ/50HZ

Spare parts

Electrode / Nozzle / stepper cover

Air compressor

We added for you

Warranty

Machine 1.5 Years, during warranty, we can take broken parts free if no human damage

Date of delivery

20 WORKING DAYS AFTER GET PAYMENT





● Parts

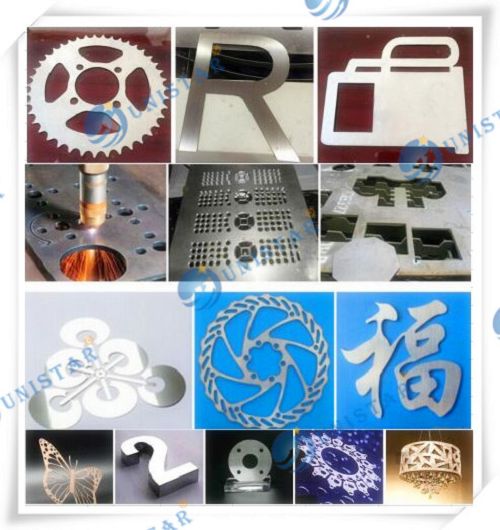

● Plasma Cutter samples


● After sale service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.

Customer visit us


*Certificate of our company
