CNC Metal Plasma Cutter

CNC Metal Plasma Cutter

The CNC metal plasma cutter with high speed save the working time. application for metal, such as carbon steel and stainless steel, iron, aluminum, nickel, etc. it can used in metal cutting industry. car manufacture and so on.

Send InquiryChat Now
Product Details

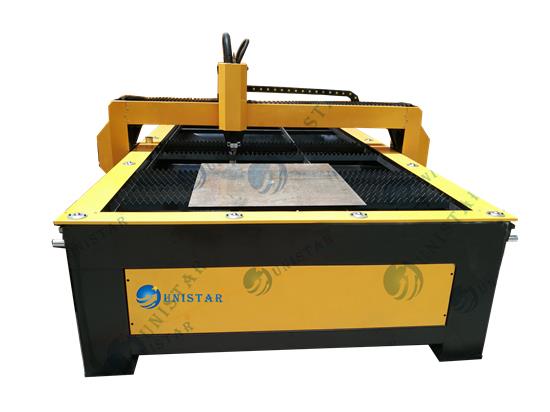

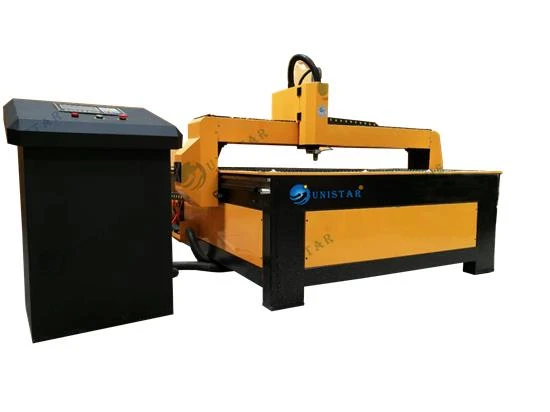

High speed USP1530 CNC Metal Plasma Cutter with high accuracy


● Parameters

Name

 Specification

Machine area (X)

1500mm

Machine area (Y)

3000mm

Supply power

China domestic Huayuan plasma power LGK63A

Control system

Beijing startfire control system

Motor and driver

Stepper motor and drivers with high accuracy

Transmission

X,Y Helical rack -pinion, Z ball srew from Taiwan

Rail guide

Taiwan PMI rail guide

Table type

4 mm thickness Blade table (other factory use 2mm thickness)

Machine body

Weld steel machine body heavy one, working more stable

Software

Original one Fastcam software special use for cnc plasma machine

THC system (follow-up system

Torch height control system (has touch screen , more easy to adjust the arc height)

Prevent dust system

Dust proof system

Oil system

Auto oil injection system

Max. cutting speed

16000mm/min

Power cutting ability

0.5-30mm

Repeatability

0.005mm

Working voltage

380V/60HZ/50HZ

Spare parts

Electrode / Nozzle / stepper cover

 Air compressor

We added for you

● Features
1.Y axis adopts double motors with double drivers, adopt square rail, moving smoothly, with high accuracy.
2.Wonderful performance on cutting illuminated letters for advertising and channel letters on metal surface board.
3.Small cutting gap, at the same time,no residua.
4.High cutting speed, high accuracy and low cost
5.Progressive CNC control system, Auto Arc, arcing success rate over 98%.
6.Support G code files of FASTCAM software. Control system supports U disk file transfer, easy operation.
7.Adopt famous plasma power supply and cutting torch.

● Detailed pictures

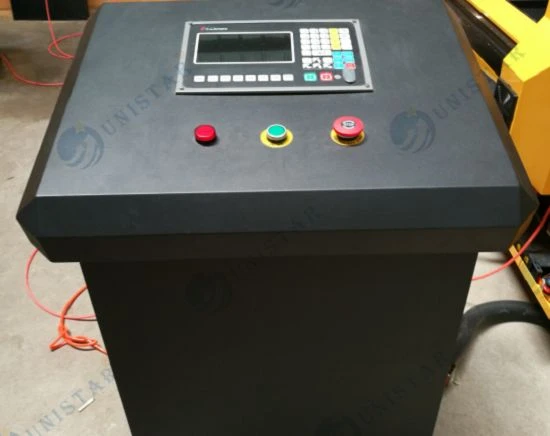

1>Beijing Startfire control system easy to operate.

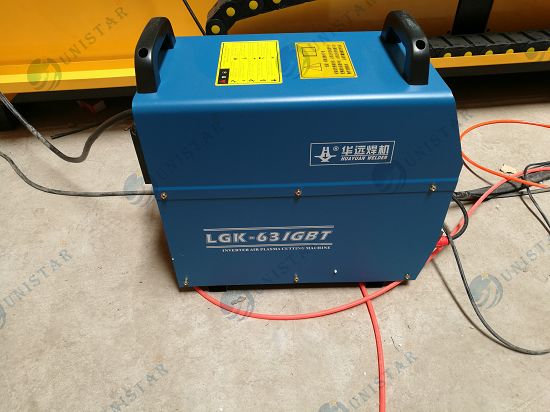

2>China brand Huayuan 63A power supply.

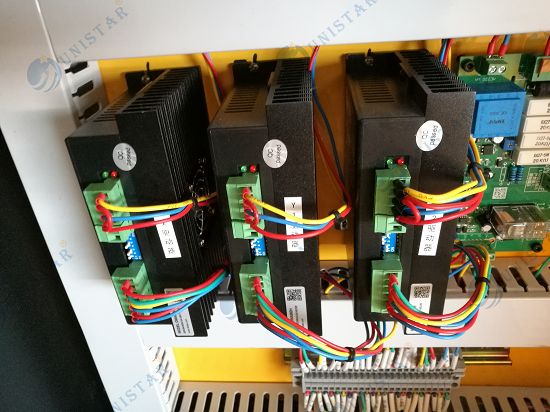

3>Stepper motor and drivers.

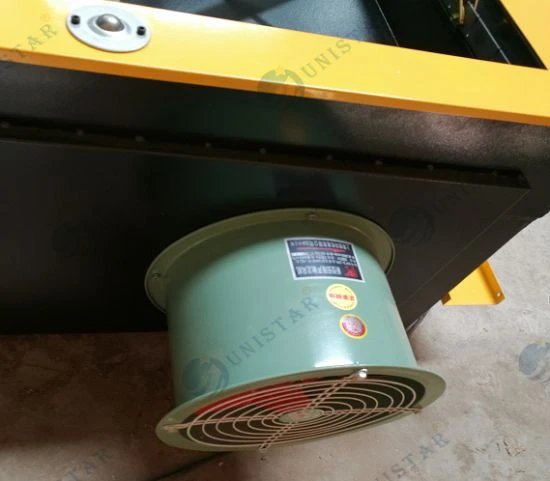

4>Exhaust system create a fresh working environment.

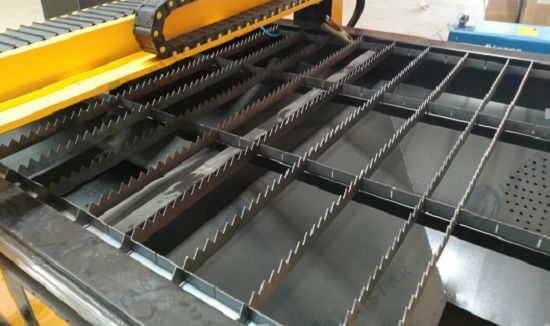

5>Blade table have 4mm ensure the steady working.

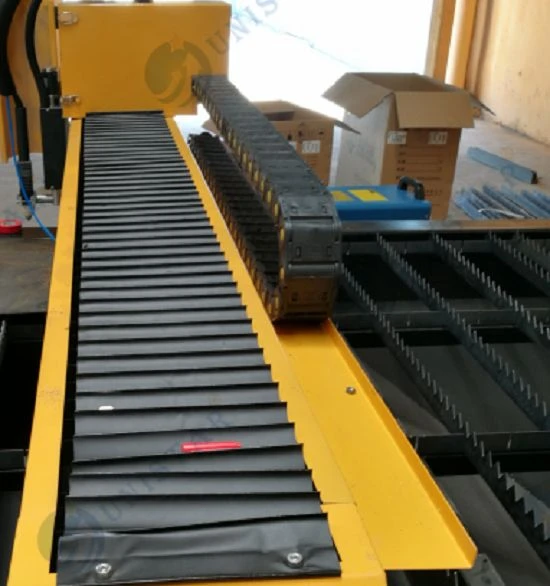

6>Dust cloth ensure the inside clean of the machine.

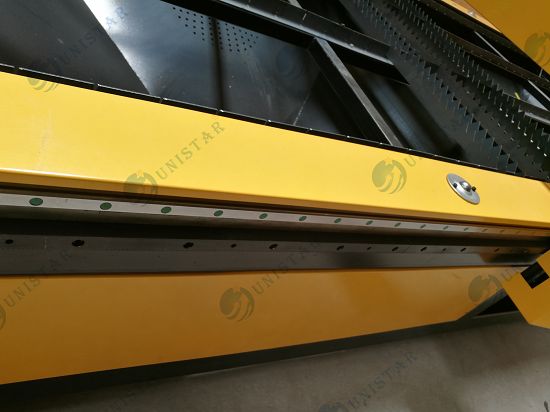

7>Taiwan rail guide with high quality

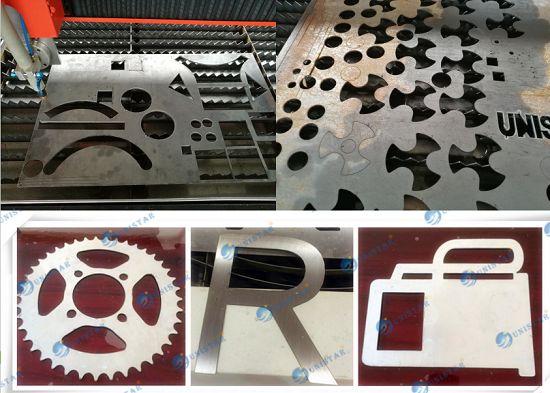

● Samples image

● Packing &Shipping


● Product Warranty
#12 months guarantee of the whole machine.
#Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#We will provide the consumable parts at an agency price when you need replacement.

If you like this type CNC metal plasma cutter machine. or have doubts about it. Please feel free to contact me. Ways as below.
